makVrv::DtCigiSettingsInterface Class Reference

A DtCigiSettingsInterface is an abstract interface for a CIGI settings widget. More...

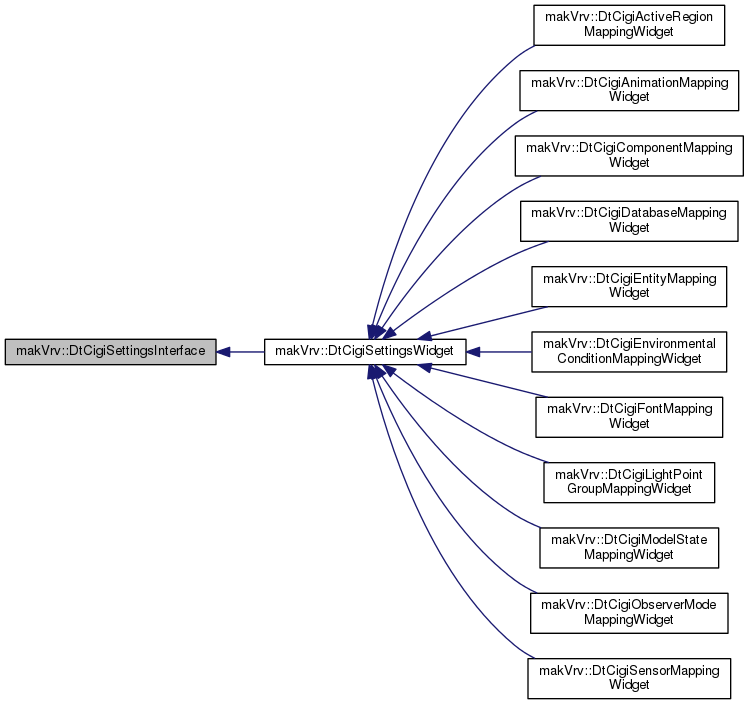

Inheritance diagram for makVrv::DtCigiSettingsInterface:

Public Member Functions
virtual	~DtCigiSettingsInterface ()
	Destructor. More...
virtual void	addSettings (const std::string &name)=0
	Add new settings with the specified name. More...
virtual void	removeSettings (const std::string &name)=0
	Remove the named settings. More...
virtual void	setCurrentSettings (const std::string &name)=0
	Set the named settings as the current settings. More...
virtual void	setSettings (const std::vector< std::string > &nameList)=0
	Set all settings. More...

Public Attributes
boost::signalslib::signal < void(bool)>	signal_pageEnabled
boost::signalslib::signal < void(const std::string &)>	signal_currentSettingsChanged
boost::signalslib::signal< void() >	signal_newSettingsRequested
boost::signalslib::signal < void(const std::string &)>	signal_deleteSettingsRequested
boost::signalslib::signal < void(const std::string &, const std::string &)>	signal_renameSettingsRequested

Detailed Description

A DtCigiSettingsInterface is an abstract interface for a CIGI settings widget.

There may be different named settings for CIGI. This class handles the interface to add/remove/change settings.

Constructor & Destructor Documentation

virtual makVrv::DtCigiSettingsInterface::~DtCigiSettingsInterface ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtCigiSettingsInterface::addSettings ( const std::string &  name )

pure virtual

Add new settings with the specified name.

Implemented in makVrv::DtCigiSettingsWidget.

virtual void makVrv::DtCigiSettingsInterface::removeSettings ( const std::string &  name )

pure virtual

Remove the named settings.

Implemented in makVrv::DtCigiSettingsWidget.

virtual void makVrv::DtCigiSettingsInterface::setCurrentSettings ( const std::string &  name )

pure virtual

Set the named settings as the current settings.

Implemented in makVrv::DtCigiSettingsWidget.

virtual void makVrv::DtCigiSettingsInterface::setSettings ( const std::vector< std::string > &  nameList )

pure virtual

Set all settings.

Implemented in makVrv::DtCigiSettingsWidget.

Member Data Documentation

boost::signalslib::signal<void (bool)> makVrv::DtCigiSettingsInterface::signal_pageEnabled

boost::signalslib::signal<void (const std::string&)> makVrv::DtCigiSettingsInterface::signal_currentSettingsChanged

boost::signalslib::signal<void () > makVrv::DtCigiSettingsInterface::signal_newSettingsRequested

boost::signalslib::signal<void (const std::string&)> makVrv::DtCigiSettingsInterface::signal_deleteSettingsRequested

boost::signalslib::signal<void (const std::string&, const std::string&)> makVrv::DtCigiSettingsInterface::signal_renameSettingsRequested

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCigiQt/DtCigiSettingsInterface.h
