This class displays the display units. More...

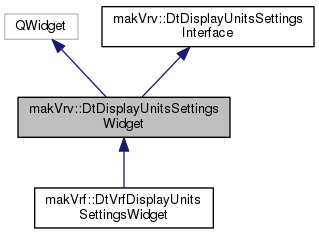

Inheritance diagram for makVrv::DtDisplayUnitsSettingsWidget:

Public Member Functions
	DtDisplayUnitsSettingsWidget (DtDe &de, QWidget *parent, Qt::WindowFlags f=Qt::Widget)
	CTOR. More...

virtual	~DtDisplayUnitsSettingsWidget ()
	Virtual DTOR. More...

virtual void	addDisplayUnitToUI (const DtUnicode &displayUnitCollectionName, const DtUnicode &displayUnitName, makArchives::DtDisplayUnitsSettingsRecord::DisplayUnitType type)
	Add a display unit to the interface. More...

virtual void	updateDisplayUnitUnit (const std::string &displayUnitCollectionName, const std::string &displayUnitName, unsigned int unitEnumValue)
	Update the interface to reflect the new unit of measurement a display unit uses. More...

virtual void	updateDisplayUnitDecimals (const std::string &displayUnitCollectionName, const std::string &displayUnitName, unsigned int decimals)
	Update the interface to reflect the new number of decimals a display unit uses. More...

virtual void	updateDisplayUnitName (const DtUnicode &displayUnitCollectionName, const DtUnicode &displayUnitName, const DtUnicode &newDisplayName)
	Update the name of a display unit in the UI. More...

virtual void	setDisplayUnitDecimalsQSpinBoxVisible (const std::string &displayUnitCollectionName, const std::string &displayUnitName, bool isVisible)
	Update the visibility of a QSpinBox associated with a display unit. More...

virtual void	addSuppressMagneticNorthNotationCheckBox ()
	Add a checkbox that toggles the suppression of magnetic north notation to the GUI. More...

virtual void	setSuppressMagneticNorthNotationEnabled (bool enabled)
	Set the state of the QCheckBox for suppressing magnetic north notation. More...

virtual void	addObjectTypeToUI (const DtUnicode &objectType)
	Add an object type to the interface. More...

virtual std::string	currentObjectType () const
	Get the currently selected object type. More...

virtual void	populateDisplayUnitComboBoxes (makArchives::DtDisplayUnitsSettingsRecord::DisplayUnitType displayUnitType, const DtUnicode &name, unsigned int unitEnumValue)
	Populate the appropriate unit of measurement combo boxes. More...

virtual void	clear ()
	Removes all the display units and unit of measurements from the GUI. More...

Public Member Functions inherited from makVrv::DtDisplayUnitsSettingsInterface
virtual	~DtDisplayUnitsSettingsInterface ()
	DTOR. More...

Public Attributes
QGridLayout *	myMainLayout

QHBoxLayout *	myObjectTypeLayout

QLabel *	myObjectTypeLabel

QComboBox *	myObjectTypeComboBox

QLabel *	myDecimalPlacesLabel

std::map< std::string, std::set< QWidget * > >	myDynamicWidgets

std::map< std::string, unsigned int >	myDynamicWidgetsLayoutIndices

std::map < makArchives::DtDisplayUnitsSettingsRecord::DisplayUnitType, std::set< QComboBox * > >	myComboBoxesByDisplayUnitType

Public Attributes inherited from makVrv::DtDisplayUnitsSettingsInterface
boost::signalslib::signal< void()>	signal_currentObjectTypeChanged
	Used to signal the logic class when the currently selected object type, e.g. More...

boost::signalslib::signal < void(const std::string &displayUnitCollectionName, const std::string &displayUnitName, unsigned int unitEnumValue)>	signal_displayUnitUnitChanged
	Used to signal the logic class when the unit of measurement to use for a display unit has changed in the GUI. More...

boost::signalslib::signal < void(const std::string &displayUnitCollectionName, const std::string &displayUnitName, unsigned int decimals)>	signal_displayUnitDecimalsChanged
	Used to signal the logic class when the number of decimal places to use for a display unit has changed in the GUI. More...

boost::signalslib::signal < void(bool suppressMagNorthNotation)>	signal_suppressMagneticNorthNotationChanged
	Used to signal the logic class when the checkbox indicating whether or not to suppress magnetic north notation has changed in the GUI. More...

Protected Slots
void	slot_onObjectTypeChanged (int index)

void	slot_onDisplayUnitUnitChanged (int unit)

void	slot_onDisplayUnitDecimalsChanged (int decimals)

void	slot_onSuppressMagneticNorthNotationCheckboxChanged (int state)

Protected Member Functions
virtual void	setupGui ()
	Sets up the GUI with three sections for some number of display units, added via addDisplayUnitToUI(...). More...

virtual std::string	getDisplayUnitKey (const std::string &displayUnitCollectionName, const std::string &displayUnitName) const
	Get the string key for a display unit The key is used internally to group its dynamic children widgets by storing the key in widgets that control a display unit setting, e.g. More...

Protected Attributes
DtDe &	myDe

unsigned int	myNextAvailableObjectRowIndex
	These are used to maintain the next free row in the QGridLayout so display units can continually be added to the GUI. More...

unsigned int	myNextAvailableApplicationRowIndex

unsigned int	myNextAvailableWeatherRowIndex

Friends
class	DtDisplayUnitsSettingsWidgetCreator

Detailed Description

This class displays the display units.

Constructor & Destructor Documentation

makVrv::DtDisplayUnitsSettingsWidget::DtDisplayUnitsSettingsWidget	(	DtDe &	de,
		QWidget *	parent,
		Qt::WindowFlags	f = `Qt::Widget`
	)

CTOR.

virtual makVrv::DtDisplayUnitsSettingsWidget::~DtDisplayUnitsSettingsWidget ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void makVrv::DtDisplayUnitsSettingsWidget::addDisplayUnitToUI	(	const DtUnicode &	displayUnitCollectionName,
		const DtUnicode &	displayUnitName,
		makArchives::DtDisplayUnitsSettingsRecord::DisplayUnitType	type
	)

virtual

Add a display unit to the interface.

Parameters

displayUnitCollectionName	The name of the collection the display unit is in.
displayUnitName	The name of the display unit of interest.
type	The display unit type this display unit measures.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::updateDisplayUnitUnit	(	const std::string &	displayUnitCollectionName,
		const std::string &	displayUnitName,
		unsigned int	unitEnumValue
	)

virtual

Update the interface to reflect the new unit of measurement a display unit uses.

Parameters

displayUnitCollectionName	The name of the collection the display unit is in.
displayUnitName	The name of the display unit of interest.
unitEnumValue	The enumeration value of the specific unit of measurement to use.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::updateDisplayUnitDecimals	(	const std::string &	displayUnitCollectionName,
		const std::string &	displayUnitName,
		unsigned int	decimals
	)

virtual

Update the interface to reflect the new number of decimals a display unit uses.

Parameters

displayUnitCollectionName	The name of the collection the display unit is in.
displayUnitName	The name of the display unit of interest.
decimals	The number of decimals the display unit now uses.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::updateDisplayUnitName	(	const DtUnicode &	displayUnitCollectionName,
		const DtUnicode &	displayUnitName,
		const DtUnicode &	newDisplayName
	)

virtual

Update the name of a display unit in the UI.

Parameters

displayUnitCollectionName	The name of the collection the display unit is in.
displayUnitName	The name of the display unit of interest.
newDisplayName	The name of the display unit as shown in the GUI This function will look for the dynamic QLabel widget for a display unit and uses QLabel::setText(...) to update the display name for a display unit in the GUI and will do nothing if the widget is not found. This function does not rename the display unit in the display unit settings.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::setDisplayUnitDecimalsQSpinBoxVisible	(	const std::string &	displayUnitCollectionName,
		const std::string &	displayUnitName,
		bool	isVisible
	)

virtual

Update the visibility of a QSpinBox associated with a display unit.

Parameters

displayUnitCollectionName	The name of the collection the display unit is in.
displayUnitName	The name of the display unit of interest.
newDisplayName	The name of the display unit as shown in the GUI This function will look for the dynamic QSpinBox widget for a display unit and uses QWidget::setVisible(...) to update it visibility and will do nothing if the widget is not found.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::addSuppressMagneticNorthNotationCheckBox ( )

virtual

Add a checkbox that toggles the suppression of magnetic north notation to the GUI.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::setSuppressMagneticNorthNotationEnabled ( bool enabled )

virtual

Set the state of the QCheckBox for suppressing magnetic north notation.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::addObjectTypeToUI ( const DtUnicode & objectType )

virtual

Add an object type to the interface.

Parameters

objectType The string representation for the object type

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual std::string makVrv::DtDisplayUnitsSettingsWidget::currentObjectType ( ) const

virtual

Get the currently selected object type.

Returns: The string representation for the object type

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::populateDisplayUnitComboBoxes	(	makArchives::DtDisplayUnitsSettingsRecord::DisplayUnitType	displayUnitType,
		const DtUnicode &	name,
		unsigned int	unitEnumValue
	)

virtual

Populate the appropriate unit of measurement combo boxes.

This function populates the dropdown boxes of all display units that measure the specified display unit type with the unit of measurement information that is passed in.

Parameters

displayUnitType	The unsigned integer value that corresponds to a physical quantity, in the DisplayUnitType enumeration, the display unit is measuring.
name	The name of the unit of measurement.
unitEnumValue	The enumeration value corresponding to the unit of measurement being added.

Implements makVrv::DtDisplayUnitsSettingsInterface.

virtual void makVrv::DtDisplayUnitsSettingsWidget::clear ( )

virtual

Removes all the display units and unit of measurements from the GUI.

Implements makVrv::DtDisplayUnitsSettingsInterface.

void makVrv::DtDisplayUnitsSettingsWidget::slot_onObjectTypeChanged ( int index )

protectedslot

void makVrv::DtDisplayUnitsSettingsWidget::slot_onDisplayUnitUnitChanged ( int unit )

protectedslot

void makVrv::DtDisplayUnitsSettingsWidget::slot_onDisplayUnitDecimalsChanged ( int decimals )

protectedslot

void makVrv::DtDisplayUnitsSettingsWidget::slot_onSuppressMagneticNorthNotationCheckboxChanged ( int state )

protectedslot

virtual void makVrv::DtDisplayUnitsSettingsWidget::setupGui ( )

protectedvirtual

Sets up the GUI with three sections for some number of display units, added via addDisplayUnitToUI(...).

The three sections are used for the three display unit collection types VR-Vantage has by default. They are, in order as they appear in the GUI, the Object-Type display unit collection, the Application display unit collection, and the Weather display unit collection. The Object-Type section has a combo box that lists all the entity types, e.g. Fixed Wing, we maintain display unit information for. The Object-Type section will display display unit information for the currently selected entity type in the combo box. Since the Object-Type section is used for all the display unit collections for entity types, it is assumed they all maintain the same set of display units.

virtual std::string makVrv::DtDisplayUnitsSettingsWidget::getDisplayUnitKey	(	const std::string &	displayUnitCollectionName,
		const std::string &	displayUnitName
	)		const

protectedvirtual

Get the string key for a display unit The key is used internally to group its dynamic children widgets by storing the key in widgets that control a display unit setting, e.g.

the QSpinBox that controls the number of decimal places used for the Application/Weather display unit.

Friends And Related Function Documentation

friend class DtDisplayUnitsSettingsWidgetCreator

friend

Member Data Documentation

QGridLayout* makVrv::DtDisplayUnitsSettingsWidget::myMainLayout

QHBoxLayout* makVrv::DtDisplayUnitsSettingsWidget::myObjectTypeLayout

QLabel* makVrv::DtDisplayUnitsSettingsWidget::myObjectTypeLabel

QComboBox* makVrv::DtDisplayUnitsSettingsWidget::myObjectTypeComboBox

QLabel* makVrv::DtDisplayUnitsSettingsWidget::myDecimalPlacesLabel

std::map<std::string, std::set<QWidget*> > makVrv::DtDisplayUnitsSettingsWidget::myDynamicWidgets

std::map<std::string, unsigned int> makVrv::DtDisplayUnitsSettingsWidget::myDynamicWidgetsLayoutIndices

std::map<makArchives::DtDisplayUnitsSettingsRecord::DisplayUnitType, std::set<QComboBox*> > makVrv::DtDisplayUnitsSettingsWidget::myComboBoxesByDisplayUnitType

DtDe& makVrv::DtDisplayUnitsSettingsWidget::myDe

protected

unsigned int makVrv::DtDisplayUnitsSettingsWidget::myNextAvailableObjectRowIndex

protected

These are used to maintain the next free row in the QGridLayout so display units can continually be added to the GUI.

The default values make it so the widget can have 49 Object-Type display units before running out of slots. Same is true for the number of Application display units. Since the weather dispaly units live at the bottom of the widget, you could have more than 49 display units.

unsigned int makVrv::DtDisplayUnitsSettingsWidget::myNextAvailableApplicationRowIndex

protected

unsigned int makVrv::DtDisplayUnitsSettingsWidget::myNextAvailableWeatherRowIndex

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCoreQt/DtDisplayUnitsSettingsWidget.h
