The DtElement class implements the common behavior of simulation based elements added to the scene. More...

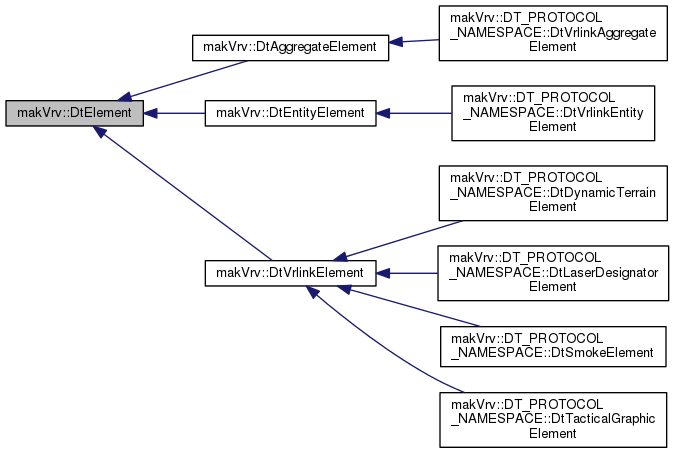

Inheritance diagram for makVrv::DtElement:

Public Member Functions
	DtElement (DtBaseConnection &conn, DtElementID elementId)
	Construct an element with the base connection and the element id. More...

virtual	~DtElement ()
	DTOR. More...

	DtElement ()=delete
	not allowed - default constructor More...

	DtElement (const DtElement &)=delete
	not allowed - copy constructor More...

DtElement &	operator= (const DtElement &)=delete
	not allowed - equals operator More...

virtual void	visualize (const DtSharedModelSetSettings::ModelSetVisualizedMap &sets)
	Visualize the element. More...

virtual void	setVisible (bool visible)
	Set the element to be visible. More...

virtual bool	visible () const
	Get whether the element is visible. More...

DtElementID	elementID () const
	Get the element ID of the element. More...

virtual const DtUnicode &	definition () const
	Accessor to get the visual definition. More...

virtual DtElementEntry::ObjectType	elementType () const =0
	Virtual function for getting the element type. More...

virtual void	changeElementAttribute (const DtElementAttribute *attr)
	Request a change to the value of one of this element's attributes. More...

Protected Member Functions
virtual void	updateConnectionObjectType (const std::string &type)
	Called by derived types Calls reportConnectionObjectType. More...

virtual void	setElementSubtype (DtElementAttributes::ElementSubtypes subtype)
	Set the member variable myElementSubtype. More...

void	slot_updateOverlayNameRaw (const char *text)
	Called when overlay name for the element has been changed - passed as raw. More...

void	slot_updateConnectionObjectID (const std::string &id)
	Called when the entity identifier is discovered. More...

void	slot_updateDisplayName (const std::string &text)
	Called when display name for the element has been changed. More...

void	slot_updateOverlayName (const std::string &pname)
	Called when overlay name for the element has been changed. More...

void	slot_updateDamageState (DtEntityStateListener::DamageState state)
	Called when damage state for the element has been changed. More...

virtual void	getDefinitions (std::vector< DtUnicode > &definitions)=0

virtual void	setModelSetEnabled (int modelSet, bool enabled)=0


virtual void	reportElementCreated ()
	Reporting Methods. More...

virtual void	reportDisplayName ()
	Report that an element display name has changed. More...

virtual void	reportConnectionObjectID ()
	Report an element's ID. More...

virtual void	reportConnectionObjectType ()
	Report an element's type. More...

virtual void	reportOverlayNameChanged ()
	Report that an element parent overlay name has changed. More...

virtual void	reportVisibility ()
	Report that an element visibility has changed. More...

virtual void	reportDamageStateChanged ()
	Report that an element damage state has changed. More...

virtual void	reportDriverType ()=0
	Report that the element comes from a VR-Link connection. More...

virtual void	reportElementSubtype ()
	Report the element's subtype. More...

virtual void	reportElementDefinitionName ()
	Report the element's element definition. More...

Protected Attributes
DtBaseConnection &	myBaseConnection

DtElementID	myElementId

DtUnicode	myElementDefinition

std::string	myConnectionObjectID

std::string	myConnectionObjectType

std::string	myDisplayName

std::string	myElementOverlayName

DtElementAttributes::ElementSubtypes	myElementSubtype

DtEntityStateListener::DamageState	myDamageState

bool	myElementVisible

bool	myElementReported

Detailed Description

The DtElement class implements the common behavior of simulation based elements added to the scene.

Examples of specific elements include Entities, and Tactical Graphics.

Constructor & Destructor Documentation

makVrv::DtElement::DtElement	(	DtBaseConnection &	conn,
		DtElementID	elementId
	)

Construct an element with the base connection and the element id.

virtual makVrv::DtElement::~DtElement ( )

virtual

DTOR.

makVrv::DtElement::DtElement ( )

delete

not allowed - default constructor

makVrv::DtElement::DtElement ( const DtElement & )

delete

not allowed - copy constructor

Member Function Documentation

DtElement& makVrv::DtElement::operator= ( const DtElement & )

delete

not allowed - equals operator

virtual void makVrv::DtElement::visualize ( const DtSharedModelSetSettings::ModelSetVisualizedMap & sets )

virtual

Visualize the element.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtDynamicTerrainElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement, makVrv::DT_PROTOCOL_NAMESPACE::DtSmokeElement, makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtLaserDesignatorElement.

virtual void makVrv::DtElement::setVisible ( bool visible )

virtual

Set the element to be visible.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicElement, makVrv::DT_PROTOCOL_NAMESPACE::DtSmokeElement, makVrv::DtEntityElement, makVrv::DtAggregateElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtLaserDesignatorElement.

virtual bool makVrv::DtElement::visible ( ) const

virtual

Get whether the element is visible.

DtElementID makVrv::DtElement::elementID ( ) const

inline

Get the element ID of the element.

Usually the element ID is the unique id of the listener.

virtual const DtUnicode& makVrv::DtElement::definition ( ) const

virtual

Accessor to get the visual definition.

The definition changes when updateEntityType is called.

virtual DtElementEntry::ObjectType makVrv::DtElement::elementType ( ) const

pure virtual

Virtual function for getting the element type.

Implemented in makVrv::DtEntityElement, makVrv::DT_PROTOCOL_NAMESPACE::DtDynamicTerrainElement, makVrv::DtAggregateElement, makVrv::DT_PROTOCOL_NAMESPACE::DtLaserDesignatorElement, makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtSmokeElement.

virtual void makVrv::DtElement::changeElementAttribute ( const DtElementAttribute * attr )

virtual

Request a change to the value of one of this element's attributes.

Non-elements (inluding objects in the main thread) may request that the value of some attribute of an element be modifed; that is effected here.

virtual void makVrv::DtElement::reportElementCreated ( )

protectedvirtual

Reporting Methods.

Report that an element was created.

virtual void makVrv::DtElement::reportDisplayName ( )

protectedvirtual

Report that an element display name has changed.

virtual void makVrv::DtElement::reportConnectionObjectID ( )

protectedvirtual

Report an element's ID.

virtual void makVrv::DtElement::reportConnectionObjectType ( )

protectedvirtual

Report an element's type.

virtual void makVrv::DtElement::reportOverlayNameChanged ( )

protectedvirtual

Report that an element parent overlay name has changed.

virtual void makVrv::DtElement::reportVisibility ( )

protectedvirtual

Report that an element visibility has changed.

virtual void makVrv::DtElement::reportDamageStateChanged ( )

protectedvirtual

Report that an element damage state has changed.

virtual void makVrv::DtElement::reportDriverType ( )

protectedpure virtual

Report that the element comes from a VR-Link connection.

Implemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityElement, and makVrv::DtVrlinkElement.

virtual void makVrv::DtElement::reportElementSubtype ( )

protectedvirtual

Report the element's subtype.

Some element types (Entity and Aggregate currently) that are used to further categorized them for display

virtual void makVrv::DtElement::reportElementDefinitionName ( )

protectedvirtual

Report the element's element definition.

virtual void makVrv::DtElement::updateConnectionObjectType ( const std::string & type )

protectedvirtual

Called by derived types Calls reportConnectionObjectType.

virtual void makVrv::DtElement::setElementSubtype ( DtElementAttributes::ElementSubtypes subtype )

protectedvirtual

Set the member variable myElementSubtype.

void makVrv::DtElement::slot_updateOverlayNameRaw ( const char * text )

protected

Called when overlay name for the element has been changed - passed as raw.

void makVrv::DtElement::slot_updateConnectionObjectID ( const std::string & id )

protected

Called when the entity identifier is discovered.

void makVrv::DtElement::slot_updateDisplayName ( const std::string & text )

protected

Called when display name for the element has been changed.

void makVrv::DtElement::slot_updateOverlayName ( const std::string & pname )

protected

Called when overlay name for the element has been changed.

void makVrv::DtElement::slot_updateDamageState ( DtEntityStateListener::DamageState state )

protected

Called when damage state for the element has been changed.

virtual void makVrv::DtElement::getDefinitions ( std::vector< DtUnicode > & definitions )

protectedpure virtual

Implemented in makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicElement, makVrv::DT_PROTOCOL_NAMESPACE::DtDynamicTerrainElement, makVrv::DT_PROTOCOL_NAMESPACE::DtLaserDesignatorElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement, makVrv::DT_PROTOCOL_NAMESPACE::DtSmokeElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityElement.

virtual void makVrv::DtElement::setModelSetEnabled	(	int	modelSet,
		bool	enabled
	)

protectedpure virtual

Implemented in makVrv::DT_PROTOCOL_NAMESPACE::DtDynamicTerrainElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement, makVrv::DT_PROTOCOL_NAMESPACE::DtSmokeElement, makVrv::DT_PROTOCOL_NAMESPACE::DtTacticalGraphicElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtLaserDesignatorElement.

Member Data Documentation

DtBaseConnection& makVrv::DtElement::myBaseConnection

protected

DtElementID makVrv::DtElement::myElementId

protected

DtUnicode makVrv::DtElement::myElementDefinition

protected

std::string makVrv::DtElement::myConnectionObjectID

protected

std::string makVrv::DtElement::myConnectionObjectType

protected

std::string makVrv::DtElement::myDisplayName

protected

std::string makVrv::DtElement::myElementOverlayName

protected

DtElementAttributes::ElementSubtypes makVrv::DtElement::myElementSubtype

protected

DtEntityStateListener::DamageState makVrv::DtElement::myDamageState

protected

bool makVrv::DtElement::myElementVisible

protected

bool makVrv::DtElement::myElementReported

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCore/DtElement.h
