An advanced weather condition settings widget. More...

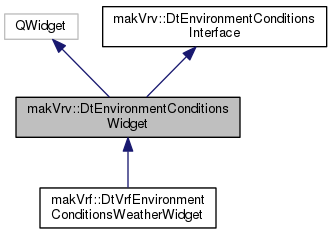

Inheritance diagram for makVrv::DtEnvironmentConditionsWidget:

Public Types
enum	WidgetGroupId { WidgetGroupId::WidgetGroupIdElevationalConfigurationWidgets = 1, WidgetGroupId::WidgetGroupIdPrecipitationWidgets, WidgetGroupId::WidgetGroupIdAdvancedWeatherWidgets, WidgetGroupId::WidgetGroupIdFogColorWidgets, WidgetGroupId::WidgetGroupIdFogHeightWidgets, WidgetGroupId::WidgetGroupIdRainGroundAccumulationWidgets, WidgetGroupId::WidgetGroupIdSnowMinimumElevationWidgets, WidgetGroupId::WidgetGroupIdSnowGroundAccumulationWidgets, WidgetGroupId::WidgetGroupIdSnowElevationTransitionWidgets, WidgetGroupId::WidgetGroupIdSnowRoadAccumulationWidgets, WidgetGroupId::WidgetGroupIdSeaStateWidgets, WidgetGroupId::WidgetGroupIdSeaSwellsStateWidgets, WidgetGroupId::WidgetGroupIdAdvancedMarineWidgets, WidgetGroupId::WidgetGroupIdUnderwaterVisibilityWidgets, WidgetGroupId::WidgetGroupIdWaterChoppinessWidgets, WidgetGroupId::WidgetGroupIdDepthOffsetWidgets, WidgetGroupId::WidgetGroupIdSurfaceTransparencyWidgets, WidgetGroupId::WidgetGroupIdSurgeDepthWidgets, WidgetGroupId::WidgetGroupIdTidalCurrentDirectionWidgets, WidgetGroupId::WidgetGroupIdTidalCurrentSpeedWidgets, WidgetGroupId::WidgetGroupIdWaveFetchWidgets, WidgetGroupId::WidgetGroupIdRemoteVRFEnvironmentWidgets, WidgetGroupId::WidgetGroupIdExtraWidgets }
	enumuration for each widget group DtEnvironmentConditionsWidget supports. More...

typedef std::set< WidgetGroupId >	WidgetsGroupsInitializedSet

Public Types inherited from makVrv::DtEnvironmentConditionsInterface
enum	AtmosphericConditionsTableColumnIndices { BaseMSLAltitudeColumnIndex = 0, WindDirectionColumnIndex, WindSpeedColumnIndex, VisibilityDistanceColumnIndex, PrimaryObscurantColumnIndex, CloudTypeColumnIndex, CloudDensityColumnIndex, SkyCoverageColumnIndex, DeleteRecordColumnIndex }
	enumuration of the atmospheric column indices More...

typedef std::list< DtUnicode >	DtUnicodeList

Public Member Functions
	DtEnvironmentConditionsWidget (DtDe &de, QWidget *parent=NULL, Qt::WindowFlags flags=0)
	Initialization CTOR. More...

virtual	~DtEnvironmentConditionsWidget ()
	Virtual DTOR. More...

virtual void	setGroundSnowAccumulation (double depth)
	Set the ground snow accumulation depth. More...

virtual void	setGroundSnowAccumulationDecimals (int decimals)
	Set the ground snow accumulation decimal places. More...

virtual void	setGroundSnowAccumulationRange (double step, double max, double min=0.0)
	Set the ground snow accumulation slider ranges. More...

virtual void	setGroundSnowAccumulationUnits (const DtUnicode &units)
	Set the snow accumulation depth units. More...

virtual void	setRoadSnowAccumulation (double depth)
	Set the road snow accumulation depth. More...

virtual void	setRoadSnowAccumulationDecimals (int decimals)
	Set the road snow accumulation decimal places. More...

virtual void	setRoadSnowAccumulationRange (double step, double max, double min=0.0)
	Set the road snow accumulation slider ranges. More...

virtual void	setRoadSnowAccumulationUnits (const DtUnicode &units)
	Set the road snow accumulation depth units. More...

virtual void	setSnowMinimumElevation (double elevation)
	Set the snow elevation transition range. More...

virtual void	setSnowMinimumElevationDecimals (int decimals)
	Set the snow elevation transition range decimal places. More...

virtual void	setSnowMinimumElevationRange (double step, double max, double min=0.0)
	Set the snow elevation transition range slider ranges. More...

virtual void	setSnowMinimumElevationUnits (const DtUnicode &units)
	Set the snow elevation transition range units. More...

virtual void	setSnowElevationTransition (double elevation)
	Set the snow minimum elevation. More...

virtual void	setSnowElevationTransitionDecimals (int decimals)
	Set the snow minimum elevation decimal places. More...

virtual void	setSnowElevationTransitionRange (double step, double max, double min=0.0)
	Set the snow minimum elevation slider ranges. More...

virtual void	setSnowElevationTransitionUnits (const DtUnicode &units)
	Set the snow minimum elevation units. More...

virtual void	setGroundRainAccumulation (double depth)
	Set the ground rain accumulation percentage. More...

virtual void	setGroundRainAccumulationDecimals (int decimals)
	Set the ground rain accumulation decimal places. More...

virtual void	setGroundRainAccumulationRange (double step, double max, double min=0.0)
	Set the ground rain accumulation slider ranges. More...

virtual void	setGroundRainAccumulationUnits (const DtUnicode &units)
	Set the rain accumulation depth units. More...

virtual void	initWidgets ()
	Set up the weather/marine widgets fields. More...

Environment condition field value setters.
Sets the values of the widget's corresponding environment fields.
virtual void	setEnvironmentConditionsNames (const std::list< DtUnicode > &names)
	Set the list of environment condition names. More...

virtual DtUnicodeList	environmentConditionNames () const
	Get the list of environment conditions names. More...

virtual void	setDefaultConditionName (const DtUnicode &name)
	Set the name of the default environment condition. More...

Weather field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setWindSpeed (float baseMSLAltitude, float speed)
	Set the wind speed. More...

virtual void	setElevationalWindSpeedRange (double max)
	Set the wind speed range. More...

virtual void	setElevationalWindSpeedDecimals (int decimals)
	Set the number of decimals places to use for an elevational configuration's wind speed. More...

virtual void	setElevationalWindSpeedUnits (const DtUnicode &units)
	Set the unit notation to use for an elevational configuration's wind speed. More...

virtual void	setElevationalConfigurationBaseMSLAltitudeUnits (const DtUnicode &units)
	Set the unit notation to use for an elevational configuration's base MSL altitude. More...

virtual void	setElevationalVisibilityDistanceDecimals (int decimals)
	Set the number of decimals places to use for elevational configuration's visibility distance. More...

virtual void	setElevationalVisibilityDistanceUnits (const DtUnicode &units)
	Set the unit notation to use for an elevational configuration's visibility distance. More...

virtual void	setWindDirection (float baseMSLAltitude, float degrees)
	Set the wind direction. More...

virtual void	addElevationalConfiguration (float baseMSLAltitude, float windSpeed, int windDirection, float visibilityDistance, DtEnvironmentInterface::VisibilityObscurant obscurant, DtEnvironmentInterface::CloudType cloudType, float cloudDensity, int skyCoverage, bool isRemovable=true)
	Add an elevational configuration to the UI. More...

virtual void	removeElevationalConfiguration (float altitude)
	Remove an elevational configuration from the UI by its base MSL altitude, in feet. More...

virtual void	moveElevationalConfiguration (float oldAltitude, float newAltitude)
	Move an elevational configuration in the UI This function does not check if there is already an elevational configuration set for the new base MSL altitude. More...

virtual void	removeAllElevationalConfigurations ()
	Remove all the elevational configurations from the UI. More...

virtual int	getElevationalConfigurationTableIndexByBaseMSLAltitude (float altitude) const
	Returns the table index of an elevational configuration for the given base MSL altitude, in feet. More...

virtual void	setElevationalConfigurationEditableStateByColumn (float altitude, int column, bool editable, bool force=false)
	Set whether or not a particular column of the elevational configuration for the given base MSL altitude, in feet, is editable or not. More...

virtual float	currentHighestElevationalConfigurationBaseMSLAltitude ()
	Get the current highest elevational configuration base MSL altitude, in feet. More...

virtual int	elevationalConfigurationCount () const
	Get the total number of elevational configurations in the UI. More...

virtual void	setPrecipitationType (unsigned int type)
	Set the precipitation type. More...

virtual void	setPrecipitationIntensity (double intensity)
	Set the precipitation intensity. More...

virtual void	setPrecipitationIntensityUnits (DtDisplayUnitsConverter::VelocityUnits unit)
	Set the precipitation intensity velocity units. More...

virtual void	setVisibleDistance (float baseMSLAltitude, double distance)
	Set the visible distance. More...

virtual void	setVisibleObscurant (float baseMSLAltitude, DtEnvironmentInterface::VisibilityObscurant obscurant)
	Set the visible obscurant. More...

virtual void	setCloudType (float baseMSLAltitude, DtEnvironmentInterface::CloudType cloudType)
	Set the cloud type. More...

virtual void	setCloudDensity (float baseMSLAltitude, float cloudDensity)
	Set the cloud density. More...

virtual void	setSkyCoverage (float baseMSLAltitude, int skyCoverage)
	Set the sky coverage. More...

virtual void	setVisibilityObscurantNames (const DtUnicodeList &names)
	Set the list of visibility obscurant names. More...

virtual DtUnicodeList	visibilityObscurantNames () const
	Get the list of visibility obscurant names. More...

virtual void	setCloudTypeNames (const DtUnicodeList &names)
	Set the list of cloud type names. More...

virtual DtUnicodeList	cloudTypeNames () const
	Get the list of cloud type names. More...

virtual void	setSkyCoverageNames (const DtUnicodeList &names)
	Set the list of sky coverage names. More...

virtual DtUnicodeList	skyCoverageNames () const
	Get the list of sky coverage names. More...

virtual void	setLightningPresent (bool lightningPresent)
	Set whether or not lightning is present. More...

Advanced weather field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setFogHeight (double height)
	Set the height (or ceiling) of the fog layer. More...

virtual void	setFogHeightDecimals (int decimals)
	Set the fog height decimal places. More...

virtual void	setFogHeightUnits (const DtUnicode &units)
	Set the fog height units. More...

virtual void	setFogHeightRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for fog height. More...

virtual void	setFogColor (double red, double green, double blue)
	Set the color of the fog layer. More...

Marine field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setSwellStateNames (const DtUnicodeList &names)
	Set the list of sea-swell state names. More...

virtual DtUnicodeList	swellStateNames () const
	Get the list of sea-swell state names. More...

virtual void	setSwellState (unsigned int index)
	Set the current sea-swell state by index. More...

virtual void	setSwellState (const DtUnicode &name)
	Set the current sea-swell state by name. More...

virtual void	setSwellStateDirection (double degrees)
	Set the current sea-swell direction. More...

virtual void	enableWindDrivenSeaState (bool enable)
	Set the enabled state of wind-driven sea-state. More...

virtual void	setSeaStateNames (const DtUnicodeList &names)
	Set the list of sea-state names. More...

virtual DtUnicodeList	seaStateNames () const
	Get the list of sea-state names. More...

virtual void	setSeaState (unsigned int index)
	Set the current sea-state by index. More...

virtual void	setSeaState (const DtUnicode &name)
	Set the current sea-state by name. More...

virtual void	setSeaStateDirection (double degrees)
	Set the current sea-state direction. More...

Advanced marine field value setters.
Sets the values of the widget's corresponding advanced marine fields.
virtual void	setSurfaceTransparency (double alpha)
	Set the surface transparency of the water. More...

virtual void	setUnderwaterVisibilityEnabled (bool enabled)
	Set whether a different visibility is used when below sea level. More...

virtual void	setUnderwaterVisibility (double distance)
	Set the underwater visibility distance. More...

virtual void	setUnderwaterVisibilityDecimals (int decimals)
	Set the underwater visible distance decimal places. More...

virtual void	setUnderwaterVisibilityUnits (const DtUnicode &units)
	Set the underwater visible distance units. More...

virtual void	setUnderwaterVisibilityRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for underwater visibility. More...

virtual void	setWaterChoppiness (double chop)
	Set the surface choppiness of the water. More...

virtual void	setWindFetch (double distance)
	Set the sea wave fetch. More...

virtual void	setWindFetchDecimals (int decimals)
	Set the sea wave fetch decimal places. More...

virtual void	setWindFetchUnits (const DtUnicode &units)
	Set the sea wave fetch units. More...

virtual void	setWindFetchRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for sea fetch. More...

virtual void	setSurgeDepth (double depth)
	Set the surge depth. More...

virtual void	setSurgeDepthDecimals (int decimals)
	Set the surge depth decimal places. More...

virtual void	setSurgeDepthUnits (const DtUnicode &units)
	Set the surge depth units. More...

virtual void	setSurgeDepthRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for surge depth. More...

virtual void	setDepthOffset (double offset)
	Set the depth offset. More...

virtual void	setTidalCurrentSpeedDecimals (int decimals)
	Set the tidal stream current speed decimal places. More...

virtual void	setTidalCurrentSpeedUnits (const DtUnicode &units)
	Set the tidal stream current speed units. More...

virtual void	setTidalCurrentSpeedRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for tidal stream current speed. More...

virtual void	setTidalCurrentSpeed (double speed)
	Set the tidal stream current speed. More...

virtual void	setTidalCurrentDirectionDecimals (int decimals)
	Set the tidal stream current direction decimal places. More...

virtual void	setTidalCurrentDirectionUnits (const DtUnicode &units)
	Set the tidal stream current direction units. More...

virtual void	setTidalCurrentDirectionRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for tidal stream current direction. More...

virtual void	setTidalCurrentDirection (double direction)
	Set the tidal stream current direction. More...

Field value setters for a listening to remote weather.
virtual void	setListenToRemoteWeather (bool enable)
	Sets whether or not to list to simulated weather messages. More...

Public Member Functions inherited from makVrv::DtEnvironmentConditionsInterface
	DtEnvironmentConditionsInterface (DtDe &de)
	Initialization CTOR. More...

virtual	~DtEnvironmentConditionsInterface ()
	Virtual DTOR. More...

virtual void	setEnvironmentConditionsNames (const DtUnicodeList &names)=0
	Set the list of environment condition names. More...

Protected Types
typedef QList< QWidget * >	WidgetList

Protected Slots
User input slots.
Receives notification that the user has changed a widget's value.
virtual void	on_advancedWeatherConditionsVisibilityChanged (bool show)

virtual void	on_advancedMarineConditionsVisibilityChanged (bool show)

virtual void	on_selectEnvironmentConditions (const QString &)

virtual void	on_environmentConditionClicked (const QString &)

virtual void	on_addElevationalConfigurationButtonClicked (bool)

virtual void	on_elevationalConfigurationChanged (int, int)

virtual void	on_multiElevationWindCellClicked (int, int)

virtual void	on_precipitationTypeClicked (int)

virtual void	on_precipitationIntensityComboBoxCurrentIndexChanged (int)

virtual void	on_precipitationIntensityValueChanged (double)

virtual void	on_lightningPresentChanged (int)

virtual void	on_groundSnowAccumulationChanged (double value)

virtual void	on_roadSnowAccumulationChanged (double value)

virtual void	on_snowMinimumElevationChanged (double value)

virtual void	on_snowElevationTransitionChanged (double value)

virtual void	on_groundRainAccumulationChanged (double value)

virtual void	on_fogHeightValueChanged (double)

virtual void	on_fogColorValueChanged (const QColor &)

virtual void	on_swellStateChanged (int)

virtual void	on_swellStateDirectionChanged (double)

virtual void	on_windDrivenSeaStateEnabledChanged (const QString &)

virtual void	on_seaStateChanged (int)

virtual void	on_seaStateDirectionChanged (double)

virtual void	on_seaSurfaceTransparencyChanged (double)

virtual void	on_underWaterVisibilityEnabledChanged (int)

virtual void	on_underWaterVisibilityChanged (double)

virtual void	on_seaChoppinessChanged (int)

virtual void	on_windFetchChanged (double)

virtual void	on_surgeDepthChanged (double)

virtual void	on_depthOffsetChanged (double)

virtual void	on_tidalCurrentSpeedChanged (double)

virtual void	on_tidalCurrentDirectionChanged (double)

virtual void	on_listenToVrfStateChanged (int)

virtual void	on_refreshVrfWeatherClicked ()

Protected Member Functions
virtual void	setWidgetsEnabled (WidgetList &widgets, bool enable) const
	Utility to enable/disable a set of widgets. More...

virtual void	setWidgetEnabled (QWidget &widget, bool enable) const
	Utility to enable/disable a widget while blocking its signals. More...

virtual void	setWidgetsVisible (WidgetList &widgets, bool show) const
	Utility to show/hide a set of widgets. More...

virtual void	setWidgetVisible (QWidget &widget, bool show) const
	Utility to show/hide a widget while blocking its signals. More...

virtual int	getPrecipitationIntensityIndex (double intensity)
	Utility to get the intensity index of the combo box. More...

virtual void	initElevationalConfigurationWidgets ()
	Use the following init functions in the initWidgets() function, to init the widgets: widgets creations and signals connections. More...

virtual void	initPrecipitationWidgets ()

virtual void	initAdvancedWeatherWidgets ()

virtual void	initFogColorWidgets ()
	Advanced weather widgets. More...

virtual void	initFogHeightWidgets ()

virtual void	initRainGroundAccumulationWidgets ()

virtual void	initSnowMinimumElevationWidgets ()

virtual void	initSnowGroundAccumulationWidgets ()

virtual void	initSnowElevationTransitionWidgets ()

virtual void	initSnowRoadAccumulationWidgets ()

virtual void	initSeaStateWidgets ()
	Marine widgets. More...

virtual void	initSeaSwellsStateWidgets ()

virtual void	initAdvancedMarineWidgets ()

virtual void	initUnderwaterVisibilityWidgets ()
	Advanced marine widgets. More...

virtual void	initWaterChoppinessWidgets ()

virtual void	initDepthOffsetWidgets ()

virtual void	initSurfaceTransparencyWidgets ()

virtual void	initSurgeDepthWidgets ()

virtual void	initTidalCurrentDirectionWidgets ()

virtual void	initTidalCurrentSpeedWidgets ()

virtual void	initWaveFetchWidgets ()

virtual void	initRemoteVRFEnvironmentWidgets ()
	Remote VRF environment widgets. More...

virtual bool	widgetGroupInitialized (WidgetGroupId widgetGroupId) const
	return true if the widget group was initialized see enum WidgetGroupId for supported id More...

virtual void	setupBaseGui ()
	Sets up the base ui of the widgets: condition widgets and layouts. More...

virtual void	connectToBaseSignals ()
	Connects base widget signals to slots. More...

virtual void	setTranslatableStringsToComboBox (QComboBox &cbox, const DtUnicodeList &lst, bool srt=true) const
	Utility to set a list of translatable unicode strings into a combo-box. More...

virtual void	setStringsToComboBox (QComboBox &cbox, const DtUnicodeList &lst, bool srt=true) const
	Utility to set a list of unicode strings into a combo-box. More...

virtual DtUnicodeList	stringsFromComboBox (const QComboBox &cbox) const
	Utility to get a list of unicode strings from a combo-box. More...

virtual void	setQStringsToComboBox (QComboBox &cbox, QStringList lst, bool srt=true) const
	Utility to set a list of Qt strings into a combo-box. More...

virtual QStringList	qStringsFromComboBox (const QComboBox &cbox) const
	Utility to get a list of Qt strings from a combo-box. More...

virtual QTableWidgetItem *	findElevationalWindTableItem (float altitude, int column) const
	Utility to get the table widget item for the elevational wind configuration at the specified altitude. More...

virtual void	setIsHighestElevationalConfigurationDataPropertyForBaseMSLAltitude (float altitude, bool isHighest)
	Utility method for setting the underlying property for an elevational configuration indicating it is the highest elevational configuration present in the current environment configuration. More...

virtual void	applyAtmosphericTableConditionsStyleSheet ()
	Utility method for updating the style sheet of the atmospheric conditions table so that it appears consistently between Linux and Windows. More...

Protected Attributes
QVBoxLayout *	myMainLayout

QHBoxLayout *	myConditionsLayout

QGridLayout *	myWeatherLayout

QGridLayout *	myMarineLayout

QHBoxLayout *	myRemoteListeningLayout

QSignalMapper *	myConditionsSignalMapper

QLabel *	myConditionsLabel

QComboBox *	myConditionNames

QPushButton *	myAddEnvironmentConditions

QPushButton *	myRemoveEnvironmentConditions

QPushButton *	mySaveEnvironmentConditions

QPushButton *	mySelectDefaultCondition

QString	myLastSelectedCondition

QString	myLastDefaultCondition

QLabel *	myWeatherSectionTitle

QTableWidget *	myMultiElevationConfigurationTable

QPushButton *	myAddElevationalConfigurationButton

DtUnicodeList	myVisibilityObscurantNames

DtUnicodeList	myCloudTypeNames

DtUnicodeList	mySkyCoverageNames

QSignalMapper *	myPrecipitationSignalMapper

QButtonGroup *	myPrecipitationButtonGroup

QRadioButton *	myPrecipitationNone

QRadioButton *	myPrecipitationRain

QRadioButton *	myPrecipitationSnow

QRadioButton *	myPrecipitationHail

QRadioButton *	myPrecipitationSleet

QRadioButton *	myPrecipitationDrizzle

QLabel *	myPrecipitationIntensityLabel

QComboBox *	myPrecipitationIntensityComboBox

DtSliderDoubleSpinboxWidget *	myPrecipitationIntensity

double	myWindSpeedMax

QCheckBox *	myLightningPresentCheckBox

QLabel *	myGroundSnowAccumulationLabel

QLabel *	mySnowMinimumElevationLabel

QLabel *	mySnowElevationTransitionLabel

QLabel *	myRoadSnowAccumulationLabel

DtSliderDoubleSpinboxWidget *	myGroundSnowAccumulation

DtSliderDoubleSpinboxWidget *	myRoadSnowAccumulation

DtSliderDoubleSpinboxWidget *	mySnowMinimumElevation

DtSliderDoubleSpinboxWidget *	mySnowElevationTransition

QLabel *	myGroundRainAccumulationLabel

DtSliderDoubleSpinboxWidget *	myGroundRainAccumulation

QPushButton *	myAdvancedWeatherButton

QLabel *	myFogHeightLabel

DtSliderDoubleSpinboxWidget *	myFogHeight

QLabel *	myFogColorLabel

DtColorPushButton *	myFogColor

QLabel *	myMarineSectionTitle

QComboBox *	mySwellState

DtWindDirectionWidget *	mySwellStateDirection

QSignalMapper *	mySeaStateSignalMapper

QButtonGroup *	mySeaStateButtonGroup

QRadioButton *	mySeaStateWindDriven

QRadioButton *	mySeaStateManual

QComboBox *	mySeaStates

DtWindDirectionWidget *	mySeaStateDirection

QPushButton *	myAdvancedMarineButton

QLabel *	mySurfaceTransparencyLabel

DtSliderDoubleSpinboxWidget *	mySurfaceTransparency

QCheckBox *	myUnderWaterVisibilityEnabled

QLabel *	myUnderWaterVisibilityLabel

DtSliderDoubleSpinboxWidget *	myUnderWaterVisibility

QLabel *	myChoppinessLabel

DtSliderSpinboxWidget *	myChoppiness

QLabel *	myFetchLabel

DtSliderDoubleSpinboxWidget *	myFetch

QLabel *	mySurgeDepthLabel

DtSliderDoubleSpinboxWidget *	mySurgeDepth

QLabel *	myDepthOffsetLabel

DtSliderDoubleSpinboxWidget *	myDepthOffset

QLabel *	myTidalCurrentSpeedLabel

DtSliderDoubleSpinboxWidget *	myTidalCurrentSpeed

QLabel *	myTidalCurrentDirectionLabel

DtSliderDoubleSpinboxWidget *	myTidalCurrentDirection

QFrame *	myListenToVrfSeparator

QCheckBox *	myListenToVrf

QPushButton *	myRefreshVrfWeather

WidgetList	myEnabledOnManualEnvironment

WidgetList	myEnabledOnPrecipitation

WidgetList	myEnabledOnManualStateSet

WidgetList	myVisibleOnShowAdvancedWeather

WidgetList	myVisibleOnShowAdvancedMarine

WidgetsGroupsInitializedSet	myWidgetsGroupsInitializedSet


double	myLightPrecipitationIntensityUpperBoundValue
	These values are assumed to be in m/s. More...

double	myModeratePrecipitationIntensityUpperBoundValue

double	myHeavyPrecipitationIntensityUpperBoundValue

double	myMaxPrecipitationIntensityValue

Protected Attributes inherited from makVrv::DtEnvironmentConditionsInterface
DtDe &	myDe

Additional Inherited Members
Public Attributes inherited from makVrv::DtEnvironmentConditionsInterface
boost::signalslib::signal < void(const DtUnicode &)>	signal_selectEnvironmentConditions

boost::signalslib::signal < void(const DtUnicode &)>	signal_addEnvironmentConditions

boost::signalslib::signal < void(const DtUnicode &)>	signal_removeEnvironmentConditions

boost::signalslib::signal < void(const DtUnicode &)>	signal_saveEnvironmentConditions

boost::signalslib::signal < void(const DtUnicode &)>	signal_setDefaultEnvironmentConditions

boost::signalslib::signal< void()>	signal_addElevationalConfiguration

boost::signalslib::signal < void(float)>	signal_removeElevationalConfiguration

boost::signalslib::signal < void(float, float)>	signal_elevationalConfigurationAltitudeChanged

boost::signalslib::signal < void(float, float, int, float, DtEnvironmentInterface::VisibilityObscurant, DtEnvironmentInterface::CloudType, float, int)>	signal_elevationalConfigurationUpdated

boost::signalslib::signal < void(int)>	signal_changePrecipitationType

boost::signalslib::signal < void(double)>	signal_changePrecipitationIntensity

boost::signalslib::signal < void(makArchives::DtCloudCoverType)>	signal_cloudCoverChanged

boost::signalslib::signal < void(bool)>	signal_lightningPresentChanged

boost::signalslib::signal < void(double)>	signal_changeGroundSnowAccumulation

boost::signalslib::signal < void(double)>	signal_changeRoadSnowAccumulation

boost::signalslib::signal < void(double)>	signal_changeSnowMinimumElevation

boost::signalslib::signal < void(double)>	signal_changeSnowElevationTransition

boost::signalslib::signal < void(double)>	signal_changeGroundRainAccumulation

boost::signalslib::signal < void(double)>	signal_changeFogHeight

boost::signalslib::signal < void(double, double, double)>	signal_changeFogColor

boost::signalslib::signal < void(unsigned int)>	signal_changeSwellState

boost::signalslib::signal < void(double)>	signal_changeSwellStateDirection

boost::signalslib::signal < void(bool)>	signal_enableWindDrivenSeaState

boost::signalslib::signal < void(unsigned int)>	signal_changeSeaState

boost::signalslib::signal < void(double)>	signal_changeSeaStateDirection

boost::signalslib::signal < void(double)>	signal_changeSeaSurfaceTransparency

boost::signalslib::signal < void(bool)>	signal_changeUnderWaterVisibilityEnabled

boost::signalslib::signal < void(double)>	signal_changeUnderWaterVisibility

boost::signalslib::signal < void(double)>	signal_changeSeaChoppiness

boost::signalslib::signal < void(double)>	signal_changeWindFetch

boost::signalslib::signal < void(double)>	signal_changeSurgeDepth

boost::signalslib::signal < void(double)>	signal_changeDepthOffset

boost::signalslib::signal < void(double)>	signal_changeTidalCurrentSpeed

boost::signalslib::signal < void(double)>	signal_changeTidalCurrentDirection

boost::signalslib::signal < void(bool)>	signal_changeRemoteSettings

boost::signalslib::signal< void()>	signal_requestRemoteSettings

Detailed Description

An advanced weather condition settings widget.

Member Typedef Documentation

typedef std::set<WidgetGroupId> makVrv::DtEnvironmentConditionsWidget::WidgetsGroupsInitializedSet

typedef QList<QWidget*> makVrv::DtEnvironmentConditionsWidget::WidgetList

protected

Member Enumeration Documentation

enum makVrv::DtEnvironmentConditionsWidget::WidgetGroupId

strong

enumuration for each widget group DtEnvironmentConditionsWidget supports.

Enumerator
WidgetGroupIdElevationalConfigurationWidgets
WidgetGroupIdPrecipitationWidgets
WidgetGroupIdAdvancedWeatherWidgets
WidgetGroupIdFogColorWidgets
WidgetGroupIdFogHeightWidgets
WidgetGroupIdRainGroundAccumulationWidgets
WidgetGroupIdSnowMinimumElevationWidgets
WidgetGroupIdSnowGroundAccumulationWidgets
WidgetGroupIdSnowElevationTransitionWidgets
WidgetGroupIdSnowRoadAccumulationWidgets
WidgetGroupIdSeaStateWidgets
WidgetGroupIdSeaSwellsStateWidgets
WidgetGroupIdAdvancedMarineWidgets
WidgetGroupIdUnderwaterVisibilityWidgets
WidgetGroupIdWaterChoppinessWidgets
WidgetGroupIdDepthOffsetWidgets
WidgetGroupIdSurfaceTransparencyWidgets
WidgetGroupIdSurgeDepthWidgets
WidgetGroupIdTidalCurrentDirectionWidgets
WidgetGroupIdTidalCurrentSpeedWidgets
WidgetGroupIdWaveFetchWidgets
WidgetGroupIdRemoteVRFEnvironmentWidgets
WidgetGroupIdExtraWidgets

Constructor & Destructor Documentation

makVrv::DtEnvironmentConditionsWidget::DtEnvironmentConditionsWidget	(	DtDe &	de,
		QWidget *	parent = `NULL`,
		Qt::WindowFlags	flags = `0`
	)

Initialization CTOR.

Parameters

[in]	de	is the display engine.
[in]	parent	is a parent for this widget.
[in]	flags	is a set of enumerated window flags.

virtual makVrv::DtEnvironmentConditionsWidget::~DtEnvironmentConditionsWidget ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void makVrv::DtEnvironmentConditionsWidget::setEnvironmentConditionsNames ( const std::list< DtUnicode > & names )

virtual

Set the list of environment condition names.

Parameters

[in] names is the list of environment condition names.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::environmentConditionNames ( ) const

virtual

Get the list of environment conditions names.

Returns: the list of environment condition names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setDefaultConditionName ( const DtUnicode & name )

virtual

Set the name of the default environment condition.

Parameters

[in] name is the name of the default condition.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeed	(	float	baseMSLAltitude,
		float	speed
	)

virtual

Set the wind speed.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in feet, associated the wind configuration being updated
[in]	speed	is the wind speed to set, in knots.

See Also: setWindSpeedDecimals(int); setWindSpeedUnits(const DtUnicode&); setElevationalWindSpeedRange(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalWindSpeedRange ( double max )

virtual

Set the wind speed range.

The minumum is always 0.0.

Parameters

[in] max is the maximum range boundary.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalWindSpeedDecimals ( int decimals )

virtual

Set the number of decimals places to use for an elevational configuration's wind speed.

Parameters

[in] decimals is the number of decimals to display.

See Also: setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalWindSpeedUnits ( const DtUnicode & units )

virtual

Set the unit notation to use for an elevational configuration's wind speed.

Parameters

[in] units is the unit type to display.

See Also: setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalConfigurationBaseMSLAltitudeUnits ( const DtUnicode & units )

virtual

Set the unit notation to use for an elevational configuration's base MSL altitude.

Parameters

[in] units is the unit type to display.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalVisibilityDistanceDecimals ( int decimals )

virtual

Set the number of decimals places to use for elevational configuration's visibility distance.

Parameters

[in] decimals is the number of decimals to display.

See Also: setVisibilityDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalVisibilityDistanceUnits ( const DtUnicode & units )

virtual

Set the unit notation to use for an elevational configuration's visibility distance.

Parameters

[in] units is the unit type to display.

See Also: setVisibilityDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindDirection	(	float	baseMSLAltitude,
		float	degrees
	)

virtual

Set the wind direction.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in feet, associated the wind configuration being updated
[in]	degrees	is the wind direction, in degrees from True North (clockwise).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::addElevationalConfiguration	(	float	baseMSLAltitude,
		float	windSpeed,
		int	windDirection,
		float	visibilityDistance,
		DtEnvironmentInterface::VisibilityObscurant	obscurant,
		DtEnvironmentInterface::CloudType	cloudType,
		float	cloudDensity,
		int	skyCoverage,
		bool	isRemovable = `true`
	)

virtual

Add an elevational configuration to the UI.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in feet, associated the wind configuration being updated.
[in]	windSpeed	is the wind speed, in knots.
[in]	windDirection	is the wind direction, in degrees from True North (clockwise).
[in]	visibilityDistance	is the visibility distance, in whatever unit of measurement is specified for the Weather/Visibility display unit.
[in]	obscurant	is an enumerated value representing a type of particulate matter that can obscure visibility
[in]	isRemovable	decides whether or not to include an 'X' in the 6th column of the elevational configuration, which allows the user to remove that elevational configuration from the UI.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::removeElevationalConfiguration ( float altitude )

virtual

Remove an elevational configuration from the UI by its base MSL altitude, in feet.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::moveElevationalConfiguration	(	float	oldAltitude,
		float	newAltitude
	)

virtual

Move an elevational configuration in the UI This function does not check if there is already an elevational configuration set for the new base MSL altitude.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::removeAllElevationalConfigurations ( )

virtual

Remove all the elevational configurations from the UI.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual int makVrv::DtEnvironmentConditionsWidget::getElevationalConfigurationTableIndexByBaseMSLAltitude ( float altitude ) const

virtual

Returns the table index of an elevational configuration for the given base MSL altitude, in feet.

Returns -1 if an elevational configuration with the provided base MSL altitude doesn't exist within a delta of 0.0001.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setElevationalConfigurationEditableStateByColumn	(	float	altitude,
		int	column,
		bool	editable,
		bool	force = `false`
	)

virtual

Set whether or not a particular column of the elevational configuration for the given base MSL altitude, in feet, is editable or not.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual float makVrv::DtEnvironmentConditionsWidget::currentHighestElevationalConfigurationBaseMSLAltitude ( )

virtual

Get the current highest elevational configuration base MSL altitude, in feet.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual int makVrv::DtEnvironmentConditionsWidget::elevationalConfigurationCount ( ) const

virtual

Get the total number of elevational configurations in the UI.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationType ( unsigned int type )

virtual

Set the precipitation type.

Parameters

[in] type is the type of precipitation type.

Note: None, Rain, Snow, Hail defined in DtEnvironmentRecord.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationIntensity ( double intensity )

virtual

Set the precipitation intensity.

Parameters

[in] intensity is the precipitation intensity from zero to one.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationIntensityUnits ( DtDisplayUnitsConverter::VelocityUnits unit )

virtual

Set the precipitation intensity velocity units.

Parameters

[in] units is the unit type to display.

See Also: setPrecipitationIntensity(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistance	(	float	baseMSLAltitude,
		double	distance
	)

virtual

Set the visible distance.

Parameters

[in]	baseMSLAltitude	The MSL altitude associated with the elevational configuration being updated
[in]	distance	is the visible distance.

See Also: setVisibleDistanceDecimals(int); setVisibleDistanceUnits(const DtUnicode&); setVisibleDistanceRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleObscurant	(	float	baseMSLAltitude,
		DtEnvironmentInterface::VisibilityObscurant	obscurant
	)

virtual

Set the visible obscurant.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in meters, associated with the elevational configuration being updated
[in]	obscurant	is the particulate matter type causing the visibility.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudType	(	float	baseMSLAltitude,
		DtEnvironmentInterface::CloudType	cloudType
	)

virtual

Set the cloud type.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in meters, associated with the elevational configuration being updated
[in]	cloudType	is the type of cloud present at the provided altitude.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudDensity	(	float	baseMSLAltitude,
		float	cloudDensity
	)

virtual

Set the cloud density.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in meters, associated with the elevational configuration being updated
[in]	cloudDensity	is the density of the cloud present at the provided altitude.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSkyCoverage	(	float	baseMSLAltitude,
		int	skyCoverage
	)

virtual

Set the sky coverage.

Parameters

[in]	baseMSLAltitude	The MSL altitude, in meters, associated with the elevational configuration being updated
[in]	skyCoverage	is the sky coverage.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibilityObscurantNames ( const DtUnicodeList & names )

virtual

Set the list of visibility obscurant names.

Parameters

[in] names is the list of visibility obscurant names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::visibilityObscurantNames ( ) const

virtual

Get the list of visibility obscurant names.

Returns: the list of visibility obscurant names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudTypeNames ( const DtUnicodeList & names )

virtual

Set the list of cloud type names.

Parameters

[in] names is the list of cloud type names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::cloudTypeNames ( ) const

virtual

Get the list of cloud type names.

Returns: the list of cloud type names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSkyCoverageNames ( const DtUnicodeList & names )

virtual

Set the list of sky coverage names.

Parameters

[in] names is the list of sky coverage names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::skyCoverageNames ( ) const

virtual

Get the list of sky coverage names.

Returns: the list of sky coverage names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setLightningPresent ( bool lightningPresent )

virtual

Set whether or not lightning is present.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulation ( double depth )

virtual

Set the ground snow accumulation depth.

Parameters

[in] depth of accumulation, Currently only changes visuals for first .1 meters

See Also: setGroundSnowAccumulationqDecimals(const DtUnicode&); setGroundSnowAccumulationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulationDecimals ( int decimals )

virtual

Set the ground snow accumulation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setGroundSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the ground snow accumulation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setGroundSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundSnowAccumulationUnits ( const DtUnicode & units )

virtual

Set the snow accumulation depth units.

Parameters

[in] units is the unit type to display.

See Also: setGroundSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulation ( double depth )

virtual

Set the road snow accumulation depth.

Parameters

[in] depth of accumulation of snow on the road. Translated to a coverage percentage in the shader effect manager.

See Also: setRoadSnowAccumulationDecimals(const DtUnicode&); setRoadSnowAccumulationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulationDecimals ( int decimals )

virtual

Set the road snow accumulation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setRoadSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the road snow accumulation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setRoadSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setRoadSnowAccumulationUnits ( const DtUnicode & units )

virtual

Set the road snow accumulation depth units.

Parameters

[in] units is the unit type to display.

See Also: setRoadSnowAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevation ( double elevation )

virtual

Set the snow elevation transition range.

Parameters

[in] difference in elevation between when the snow starts showing up and complete coverage

See Also: setSnowMinimumElevationDecimals(const DtUnicode&); setSnowMinimumElevationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevationDecimals ( int decimals )

virtual

Set the snow elevation transition range decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setSnowMinimumElevation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the snow elevation transition range slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setSnowMinimumElevation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowMinimumElevationUnits ( const DtUnicode & units )

virtual

Set the snow elevation transition range units.

Parameters

[in] units is the unit type to display.

See Also: setSnowMinimumElevation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransition ( double elevation )

virtual

Set the snow minimum elevation.

Parameters

[in] elevation where snow starts to show up

See Also: setSnowElevationTransitionDecimals(const DtUnicode&); setSnowElevationTransitionRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransitionDecimals ( int decimals )

virtual

Set the snow minimum elevation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setSnowElevationTransition(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransitionRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the snow minimum elevation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setSnowElevationTransition(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSnowElevationTransitionUnits ( const DtUnicode & units )

virtual

Set the snow minimum elevation units.

Parameters

[in] units is the unit type to display.

See Also: setSnowElevationTransition(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulation ( double depth )

virtual

Set the ground rain accumulation percentage.

Parameters

[in] depth of accumulation in meters. Translated to a coverage percentage in the shader effect manager. currently only changes visuals for 0.01 meters

See Also: setGroundRainAccumulationDecimals(const DtUnicode&); setGroundRainAccumulationRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulationDecimals ( int decimals )

virtual

Set the ground rain accumulation decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setGroundRainAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulationRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the ground rain accumulation slider ranges.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setGroundRainAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setGroundRainAccumulationUnits ( const DtUnicode & units )

virtual

Set the rain accumulation depth units.

Parameters

[in] units is the unit type to display.

See Also: setGroundRainAccumulation(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeight ( double height )

virtual

Set the height (or ceiling) of the fog layer.

Parameters

[in] height is the height of the fog layer.

See Also: setFogHeightDecimals(int); setFogHeightUnits(const DtUnicode&); setFogHeightRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightDecimals ( int decimals )

virtual

Set the fog height decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightUnits ( const DtUnicode & units )

virtual

Set the fog height units.

Parameters

[in] units is the unit type to display.

See Also: setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for fog height.

Parameters

[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogColor	(	double	red,
		double	green,
		double	blue
	)

virtual

Set the color of the fog layer.

Parameters

[in]	red	is a normalized color component from 0.0 to 1.0.
[in]	green	is a normalized color component from 0.0 to 1.0.
[in]	blue	is a normalized color component from 0.0 to 1.0.

See Also: setFogColor(int, int, int)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellStateNames ( const DtUnicodeList & names )

virtual

Set the list of sea-swell state names.

Parameters

[in] names is the list of sea-swell names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::swellStateNames ( ) const

virtual

Get the list of sea-swell state names.

Returns: the list of sea-swell state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellState ( unsigned int index )

virtual

Set the current sea-swell state by index.

Parameters

[in] index is the sea-swell in sea-swell state names.

See Also: void setSwellStateNames(const DtUnicodeList&)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellState ( const DtUnicode & name )

virtual

Set the current sea-swell state by name.

Parameters

[in] name is the name of the sea-swell state.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellStateDirection ( double degrees )

virtual

Set the current sea-swell direction.

Parameters

[in] degrees is the sea-swell direction

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::enableWindDrivenSeaState ( bool enable )

virtual

Set the enabled state of wind-driven sea-state.

Parameters

[in] enable is the enable flag for wind-driven sea-state.

Note: Setting to true should cause sea-state to be wind driven, while resetting to false should cause sea-state to be manual driven.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaStateNames ( const DtUnicodeList & names )

virtual

Set the list of sea-state names.

Parameters

[in] names is the list of sea-state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::seaStateNames ( ) const

virtual

Get the list of sea-state names.

Returns: the list of sea-state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaState ( unsigned int index )

virtual

Set the current sea-state by index.

Parameters

[in] index is the index of the sea-state in sea-state names.

See Also: void setSeaStateNames(const DtUnicodeList&).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaState ( const DtUnicode & name )

virtual

Set the current sea-state by name.

Parameters

[in] name is the name of the sea-state.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaStateDirection ( double degrees )

virtual

Set the current sea-state direction.

Parameters

[in] degrees is the sea-state direction

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurfaceTransparency ( double alpha )

virtual

Set the surface transparency of the water.

Parameters

[in] alpha is the transparency value (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityEnabled ( bool enabled )

virtual

Set whether a different visibility is used when below sea level.

Parameters

[in] enabled (or not)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibility ( double distance )

virtual

Set the underwater visibility distance.

Parameters

[in] distance is the visible distance underwater.

See Also: setUnderwaterVisibilityDecimals(int); setUnderwaterVisibilityUnits(const DtUnicode&); setUnderwaterVisibilityRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityDecimals ( int decimals )

virtual

Set the underwater visible distance decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityUnits ( const DtUnicode & units )

virtual

Set the underwater visible distance units.

Parameters

[in] units is the unit type to display.

See Also: setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for underwater visibility.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWaterChoppiness ( double chop )

virtual

Set the surface choppiness of the water.

Parameters

[in] chop is the intensity of choppiness (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetch ( double distance )

virtual

Set the sea wave fetch.

Parameters

[in] distance is the distance of fetch.

See Also: setWindFetchDecimals(int); setWindFetchUnits(const DtUnicode&); setWindFetchRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchDecimals ( int decimals )

virtual

Set the sea wave fetch decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchUnits ( const DtUnicode & units )

virtual

Set the sea wave fetch units.

Parameters

[in] units is the unit type to display.

See Also: setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for sea fetch.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepth ( double depth )

virtual

Set the surge depth.

Parameters

[in] depth is the surge depth in meters.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepthDecimals ( int decimals )

virtual

Set the surge depth decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setSurgeDepth(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepthUnits ( const DtUnicode & units )

virtual

Set the surge depth units.

Parameters

[in] units is the unit type to display.

See Also: setSurgeDepth(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepthRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for surge depth.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setSurgeDepth(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setDepthOffset ( double offset )

virtual

Set the depth offset.

Parameters

[in] offset is the distance for depth offset (0.0 - 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedDecimals ( int decimals )

virtual

Set the tidal stream current speed decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedUnits ( const DtUnicode & units )

virtual

Set the tidal stream current speed units.

Parameters

[in] units is the unit type to display.

See Also: setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for tidal stream current speed.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeed ( double speed )

virtual

Set the tidal stream current speed.

Parameters

[in] speed is the tidal stream current in meters/second (0.0 - 10.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionDecimals ( int decimals )

virtual

Set the tidal stream current direction decimal places.

Parameters

[in] decimals is the number of decimals to display.

See Also: setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionUnits ( const DtUnicode & units )

virtual

Set the tidal stream current direction units.

Parameters

[in] units is the unit type to display.

See Also: setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionRange	(	double	step,
		double	max,
		double	min = `0.0`
	)

virtual

Set the maximum and minimum range for tidal stream current direction.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also: setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirection ( double direction )

virtual

Set the tidal stream current direction.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setListenToRemoteWeather ( bool enable )

virtual

Sets whether or not to list to simulated weather messages.

Parameters

[in] enable is the flag to enable/disable listening.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::initWidgets ( )

virtual

Set up the weather/marine widgets fields.

Can be overrided to set up the widgets in a specific order. See more info at the init widget functions below

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::on_advancedWeatherConditionsVisibilityChanged ( bool show )

protectedvirtualslot

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::on_advancedMarineConditionsVisibilityChanged ( bool show )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_selectEnvironmentConditions ( const QString & )

protectedvirtualslot

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::on_environmentConditionClicked ( const QString & )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_addElevationalConfigurationButtonClicked ( bool )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_elevationalConfigurationChanged	(	int	,
		int
	)

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_multiElevationWindCellClicked	(	int	,
		int
	)

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationTypeClicked ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationIntensityComboBoxCurrentIndexChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationIntensityValueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_lightningPresentChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_groundSnowAccumulationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_roadSnowAccumulationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_snowMinimumElevationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_snowElevationTransitionChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_groundRainAccumulationChanged ( double value )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_fogHeightValueChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_fogColorValueChanged ( const QColor & )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_swellStateChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_swellStateDirectionChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windDrivenSeaStateEnabledChanged ( const QString & )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaStateChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaStateDirectionChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaSurfaceTransparencyChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_underWaterVisibilityEnabledChanged ( int )

protectedvirtualslot

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::on_underWaterVisibilityChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaChoppinessChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windFetchChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_surgeDepthChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_depthOffsetChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_tidalCurrentSpeedChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_tidalCurrentDirectionChanged ( double )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_listenToVrfStateChanged ( int )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_refreshVrfWeatherClicked ( )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::setWidgetsEnabled	(	WidgetList &	widgets,
		bool	enable
	)		const

protectedvirtual

Utility to enable/disable a set of widgets.

Parameters

[in]	widgets	is a list of widgets to enable or disable.
[in]	enable	is the new enabled state of the widgets.

virtual void makVrv::DtEnvironmentConditionsWidget::setWidgetEnabled	(	QWidget &	widget,
		bool	enable
	)		const

protectedvirtual

Utility to enable/disable a widget while blocking its signals.

Parameters

[in]	widget	is the widget to enable or disable.
[in]	enable	is the new enabled state of the widget.

virtual void makVrv::DtEnvironmentConditionsWidget::setWidgetsVisible	(	WidgetList &	widgets,
		bool	show
	)		const

protectedvirtual

Utility to show/hide a set of widgets.

Parameters

[in]	widgets	is a list of widgets to show or hide.
[in]	show	is the new visible state of the widgets.

virtual void makVrv::DtEnvironmentConditionsWidget::setWidgetVisible	(	QWidget &	widget,
		bool	show
	)		const

protectedvirtual

Utility to show/hide a widget while blocking its signals.

Parameters

[in]	widget	is the widget to show or hide.
[in]	show	is the new visible state of the widget.

virtual int makVrv::DtEnvironmentConditionsWidget::getPrecipitationIntensityIndex ( double intensity )

protectedvirtual

Utility to get the intensity index of the combo box.

virtual void makVrv::DtEnvironmentConditionsWidget::initElevationalConfigurationWidgets ( )

protectedvirtual

Use the following init functions in the initWidgets() function, to init the widgets: widgets creations and signals connections.

Each widget (except Remote VRF) is either a part of the weather group or marine group, in or out of the advanced section. These functions should be non-virtual. Calling one of these functions will add the widget in the end of its designated group, so to maintatin a tab order, the order should be: Weather -> Adanced weather -> Marine -> Advanced Marine -> Remote VRF The widget group will be added to myWidgetsGroupsInitializedSet Weather widgets

virtual void makVrv::DtEnvironmentConditionsWidget::initPrecipitationWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initAdvancedWeatherWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initFogColorWidgets ( )

protectedvirtual

Advanced weather widgets.

virtual void makVrv::DtEnvironmentConditionsWidget::initFogHeightWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initRainGroundAccumulationWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSnowMinimumElevationWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSnowGroundAccumulationWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSnowElevationTransitionWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSnowRoadAccumulationWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSeaStateWidgets ( )

protectedvirtual

Marine widgets.

virtual void makVrv::DtEnvironmentConditionsWidget::initSeaSwellsStateWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initAdvancedMarineWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initUnderwaterVisibilityWidgets ( )

protectedvirtual

Advanced marine widgets.

virtual void makVrv::DtEnvironmentConditionsWidget::initWaterChoppinessWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initDepthOffsetWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSurfaceTransparencyWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initSurgeDepthWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initTidalCurrentDirectionWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initTidalCurrentSpeedWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initWaveFetchWidgets ( )

protectedvirtual

virtual void makVrv::DtEnvironmentConditionsWidget::initRemoteVRFEnvironmentWidgets ( )

protectedvirtual

Remote VRF environment widgets.

virtual bool makVrv::DtEnvironmentConditionsWidget::widgetGroupInitialized ( WidgetGroupId widgetGroupId ) const

protectedvirtual

return true if the widget group was initialized see enum WidgetGroupId for supported id

virtual void makVrv::DtEnvironmentConditionsWidget::setupBaseGui ( )

protectedvirtual

Sets up the base ui of the widgets: condition widgets and layouts.

Weather and Marine widgets are created in initWidgets().

virtual void makVrv::DtEnvironmentConditionsWidget::connectToBaseSignals ( )

protectedvirtual

Connects base widget signals to slots.

Weather and Marine widgets' singnals are connected in each specific init widget function

virtual void makVrv::DtEnvironmentConditionsWidget::setTranslatableStringsToComboBox	(	QComboBox &	cbox,
		const DtUnicodeList &	lst,
		bool	srt = `true`
	)		const

protectedvirtual

Utility to set a list of translatable unicode strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of unicode strings;
[in]	srt	is a flag to sort the string in the combo-box.

virtual void makVrv::DtEnvironmentConditionsWidget::setStringsToComboBox	(	QComboBox &	cbox,
		const DtUnicodeList &	lst,
		bool	srt = `true`
	)		const

protectedvirtual

Utility to set a list of unicode strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of unicode strings;
[in]	srt	is a flag to sort the string in the combo-box.

virtual DtUnicodeList makVrv::DtEnvironmentConditionsWidget::stringsFromComboBox ( const QComboBox & cbox ) const

protectedvirtual

Utility to get a list of unicode strings from a combo-box.

Parameters

[in] cbox is the widget to read from;

Returns: the list of unicode strings;

virtual void makVrv::DtEnvironmentConditionsWidget::setQStringsToComboBox	(	QComboBox &	cbox,
		QStringList	lst,
		bool	srt = `true`
	)		const

protectedvirtual

Utility to set a list of Qt strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of Qt strings;
[in]	srt	is a flag to sort the string in the combo-box.

virtual QStringList makVrv::DtEnvironmentConditionsWidget::qStringsFromComboBox ( const QComboBox & cbox ) const

protectedvirtual

Utility to get a list of Qt strings from a combo-box.

Parameters

[in] cbox is the widget to read from;

Returns: the list of Qt strings;

virtual QTableWidgetItem* makVrv::DtEnvironmentConditionsWidget::findElevationalWindTableItem	(	float	altitude,
		int	column
	)		const

protectedvirtual

Utility to get the table widget item for the elevational wind configuration at the specified altitude.

virtual void makVrv::DtEnvironmentConditionsWidget::setIsHighestElevationalConfigurationDataPropertyForBaseMSLAltitude	(	float	altitude,
		bool	isHighest
	)

protectedvirtual

Utility method for setting the underlying property for an elevational configuration indicating it is the highest elevational configuration present in the current environment configuration.

virtual void makVrv::DtEnvironmentConditionsWidget::applyAtmosphericTableConditionsStyleSheet ( )

protectedvirtual

Utility method for updating the style sheet of the atmospheric conditions table so that it appears consistently between Linux and Windows.

Member Data Documentation

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myMainLayout

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myConditionsLayout

protected

QGridLayout* makVrv::DtEnvironmentConditionsWidget::myWeatherLayout

protected

QGridLayout* makVrv::DtEnvironmentConditionsWidget::myMarineLayout

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myRemoteListeningLayout

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::myConditionsSignalMapper

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myConditionsLabel

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::myConditionNames

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAddEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myRemoveEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::mySaveEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::mySelectDefaultCondition

protected

QString makVrv::DtEnvironmentConditionsWidget::myLastSelectedCondition

protected

QString makVrv::DtEnvironmentConditionsWidget::myLastDefaultCondition

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myWeatherSectionTitle

protected

QTableWidget* makVrv::DtEnvironmentConditionsWidget::myMultiElevationConfigurationTable

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAddElevationalConfigurationButton

protected

DtUnicodeList makVrv::DtEnvironmentConditionsWidget::myVisibilityObscurantNames

protected

DtUnicodeList makVrv::DtEnvironmentConditionsWidget::myCloudTypeNames

protected

DtUnicodeList makVrv::DtEnvironmentConditionsWidget::mySkyCoverageNames

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSignalMapper

protected

QButtonGroup* makVrv::DtEnvironmentConditionsWidget::myPrecipitationButtonGroup

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationNone

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationRain

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSnow

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationHail

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSleet

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationDrizzle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensityLabel

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensityComboBox

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensity

protected

double makVrv::DtEnvironmentConditionsWidget::myLightPrecipitationIntensityUpperBoundValue

protected

These values are assumed to be in m/s.

double makVrv::DtEnvironmentConditionsWidget::myModeratePrecipitationIntensityUpperBoundValue

protected

double makVrv::DtEnvironmentConditionsWidget::myHeavyPrecipitationIntensityUpperBoundValue

protected

double makVrv::DtEnvironmentConditionsWidget::myMaxPrecipitationIntensityValue

protected

double makVrv::DtEnvironmentConditionsWidget::myWindSpeedMax

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myLightningPresentCheckBox

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myGroundSnowAccumulationLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySnowMinimumElevationLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySnowElevationTransitionLabel

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myRoadSnowAccumulationLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myGroundSnowAccumulation

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myRoadSnowAccumulation

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySnowMinimumElevation

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySnowElevationTransition

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myGroundRainAccumulationLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myGroundRainAccumulation

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherButton

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFogHeightLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myFogHeight

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFogColorLabel

protected

DtColorPushButton* makVrv::DtEnvironmentConditionsWidget::myFogColor

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myMarineSectionTitle

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::mySwellState

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::mySwellStateDirection

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::mySeaStateSignalMapper

protected

QButtonGroup* makVrv::DtEnvironmentConditionsWidget::mySeaStateButtonGroup

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::mySeaStateWindDriven

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::mySeaStateManual

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::mySeaStates

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::mySeaStateDirection

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineButton

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySurfaceTransparencyLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySurfaceTransparency

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibilityEnabled

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibilityLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibility

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myChoppinessLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myChoppiness

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFetchLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myFetch

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySurgeDepthLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySurgeDepth

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myDepthOffsetLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myDepthOffset

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentSpeedLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentSpeed

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentDirectionLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentDirection

protected

QFrame* makVrv::DtEnvironmentConditionsWidget::myListenToVrfSeparator

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myListenToVrf

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myRefreshVrfWeather

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnManualEnvironment

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnPrecipitation

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnManualStateSet

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myVisibleOnShowAdvancedWeather

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myVisibleOnShowAdvancedMarine

protected

WidgetsGroupsInitializedSet makVrv::DtEnvironmentConditionsWidget::myWidgetsGroupsInitializedSet

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCoreQt/DtEnvironmentConditionsWidget.h

Public Types

Public Member Functions

Protected Types

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
