makVrv::DtIndirectDrawComponent Class Reference

Interface class to manage/configure drawing of a subset of rendering components within an indirect geometry. More...

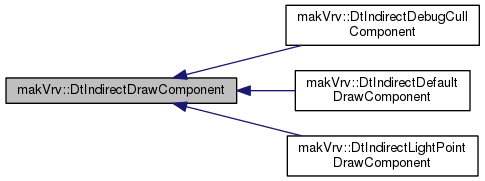

Inheritance diagram for makVrv::DtIndirectDrawComponent:

Public Member Functions
	DtIndirectDrawComponent (DtDe &de)
	ctor More...
virtual	~DtIndirectDrawComponent ()
	dtor More...
virtual void	update (osg::RenderInfo &renderInfo)=0
	update More...
virtual void	apply (osg::RenderInfo &renderInfo)=0
	apply More...
virtual void	addExternallyManagedUniform (osg::ref_ptr< osg::Uniform > uniform)
	add an externally managed uniform More...
virtual void	draw (osg::RenderInfo &renderInfo, const int offsetCommandBuffer, GLenum indicesType, int maxCommands)=0
	draw a sub component More...
virtual void	releaseGLObjects (osg::State *state)=0
	clean up gl objects More...
virtual bool	shouldDraw (bool isShadowPass)
	decide if this component type should draw during a shadow pass More...

Protected Member Functions
virtual std::string	indicesTypeToString (int indicesType)
	for debugging More...

Protected Attributes
DtDe &	myDe
osg::ref_ptr< osg::StateSet >	myStateSet

Private Member Functions
	DtIndirectDrawComponent ()=delete
	not allowed More...
	DtIndirectDrawComponent (const DtIndirectDrawComponent &rhs)=delete
	not allowed More...
DtIndirectDrawComponent &	operator= (const DtIndirectDrawComponent &rhs)=delete
	not allowed More...

Detailed Description

Interface class to manage/configure drawing of a subset of rendering components within an indirect geometry.

Constructor & Destructor Documentation

makVrv::DtIndirectDrawComponent::DtIndirectDrawComponent

(

DtDe &

de

)

ctor

virtual makVrv::DtIndirectDrawComponent::~DtIndirectDrawComponent ( )

virtual

dtor

makVrv::DtIndirectDrawComponent::DtIndirectDrawComponent ( )

privatedelete

not allowed

makVrv::DtIndirectDrawComponent::DtIndirectDrawComponent ( const DtIndirectDrawComponent &  rhs )

privatedelete

not allowed

Member Function Documentation

DtIndirectDrawComponent& makVrv::DtIndirectDrawComponent::operator= ( const DtIndirectDrawComponent &  rhs )

privatedelete

not allowed

virtual void makVrv::DtIndirectDrawComponent::update ( osg::RenderInfo &  renderInfo )

pure virtual

update

Implemented in makVrv::DtIndirectLightPointDrawComponent, makVrv::DtIndirectDebugCullComponent, and makVrv::DtIndirectDefaultDrawComponent.

virtual void makVrv::DtIndirectDrawComponent::apply ( osg::RenderInfo &  renderInfo )

pure virtual

apply

Implemented in makVrv::DtIndirectLightPointDrawComponent, makVrv::DtIndirectDebugCullComponent, and makVrv::DtIndirectDefaultDrawComponent.

virtual void makVrv::DtIndirectDrawComponent::addExternallyManagedUniform ( osg::ref_ptr< osg::Uniform >  uniform )

virtual

add an externally managed uniform

virtual void makVrv::DtIndirectDrawComponent::draw ( osg::RenderInfo &  renderInfo, const int  offsetCommandBuffer, GLenum  indicesType, int  maxCommands  )

pure virtual

draw a sub component

Implemented in makVrv::DtIndirectLightPointDrawComponent, makVrv::DtIndirectDebugCullComponent, and makVrv::DtIndirectDefaultDrawComponent.

virtual void makVrv::DtIndirectDrawComponent::releaseGLObjects ( osg::State *  state )

pure virtual

clean up gl objects

Implemented in makVrv::DtIndirectLightPointDrawComponent, makVrv::DtIndirectDebugCullComponent, and makVrv::DtIndirectDefaultDrawComponent.

virtual bool makVrv::DtIndirectDrawComponent::shouldDraw ( bool  isShadowPass )

virtual

decide if this component type should draw during a shadow pass

Reimplemented in makVrv::DtIndirectLightPointDrawComponent.

virtual std::string makVrv::DtIndirectDrawComponent::indicesTypeToString ( int  indicesType )

protectedvirtual

for debugging

Member Data Documentation

DtDe& makVrv::DtIndirectDrawComponent::myDe

protected

osg::ref_ptr<osg::StateSet> makVrv::DtIndirectDrawComponent::myStateSet

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOsg/DtIndirectDrawComponent.h
