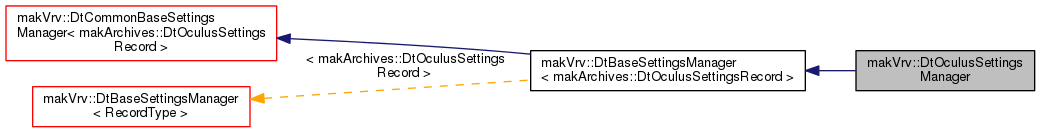

Inheritance diagram for makVrv::DtOculusSettingsManager:

Public Member Functions
virtual	~DtOculusSettingsManager ()
	DTOR. More...

Setting Getters/Setters
Returns view that is being mirrorored. 0 = disabled, 1=undistorted mirror, 2=distorted mirror
int	mirroring () const

void	setMirroring (int view)
	Set mirroring enabled. More...

bool	isMonoscopic () const
	Returns true if monoscopic mode is enabled. More...

void	setMonoscopic (bool enabled)
	Set monoscopic mode enabled. More...

void	setPixelsPerDisplayPixel (float pixels)
	Sets pixels per display pixel. More...

float	getPixelsPerDisplayPixel () const
	Gets pixels per display pixel. More...

Setting persistence methods.
Use the settings from the given settings record.
void	setFromRecord (const makArchives::DtOculusSettingsRecord &rec)
	Set the current settings' state from the given record (abstract). More...

void	getRecord (makArchives::DtOculusSettingsRecord &rec) const
	Populate the given record with the current settings. More...

Public Member Functions inherited from makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >
	DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
	CTOR. More...

virtual	~DtBaseSettingsManager ()
	Virtual DTOR. More...

virtual void	initializeBackup ()
	Creates a backup of the settings' current state. More...

Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtOculusSettingsRecord >
	DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
	CTOR The name, displayName, and extension parameters are used for creating the settings object (DtDeSettings) and backup, and for constructing the filename when readin/writing the records to disk. More...

virtual	~DtCommonBaseSettingsManager ()
	Virtual DTOR. More...

virtual void	autoSaveIfNecessary ()
	Saves the current settings as defaults if autosave is enabled. More...

virtual void	setAutoSave (bool doit)
	Sets whether autosave is enabled for the settings manager. More...

virtual bool	autoSave () const
	Gets whether autosave is enabled for the settings manager. More...

virtual void	setUseDefaultSettingsRecord (bool useit)
	Sets whether setting initialization should check for a default record. More...

virtual bool	useDefaultSettingsRecord () const
	Gets whether setting initialization should check for a default record. More...

virtual DtDeSettings *	settings ()
	Accessor for the manager's DtDeSettings object. More...

virtual const DtDeSettings *	settings () const
	Accessor for the manager's DtDeSettings object (const). More...

virtual DtSettingsBackup *	settingsBackup ()
	Accessor for the manager's settings backup. More...

virtual const DtSettingsBackup *	settingsBackup () const
	Accessor for the manager's settings backup (const). More...

virtual void	loadDefaults ()
	Initializes the settings and creates a backup. More...

virtual void	saveDefaultSettings ()
	Saves the current settings' state as the default (on disk). More...

virtual void	loadDefaultSettings (bool loadOnlyFactorySettings)
	Loads the default settings from disk. More...

virtual void	importSettings (const std::string &filePath)
	Load the settings' state from the given file. More...

virtual void	exportSettings (const std::string &filePath) const
	Save the current settings' state to the given file. More...

virtual void	getSplitRecord (std::vector< makArchives::DtOculusSettingsRecord > &rec, std::vector< std::string > &fileNames)
	For directory support, split the main record into different sub-records and give them each a file name. More...

virtual void	addRecords (makArchives::DtOculusSettingsRecord &rec, makArchives::DtOculusSettingsRecord &combinedRec)
	For directory support, when reading in a directory, add the records from each file to the combined record. More...

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor. More...

virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor. More...

Static Public Member Functions
static DtOculusSettingsManager &	instance (DtDe &de)
	Get an instance of the settings manager. More...

Public Attributes
Boost signals for changed settings
boost::signal< void(int)>	signal_mirroringSet

boost::signal< void(bool)>	signal_monoscopicSet

boost::signal< void(float)>	signal_pixelsPerDisplayPixelSet

Protected Member Functions
	DtOculusSettingsManager (DtDe &)
	Protected CTOR ( use instance(..) ) More...

Protected Attributes
makArchives::DtOculusSettingsRecord	mySettingsRecord

Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtOculusSettingsRecord >
DtSignalConnectionManager	myConnections

std::string	myName

std::string	myExtension

std::string	myDisplayName

bool	myUseDefaultSettingsRecordFlag

bool	myAutoSaveFlag

DtSettingsBackup *	mySettingsBackup

DtDe &	myDe

Friends
template<typename ManagerClass >
ManagerClass &	defaultManagerInstanceFunction (DtDe &, bool)
	Befriend the manager instance functions for instance retrieval / creation. More...

template<typename ManagerClass >
void	defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)
	Befriend the manager instance functions for instance retrieval / creation. More...

Additional Inherited Members
Protected Types inherited from makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >
typedef DtRecordSettingsBackup < DtBaseSettingsManager < makArchives::DtOculusSettingsRecord > , makArchives::DtOculusSettingsRecord >	RecordBackupType

Constructor & Destructor Documentation

virtual makVrv::DtOculusSettingsManager::~DtOculusSettingsManager ( )

virtual

DTOR.

makVrv::DtOculusSettingsManager::DtOculusSettingsManager ( DtDe & )

protected

Protected CTOR ( use instance(..) )

Member Function Documentation

static DtOculusSettingsManager& makVrv::DtOculusSettingsManager::instance ( DtDe & de )

static

Get an instance of the settings manager.

int makVrv::DtOculusSettingsManager::mirroring ( ) const

void makVrv::DtOculusSettingsManager::setMirroring ( int view )

Set mirroring enabled.

bool makVrv::DtOculusSettingsManager::isMonoscopic ( ) const

Returns true if monoscopic mode is enabled.

void makVrv::DtOculusSettingsManager::setMonoscopic ( bool enabled )

Set monoscopic mode enabled.

void makVrv::DtOculusSettingsManager::setPixelsPerDisplayPixel ( float pixels )

Sets pixels per display pixel.

float makVrv::DtOculusSettingsManager::getPixelsPerDisplayPixel ( ) const

Gets pixels per display pixel.

void makVrv::DtOculusSettingsManager::setFromRecord ( const makArchives::DtOculusSettingsRecord & record )

virtual

Set the current settings' state from the given record (abstract).

Implements makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >.

void makVrv::DtOculusSettingsManager::getRecord ( makArchives::DtOculusSettingsRecord & rec ) const

virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >.

Friends And Related Function Documentation

template<typename ManagerClass >

ManagerClass& defaultManagerInstanceFunction	(	DtDe &	de,
		bool	allowedInSlave
	)

friend

Befriend the manager instance functions for instance retrieval / creation.

Befriend the manager instance functions for instance retrieval and creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

Manager requirements: 1) Static instance function 2) Protected DtSignalConnectionManager named myConnections. 3) Member functioned called loadDefaults which takes no arguments. and loads the default settings of the manager or factory from disk. 4) define defaultManagerInstanceFunction as friend. 5) define defaultManagerRegisterInstanceFunction as friend (see below). 5) Protected Constructor which only takes a DtDe reference.

*  class Manager
*  {
*  public:
*     static Manager& instance(DtDe& de);
*     void loadDefaults();
*  protected:
*     template <typename ManagerClass>
*     friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
*     template <typename ManagerClass>
*     friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
*     Manager(DtDe&);
*     DtSignalConnectionManager myConnections;
*  };
*

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

*  Manager& Manager::instance(DtDe& de)
*  {
*     return defaultManagerInstanceFunction<Manager>(de);
*  }
*

template<typename ManagerClass >

void defaultManagerRegisterInstanceFunction	(	DtDe &	de,
		ManagerClass *	mgr
	)

friend

Befriend the manager instance functions for instance retrieval / creation.

Befriend the manager instance functions for instance retrieval and creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

*  static void Manager::registerInstance(DtDe& de, Manager* mgr)
*  {
*     defaultManagerRegisterInstanceFunction(de,mgr);
*  }
*  ...else where call.
*  // Assuming class NewManager : public Manager
*  Manager::registerInstance(de,new NewManager(de));
*

Member Data Documentation

boost::signal<void (int)> makVrv::DtOculusSettingsManager::signal_mirroringSet

boost::signal<void (bool)> makVrv::DtOculusSettingsManager::signal_monoscopicSet

boost::signal<void (float)> makVrv::DtOculusSettingsManager::signal_pixelsPerDisplayPixelSet

makArchives::DtOculusSettingsRecord makVrv::DtOculusSettingsManager::mySettingsRecord

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOculusChannelPlugin/DtOculusSettingsManager.h
