DtOsgEarthDynamicTerrainFeature is a special DtDynamicTerrainFeature which listens to all the dynamic terrain change requests and translates them into osgEarth specific dynamic terrain layers. More...

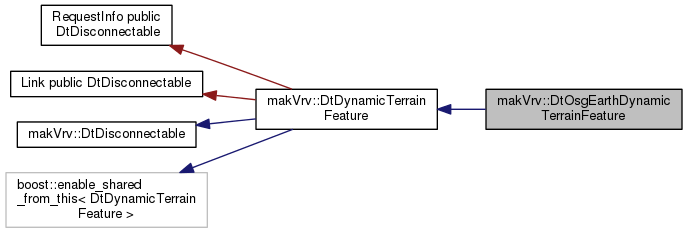

Inheritance diagram for makVrv::DtOsgEarthDynamicTerrainFeature:

[legend]

Public Member Functions
	DtOsgEarthDynamicTerrainFeature (osgEarth::MapNode *mapNode, DtDe &de)
	constructor More...

virtual	~DtOsgEarthDynamicTerrainFeature ()
	destructor More...

	DtOsgEarthDynamicTerrainFeature ()=delete
	default constructor not implemented More...

	DtOsgEarthDynamicTerrainFeature (const DtOsgEarthDynamicTerrainFeature &other)=delete
	Copy Constructor not implemented – Copy Not Allowed. More...

DtOsgEarthDynamicTerrainFeature &	operator= (const DtOsgEarthDynamicTerrainFeature &other)=delete
	Assignment Operator Not implemented � Assignment Not Allowed. More...

virtual DtString	description () const override
	Feature description functions Allows feature to describe itself (for a gui mostly). More...

virtual const DtDynamicTerrainGeometry *	geometry () const override
	geometry for this feature. Currently always null since osgEarth cares about all of them More...

virtual bool	matches (const DtDynamicTerrainChange &command, bool useOriginalGeometry) const override
	check to see if this feature cares about this command (checks state to see if it is in the command) More...

virtual bool	matches (const DtDynamicTerrainGeometry &geometry, bool useOriginalGeometry) const override
	always true since this feature cares about More...

virtual void	changeState (const DtDynamicTerrainChanges &changes) override
	apply a change state. DtDynamicTerrainFeature pure virtual method implementation More...

virtual void	setCraterState (const DtDynamicTerrainChange &command)
	set the state for this crater state change on the dynamic terrain More...

virtual void	setPersistentTrackState (const DtDynamicTerrainChange &command)
	set the state for this persistent track state change on the dynamic terrain More...

virtual bool	isInDefaultState () const
	for now it is never in the default state More...

virtual bool	lastStateWasDefaultState () const
	for now there is never a last default state of true either More...

virtual void	iterateCommands (const boost::function< void(const DtDynamicTerrainChange &)> &callback) const override
	This is currently called by the dynamic terrain page logic. More...

virtual void	reloadShaders ()
	hooked up to the shared state signal for reloading the shaders and reloads the track layer shaders More...

virtual void	buildTrackStyleMap ()
	search the model definitions for Persistent Tracks definitions and build a style for each More...

virtual const osgEarth::Style *	findPersistentTrackStyle (const std::string &trackType, const std::string &soilType, const std::string &trackDepth) const
	find the style for the track based on the parameters. More...

Public Member Functions inherited from makVrv::DtDynamicTerrainFeature
	DtDynamicTerrainFeature ()
	Default Constructor. More...

virtual	~DtDynamicTerrainFeature ()
	Virtual destructor. More...

virtual const DtDynamicTerrainGeometry *	originalGeometry () const
	Unprocessed geometry. More...

virtual boost::optional< DtString >	featureAttribute (const DtString &key) const
	Access attribute values encoded into features. More...

virtual void	iterateCommands (const boost::function< void(const DtDynamicTerrainChange &)> &callback, const DtString &key) const

void	changed ()
	Calls changeState and all attached query callbacks. More...

bool	pageOut ()
	Remove all change requests links and remove feature from dynamic terrain world. More...

void	changes (const boost::function< void(const DtDynamicTerrainChanges &)> &callback) const
	Calls supplied callback on this features DtDynamicTerrainChanges interface. More...

RequestHandle	addChangeRequest (DtDynamicTerrainChange *change)
	Add a change request directly to this feature. More...

RequestHandle	addChangeRequest (double time, DtDynamicTerrainChange *change)

virtual	~Link ()

RequestInfo &	request ()

DtDynamicTerrainFeature &	feature ()

	RequestInfo (DtDynamicTerrainChange *command)

virtual	~RequestInfo ()

const DtDynamicTerrainChange &	command () const

void	pageOut ()

virtual const DtDynamicTerrainFeature *	parentFeature () const

virtual boost::signalslib::connection	connectToChangeSignal (const ChangeCallback &callback) const
	Call callback when feature state is changed. More...

virtual boost::signalslib::connection	connectToPageOutSignal (const Callback &callback) const
	Call callback when feature is removed. More...

Public Member Functions inherited from makVrv::DtDisconnectable
	DtDisconnectable ()
	Default constructor. More...

virtual	~DtDisconnectable ()
	Destructor. More...

virtual boost::signalslib::connection	addDisconnectFunction (const boost::function< void()> &callback)
	Add a function to be called when callDisconnectFunctions is called. More...

virtual bool	callDisconnectFunctions ()
	Atomically call all the disconnect functions and mark this object as disconnected. More...

Protected Types
typedef osg::ref_ptr< osg::Image >	ImageRef

Protected Types inherited from makVrv::DtDisconnectable
enum	State { NotUsed, InUse, Disconnected }

typedef tbb::spin_mutex	Mutex

Protected Member Functions
virtual void	processChanges (const DtDynamicTerrainChange &command)
	helper function for applying a change state. More...

virtual void	removeTerrainChange (const DtDynamicTerrainChange &change) override
	Remove a terrain change calls the more specific terrain change function based on the change. More...

virtual void	removeTerrainCraterChange (const DtDynamicTerrainChange &change)
	Remove a crater change state. More...

virtual void	removeTerrainPersistentTrackChange (const DtDynamicTerrainChange &change)
	Remove a persistent track change state. More...

virtual void	sendTrackUpdates ()
	send the osgEarth Features down to the RoadSurfaceLayer for the tracks. More...

virtual bool	parseTrackParameters (const DtDynamicTerrainChange &change, std::string &trackId, std::string &trackType, std::string &soilType, std::string &trackDepth) const
	utility function for reading the parameters for a track change into strings More...

virtual void	slot_observerSettingRemoved (DtObserverObject *observer, int setting)
	Check to see if the show treads setting changed and setup the myTrackUpdatesEnabled based on the setting. More...

virtual void	slot_observerSettingChanged (DtObserverObject *observer, int setting, bool value)
	Check to see if the show treads setting changed and setup the myTrackUpdatesEnabled based on the setting. More...

virtual void	setupTrackUpdatesEnabled ()
	Update the myTrackUpdatesEnabled flag based on the show treads observer mode settings for the active observer objects. More...

Protected Member Functions inherited from makVrv::DtDynamicTerrainFeature
void	indexDoubleAscending (const DtString &key)
	Key/value attribute indexing. More...

void	indexDoubleDescending (const DtString &key)

void	indexIntAscending (const DtString &key)

void	indexIntDescending (const DtString &key)

void	indexStringAscending (const DtString &key)

void	indexStringDescending (const DtString &key)

void	setupIndex (const DtString &key, DtDynamicTerrainIndex *index)

Protected Attributes
const DtString	myCraterStateName

const DtString	myTracksStateName

osg::ref_ptr< osgEarth::MapNode >	myMapNode

int	myChangeCount

osg::ref_ptr < osgEarth::Contrib::DecalImageLayer >	myDecalImageLayer

osg::ref_ptr < osgEarth::Contrib::DecalElevationLayer >	myDecalElevLayer

osg::ref_ptr < osgEarth::Contrib::DecalLandCoverLayer >	myDecalLandCoverLayer

osg::ref_ptr < osgEarth::Splat::RoadSurfaceLayer >	myTracksLayer

osg::ref_ptr < DtOsgEarthMemoryFeatureSource >	myFeatureSource

std::map< std::string, osg::ref_ptr < osgEarth::Feature > >	myGeometryRefs

osg::ref_ptr < osgEarth::VirtualProgram >	myTerrainEngineVirtualProgram

DtDe &	myDe

DtDynamicTerrainRasterLibrary *	myRasterLibrary

osgEarth::LandCoverDictionary *	myLandCoverDictionary

DtSignalConnectionManager	myConnections

TrackTypeToStyleMap	myTrackTypeToStyleMap

bool	myTrackUpdatesEnabled

Protected Attributes inherited from makVrv::DtDisconnectable
Mutex	myMutex

State	myDisconnectedState

boost::signalslib::signal< void()>	myDisconnectSignal

Additional Inherited Members
Public Types inherited from makVrv::DtDynamicTerrainFeature
typedef boost::function< void(const DtDynamicTerrainFeature &)>	Callback
	Signal notification. More...

typedef boost::function< void(const DtDynamicTerrainFeature &, const DtDynamicTerrainChanges &)>	ChangeCallback

Static Public Member Functions inherited from makVrv::DtDynamicTerrainFeature
static unsigned long long	GetObjectCount ()

static unsigned long long	GetObjectCount ()

static bool	Create (const boost::shared_ptr< DtDynamicTerrainFeature > &featureInfo, const boost::shared_ptr< RequestInfo > &reqInfo)

static unsigned long long	GetObjectCount ()

Detailed Description

DtOsgEarthDynamicTerrainFeature is a special DtDynamicTerrainFeature which listens to all the dynamic terrain change requests and translates them into osgEarth specific dynamic terrain layers.

Explosive crater changes are turned into decals on the imagery, elevation, and land use layers. Persistant Vehicle Tracks are turned into features which are passed to a RoadSurfaceLayer for baking into an imagery layer

Member Typedef Documentation

typedef osg::ref_ptr<osg::Image> makVrv::DtOsgEarthDynamicTerrainFeature::ImageRef

protected

Constructor & Destructor Documentation

makVrv::DtOsgEarthDynamicTerrainFeature::DtOsgEarthDynamicTerrainFeature	(	osgEarth::MapNode *	mapNode,
		DtDe &	de
	)

explicit

constructor

virtual makVrv::DtOsgEarthDynamicTerrainFeature::~DtOsgEarthDynamicTerrainFeature ( )

virtual

destructor

makVrv::DtOsgEarthDynamicTerrainFeature::DtOsgEarthDynamicTerrainFeature ( )

delete

default constructor not implemented

makVrv::DtOsgEarthDynamicTerrainFeature::DtOsgEarthDynamicTerrainFeature ( const DtOsgEarthDynamicTerrainFeature & other )

delete

Copy Constructor not implemented – Copy Not Allowed.

Member Function Documentation

DtOsgEarthDynamicTerrainFeature& makVrv::DtOsgEarthDynamicTerrainFeature::operator= ( const DtOsgEarthDynamicTerrainFeature & other )

delete

Assignment Operator Not implemented � Assignment Not Allowed.

virtual DtString makVrv::DtOsgEarthDynamicTerrainFeature::description ( ) const

overridevirtual

Feature description functions Allows feature to describe itself (for a gui mostly).

These can all be called from query callbacks. None of the values returned by these functions have any meaning besides informational. A description of what is in the feature, how it is setup, configuration, etc.

Implements makVrv::DtDynamicTerrainFeature.

virtual const DtDynamicTerrainGeometry* makVrv::DtOsgEarthDynamicTerrainFeature::geometry ( ) const

overridevirtual

geometry for this feature. Currently always null since osgEarth cares about all of them

Implements makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtOsgEarthDynamicTerrainFeature::matches	(	const DtDynamicTerrainChange &	command,
		bool	useOriginalGeometry
	)		const

overridevirtual

check to see if this feature cares about this command (checks state to see if it is in the command)

Implements makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtOsgEarthDynamicTerrainFeature::matches	(	const DtDynamicTerrainGeometry &	geometry,
		bool	useOriginalGeometry
	)		const

overridevirtual

always true since this feature cares about

Implements makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::changeState ( const DtDynamicTerrainChanges & changes )

overridevirtual

apply a change state. DtDynamicTerrainFeature pure virtual method implementation

Implements makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::setCraterState ( const DtDynamicTerrainChange & command )

virtual

set the state for this crater state change on the dynamic terrain

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::setPersistentTrackState ( const DtDynamicTerrainChange & command )

virtual

set the state for this persistent track state change on the dynamic terrain

virtual bool makVrv::DtOsgEarthDynamicTerrainFeature::isInDefaultState ( ) const

virtual

for now it is never in the default state

Implements makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtOsgEarthDynamicTerrainFeature::lastStateWasDefaultState ( ) const

virtual

for now there is never a last default state of true either

Implements makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::iterateCommands ( const boost::function< void(const DtDynamicTerrainChange &)> & callback ) const

overridevirtual

This is currently called by the dynamic terrain page logic.

We haven't decided what (if any) behavior we might want here, but we don't want the default, so we override this for now and do nothing

Reimplemented from makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::reloadShaders ( )

virtual

hooked up to the shared state signal for reloading the shaders and reloads the track layer shaders

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::buildTrackStyleMap ( )

virtual

search the model definitions for Persistent Tracks definitions and build a style for each

virtual const osgEarth::Style* makVrv::DtOsgEarthDynamicTerrainFeature::findPersistentTrackStyle	(	const std::string &	trackType,
		const std::string &	soilType,
		const std::string &	trackDepth
	)		const

virtual

find the style for the track based on the parameters.

trackType is required to match exactly this function will try to find styles with and without the soilType and the trackDepth. If there is an entry with all 3 keys that will match first then it will look for just trackType and soilType, then it will look for trackType and trackDepth lastly it will try and find a style for just this trackType.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::processChanges ( const DtDynamicTerrainChange & command )

protectedvirtual

helper function for applying a change state.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::removeTerrainChange ( const DtDynamicTerrainChange & change )

overrideprotectedvirtual

Remove a terrain change calls the more specific terrain change function based on the change.

Reimplemented from makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::removeTerrainCraterChange ( const DtDynamicTerrainChange & change )

protectedvirtual

Remove a crater change state.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::removeTerrainPersistentTrackChange ( const DtDynamicTerrainChange & change )

protectedvirtual

Remove a persistent track change state.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::sendTrackUpdates ( )

protectedvirtual

send the osgEarth Features down to the RoadSurfaceLayer for the tracks.

This needs to be done when the show treads setting changes to true on at least one observer or if it is true then when a new track update comes across the network

virtual bool makVrv::DtOsgEarthDynamicTerrainFeature::parseTrackParameters	(	const DtDynamicTerrainChange &	change,
		std::string &	trackId,
		std::string &	trackType,
		std::string &	soilType,
		std::string &	trackDepth
	)		const

protectedvirtual

utility function for reading the parameters for a track change into strings

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::slot_observerSettingRemoved	(	DtObserverObject *	observer,
		int	setting
	)

protectedvirtual

Check to see if the show treads setting changed and setup the myTrackUpdatesEnabled based on the setting.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::slot_observerSettingChanged	(	DtObserverObject *	observer,
		int	setting,
		bool	value
	)

protectedvirtual

Check to see if the show treads setting changed and setup the myTrackUpdatesEnabled based on the setting.

virtual void makVrv::DtOsgEarthDynamicTerrainFeature::setupTrackUpdatesEnabled ( )

protectedvirtual

Update the myTrackUpdatesEnabled flag based on the show treads observer mode settings for the active observer objects.

Member Data Documentation

const DtString makVrv::DtOsgEarthDynamicTerrainFeature::myCraterStateName

protected

const DtString makVrv::DtOsgEarthDynamicTerrainFeature::myTracksStateName

protected

osg::ref_ptr<osgEarth::MapNode> makVrv::DtOsgEarthDynamicTerrainFeature::myMapNode

protected

int makVrv::DtOsgEarthDynamicTerrainFeature::myChangeCount

protected

osg::ref_ptr<osgEarth::Contrib::DecalImageLayer> makVrv::DtOsgEarthDynamicTerrainFeature::myDecalImageLayer

protected

osg::ref_ptr<osgEarth::Contrib::DecalElevationLayer> makVrv::DtOsgEarthDynamicTerrainFeature::myDecalElevLayer

protected

osg::ref_ptr<osgEarth::Contrib::DecalLandCoverLayer> makVrv::DtOsgEarthDynamicTerrainFeature::myDecalLandCoverLayer

protected

osg::ref_ptr<osgEarth::Splat::RoadSurfaceLayer> makVrv::DtOsgEarthDynamicTerrainFeature::myTracksLayer

protected

osg::ref_ptr<DtOsgEarthMemoryFeatureSource> makVrv::DtOsgEarthDynamicTerrainFeature::myFeatureSource

protected

std::map<std::string, osg::ref_ptr<osgEarth::Feature> > makVrv::DtOsgEarthDynamicTerrainFeature::myGeometryRefs

protected

osg::ref_ptr<osgEarth::VirtualProgram> makVrv::DtOsgEarthDynamicTerrainFeature::myTerrainEngineVirtualProgram

protected

DtDe& makVrv::DtOsgEarthDynamicTerrainFeature::myDe

protected

DtDynamicTerrainRasterLibrary* makVrv::DtOsgEarthDynamicTerrainFeature::myRasterLibrary

protected

osgEarth::LandCoverDictionary* makVrv::DtOsgEarthDynamicTerrainFeature::myLandCoverDictionary

protected

DtSignalConnectionManager makVrv::DtOsgEarthDynamicTerrainFeature::myConnections

protected

TrackTypeToStyleMap makVrv::DtOsgEarthDynamicTerrainFeature::myTrackTypeToStyleMap

protected

bool makVrv::DtOsgEarthDynamicTerrainFeature::myTrackUpdatesEnabled

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOsg/DtOsgEarthDynamicTerrainFeature.h

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
