A configuration of the pages in the gui. More...

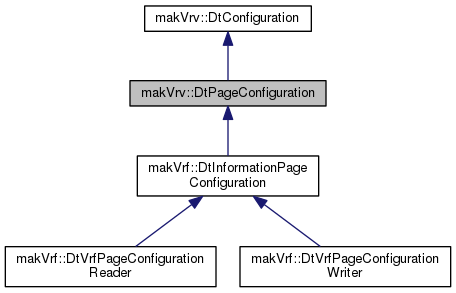

Inheritance diagram for makVrv::DtPageConfiguration:

Classes
struct	OrderParameters

struct	PageCollectionGeometry

struct	PageCollectionState

Public Types
enum	PageCollectionLocation { DockLeft = 0, DockRight = 1, DockTop = 2, DockBottom = 3, FloatLeft = DockLeft \| 4, FloatRight = DockRight \| 4, FloatTop = DockTop \| 4, FloatBottom = DockBottom \| 4, Dialog, Location_End }

typedef std::list< DtPagePath >	PagePathList

typedef std::set< DtPagePath >	PagePathSet

typedef std::map< std::string, PageCollectionState >	PageCollectionStatesMap

typedef std::map< std::string, DtUnicode >	PageCollectionTitlesMap

Public Types inherited from makVrv::DtConfiguration
typedef std::map< std::string, std::string >	ParameterMap

Public Member Functions
	DtPageConfiguration ()
	CTOR. More...

virtual	~DtPageConfiguration ()
	DTOR. More...

DtPageConfiguration &	operator= (const DtPageConfiguration &rhs)
	Assignment operator. More...

void	addPageCollection (const std::string &collectionClassName, const DtUnicode &pageTitle, PageCollectionLocation location, bool visible, const std::string &pageClassToShow, bool closable=true, bool floatable=true, bool movable=true)
	Add a new page collection to the configuration. More...

void	removePageCollection (const std::string &collectionClassName)
	Remove a page collection. More...

const PageCollectionState *	findPageCollectionState (const std::string &collectionClassName) const
	Find a page collection state. More...

PageCollectionState *	findPageCollectionState (const std::string &collectionClassName)

const bool	isPageVisible (const std::string &pageName) const
	Check whether a page (specified by name) is visible in this configuration. More...

const DtUnicode *	findPageCollectionTitle (const std::string &collectionClassName) const
	Find a page collection title. More...

DtUnicode *	findPageCollectionTitle (const std::string &collectionClassName)

void	addPagePath (const DtPagePath &, int weight=-1)
	Adds the menu path (as well as its entire family). More...

void	addPagePathAfter (const DtPagePath &newPath, const DtPagePath &relativeTo)
	Adds the menu path after a relative (they must share the same parent). More...

void	addPagePathBefore (const DtPagePath &newPath, const DtPagePath &relativeTo)
	Adds the menu path before a relative (they must share the same parent). More...

void	addConfiguration (const DtPageConfiguration &subConfiguration)
	Merges from an external configurations into this configuration. More...

void	removePagePath (const DtPagePath &)
	Remove the page path. More...

void	getRootPaths (PagePathList &children) const
	Get all paths which have no parents (aka top level paths). More...

void	getChildren (const DtPagePath &path, PagePathList &children) const
	Get a list of children (first generation only) for a given path. More...

void	sortChildren (PagePathList &children) const
	Sort the list of children. More...

virtual PagePathList	filterForAbsoluteChildren (const PagePathList &children) const
	Filter a list of only the page paths with absolute positions. More...

virtual PagePathList	filterForRelativeChildren (const PagePathList &children) const
	Filter a list of only the page paths with relative positions. More...

int	getNewWeight ()
	Get new weight. More...

void	merge (const DtPageConfiguration &rhs)
	Merges in contents of supplied configuration, adding new paths. More...

void	copyValuesFrom (const DtPageConfiguration &source)
	Uses the location, geometry, order, etc. More...

bool	hasPagePath (const DtPagePath &p) const
	Returns true if has the menu path. More...

const PageCollectionStatesMap &	states () const
	Returns the map of page collection states. More...

const PageCollectionTitlesMap &	titles () const
	Returns the map of page collection titles. More...

Public Member Functions inherited from makVrv::DtConfiguration
	DtConfiguration (const std::string &name="")
	CTOR. More...

	DtConfiguration (const DtConfiguration &)
	Copy CTOR. More...

DtConfiguration &	operator= (const DtConfiguration &)
	Assignment OP. More...

virtual	~DtConfiguration ()
	DTOR. More...

virtual const std::string &	name () const
	Get the configuration name. More...

virtual void	setName (const std::string &name)
	Set the configuration name. More...

virtual const std::string *	findOptionalParameter (const std::string &name) const
	Find an optional parameters. More...

virtual void	setOptionalParameter (const std::string &name, const std::string &value)
	Set an optional parameter. More...

virtual void	setOptionalParameters (const ParameterMap &)
	Set an optional parameters. More...

virtual void	removeOptionalParameter (const std::string &name)
	Remove an optional parameter. More...

const ParameterMap &	optionalParameters () const
	Get the optional parameters. More...

Protected Types
typedef std::map< DtPagePath, OrderParameters >	PagePathOrderMap

Protected Member Functions
template<class Archive >
void	_serialize (Archive &ar, const unsigned int version)
	Declare serialize functions Call via serialize(Archive ar, unsigned int version); Where Archive can be any of : xml_oarchive,xml_iarchive,binary_oarchive binary_iarchive,text_oarchive, or text_iarchive. More...

bool	comparePagesByPageOrder (const DtPagePath &a, const DtPagePath &b) const
	Compare by page order, then compare pages with equal order alphabetically. More...

virtual const OrderParameters &	pageOrderFor (const DtPagePath &pagePath) const
	Get the page order parameters for a given page path. More...

Protected Member Functions inherited from makVrv::DtConfiguration
template<class Archive >
void	_serialize (Archive &ar, const unsigned int version)
	Declare serialize functions Call via serialize(Archive ar, unsigned int version); Where Archive can be any of : xml_oarchive,xml_iarchive,binary_oarchive binary_iarchive,text_oarchive, or text_iarchive example: fstream fo("test.xml",std;:ios_base::out); xml_oarchive os(fo); DtConfiguration aConfig; aConfig.serialize(os,0);. More...

Protected Attributes
PagePathSet	myPagePaths

PagePathOrderMap	myPageOrder

PageCollectionStatesMap	myCollections

PageCollectionTitlesMap	myPageCollectionTitles

int	myCurrentWeight

Protected Attributes inherited from makVrv::DtConfiguration
std::string	myName

ParameterMap	myOptionalParameters

DtProxyWP	myAttachedInterface

Detailed Description

A configuration of the pages in the gui.

Member Typedef Documentation

typedef std::list<DtPagePath> makVrv::DtPageConfiguration::PagePathList

typedef std::set<DtPagePath> makVrv::DtPageConfiguration::PagePathSet

typedef std::map<std::string,PageCollectionState> makVrv::DtPageConfiguration::PageCollectionStatesMap

typedef std::map<std::string,DtUnicode> makVrv::DtPageConfiguration::PageCollectionTitlesMap

typedef std::map<DtPagePath,OrderParameters> makVrv::DtPageConfiguration::PagePathOrderMap

protected

Member Enumeration Documentation

enum makVrv::DtPageConfiguration::PageCollectionLocation

Enumerator
DockLeft
DockRight
DockTop
DockBottom
FloatLeft
FloatRight
FloatTop
FloatBottom
Dialog
Location_End

Constructor & Destructor Documentation

makVrv::DtPageConfiguration::DtPageConfiguration ( )

CTOR.

virtual makVrv::DtPageConfiguration::~DtPageConfiguration ( )

virtual

DTOR.

Member Function Documentation

DtPageConfiguration& makVrv::DtPageConfiguration::operator= ( const DtPageConfiguration & rhs )

Assignment operator.

void makVrv::DtPageConfiguration::addPageCollection	(	const std::string &	collectionClassName,
		const DtUnicode &	pageTitle,
		PageCollectionLocation	location,
		bool	visible,
		const std::string &	pageClassToShow,
		bool	closable = `true`,
		bool	floatable = `true`,
		bool	movable = `true`
	)

Add a new page collection to the configuration.

void makVrv::DtPageConfiguration::removePageCollection ( const std::string & collectionClassName )

Remove a page collection.

const PageCollectionState* makVrv::DtPageConfiguration::findPageCollectionState ( const std::string & collectionClassName ) const

Find a page collection state.

The page collection can't be changed; to modify a page collection, call addPageCollection with the same collection class name, and new parameters.

PageCollectionState* makVrv::DtPageConfiguration::findPageCollectionState ( const std::string & collectionClassName )

const bool makVrv::DtPageConfiguration::isPageVisible ( const std::string & pageName ) const

Check whether a page (specified by name) is visible in this configuration.

const DtUnicode* makVrv::DtPageConfiguration::findPageCollectionTitle ( const std::string & collectionClassName ) const

Find a page collection title.

The page collection title can't be changed; to modify a page collection title, call addPageCollection with the same collection class name, and new parameters.

DtUnicode* makVrv::DtPageConfiguration::findPageCollectionTitle ( const std::string & collectionClassName )

void makVrv::DtPageConfiguration::addPagePath	(	const DtPagePath &	,
		int	weight = `-1`
	)

Adds the menu path (as well as its entire family).

void makVrv::DtPageConfiguration::addPagePathAfter	(	const DtPagePath &	newPath,
		const DtPagePath &	relativeTo
	)

Adds the menu path after a relative (they must share the same parent).

Pages added after get negative weights, to indicate they are added in reverse order.

void makVrv::DtPageConfiguration::addPagePathBefore	(	const DtPagePath &	newPath,
		const DtPagePath &	relativeTo
	)

Adds the menu path before a relative (they must share the same parent).

void makVrv::DtPageConfiguration::addConfiguration ( const DtPageConfiguration & subConfiguration )

Merges from an external configurations into this configuration.

void makVrv::DtPageConfiguration::removePagePath ( const DtPagePath & )

Remove the page path.

void makVrv::DtPageConfiguration::getRootPaths ( PagePathList & children ) const

Get all paths which have no parents (aka top level paths).

void makVrv::DtPageConfiguration::getChildren	(	const DtPagePath &	path,
		PagePathList &	children
	)		const

Get a list of children (first generation only) for a given path.

/

 If there are these three pages:
*     Panel\
*     Panel\Page1
*     Panel\Page2
*     And you call getChildren("Panel\",children).
*     children will only contain 'Page1' and 'Page2'.
*

void makVrv::DtPageConfiguration::sortChildren ( PagePathList & children ) const

Sort the list of children.

virtual PagePathList makVrv::DtPageConfiguration::filterForAbsoluteChildren ( const PagePathList & children ) const

virtual

Filter a list of only the page paths with absolute positions.

virtual PagePathList makVrv::DtPageConfiguration::filterForRelativeChildren ( const PagePathList & children ) const

virtual

Filter a list of only the page paths with relative positions.

int makVrv::DtPageConfiguration::getNewWeight ( )

Get new weight.

void makVrv::DtPageConfiguration::merge ( const DtPageConfiguration & rhs )

Merges in contents of supplied configuration, adding new paths.

Order will get added at the end

void makVrv::DtPageConfiguration::copyValuesFrom ( const DtPageConfiguration & source )

Uses the location, geometry, order, etc.

values from the supplied configuration while keeping the existence of pages based on the existing configuration

bool makVrv::DtPageConfiguration::hasPagePath ( const DtPagePath & p ) const

Returns true if has the menu path.

const PageCollectionStatesMap& makVrv::DtPageConfiguration::states ( ) const

Returns the map of page collection states.

const PageCollectionTitlesMap& makVrv::DtPageConfiguration::titles ( ) const

Returns the map of page collection titles.

template<class Archive >

void makVrv::DtPageConfiguration::_serialize	(	Archive &	ar,
		const unsigned int	version
	)

inlineprotected

Declare serialize functions Call via serialize(Archive ar, unsigned int version); Where Archive can be any of : xml_oarchive,xml_iarchive,binary_oarchive binary_iarchive,text_oarchive, or text_iarchive.

References DT_SERIALIZE_BASE, and DT_SERIALIZE_MEMBER.

bool makVrv::DtPageConfiguration::comparePagesByPageOrder	(	const DtPagePath &	a,
		const DtPagePath &	b
	)		const

protected

Compare by page order, then compare pages with equal order alphabetically.

virtual const OrderParameters& makVrv::DtPageConfiguration::pageOrderFor ( const DtPagePath & pagePath ) const

protectedvirtual

Get the page order parameters for a given page path.

pagePath must exist in the myPageOrder map; throws DtInvalidInput if not found.

Member Data Documentation

PagePathSet makVrv::DtPageConfiguration::myPagePaths

protected

PagePathOrderMap makVrv::DtPageConfiguration::myPageOrder

protected

PageCollectionStatesMap makVrv::DtPageConfiguration::myCollections

protected

PageCollectionTitlesMap makVrv::DtPageConfiguration::myPageCollectionTitles

protected

int makVrv::DtPageConfiguration::myCurrentWeight

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvCore/DtPageConfiguration.h

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
