An abstract interface that provides VR System API services. More...

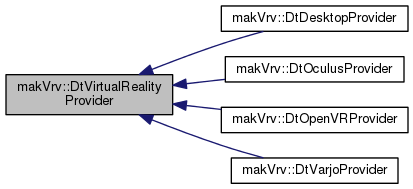

Inheritance diagram for makVrv::DtVirtualRealityProvider:

Public Member Functions
	DtVirtualRealityProvider (DtDe &de)
	CTOR. More...

virtual	~DtVirtualRealityProvider ()
	DTOR. More...

virtual DtSubmitOverlayCallback *	createOverlayCallback (osg::Texture *tex, DtDe &de, DtVirtualRealityDriver &driver)=0
	create a system specific overlay callback More...

virtual DtSubmitViewCallback *	createViewCallback (DtVirtualRealityPostProcessor &pp, DtVirtualRealityDriver &driver, vrvVirtualReality::DtEye eye)=0
	create a system specific view callback More...

virtual const std::string &	providerName ()=0
	get the name of this VR System provider More...

virtual const std::string &	deviceName ()=0
	some systems can support multiple devices. Get the name of the attached device More...

virtual bool	initializeVR ()=0
	initialize the VR subsystem More...

virtual bool	hasFocusViews ()=0
	does this headset support focus views More...

virtual bool	useVrs ()=0
	should we use variable rate shading More...

virtual DtVariableRateShadingImageUpdater *	findVrsUpdater (DtVirtualRealityChannel *channel)=0
	return a vrs updater allocating it if needed More...

virtual void	getRecommendedRenderTargetSize (int &width, int &height, vrvVirtualReality::DtEye whichEye)=0
	get recommended VR target size More...

virtual void	getProjectionAngles (vrvVirtualReality::DtEye eye, double &left, double &right, double &bottom, double &top, double znear, double zfar)=0
	get recommended projection frustum angles in degrees. Znear and zFar are passed in More...

virtual osg::Matrixd	getEyeToHeadTransform (vrvVirtualReality::DtEye eye)=0
	get the head to eye transform More...

virtual void	tick ()=0
	update the VR system More...

virtual bool	getHmdPose (DtVector &pos, DtQuat &ori)=0
	get the HMD pose More...

virtual void	setHmdPoseOffset (const DtVector &pos, const DtQuat &ori)=0
	set an constant offset to the hmd pose More...

virtual bool	getTrackedPose (DtVector &pos, DtQuat &ori, int index)=0
	get the pose of a tracked item More...

virtual bool	reset ()=0
	reset the HMD More...

virtual bool	shutdown ()=0
	shutdown the VR subsystem More...

virtual bool	hasTrackedCamera ()=0
	check if there is a tracked camera More...

virtual DtTrackedCamera *	findTrackedCamera ()=0
	get the tracked camera of the VR system. More...

virtual DtMixedRealityMask *	findMixedRealityMask ()=0
	return the mixed reality mask object allocating one if not already allocated will return zero for providers that don't support mixed reality More...

virtual bool	mixedRealityRunning () const
	returns true if mixed reality is active and running More...

virtual void	startMixedReality ()
	start mixed reality camera and blending etc More...

virtual void	stopMixedReality ()
	stop mixed reality camera and blending etc More...

virtual bool	supportsMixedReality ()
	reuturns true if the headset is capable of supporting mixed reality More...

virtual bool	supportsDepthBufferSubmission ()
	\ breif returns true if the headset supports depth buffer submission for positional warp etc More...

virtual bool	supportsRealWorldDepthTesting ()
	\ breif returns true if the headset supports depth testing against the real world More...

virtual bool	realWorldDepthTestingEnabled () const
	\ brief returns true if real world depth testing is enabled More...

virtual void	startRealWorldDepthTesting ()
	\ breif start performing real world depth testing More...

virtual void	stopRealWorldDepthTesting ()
	\ breif stop performing real world depth testing More...

virtual bool	useStereoOverlay ()
	should the overlay be rendered as strereo to another render texture More...

virtual bool	supportsDirectMirroring ()
	does this provider handle displaying the mirror view More...

Protected Attributes
DtDe &	myDe

DtTrackedCamera *	myTrackedCamera

DtMixedRealityMask *	myMixedRealityMask

bool	myMixedRealityRunning

bool	myRealWorldDepthTestingEnabled

Private Member Functions
	DtVirtualRealityProvider (const DtVirtualRealityProvider &other)
	Copy Constructor not implemented – Copy Not Allowed. More...

DtVirtualRealityProvider &	operator= (const DtVirtualRealityProvider &other)
	Assignment Operator Not implemented � Assignment Not Allowed. More...

Detailed Description

An abstract interface that provides VR System API services.

Providers are created and provided to the DtVirtualRealityDriver for use. Derived classes will have a static isVrSupported() function that can be used to know if the right equipment and software are present for use.

Constructor & Destructor Documentation

makVrv::DtVirtualRealityProvider::DtVirtualRealityProvider ( const DtVirtualRealityProvider & other )

private

Copy Constructor not implemented – Copy Not Allowed.

makVrv::DtVirtualRealityProvider::DtVirtualRealityProvider ( DtDe & de )

CTOR.

virtual makVrv::DtVirtualRealityProvider::~DtVirtualRealityProvider ( )

virtual

DTOR.

Member Function Documentation

DtVirtualRealityProvider& makVrv::DtVirtualRealityProvider::operator= ( const DtVirtualRealityProvider & other )

private

Assignment Operator Not implemented � Assignment Not Allowed.

virtual DtSubmitOverlayCallback* makVrv::DtVirtualRealityProvider::createOverlayCallback	(	osg::Texture *	tex,
		DtDe &	de,
		DtVirtualRealityDriver &	driver
	)

pure virtual

create a system specific overlay callback

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual DtSubmitViewCallback* makVrv::DtVirtualRealityProvider::createViewCallback	(	DtVirtualRealityPostProcessor &	pp,
		DtVirtualRealityDriver &	driver,
		vrvVirtualReality::DtEye	eye
	)

pure virtual

create a system specific view callback

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual const std::string& makVrv::DtVirtualRealityProvider::providerName ( )

pure virtual

get the name of this VR System provider

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual const std::string& makVrv::DtVirtualRealityProvider::deviceName ( )

pure virtual

some systems can support multiple devices. Get the name of the attached device

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::initializeVR ( )

pure virtual

initialize the VR subsystem

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::hasFocusViews ( )

pure virtual

does this headset support focus views

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::useVrs ( )

pure virtual

should we use variable rate shading

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual DtVariableRateShadingImageUpdater* makVrv::DtVirtualRealityProvider::findVrsUpdater ( DtVirtualRealityChannel * channel )

pure virtual

return a vrs updater allocating it if needed

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual void makVrv::DtVirtualRealityProvider::getRecommendedRenderTargetSize	(	int &	width,
		int &	height,
		vrvVirtualReality::DtEye	whichEye
	)

pure virtual

get recommended VR target size

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual void makVrv::DtVirtualRealityProvider::getProjectionAngles	(	vrvVirtualReality::DtEye	eye,
		double &	left,
		double &	right,
		double &	bottom,
		double &	top,
		double	znear,
		double	zfar
	)

pure virtual

get recommended projection frustum angles in degrees. Znear and zFar are passed in

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual osg::Matrixd makVrv::DtVirtualRealityProvider::getEyeToHeadTransform ( vrvVirtualReality::DtEye eye )

pure virtual

get the head to eye transform

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual void makVrv::DtVirtualRealityProvider::tick ( )

pure virtual

update the VR system

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::getHmdPose	(	DtVector &	pos,
		DtQuat &	ori
	)

pure virtual

get the HMD pose

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual void makVrv::DtVirtualRealityProvider::setHmdPoseOffset	(	const DtVector &	pos,
		const DtQuat &	ori
	)

pure virtual

set an constant offset to the hmd pose

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::getTrackedPose	(	DtVector &	pos,
		DtQuat &	ori,
		int	index
	)

pure virtual

get the pose of a tracked item

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::reset ( )

pure virtual

reset the HMD

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::shutdown ( )

pure virtual

shutdown the VR subsystem

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::hasTrackedCamera ( )

pure virtual

check if there is a tracked camera

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual DtTrackedCamera* makVrv::DtVirtualRealityProvider::findTrackedCamera ( )

pure virtual

get the tracked camera of the VR system.

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual DtMixedRealityMask* makVrv::DtVirtualRealityProvider::findMixedRealityMask ( )

pure virtual

return the mixed reality mask object allocating one if not already allocated will return zero for providers that don't support mixed reality

Implemented in makVrv::DtVarjoProvider, makVrv::DtOpenVRProvider, makVrv::DtOculusProvider, and makVrv::DtDesktopProvider.

virtual bool makVrv::DtVirtualRealityProvider::mixedRealityRunning ( ) const

virtual

returns true if mixed reality is active and running

virtual void makVrv::DtVirtualRealityProvider::startMixedReality ( )

virtual

start mixed reality camera and blending etc

Reimplemented in makVrv::DtVarjoProvider.

virtual void makVrv::DtVirtualRealityProvider::stopMixedReality ( )

virtual

stop mixed reality camera and blending etc

Reimplemented in makVrv::DtVarjoProvider.

virtual bool makVrv::DtVirtualRealityProvider::supportsMixedReality ( )

virtual

reuturns true if the headset is capable of supporting mixed reality

Reimplemented in makVrv::DtVarjoProvider.

virtual bool makVrv::DtVirtualRealityProvider::supportsDepthBufferSubmission ( )

virtual

\ breif returns true if the headset supports depth buffer submission for positional warp etc

Reimplemented in makVrv::DtVarjoProvider, and makVrv::DtOculusProvider.

virtual bool makVrv::DtVirtualRealityProvider::supportsRealWorldDepthTesting ( )

virtual

\ breif returns true if the headset supports depth testing against the real world

Reimplemented in makVrv::DtVarjoProvider.

virtual bool makVrv::DtVirtualRealityProvider::realWorldDepthTestingEnabled ( ) const

virtual

\ brief returns true if real world depth testing is enabled

virtual void makVrv::DtVirtualRealityProvider::startRealWorldDepthTesting ( )

virtual

\ breif start performing real world depth testing

Reimplemented in makVrv::DtVarjoProvider.

virtual void makVrv::DtVirtualRealityProvider::stopRealWorldDepthTesting ( )

virtual

\ breif stop performing real world depth testing

Reimplemented in makVrv::DtVarjoProvider.

virtual bool makVrv::DtVirtualRealityProvider::useStereoOverlay ( )

virtual

should the overlay be rendered as strereo to another render texture

Reimplemented in makVrv::DtVarjoProvider.

virtual bool makVrv::DtVirtualRealityProvider::supportsDirectMirroring ( )

virtual

does this provider handle displaying the mirror view

Reimplemented in makVrv::DtVarjoProvider.

Member Data Documentation

DtDe& makVrv::DtVirtualRealityProvider::myDe

protected

DtTrackedCamera* makVrv::DtVirtualRealityProvider::myTrackedCamera

protected

DtMixedRealityMask* makVrv::DtVirtualRealityProvider::myMixedRealityMask

protected

bool makVrv::DtVirtualRealityProvider::myMixedRealityRunning

protected

bool makVrv::DtVirtualRealityProvider::myRealWorldDepthTestingEnabled

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvVirtualReality/DtVirtualRealityProvider.h

Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
