exampleDriverPlugin

Table of Contents

• Overview
• Expected Result
• Example details
• Building the Example
• Running the Example
• Example Source Files
  • exampleDriver.h
  • exampleDriver.cxx
  • exampleSimEngine.h
  • exampleSimEngine.cxx
  • exampleDriverPlugin.h
  • exampleDriverPlugin.cxx

Overview

This driver will load the Makland terrain database and create an F-16 entity on start, attach the main observer to it, and then move the F16 a small amount each time that it's ticked. This example adds a driver via a plugin.

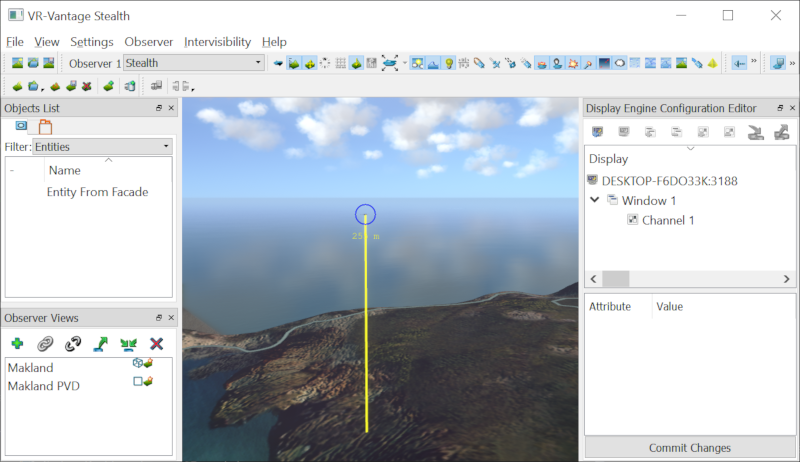

Expected Result

Example Driver Plugin Result

Example details

The example driver's onStart() method loads the database first.

It then creates a new entity facade and tells it to use the f-16_Falcon Visual Definition.

Using the coordinate system information provided by the loaded terrain database, the driver provides an initial position and orientation in the coordinate system of the database.

The current observer is then attached to the newly created entity, and reset to provide a perspective view.

The driver manager ticks the example driver by calling its onTick() method. The onTick() method updates the driver's local kinematic member variables and then passes them on to the entity facade.

The driver is stopped by the driver manager callings its onStop() method. This cleans up the entity facade allocated on the heap.

The example driver is created, added to the driver manager, and started in the main program.

void installDriver(DtDe& de)
{
   // Create DtExampleDriver.
   DtExampleDriver* driver = new DtExampleDriver( de.agentManager());

   // The driver is now owned by the display engine. Do not delete it.
   de.driverManager().addDriver(driver);

   // Start the driver, creating the agent.
   de.driverManager().startDriver(driver);

The plugin registers the install function to be called after the DtDe has been initialized.

   if (de.isInMasterMode())
   {
      // The accessory must be created after the DE's initialization is
      // finished, to make sure all the objects it uses exist.
      de.signal_postInitialize.connect(boost::bind(
         &installDriver, boost::ref(de) ));

Building the Example

VR-Vantage includes pre-built versions of the example plug-in. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a plug-in. You can run it by running ./bin64/exampleDriverPlugin_stealth.bat (on Windows) or ./bin64/exampleDriverPlugin_stealth.sh (on Linux). Press the "s" key to get away from the entity and see the HAT line. For more information about running examples, please see Running Applications and Examples.

Example Source Files

• exampleDriver.cxx
• exampleDriver.h
• exampleSimEngine.cxx
• exampleSimEngine.h
• exampleDriverPlugin.cxx
• exampleDriverPlugin.h

---

exampleDriver.h

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/


#pragma once

#include <vrvCore/DtDriver.h>

#include <string>

class DtExampleSimEngine;

// This driver creates and owns the example driver.
class DtExampleDriver : public makVrv::DtDriver
{
public:

   DtExampleDriver(makVrv::DtAgentManager& am);

   virtual ~DtExampleDriver();


   virtual const std::string& className() const;

protected:
   virtual bool onStart();

   virtual bool onStop();

   virtual bool onTick();

   virtual void attachObserverToEntity(const std::string& entityName);

   virtual void slot_displayEngineAdded(const makVrv::DtDeRecord& igRecord);


protected:
   DtExampleSimEngine* myExampleSimEngine;
};

exampleDriver.cxx

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/


#include "exampleDriver.h"
#include "exampleSimEngine.h"

#include <vrvCore/DtAgentManager.h>
#include <vrvCore/DtDe.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtInputDriver.h>
#include <vrvCore/DtObserver.h>
#include <vrvCore/DtScene.h>

#ifdef SIM_IS_SHIP
#include <vrvCore/DtEnvironment.h>
#include <vrvCore/DtTerrain.h>
#include <vrvCore/DtOceanLayer.h>
#include <vrvUtil/DtDouglasSeaScale.h>
#endif

// Use the VR-Vantage namespace.
// All classes in VR-Vantage are in this namespace.
using namespace makVrv;

DtExampleDriver::DtExampleDriver(DtAgentManager& am)
   : makVrv::DtDriver(am, "DtExampleDriver")
   , myExampleSimEngine(0)
{
}

DtExampleDriver::~DtExampleDriver()
{
   DtExampleDriver::onStop();
}

const std::string& DtExampleDriver::className() const
{
   static std::string name = "DtExampleDriver";
   return name;
}

bool DtExampleDriver::onStart()
{
   // Load Makland programatically.
   DtScene& sceneDriver = myAgentManager.de().scene();
   std::string maklandPath = myAgentManager.de().dePathConfiguration().userPath();
   maklandPath += "/terrains/Makland.mtf";
   if (sceneDriver.terrainFileName() != maklandPath)
   {
      sceneDriver.loadTerrain(maklandPath);

#ifdef SIM_IS_SHIP
      // add an ocean layer - this can be saved with the database in an mtf file
      myAgentManager.de().scene().terrain().addOceanLayer("Ocean");

      // set the sea level above to 10 m since this database has water polygons instead
      // of bathymetry
      DtOceanLayer* layer = myAgentManager.de().scene().terrain().findOceanLayer("Ocean");
      layer->setSeaLevel(10.);

      // ---- set the sea state

      // Put sea state in manual mode ( otherwise, its driven by the wind speed / direction
      DtEnvironment& env = myAgentManager.de().scene().environment();
      env.setWindDrivenSeaState(false);

      // Now we can manually set sea state and direction
      env.setSeaState((int)DtDouglasSeaState::Slight);
      env.setSeaStateDirection(1.57); // roughly east
      env.setSeaChoppiness(0.8); // 0.-1.

#endif
   }

   if (!myExampleSimEngine)
   {
      myExampleSimEngine = new DtExampleSimEngine(myAgentManager.de());
      myExampleSimEngine->init();
   }

   // Attach to entity.
#ifdef SIM_IS_SHIP
   attachObserverToEntity("Ship 1");
#else
   attachObserverToEntity("UAV 1");
#endif
   return true;
}

bool DtExampleDriver::onStop()
{
   if (myExampleSimEngine)
   {
      myExampleSimEngine->uninit();
      delete myExampleSimEngine;
      myExampleSimEngine = 0;
   }
   return true;
}



bool DtExampleDriver::onTick()
{

   if (myExampleSimEngine)
   {
      myExampleSimEngine->tick(myAgentManager.de().simulationTime());
   }
   return true;
}

void DtExampleDriver::attachObserverToEntity(const std::string& entityName)
{
   DtObserver* currentObserver = myAgentManager.de().
      driverManager().inputDriver().currentObserver();
   makArchives::DtObserverStateRecord observerStart;
   currentObserver->getRecord(observerStart);
   std::set<std::string> displayNames;
   displayNames.insert(entityName);
   observerStart.setAttachedToDisplayNames(displayNames);
   observerStart.setObserverOffsetVector(150., 0., 20.);
   currentObserver->setFromRecord(observerStart);
}

void DtExampleDriver::slot_displayEngineAdded(const DtDeRecord& igRecord)
{
   stop();
   start();
}

exampleSimEngine.h

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/


#pragma once

#include <vrvCore/DtEntityIndicatorWidget.h>
#include <vrvCore/DtSelectionManager.h>
#include <vrvCore/DtEntityInfoWidget.h>

#include <vrvUtil/DtSignalConnectionManager.h>
#include <vrvUtil/DtUnicode.h>

#include <matrix/vlTaitBryan.h>
#include <matrix/vlVector.h>

#include <string>

//#define SIM_IS_SHIP

namespace makVrv
{
   class DtEntity3dFacade;
   class DtEntityHATLineFacade;
   class DtDe;

}

class DtExampleSimEngine
{
public:

   DtExampleSimEngine(makVrv::DtDe& de);

   virtual ~DtExampleSimEngine();

   bool init();

   bool uninit();

   bool tick(double simTime);

protected:
   void slot_toggleLabelPinnedState(const makVrv::DtSelectionManager::IdSet& selList);


   virtual void setHoverSignalsActive(bool active);

   virtual void setEntityInfoWidgetActive(bool active);

   virtual makVrv::DtUnicode generateInfoString() const;

   virtual void updatePosition(double simTime);

#ifdef SIM_IS_SHIP
   // For the ship, need to pass dT so we can determine velocity
   virtual void repositionShip(DtVector position, DtTaitBryan ori, double dT);
#else
   virtual void repositionAircraft(DtVector position, DtTaitBryan ori);
#endif

protected:
   makVrv::DtDe& myDe;

   makVrv::DtEntity3dFacade* myEntityFacade;
   makVrv::DtEntityIndicatorWidget* myEntityIndicator;
   makVrv::DtEntityInfoWidget* myEntityInfoWidget;
   makVrv::DtEntityHATLineFacade* myEntityHATLineFacade;

   std::string myEntityDisplayName;
   bool myEntityInfoWidgetPinnedFlag;

   DtTaitBryan myOrientation;
   DtVector myPosition;

#ifdef SIM_IS_SHIP
   // For the ship, need our last (local) position to determine our velocity
   DtVector myLastPosition;
#endif
   double myHeading;

   double myLastCommLineTime;
   double myLastUpdateTime;

   DtVector myOrbitCenter;
   double myAngularVelocity;
   double myClockAngle;
   double myRadius;
   double myRoll;


   makVrv::DtSignalConnectionManager mySignalConnections;
};

exampleSimEngine.cxx

/*****************************************************************************
 * Copyright (c) 2021 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/


#include "exampleSimEngine.h"

#include <vrvCore/DtAgentManager.h>
#include <vrvCore/DtDe.h>
#include <vrvCore/DtDeSharedState.h>
#include <vrvCore/DtDataBank.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtElementAttributes.h>
#include <vrvCore/DtEntity3dFacade.h>
#include <vrvCore/DtInputDriver.h>
#include <vrvCore/DtObserver.h>
#include <vrvCore/DtScene.h>
#include <vrvCore/DtSharedSettingsManager.h>
#include <vrvCore/DtOverlayGroupManager.h>

#include <vrvCore/DtStateVisualizer.h>

#include <vrvCore/DtWakeModelAgent.hpp>

#include <vrvCore/DtSceneObjectAgent.hpp>
#include <vrvCore/DtEntityHATLineFacade.h>

#include <vrvCore/DtSceneObject.h>
#include <vrvCore/DtAgentUpdateResolver.h>
#include <vrvCore/DtModel.h>

#include <vrvUtil/DtCoordinateConverter.h>
#include <vrvUtil/DtCoordinateSystem.h>

#include <matrix/LibMatrix.h>

// Use the VR-Vantage namespace.
// All classes in VR-Vantage are in this namespace.
using namespace makVrv;

DtExampleSimEngine::DtExampleSimEngine(DtDe& de)
   : myDe(de)
   , myEntityFacade(0)
   , myEntityIndicator(0)
   , myEntityInfoWidget(0)
   , myEntityDisplayName("")
   , myEntityInfoWidgetPinnedFlag(false)
   , myPosition()
   , myOrientation()
   , myLastUpdateTime(0.0)
   , myEntityHATLineFacade(0)
   , myHeading(0.0)
   , myLastCommLineTime(0.0)

#ifdef SIM_IS_SHIP
   , myOrbitCenter(-9500.0, 17200.0, 10.0)
   , myAngularVelocity(0.006)
   , myClockAngle(0.0)
   , myRadius(5000.0)
   , myRoll(0.0)
   , myLastPosition(-9500.0, 22200.0, 10.)
#else
   , myOrbitCenter(2000.0, 1400.0, 350.0)
   , myAngularVelocity(0.1)
   , myClockAngle(0.0)
   , myRadius(1000.0)
   , myRoll(0.6)
#endif
{
}

DtExampleSimEngine::~DtExampleSimEngine() {}

bool DtExampleSimEngine::init()
{
   // Create the entity
   DtElementID parentElementId = 0;
#ifdef SIM_IS_SHIP
   myEntityDisplayName = "Ship 1";
#else
   myEntityDisplayName = "UAV 1";
#endif
   DtElementID elementId = myDe.agentManager().createNewUniqueId();

   myEntityFacade = new DtEntity3dFacade(myDe.agentManager(),
      DtSharedSettingsManager::instance(myDe), elementId, true);

#ifdef SIM_IS_SHIP
   // Load the model
   myEntityFacade->setArticulatedModelDefinition("SurfaceWatercraftDDG151Arleigh-BurkeNavy");

   // Need to 'dead reckon' position because wakes use the velocity from the dead
   // reckoner
   myEntityFacade->setDeadReckoningEnabled(true, false, false);

   // Enable watercraft-specific elements
   myEntityFacade->setWaterClamping(true);
   myEntityFacade->addWake();

   DtWakeModelAgent* wakeModelAgent = myEntityFacade->wake();
   wakeModelAgent->setSprayEnabled(true);
   wakeModelAgent->setBowSprayOffset(58.);
   wakeModelAgent->setSpraySizeScale(3.);
   wakeModelAgent->setNumHullSprays(5);
   wakeModelAgent->setHullSprayStart(-155.);
   wakeModelAgent->setHullSprayEnd(30.);

   wakeModelAgent->setPropWashEnabled(true);

   wakeModelAgent->setShipLength(300.);
   wakeModelAgent->setBeamWidth(16.);
   wakeModelAgent->setDraft(10.);
   wakeModelAgent->setSprayVelocityScale(0.65);
   wakeModelAgent->setBowWaveScale(1.);
   wakeModelAgent->setBowSize(2.);
   wakeModelAgent->setBowWaveOffset(70.);
   wakeModelAgent->setSternWaveOffset(-60.);
   wakeModelAgent->setWakeOffset(0.);
   wakeModelAgent->setPropWashOffset(-75.);
   wakeModelAgent->setPropWashFadeTime(30.);
   wakeModelAgent->setMaxBowWaveAmplitude(5.);
   wakeModelAgent->setHullSpraySizeScale(1.);
   wakeModelAgent->setHullSprayVelocityScale(0.4);
   wakeModelAgent->setHullSprayVerticalOffset(1.);

   myEntityFacade->setWakeLODDistance(10000.0); //set the wake lod distance to 10000.0 meters

#else
   // Load the model
   myEntityFacade->setArticulatedModelDefinition("FixedWingRQ-1Predator");
#endif


   // Let the DataBank know about this new element
   DtElementChanges changes;
   changes.myElementsAdded.push_back(new DtElementEntry(elementId, parentElementId, DtElementEntry::Entity));
   changes.myAttributesChanged[elementId].push_back(new DtElementAttributeDisplayName(myEntityDisplayName));
   changes.myAttributesChanged[elementId].push_back(new DtElementAttributeVisibility(true));
   changes.myAttributesChanged[elementId].push_back(new DtElementAttributeElementSubtype(DtElementAttributes::Friendly));
   changes.myAttributesChanged[elementId].push_back(new DtElementAttributeDriverType("Example Driver"));
   // the below change makes it so the entity we're creating respects the 'Fixed Wing' display unit collection
   changes.myAttributesChanged[elementId].push_back(new DtElementAttributeDisplayUnitCollectionName("Fixed Wing"));
   myDe.dataBank().elementData().applyChanges(changes);

   // Create the entity indicator
   myEntityIndicator =
      new DtEntityIndicatorWidget(myDe.agentManager(), myEntityFacade->modelSet());
   myEntityIndicator->setEventsEnabled(true);
   myEntityIndicator->setColor(0, 0, 1, 1);
   setHoverSignalsActive(true);

   // Attach the entity indicator to the entity
   myEntityFacade->sceneObjectAgent().addModel(myEntityIndicator->model(),
      DtStateVisualizer::EntityVisualizerType);

#ifndef SIM_IS_SHIP
   // Create a HAT line
   myEntityHATLineFacade = new DtEntityHATLineFacade(myDe.agentManager(), myEntityFacade->modelSet(),
      myEntityFacade->sceneObjectAgent().uniqueId());

   // The element ID is used to look up the display unit collection element
   // attribute set above
   myEntityHATLineFacade->setElementID(elementId);
#endif

   // Listen for a signal toggling the entity info widget's pinned state
   DtSelectionManager& selectMgr(DtSelectionManager::instance(myDe));
   mySignalConnections += selectMgr.signal_entityInfoToggled.connect(boost::bind(
      &DtExampleSimEngine::slot_toggleLabelPinnedState, this, _1));

   return true;
}

bool DtExampleSimEngine::uninit()
{
   if (myEntityFacade)
   {
      if (myEntityInfoWidget)
      {
         myEntityFacade->sceneObjectAgent().removeModel(
            myEntityInfoWidget->model());
         delete myEntityInfoWidget;
         myEntityInfoWidget = 0;
      }

      if (myEntityIndicator)
      {
         setHoverSignalsActive(false);
         myEntityFacade->sceneObjectAgent().removeModel(
            myEntityIndicator->model());
         delete myEntityIndicator;
         myEntityIndicator = 0;
      }

      DtElementChanges changes;
      changes.myElementsDeleted.push_back(myEntityFacade->elementId());
      myDe.dataBank().elementData().applyChanges(changes);

      delete myEntityFacade;
      myEntityFacade = 0;
   }
   return true;
}

DtSceneObject* findSceneObjectFromElement(DtDe& myDe, const DtElementID& id)
{
   DtElementData::SceneObjectIdList idList;
   myDe.dataBank().elementData().getSceneObjectIds(id, idList, 0);
   if (idList.size() == 0)
   {
      return 0;
   }
   DtAgentUpdateResolverInterface* updater = myDe.agentManager().findUpdater(idList.front());
   if (updater)
   {
      return updater->castObjectTypeFromUpdater<DtSceneObject>("DtSceneObject");
   }
   return 0;
}

bool DtExampleSimEngine::tick(double simTime)
{

   updatePosition(simTime);

   if (myEntityInfoWidget)
   {
      myEntityInfoWidget->setText(generateInfoString());
   }

   return true;
}


void DtExampleSimEngine::setHoverSignalsActive(bool active)
{
   // Get the event signals for the entity indicator from the widget signaler.
   DtWidgetSignaler& widgetSignaler =
      DtWidgetSignaler::instance(myDe.mainEventQueue());
   DtWidgetEventSignals& signals = myEntityIndicator->eventSignals(
      widgetSignaler);

   // Connect to or disconnect from the signals.
   if (active)
   {
      signals.signal_mouseEnter.connect(boost::bind(
         &DtExampleSimEngine::setEntityInfoWidgetActive, this, true));
      signals.signal_mouseLeave.connect(boost::bind(
         &DtExampleSimEngine::setEntityInfoWidgetActive, this, false));
   }
   else
   {
      signals.signal_mouseEnter.disconnect(boost::bind(
         &DtExampleSimEngine::setEntityInfoWidgetActive, this, true));
      signals.signal_mouseLeave.disconnect(boost::bind(
         &DtExampleSimEngine::setEntityInfoWidgetActive, this, false));
   }
}

void DtExampleSimEngine::setEntityInfoWidgetActive(bool active)
{
   // If mouse is hovering and there's no info widget...
   if (active && !myEntityInfoWidget)
   {
      // Create the entity info widget and set the color.
      myEntityInfoWidget = new DtEntityInfoWidget(
         myDe.agentManager(),
         myEntityFacade->modelSet(), "entityInfo");
      myEntityInfoWidget->setColor(0, 0, 1, 1);

      // Set group id in the entityInfoHoverGroup.
      DtOverlayGroupManager& groupManager =
         DtOverlayGroupManager::instance(myDe);
      myEntityInfoWidget->setGroup(groupManager.nextGroupId("hoverGroupSet"));

      // Add it to the entity,
      myEntityFacade->sceneObjectAgent().addModel(myEntityInfoWidget->model(),
         DtStateVisualizer::EntityVisualizerType);

      // And update its display text.
      DtUnicode infoString = generateInfoString();
      myEntityInfoWidget->setText(infoString);
   }
   // If mouse isn't hovering, and there is an info widget...
   else if (!active && myEntityInfoWidget)
   {
      // Remove it from the model and destroy it.
      myEntityFacade->sceneObjectAgent().removeModel(
         myEntityInfoWidget->model());
      delete myEntityInfoWidget;
      myEntityInfoWidget = 0;
   }
}


DtUnicode DtExampleSimEngine::generateInfoString() const
{
   DtReferenceEllipsoid refEllip(DtWGS84);
   DtGeodeticCoord geod(&refEllip);
   geod.setGeocentric(myPosition);

   DtVector localp;
   DtTaitBryan hpr;

   const DtCoordinateSystem& coordSys =
      myDe.sharedState().coordinateSystem();
   coordSys.netToLocalPos(myPosition, localp);
   coordSys.netToLocalHpr(localp, myOrientation, hpr);

   const char* entityFormatString =
      "Marking :%s\n"            // Marking Text
      "Heading :%.2f Deg\n"      // Heading
      "Lat|Lon :%.2fN %.fE\n"    // Location
      "Alt.    :%.1f m above sea level";

   std::string buffer;
   buffer.resize(1024, '0');
   {
      int charsWritten = sprintf(
         const_cast<char*>(buffer.c_str()), entityFormatString,
         myEntityDisplayName.c_str(),  // Marking Text
         DtRad2Deg(myHeading),         // Heading
         DtRad2Deg(geod.lat()),        // Location (Lat)
         DtRad2Deg(geod.lon()),        // Location (Lon)
         myPosition[2]                 // Altitude
      );
      buffer.resize(charsWritten, '0');
   }

   return DtUnicode::fromUtf8(buffer);
}

void DtExampleSimEngine::updatePosition(double simTime)
{
   // Compute time since last update.
   double now = simTime;
   double dt = now - myLastUpdateTime;

   // Update clock angle. The clock angle represents the bearing
   // to the aircraft from the center point of its orbit.
   myClockAngle += myAngularVelocity * dt;

   // Compute the offset to the aircraft using the radius and clock angle.
   DtVector offset(myRadius*sin(myClockAngle), myRadius*cos(myClockAngle), 0);

   // Compute heading and net orientation. Since the entity is
   // orbiting in a perfect circle, the heading is always 90 degrees
   // (pi/2) more than the bearing to the aircraft.
   myHeading = DtModPerLo(myClockAngle + M_PI_2, 0., 2.*M_PI);
   DtTaitBryan ori(myHeading, 0, myRoll);

#ifdef SIM_IS_SHIP
   // Update the ship's position/orientation with the new parameters.
   repositionShip(myOrbitCenter + offset, ori, dt);
#else
   // Update the aircraft's position/orientation with the new parameters.
   repositionAircraft(myOrbitCenter + offset, ori);
#endif
   // Store as last update time.
   myLastUpdateTime = now;
}

#ifdef SIM_IS_SHIP
void DtExampleSimEngine::repositionShip(DtVector position, DtTaitBryan ori, double dt)
#else
void DtExampleSimEngine::repositionAircraft(DtVector position, DtTaitBryan ori)
#endif
{
   // Get the coordinate converter and initialize.
   DtCoordinateConverter* coordConverter;
   coordConverter = myDe.sharedState().coordinateSystem().converter();
   if (coordConverter->type() == DtCoordinateConverter::Geocentric)
   {
      // => Use this for MaklandGeocentric - not exact but close enough
      DtGeodeticCoord geod(DtDeg2Rad(10.0), DtDeg2Rad(60.0), 0.0);
      coordConverter->setupTopoFrame(geod.geocentric());
   }
   else
   {
      // Or this for Makland (UTM)
      coordConverter->setupTopoFrame(position);
   }


   // Convert the position (from ENU) to local database (CIG) coords.
   coordConverter->enuToCig_coordTrans(position, myPosition);

   // Convert the orientation (from NED) to local database (CIG) ori.
   myOrientation = coordConverter->nedToCig_EulerTrans(ori);

   // Set the Position and Orientation on the aircraft.
   myEntityFacade->setOrientation(myOrientation);
   myEntityFacade->setPosition(myPosition);

#ifdef SIM_IS_SHIP
   // need a velocity for wakes
   DtVector vecDiff;
   DtVector localVel;
   DtVector velocity;

   DtVecSub(position, myLastPosition, vecDiff);
   DtVecScale(vecDiff, 1.0 / dt, localVel);
   coordConverter->enuToCig_vecTrans(localVel, velocity);
   myEntityFacade->setVelocity(DtVector64To32(velocity));
   myLastPosition = position;
#endif
}

void DtExampleSimEngine::slot_toggleLabelPinnedState(
   const DtSelectionManager::IdSet& sel)
{
   // Iterate over selected entities...
   DtSelectionManager::IdSet::const_iterator i = sel.begin();
   DtSelectionManager::IdSet::const_iterator e = sel.end();
   for (; i != e; ++i)
   {
      // If the entity facade is selected...
      if ((*i) == myEntityFacade->elementId())
      {
         // Pin/unpin the label and stop/start listening for mouse hovers.
         myEntityInfoWidgetPinnedFlag = !myEntityInfoWidgetPinnedFlag;
         myEntityIndicator->setIndicatorActive(myEntityInfoWidgetPinnedFlag);
         setEntityInfoWidgetActive(myEntityInfoWidgetPinnedFlag);
         setHoverSignalsActive(!myEntityInfoWidgetPinnedFlag);
      }
   }
}

exampleDriverPlugin.h

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/
#pragma once

#ifdef _WIN32
#ifdef EXAMPLEDRIVERPLUGIN_EXPORTS
#define DT_DLL_EXAMPLEDRIVERPLUGIN __declspec ( dllexport )
#else
#define DT_DLL_EXAMPLEDRIVERPLUGIN __declspec ( dllimport )
#endif
#else
#define DT_DLL_EXAMPLEDRIVERPLUGIN
#endif

 // Setup proper plugin export symbol
#define DT_DE_PLUGIN_EXPORT_MACRO DT_DLL_EXAMPLEDRIVERPLUGIN

// Declare & export the plugin initialization function (bool initDeModule(DtDe* de))
#include <vrvCore/exportPlugin.h>

exampleDriverPlugin.cxx

/*****************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 *****************************************************************************/

#include <vrvCore/DtDe.h>
#include <vrvCore/DtDriverManager.h>

#include "exampleDriverPlugin.h"
#include "exampleDriver.h"

// Use the VR-Vantage namespace. All classes in VR-Vantage are in this namespace.
using namespace makVrv;

void installDriver(DtDe& de)
{
   // Create DtExampleDriver.
   DtExampleDriver* driver = new DtExampleDriver( de.agentManager());

   // The driver is now owned by the display engine. Do not delete it.
   de.driverManager().addDriver(driver);

   // Start the driver, creating the agent.
   de.driverManager().startDriver(driver);
}

void init(DtDe& de)
{
   // Ensure that init only gets called once
   // (not strictly necessary here, but this is good practice in general)
   DT_DE_INIT_ONCE(de);

   // We only want to create the driver if we are running in master mode.
   if (de.isInMasterMode())
   {
      // The accessory must be created after the DE's initialization is
      // finished, to make sure all the objects it uses exist.
      de.signal_postInitialize.connect(boost::bind(
         &installDriver, boost::ref(de) ));
   }
}


bool initDeModule(makVrv::DtDe* de)
{
   // Setup the plug-in. Normally, the init function and functionality
   // should be in its own library.
   init(*de);
   return true;
}

[<< Examples] [Home] [Top of Page]
