DtOutputPort Class Reference

DtOutputPorts are data ports owned by data producers. More...

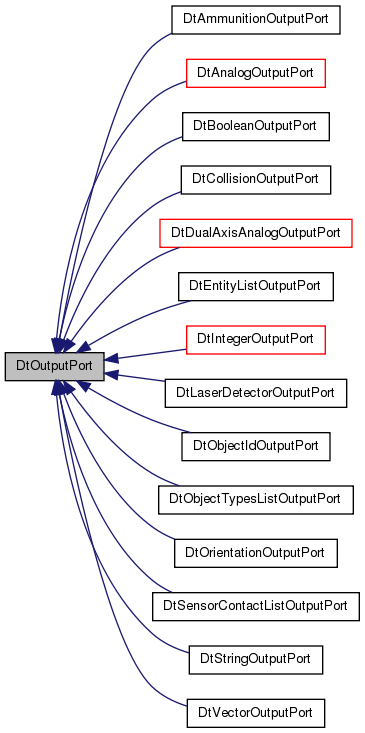

Inheritance diagram for DtOutputPort:

Public Member Functions
	DtOutputPort (const DtString &portName)
	Constructor.
virtual	~DtOutputPort ()
	Destructor.
virtual bool	init ()
	Call after the constructor.
virtual const DtString &	name () const
	Returns the string name of this port.
virtual const DtString	type () const =0
	Override for each derrived class to return a unique type string.
virtual void	createPortData ()=0
	Override for each derrived class to create and set the internal DtPortData representation.
virtual void	sendData ()
	Sends the contents of myData to all connections.
virtual void	addConnection (DtPortConnection *conn)
	Add a connection to the outgoing connection list.
virtual void	removeConnection (DtPortConnection *conn)
	Remove a connection from the outgoing connection list.
virtual bool	attemptToActivate ()
	Calls attemptToActivate on all connections in the connection list and returns true if any one of them was able to activate.
virtual bool	canActivate () const
	Calls canActivate on all connections in the connection list and returns true if any one of them can be activated.
virtual void	deactivate ()
	Calls deactivate on all connections in the connection list.
virtual void	allowDeactivation ()
	Calls allowDeactivation on all connections in the connection list.
virtual bool	active () const
	Returns true if any one of the outgoing connection are active.
virtual const DtList *	connectionList () const
	Returns the list of output connections to this port.
virtual void	setConnectionPriority (int priority)
	Sets the priority of all existing outgoing connections from this port to the new priority.
virtual DtPortData *	data ()
	Returns a pointer to the underlying port.
virtual const DtPortData *	data () const
	Returns a pointer to the underlying port.
virtual bool	enabled () const
	Enables/disables the port.
virtual void	setEnabled (bool flag)
	Enables/disables the port.

Protected Attributes
DtString	myName
bool	myEnabled
DtPortData *	myData
	locally instantiated.
DtList	myConnectionList
	List of outgoing connections.

Private Member Functions
	DtOutputPort ()
	Default constructor not implemented.
	DtOutputPort (const DtOutputPort &)
	Not implemented.
DtOutputPort &	operator= (const DtOutputPort &)
	Not implemented.

Detailed Description

DtOutputPorts are data ports owned by data producers.

They are connected to DtPortConnections and send any new data placed on them to all connections which are attached.

A DtInputPort should attemptToActivate() before data is set on it. This operation will turn on any outgoing connections, if the priority of those connections is good enough. If attemptToActivate() returns false, this indicates that no input ports are connection to this port, and no one is listening to the data, so it is not necessary to calculate new values.

sendData() should be called every time the data producer has provided new values to the port and wishes those values to be propigated to the network. Derived Output Ports may automatically call sendData when new values are set.

When the user of an output port determines they no longer want to produce output, they should call either deactivate() or allowDeactivation().

This is an abstract base class. Derived classes operate on different subtypes of DtPortData. A derived class must provide a type() method that indicates the type of DtPortData this port will send, as well as a createPortData() method which creates that type of DtPortData. Also, they should provide an interface for setting the value of the port data.

Constructor & Destructor Documentation

DtOutputPort::DtOutputPort

(

const DtString &

portName

)

Constructor.

Provide a name which this port will be referenced by.

virtual DtOutputPort::~DtOutputPort ( )

virtual

Destructor.

DtOutputPort::DtOutputPort ( )

private

Default constructor not implemented.

DtOutputPort::DtOutputPort ( const DtOutputPort &  )

private

Not implemented.

Member Function Documentation

DtOutputPort& DtOutputPort::operator= ( const DtOutputPort &  )

private

Not implemented.

virtual bool DtOutputPort::init ( )

virtual

Call after the constructor.

Calls createPortData()

Reimplemented in DtSensorContactListOutputPort.

virtual const DtString& DtOutputPort::name ( ) const

virtual

Returns the string name of this port.

virtual const DtString DtOutputPort::type ( ) const

pure virtual

Override for each derrived class to return a unique type string.

This type string is the type of the DtPortData which this port will send.

Implemented in DtLaserDetectorOutputPort, DtSensorContactListOutputPort, DtStringOutputPort, DtVectorOutputPort, DtOrientationOutputPort, DtCollisionOutputPort, DtAmmunitionOutputPort, DtDualAxisAnalogOutputPort, DtObjectIdOutputPort, DtAnalogOutputPort, DtObjectTypesListOutputPort, DtBooleanOutputPort, DtIntegerOutputPort, and DtEntityListOutputPort.

virtual void DtOutputPort::createPortData ( )

pure virtual

Override for each derrived class to create and set the internal DtPortData representation.

Implemented in DtLaserDetectorOutputPort, DtSensorContactListOutputPort, DtStringOutputPort, DtVectorOutputPort, DtOrientationOutputPort, DtCollisionOutputPort, DtAmmunitionOutputPort, DtDualAxisAnalogOutputPort, DtObjectIdOutputPort, DtAnalogOutputPort, DtObjectTypesListOutputPort, DtBooleanOutputPort, DtIntegerOutputPort, and DtEntityListOutputPort.

virtual DtPortData* DtOutputPort::data ( )

virtual

Returns a pointer to the underlying port.

This is used by the inputPort to get the port interface address.

virtual const DtPortData* DtOutputPort::data ( ) const

virtual

Returns a pointer to the underlying port.

This is used by the inputPort to get the port interface address.

virtual void DtOutputPort::sendData ( )

virtual

Sends the contents of myData to all connections.

virtual void DtOutputPort::addConnection ( DtPortConnection *  conn )

virtual

Add a connection to the outgoing connection list.

virtual void DtOutputPort::removeConnection ( DtPortConnection *  conn )

virtual

Remove a connection from the outgoing connection list.

virtual bool DtOutputPort::attemptToActivate ( )

virtual

Calls attemptToActivate on all connections in the connection list and returns true if any one of them was able to activate.

Call this when you have data which you want to supply.

virtual bool DtOutputPort::canActivate ( ) const

virtual

Calls canActivate on all connections in the connection list and returns true if any one of them can be activated.

virtual void DtOutputPort::deactivate ( )

virtual

Calls deactivate on all connections in the connection list.

Call this when you have no data to supply.

virtual void DtOutputPort::allowDeactivation ( )

virtual

Calls allowDeactivation on all connections in the connection list.

Call this when you have data to supply, but will allow your data to be overridden by others.

virtual bool DtOutputPort::active ( ) const

virtual

Returns true if any one of the outgoing connection are active.

virtual const DtList* DtOutputPort::connectionList ( ) const

virtual

Returns the list of output connections to this port.

virtual void DtOutputPort::setConnectionPriority ( int  priority )

virtual

Sets the priority of all existing outgoing connections from this port to the new priority.

virtual bool DtOutputPort::enabled ( ) const

virtual

Enables/disables the port.

virtual void DtOutputPort::setEnabled ( bool  flag )

virtual

Enables/disables the port.

Member Data Documentation

DtString DtOutputPort::myName

protected

bool DtOutputPort::myEnabled

protected

DtPortData* DtOutputPort::myData

protected

locally instantiated.

DtList DtOutputPort::myConnectionList

protected

List of outgoing connections.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-3-branch/include/vrfobjcore/outputPort.h
