makVrf::DtConditionalDialog Class Reference

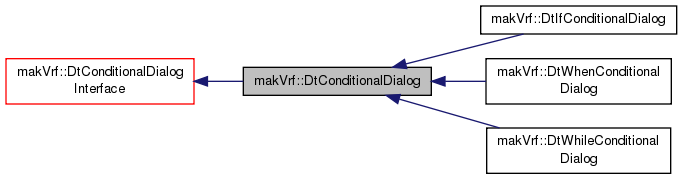

Inheritance diagram for makVrf::DtConditionalDialog:

Public Member Functions
	DtConditionalDialog (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, bool partOfGlobalPlan=false)
virtual	~DtConditionalDialog ()
virtual void	run (const std::vector< makVrv::DtSimEntry * > &data)
	Override to run the dialog.
Public Member Functions inherited from makVrf::DtConditionalDialogInterface
	DtConditionalDialogInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtConditionalDialogInterface ()
virtual void	conditionComplete (const DtSimStatement &)
	Sends signal to send out set.
virtual void	conditionCancelled ()
	Sends signal that current condition expression was cancelled.

Public Attributes
QVBoxLayout *	myMainLayout
QHBoxLayout *	myButtonLayout
QPushButton *	myOKButton
QPushButton *	myCancelButton
DtConditionalExpressionViewInterface *	myConditionalExpressionView
Public Attributes inherited from makVrf::DtConditionalDialogInterface
boost::signal< void(const DtSimStatement &)>	signal_conditionComplete
boost::signal< void()>	signal_conditionCancelled
boost::signal< void(DtConditionalDialogInterface *)>	signal_destroyed

Protected Slots
virtual void	onOk ()
virtual void	onCancel ()

Protected Member Functions
virtual void	setupGui (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up gui. Also calls createConditionalExpressionView.
virtual DtConditionalExpressionViewInterface *	createConditionalExpressionView (bool partOfGlobalPlan)
virtual void	slot_conditionComplete ()
virtual DtSimCondExpr *	conditionalExpression () const
	Calls down to view to get condition. Memory allocated must be freed by caller.
virtual void	enable ()
	enables interface
virtual void	disable ()
	disbles interface
virtual bool	editExpression (const DtSimCondExpr *, const std::vector< makVrv::DtSimEntry * > &data)
	edits the expression

Protected Attributes
DtConditionalLogic *	myLogic
bool	myOKEnabled
bool	myPartOfGlobalPlan
Protected Attributes inherited from makVrf::DtConditionalDialogInterface
makVrv::DtDe &	myDe

Constructor & Destructor Documentation

makVrf::DtConditionalDialog::DtConditionalDialog	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0,
		bool	partOfGlobalPlan = false
	)

virtual makVrf::DtConditionalDialog::~DtConditionalDialog ( )

virtual

Member Function Documentation

virtual void makVrf::DtConditionalDialog::run ( const std::vector< makVrv::DtSimEntry * > &  data )

virtual

Override to run the dialog.

Implements makVrf::DtConditionalDialogInterface.

virtual void makVrf::DtConditionalDialog::setupGui ( const std::vector< makVrv::DtSimEntry * > &  data )

protectedvirtual

Sets up gui. Also calls createConditionalExpressionView.

Implements makVrf::DtConditionalDialogInterface.

virtual DtConditionalExpressionViewInterface* makVrf::DtConditionalDialog::createConditionalExpressionView ( bool  partOfGlobalPlan )

protectedvirtual

virtual void makVrf::DtConditionalDialog::slot_conditionComplete ( )

protectedvirtual

virtual DtSimCondExpr* makVrf::DtConditionalDialog::conditionalExpression ( ) const

protectedvirtual

Calls down to view to get condition. Memory allocated must be freed by caller.

Implements makVrf::DtConditionalDialogInterface.

virtual void makVrf::DtConditionalDialog::enable ( )

protectedvirtual

enables interface

Implements makVrf::DtConditionalDialogInterface.

virtual void makVrf::DtConditionalDialog::disable ( )

protectedvirtual

disbles interface

Implements makVrf::DtConditionalDialogInterface.

virtual void makVrf::DtConditionalDialog::onOk ( )

protectedvirtualslot

virtual void makVrf::DtConditionalDialog::onCancel ( )

protectedvirtualslot

virtual bool makVrf::DtConditionalDialog::editExpression ( const DtSimCondExpr *  , const std::vector< makVrv::DtSimEntry * > &  data  )

protectedvirtual

edits the expression

Implements makVrf::DtConditionalDialogInterface.

Member Data Documentation

QVBoxLayout* makVrf::DtConditionalDialog::myMainLayout

QHBoxLayout* makVrf::DtConditionalDialog::myButtonLayout

QPushButton* makVrf::DtConditionalDialog::myOKButton

QPushButton* makVrf::DtConditionalDialog::myCancelButton

DtConditionalExpressionViewInterface* makVrf::DtConditionalDialog::myConditionalExpressionView

DtConditionalLogic* makVrf::DtConditionalDialog::myLogic

protected

bool makVrf::DtConditionalDialog::myOKEnabled

protected

bool makVrf::DtConditionalDialog::myPartOfGlobalPlan

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-3-branch/include/vrfGuiCoreQt/conditionalDialog.h
