makVrv::DtBaseConnection Class Reference

The DtBaseConnection is an abstract class. More...

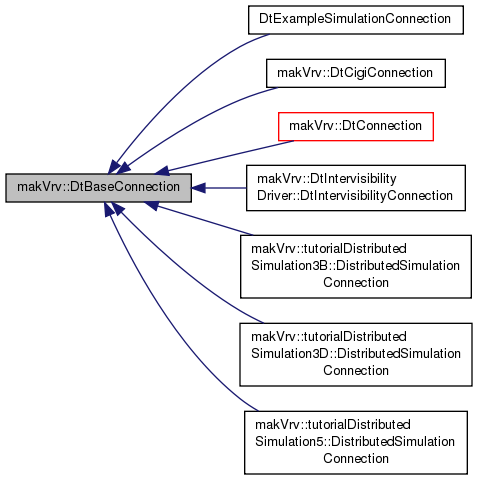

Inheritance diagram for makVrv::DtBaseConnection:

Public Member Functions
	DtBaseConnection (DtSharedSettingsManager &, DtAgentManagerInterface &)
	CTOR.
virtual	~DtBaseConnection ()
	DTOR MUST call clearInstances first.
virtual void	clearInstances ()
	Clear and delete all instances rooted in the connection MUST be called before the connection is destroyed.
DtSharedSettingsManager &	settingsManager ()
	Get the settings manager.
virtual DtAgentManagerInterface &	sceneInterface ()
	Get the scene manager interface for creating drivers.
const DtSharedSettingsManager &	settingsManager () const
	Get the settings manager.
void	reportElementCreated (DtElementID id, DtElementID parentId, unsigned int type)
	Report an element created.
void	reportElementAttribute (DtElementID id, DtElementAttribute *attribute)
void	reportElementDestroyed (DtElementID id)
	Report an element destroyed.
const DtElementChanges &	currentElementChanges () const
	Look at the current element changes.
DtElementChanges *	takeElementChanges ()
	Take the current changes and internally start a new set of changes.
DtTemporaryAgentManager &	temporaryEffects ()
	Get the temporary effects manager.
DtBlinkingObjectManager &	blinkManager ()
	Get the blinking manager.
DtRandomNumberGenerator &	randomNumberGenerator ()
	Get the simulation's random number generator.
virtual const std::string &	tag ()
	Get the tag identifying which type of connection this is.
const DtUnicode &	emptyString () const
	Allocated empty string.
virtual DtVirtualBaseClass *	findInstance (const std::string &instanceName)
	Find an instance with the given name.
bool	destroyingInstances () const
	Check to see if the simulation is destroying instances.
virtual void	registerInstance (const std::string &instanceName, DtVirtualBaseClass *instance)
	Register an object as an instance of instanceName, and transfer memory ownership of the instance to the DtConnection.

Protected Types
typedef boost::unordered_map < std::string, DtVirtualBaseClass * >	InstanceMap

Protected Attributes
DtSharedSettingsManager &	mySettingsManagerCache
DtRandomNumberGenerator	myRandomNumberGenerator
DtAgentManagerInterface &	mySceneInterface
DtElementChanges *	myWorkingElementChanges
DtTemporaryAgentManager *	myTemporaryEffects
DtBlinkingObjectManager *	myBlinkManager
	Manager for blinking objects.
DtUnicode	myEmptyString
InstanceMap	myInstances
bool	myDestroyingInstanceFlag

Detailed Description

The DtBaseConnection is an abstract class.

Member Typedef Documentation

typedef boost::unordered_map<std::string,DtVirtualBaseClass*> makVrv::DtBaseConnection::InstanceMap

protected

Constructor & Destructor Documentation

makVrv::DtBaseConnection::DtBaseConnection	(	DtSharedSettingsManager &	,
		DtAgentManagerInterface &
	)

CTOR.

virtual makVrv::DtBaseConnection::~DtBaseConnection ( )

virtual

DTOR MUST call clearInstances first.

Member Function Documentation

virtual void makVrv::DtBaseConnection::clearInstances ( )

virtual

Clear and delete all instances rooted in the connection MUST be called before the connection is destroyed.

DtSharedSettingsManager& makVrv::DtBaseConnection::settingsManager

(

)

Get the settings manager.

virtual DtAgentManagerInterface& makVrv::DtBaseConnection::sceneInterface ( )

virtual

Get the scene manager interface for creating drivers.

const DtSharedSettingsManager& makVrv::DtBaseConnection::settingsManager

(

)

const

Get the settings manager.

void makVrv::DtBaseConnection::reportElementCreated	(	DtElementID	id,
		DtElementID	parentId,
		unsigned int	type
	)

Report an element created.

void makVrv::DtBaseConnection::reportElementAttribute	(	DtElementID	id,
		DtElementAttribute *	attribute
	)

void makVrv::DtBaseConnection::reportElementDestroyed

(

DtElementID

id

)

Report an element destroyed.

const DtElementChanges& makVrv::DtBaseConnection::currentElementChanges

(

)

const

Look at the current element changes.

DtElementChanges* makVrv::DtBaseConnection::takeElementChanges

(

)

Take the current changes and internally start a new set of changes.

DtTemporaryAgentManager& makVrv::DtBaseConnection::temporaryEffects

(

)

Get the temporary effects manager.

DtBlinkingObjectManager& makVrv::DtBaseConnection::blinkManager

(

)

Get the blinking manager.

DtRandomNumberGenerator& makVrv::DtBaseConnection::randomNumberGenerator

(

)

Get the simulation's random number generator.

virtual const std::string& makVrv::DtBaseConnection::tag ( )

inlinevirtual

Get the tag identifying which type of connection this is.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkConnection.

const DtUnicode& makVrv::DtBaseConnection::emptyString

(

)

const

Allocated empty string.

virtual DtVirtualBaseClass* makVrv::DtBaseConnection::findInstance ( const std::string &  instanceName )

virtual

Find an instance with the given name.

If no instance is found than a null pointer is returned

Warning

This function will always return 0 when the simulation is in the process of destroying all instances, this allows some what save access to findInstance in object destructors.

Reimplemented in makVrv::DtIntervisibilityDriver::DtIntervisibilityConnection, and makVrv::DtCigiConnection.

Referenced by makVrf::VRF_PROTOCOL_NAMESPACE::DtEnvironmentSimDataProcessor::findInstance(), makVrf::VRF_PROTOCOL_NAMESPACE::DtActiveSonarSimDataProcessor::findInstance(), makVrf::VRF_PROTOCOL_NAMESPACE::DtEmitterSystemSimDataProcessor::findInstance(), makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfWeatherStateProcessor::findInstance(), and makVrv::DT_PROTOCOL_NAMESPACE::DtInteractionListener< InteractionClass >::instance().

bool makVrv::DtBaseConnection::destroyingInstances ( ) const

inline

Check to see if the simulation is destroying instances.

     This function is used in the destructor of objects which access
     instances via reference which may throw an exception.
     @code

TestClass::~TestClass() { if(!mySimulation.destroyingInstances()) { //Safe to get instance now. Singleton& anInstance = Singleton::instance(mySimulation); ... }

Reimplemented in makVrv::DtCigiConnection.

virtual void makVrv::DtBaseConnection::registerInstance ( const std::string &  instanceName, DtVirtualBaseClass *  instance  )

virtual

Register an object as an instance of instanceName, and transfer memory ownership of the instance to the DtConnection.

Reimplemented in makVrv::DtIntervisibilityDriver::DtIntervisibilityConnection, and makVrv::DtCigiConnection.

Referenced by makVrv::DT_PROTOCOL_NAMESPACE::DtInteractionListener< InteractionClass >::instance(), makVrf::VRF_PROTOCOL_NAMESPACE::DtEnvironmentSimDataProcessor::registerInstance(), makVrf::VRF_PROTOCOL_NAMESPACE::DtActiveSonarSimDataProcessor::registerInstance(), makVrf::VRF_PROTOCOL_NAMESPACE::DtEmitterSystemSimDataProcessor::registerInstance(), and makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfWeatherStateProcessor::registerInstance().

Member Data Documentation

DtSharedSettingsManager& makVrv::DtBaseConnection::mySettingsManagerCache

protected

DtRandomNumberGenerator makVrv::DtBaseConnection::myRandomNumberGenerator

protected

DtAgentManagerInterface& makVrv::DtBaseConnection::mySceneInterface

protected

DtElementChanges* makVrv::DtBaseConnection::myWorkingElementChanges

protected

DtTemporaryAgentManager* makVrv::DtBaseConnection::myTemporaryEffects

protected

DtBlinkingObjectManager* makVrv::DtBaseConnection::myBlinkManager

protected

Manager for blinking objects.

DtUnicode makVrv::DtBaseConnection::myEmptyString

protected

InstanceMap makVrv::DtBaseConnection::myInstances

protected

bool makVrv::DtBaseConnection::myDestroyingInstanceFlag

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-3-branch/include/vrvCore/DtBaseConnection.h
