makVrv::DtEnvironmentConditionsWidget Class Reference

An advanced weather condition settings widget. More...

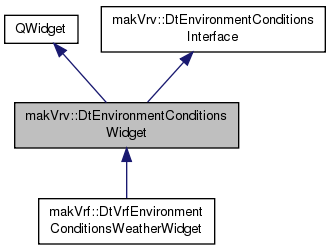

Inheritance diagram for makVrv::DtEnvironmentConditionsWidget:

Public Member Functions
	DtEnvironmentConditionsWidget (DtDe &de, QWidget *parent=NULL, Qt::WindowFlags flags=0)
	Initialization CTOR.
virtual	~DtEnvironmentConditionsWidget ()
	Virtual DTOR.
Environment condition field value setters.
Sets the values of the widget's corresponding environment fields.
virtual void	setEnvironmentConditionsNames (const std::list< DtUnicode > &names)
	Set the list of environment condition names.
virtual StringList	environmentConditionNames () const
	Get the list of environment conditions names.
virtual void	setDefaultConditionName (const DtUnicode &name)
	Set the name of the default environment condition.
virtual void	setAdvanceConditionsVisible (bool show)
	Show or hide the sections for advanced conditions.
Weather field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setWindSpeed (double speed)
	Set the wind speed.
virtual void	setWindSpeedDecimals (int decimals)
	Set the wind speed decimal places.
virtual void	setWindSpeedUnits (const DtUnicode &units)
	Set the wind speed units.
virtual void	setWindSpeedRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for wind speed.
virtual void	setWindDirection (double degrees)
	Set the wind direction.
virtual void	setPrecipitationType (unsigned int type)
	Set the precipitation type.
virtual void	setPrecipitationIntensity (double intensity)
	Set the precipitation intensity.
virtual void	setVisibleDistance (double distance)
	Set the visible distance.
virtual void	setVisibleDistanceDecimals (int decimals)
	Set the visible distance decimal places.
virtual void	setVisibleDistanceUnits (const DtUnicode &units)
	Set the visible distance units.
virtual void	setVisibleDistanceRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for visible distance.
Advanced weather field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	addCloudLayer (const DtUnicode &type, const DtUnicode &xLocation, const DtUnicode &yLocation, const DtUnicode &altitude, bool enabled, bool infinite)
	Add a cloud layer to the weather condition.
virtual void	setCloudLayer (unsigned int index, const DtUnicode &type, const DtUnicode &xLocation, const DtUnicode &yLocation, const DtUnicode &altitude, bool enabled, bool infinite)
	Modify a cloud layer in the weather condition.
virtual void	removeAllCloudLayers ()
	Remove all cloud layers from the weather condition.
virtual void	removeCloudLayer (unsigned int index)
	Remove a cloud layer from the by index.
virtual void	setCloudLayerEnabled (unsigned int index, bool enabled)
	Set whether a cloud layer is enabled for or disable from display.
virtual void	setCloudCover (DtVrfWeatherCloudState cloudCover)
	Set the NOAA cloud cover type.
virtual void	setAxisLabels (const DtUnicode &x, const DtUnicode &y, const DtUnicode &z)
	Set the cloud type and axis header-labels for the cloud layers.
virtual void	queryUserForNewCloudLayer ()
	Query the user for a new cloud layer.
virtual void	queryUserToEditCloudLayer (unsigned int index)
	Query the user to edit the currently selected cloud layer.
virtual void	setFogHeight (double height)
	Set the height (or ceiling) of the fog layer.
virtual void	setFogHeightDecimals (int decimals)
	Set the fog height decimal places.
virtual void	setFogHeightUnits (const DtUnicode &units)
	Set the fog height units.
virtual void	setFogHeightRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for fog height.
virtual void	setFogColor (double red, double green, double blue)
	Set the color of the fog layer.
virtual void	setAirTurbidity (double turbidity)
	Set the turbidity of the air.
Marine field value setters.
Sets the values of the widget's corresponding weather fields.
virtual void	setSwellStateNames (const StringList &names)
	Set the list of sea-swell state names.
virtual StringList	swellStateNames () const
	Get the list of sea-swell state names.
virtual void	setSwellState (unsigned int index)
	Set the current sea-swell state by index.
virtual void	setSwellState (const DtUnicode &name)
	Set the current sea-swell state by name.
virtual void	setSwellStateDirection (double degrees)
	Set the current sea-swell direction.
virtual void	enableWindDrivenSeaState (bool enable)
	Set the enabled state of wind-driven sea-state.
virtual void	setSeaStateNames (const StringList &names)
	Set the list of sea-state names.
virtual StringList	seaStateNames () const
	Get the list of sea-state names.
virtual void	setSeaState (unsigned int index)
	Set the current sea-state by index.
virtual void	setSeaState (const DtUnicode &name)
	Set the current sea-state by name.
virtual void	setSeaStateDirection (double degrees)
	Set the current sea-state direction.
Advanced marine field value setters.
Sets the values of the widget's corresponding advanced marine fields.
virtual void	setSurfaceTransparency (double alpha)
	Set the surface transparency of the water.
virtual void	setUnderwaterVisibilityEnabled (bool enabled)
	Set whether a different visibility is used when below sea level.
virtual void	setUnderwaterVisibility (double distance)
	Set the underwater visibility distance.
virtual void	setUnderwaterVisibilityDecimals (int decimals)
	Set the underwater visible distance decimal places.
virtual void	setUnderwaterVisibilityUnits (const DtUnicode &units)
	Set the underwater visible distance units.
virtual void	setUnderwaterVisibilityRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for underwater visibility.
virtual void	setWaterChoppiness (double chop)
	Set the surface choppiness of the water.
virtual void	setWindFetch (double distance)
	Set the sea wave fetch.
virtual void	setWindFetchDecimals (int decimals)
	Set the sea wave fetch decimal places.
virtual void	setWindFetchUnits (const DtUnicode &units)
	Set the sea wave fetch units.
virtual void	setWindFetchRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for sea fetch.
virtual void	setSurgeDepth (double depth)
	Set the surge depth.
virtual void	setDepthOffset (double offset)
	Set the depth offset.
virtual void	setTidalCurrentSpeedDecimals (int decimals)
	Set the tidal stream current speed decimal places.
virtual void	setTidalCurrentSpeedUnits (const DtUnicode &units)
	Set the tidal stream current speed units.
virtual void	setTidalCurrentSpeedRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for tidal stream current speed.
virtual void	setTidalCurrentSpeed (double speed)
	Set the surface transparency of the water.
virtual void	setTidalCurrentDirectionDecimals (int decimals)
	Set the tidal stream current direction decimal places.
virtual void	setTidalCurrentDirectionUnits (const DtUnicode &units)
	Set the tidal stream current direction units.
virtual void	setTidalCurrentDirectionRange (double step, double max, double min=0.0)
	Set the maximum and minimum range for tidal stream current direction.
virtual void	setTidalCurrentDirection (double direction)
	Set the surface transparency of the water.
Field value setters for a listening to remote weather.
virtual void	setListenToRemoteWeather (bool enable)
	Sets whether or not to list to simulated weather messages.
Public Member Functions inherited from makVrv::DtEnvironmentConditionsInterface
	DtEnvironmentConditionsInterface (DtDe &de)
	Initialization CTOR.
virtual	~DtEnvironmentConditionsInterface ()
	Virtual DTOR.
virtual void	setEnvironmentConditionsNames (const StringList &names)=0
	Set the list of environment condition names.

Protected Types
enum	CloudTreeColumnLabelIndices {   CloudTreeColumnType = 0, CloudTreeColumnX, CloudTreeColumnY, CloudTreeColumnAltitude,   CloudTreeColumnEnabled }
typedef QList< QWidget * >	WidgetList

Protected Slots
User input slots.
Receives notification that the user has changed a widget's value.
virtual void	on_selectEnvironmentConditions (const QString &)
virtual void	on_environmentConditionClicked (const QString &)
virtual void	on_windSpeedValueChanged (double)
virtual void	on_windDirectionValueChanged (double)
virtual void	on_precipitationTypeClicked (int)
virtual void	on_precipitationIntensityValueChanged (int)
virtual void	on_visibilityValueChanged (double)
virtual void	on_cloudCoverChanged (int)
virtual void	on_addCloudLayerClicked ()
virtual void	on_cloudLayerChanged (QTreeWidgetItem *, int)
virtual void	on_editCloudLayerClicked ()
virtual void	on_editCloudLayerDoubleClicked (QTreeWidgetItem *, int)
virtual void	on_deleteCloudLayerClicked ()
virtual void	on_cloudLayerSelectionChanged ()
virtual void	on_fogHeightValueChanged (double)
virtual void	on_fogColorValueChanged (const QColor &)
virtual void	on_airTurbidityChanged (int)
virtual void	on_swellStateChanged (int)
virtual void	on_swellStateDirectionChanged (double)
virtual void	on_windDrivenSeaStateEnabledChanged (const QString &)
virtual void	on_seaStateChanged (int)
virtual void	on_seaStateDirectionChanged (double)
virtual void	on_seaSurfaceTransparencyChanged (double)
virtual void	on_underWaterVisibilityEnabledChanged (int)
virtual void	on_underWaterVisibilityChanged (double)
virtual void	on_seaChoppinessChanged (int)
virtual void	on_windFetchChanged (double)
virtual void	on_surgeDepthChanged (double)
virtual void	on_depthOffsetChanged (double)
virtual void	on_tidalCurrentSpeedChanged (double)
virtual void	on_tidalCurrentDirectionChanged (double)
virtual void	on_listenToVrfStateChanged (int)
virtual void	on_refreshVrfWeatherClicked ()

Protected Member Functions
void	setWidgetsEnabled (WidgetList &widgets, bool enable) const
	Utility to enable/disable a set of widgets.
void	setWidgetEnabled (QWidget &widget, bool enable) const
	Utility to enable/disable a widget while blocking its signals.
void	setWidgetsVisible (WidgetList &widgets, bool show) const
	Utility to show/hide a set of widgets.
void	setWidgetVisible (QWidget &widget, bool show) const
	Utility to show/hide a widget while blocking its signals.

Protected Attributes
QVBoxLayout *	myMainLayout
QHBoxLayout *	myConditionsLayout
QVBoxLayout *	myWeatherLayout
QVBoxLayout *	myAdvancedWeatherLayout
QVBoxLayout *	myMarineLayout
QVBoxLayout *	myAdvancedMarineLayout
QHBoxLayout *	myRemoteListeningLayout
QSignalMapper *	myConditionsSignalMapper
QLabel *	myConditionsLabel
QComboBox *	myConditionNames
QPushButton *	myAddEnvironmentConditions
QPushButton *	myRemoveEnvironmentConditions
QPushButton *	mySaveEnvironmentConditions
QPushButton *	mySelectDefaultCondition
QString	myLastSelectedCondition
QString	myLastDefaultCondition
QLabel *	myWeatherSectionTitle
QLabel *	myWindSpeedLabel
DtSliderDoubleSpinboxWidget *	myWindSpeed
DtWindDirectionWidget *	myWindDirection
QSignalMapper *	myPrecipitationSignalMapper
QButtonGroup *	myPrecipitationButtonGroup
QRadioButton *	myPrecipitationNone
QRadioButton *	myPrecipitationRain
QRadioButton *	myPrecipitationSnow
QLabel *	myPrecipitationIntensityLabel
DtSliderSpinboxWidget *	myPrecipitationIntensity
QLabel *	myVisibilityLabel
DtSliderDoubleSpinboxWidget *	myVisibility
QHBoxLayout *	myCloudLayersLayout
QLabel *	myCloudLayerLabel
QComboBox *	myCloudCoversComboBox
QTreeWidget *	myCloudLayersTree
QPushButton *	myAddCloudLayerButton
QPushButton *	myDeleteCloudLayerButton
QPushButton *	myEditCloudLayerButton
QPushButton *	myAdvancedWeatherButton
QWidget *	myAdvancedWeather
QLabel *	myAdvancedWeatherSectionTitle
QLabel *	myFogHeightLabel
DtSliderDoubleSpinboxWidget *	myFogHeight
QLabel *	myFogColorLabel
DtColorPushButton *	myFogColor
QLabel *	myAirTurbidityLabel
DtSliderSpinboxWidget *	myAirTurbidity
QLabel *	myMarineSectionTitle
QComboBox *	mySwellState
DtWindDirectionWidget *	mySwellStateDirection
QSignalMapper *	mySeaStateSignalMapper
QButtonGroup *	mySeaStateButtonGroup
QRadioButton *	mySeaStateWindDriven
QRadioButton *	mySeaStateManual
QComboBox *	mySeaStates
DtWindDirectionWidget *	mySeaStateDirection
QPushButton *	myAdvancedMarineButton
QWidget *	myAdvancedMarine
QLabel *	myAdvancedMarineSectionTitle
QLabel *	mySurfaceTransparencyLabel
DtSliderDoubleSpinboxWidget *	mySurfaceTransparency
QCheckBox *	myUnderWaterVisibilityEnabled
QLabel *	myUnderWaterVisibilityLabel
DtSliderDoubleSpinboxWidget *	myUnderWaterVisibility
QLabel *	myChoppinessLabel
DtSliderSpinboxWidget *	myChoppiness
QLabel *	myFetchLabel
DtSliderDoubleSpinboxWidget *	myFetch
QLabel *	mySurgeDepthLabel
DtSliderDoubleSpinboxWidget *	mySurgeDepth
QLabel *	myDepthOffsetLabel
DtSliderDoubleSpinboxWidget *	myDepthOffset
QLabel *	myTidalCurrentSpeedLabel
DtSliderDoubleSpinboxWidget *	myTidalCurrentSpeed
QLabel *	myTidalCurrentDirectionLabel
DtSliderDoubleSpinboxWidget *	myTidalCurrentDirection
QCheckBox *	myListenToVrf
QPushButton *	myRefreshVrfWeather
WidgetList	myEnabledOnManualEnvironment
WidgetList	myEnabledOnPrecipitation
WidgetList	myEnabledOnManualStateSet
WidgetList	myVisibleOnShowAdvanced
Protected Attributes inherited from makVrv::DtEnvironmentConditionsInterface
DtDe &	myDe

Private Member Functions
void	setupGui ()
	Sets up the widget's fields.
void	connectToSignals ()
	Connects widget signals to slots.
void	setStringsToComboBox (QComboBox &cbox, const StringList &lst, bool srt=true) const
	Utility to set a list of unicode strings into a combo-box.
StringList	getStringsFromComboBox (const QComboBox &cbox) const
	Utility to get a list of unicode strings from a combo-box.
void	setQStringsToComboBox (QComboBox &cbox, QStringList lst, bool srt=true) const
	Utility to set a list of Qt strings into a combo-box.
QStringList	getQStringsFromComboBox (const QComboBox &cbox) const
	Utility to get a list of Qt strings from a combo-box.

Additional Inherited Members
Public Types inherited from makVrv::DtEnvironmentConditionsInterface
typedef std::list< DtUnicode >	StringList
Public Attributes inherited from makVrv::DtEnvironmentConditionsInterface
boost::signal< void(const DtUnicode &)>	signal_selectEnvironmentConditions
boost::signal< void(const DtUnicode &)>	signal_addEnvironmentConditions
boost::signal< void(const DtUnicode &)>	signal_removeEnvironmentConditions
boost::signal< void(const DtUnicode &)>	signal_saveEnvironmentConditions
boost::signal< void(const DtUnicode &)>	signal_setDefaultEnvironmentConditions
boost::signal< void(double)>	signal_changeWindSpeed
boost::signal< void(double)>	signal_changeWindDirection
boost::signal< void(int)>	signal_changePrecipitationType
boost::signal< void(double)>	signal_changePrecipitationIntensity
boost::signal< void(double)>	signal_changeVisibility
boost::signal< void(DtVrfWeatherCloudState)>	signal_cloudCoverChanged
boost::signal< void()>	signal_requestNewCloudLayer
boost::signal< void(const DtCloudLayer &)>	signal_addNewCloudLayer
boost::signal< void(unsigned int)>	signal_requestedEditCloudLayer
boost::signal< void(unsigned int, const DtCloudLayer &)>	signal_changeCloudLayer
boost::signal< void(unsigned int)>	signal_deleteCloudLayer
boost::signal< void(unsigned int, bool)>	signal_enableCloudLayer
boost::signal< void(double)>	signal_changeFogHeight
boost::signal< void(double, double, double)>	signal_changeFogColor
boost::signal< void(double)>	signal_changeAirTurbidity
boost::signal< void(unsigned int)>	signal_changeSwellState
boost::signal< void(double)>	signal_changeSwellStateDirection
boost::signal< void(bool)>	signal_enableWindDrivenSeaState
boost::signal< void(unsigned int)>	signal_changeSeaState
boost::signal< void(double)>	signal_changeSeaStateDirection
boost::signal< void(double)>	signal_changeSeaSurfaceTransparency
boost::signal< void(bool)>	signal_changeUnderWaterVisibilityEnabled
boost::signal< void(double)>	signal_changeUnderWaterVisibility
boost::signal< void(double)>	signal_changeSeaChoppiness
boost::signal< void(double)>	signal_changeWindFetch
boost::signal< void(double)>	signal_changeSurgeDepth
boost::signal< void(double)>	signal_changeDepthOffset
boost::signal< void(double)>	signal_changeTidalCurrentSpeed
boost::signal< void(double)>	signal_changeTidalCurrentDirection
boost::signal< void(bool)>	signal_changeRemoteSettings
boost::signal< void()>	signal_requestRemoteSettings

Detailed Description

An advanced weather condition settings widget.

Member Typedef Documentation

typedef QList<QWidget*> makVrv::DtEnvironmentConditionsWidget::WidgetList

protected

Member Enumeration Documentation

enum makVrv::DtEnvironmentConditionsWidget::CloudTreeColumnLabelIndices

protected

Enumerator:

CloudTreeColumnType
CloudTreeColumnX
CloudTreeColumnY
CloudTreeColumnAltitude
CloudTreeColumnEnabled

Constructor & Destructor Documentation

makVrv::DtEnvironmentConditionsWidget::DtEnvironmentConditionsWidget	(	DtDe &	de,
		QWidget *	parent = NULL,
		Qt::WindowFlags	flags = 0
	)

Initialization CTOR.

Parameters

[in]	de	is the display engine.
[in]	parent	is a parent for this widget.
[in]	flags	is a set of enumerated window flags.

virtual makVrv::DtEnvironmentConditionsWidget::~DtEnvironmentConditionsWidget ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void makVrv::DtEnvironmentConditionsWidget::setEnvironmentConditionsNames ( const std::list< DtUnicode > &  names )

virtual

Set the list of environment condition names.

Parameters

[in]

names

is the list of environment condition names.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual StringList makVrv::DtEnvironmentConditionsWidget::environmentConditionNames ( ) const

virtual

Get the list of environment conditions names.

Returns

the list of environment condition names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setDefaultConditionName ( const DtUnicode &  name )

virtual

Set the name of the default environment condition.

Parameters

[in]

name

is the name of the default condition.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setAdvanceConditionsVisible ( bool  show )

virtual

Show or hide the sections for advanced conditions.

Parameters

[in]

show

is the flag to show or hide advanced conditions.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeed ( double  speed )

virtual

Set the wind speed.

Parameters

[in]

speed

is the wind speed to set.

See Also

setWindSpeedDecimals(int)

setWindSpeedUnits(const DtUnicode&)

setWindSpeedRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeedDecimals ( int  decimals )

virtual

Set the wind speed decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeedUnits ( const DtUnicode &  units )

virtual

Set the wind speed units.

Parameters

[in]

units

is the unit type to display.

See Also

setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindSpeedRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for wind speed.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setWindSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindDirection ( double  degrees )

virtual

Set the wind direction.

Parameters

[in]

degrees

is the wind direction in degrees.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationType ( unsigned int  type )

virtual

Set the precipitation type.

Parameters

[in]

type

is the type of precipitation type.

Note

None, Rain or Snow defined in DtEnvironmentRecord.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setPrecipitationIntensity ( double  intensity )

virtual

Set the precipitation intensity.

Parameters

[in]

intensity

is the precipitation intensity from zero to one.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistance ( double  distance )

virtual

Set the visible distance.

Parameters

[in]

distance

is the visible distance.

See Also

setVisibleDistanceDecimals(int)

setVisibleDistanceUnits(const DtUnicode&)

setVisibleDistanceRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistanceDecimals ( int  decimals )

virtual

Set the visible distance decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setVisibleDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistanceUnits ( const DtUnicode &  units )

virtual

Set the visible distance units.

Parameters

[in]

units

is the unit type to display.

See Also

setVisibleDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setVisibleDistanceRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for visible distance.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setVisibleDistance(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::addCloudLayer ( const DtUnicode &  type, const DtUnicode &  xLocation, const DtUnicode &  yLocation, const DtUnicode &  altitude, bool  enabled, bool  infinite  )

virtual

Add a cloud layer to the weather condition.

Parameters

[in]	type	is the type of clouds.
[in]	xLocation	is the x coordinate of the cloud layer.
[in]	yLocation	is the y coordinate of the cloud layer.
[in]	altitude	is the altitude of the cloud layer.
[in]	enabled	is the flag to display or hide the cloud layer.
[in]	infinite	is the flag to extend the limits cloud layer.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudLayer ( unsigned int  index, const DtUnicode &  type, const DtUnicode &  xLocation, const DtUnicode &  yLocation, const DtUnicode &  altitude, bool  enabled, bool  infinite  )

virtual

Modify a cloud layer in the weather condition.

Parameters

[in]	index	is the index of the cloud layer.
[in]	type	is the type of clouds.
[in]	xLocation	is the x coordinate of the cloud layer.
[in]	yLocation	is the y coordinate of the cloud layer.
[in]	altitude	is the altitude of the cloud layer.
[in]	enabled	is the flag to display or hide the cloud layer.
[in]	infinite	is the flag to extend the limits cloud layer.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::removeAllCloudLayers ( )

virtual

Remove all cloud layers from the weather condition.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::removeCloudLayer ( unsigned int  index )

virtual

Remove a cloud layer from the by index.

Parameters

[in]

index

is the index of the cloud layer.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudLayerEnabled ( unsigned int  index, bool  enabled  )

virtual

Set whether a cloud layer is enabled for or disable from display.

Parameters

[in]	index	is the index of the cloud layer.
[in]	enabled	is the flag to display or hide the cloud layer.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setCloudCover ( DtVrfWeatherCloudState  cloudCover )

virtual

Set the NOAA cloud cover type.

Parameters

[in]

The

NOAA cloud cover to use

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setAxisLabels ( const DtUnicode &  x, const DtUnicode &  y, const DtUnicode &  z  )

virtual

Set the cloud type and axis header-labels for the cloud layers.

Parameters

[in]	x	is the x coordinate header-label.
[in]	y	is the y coordinate header-label.
[in]	z	is the z coordinate header-label.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::queryUserForNewCloudLayer ( )

virtual

Query the user for a new cloud layer.

Note

Pops up a dialog for filling out a new cloud layer.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::queryUserToEditCloudLayer ( unsigned int  index )

virtual

Query the user to edit the currently selected cloud layer.

Note

Pops up a pre-filled dialog for editing the cloud layer.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeight ( double  height )

virtual

Set the height (or ceiling) of the fog layer.

Parameters

[in]

height

is the height of the fog layer.

See Also

setFogHeightDecimals(int)

setFogHeightUnits(const DtUnicode&)

setFogHeightRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightDecimals ( int  decimals )

virtual

Set the fog height decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightUnits ( const DtUnicode &  units )

virtual

Set the fog height units.

Parameters

[in]

units

is the unit type to display.

See Also

setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogHeightRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for fog height.

Parameters

[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setFogHeight(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setFogColor ( double  red, double  green, double  blue  )

virtual

Set the color of the fog layer.

Parameters

[in]	red	is a normalized color component from 0.0 to 1.0.
[in]	green	is a normalized color component from 0.0 to 1.0.
[in]	blue	is a normalized color component from 0.0 to 1.0.

See Also

setFogColor(int, int, int)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setAirTurbidity ( double  turbidity )

virtual

Set the turbidity of the air.

Parameters

[in]

turbidity

is the intensity of air turbidity (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellStateNames ( const StringList &  names )

virtual

Set the list of sea-swell state names.

Parameters

[in]

names

is the list of sea-swell names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual StringList makVrv::DtEnvironmentConditionsWidget::swellStateNames ( ) const

virtual

Get the list of sea-swell state names.

Returns

the list of sea-swell state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellState ( unsigned int  index )

virtual

Set the current sea-swell state by index.

Parameters

[in]

index

is the sea-swell in sea-swell state names.

See Also

void setSwellStateNames(const StringList&)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellState ( const DtUnicode &  name )

virtual

Set the current sea-swell state by name.

Parameters

[in]

name

is the name of the sea-swell state.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSwellStateDirection ( double  degrees )

virtual

Set the current sea-swell direction.

Parameters

[in]

degrees

is the sea-swell direction

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::enableWindDrivenSeaState ( bool  enable )

virtual

Set the enabled state of wind-driven sea-state.

Parameters

[in]

enable

is the enable flag for wind-driven sea-state.

Note

Setting to true should cause sea-state to be wind driven, while resetting to false should cause sea-state to be manual driven.

Implements makVrv::DtEnvironmentConditionsInterface.

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaStateNames ( const StringList &  names )

virtual

Set the list of sea-state names.

Parameters

[in]

names

is the list of sea-state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual StringList makVrv::DtEnvironmentConditionsWidget::seaStateNames ( ) const

virtual

Get the list of sea-state names.

Returns

the list of sea-state names.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaState ( unsigned int  index )

virtual

Set the current sea-state by index.

Parameters

[in]

index

is the index of the sea-state in sea-state names.

See Also

void setSeaStateNames(const StringList&).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaState ( const DtUnicode &  name )

virtual

Set the current sea-state by name.

Parameters

[in]

name

is the name of the sea-state.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSeaStateDirection ( double  degrees )

virtual

Set the current sea-state direction.

Parameters

[in]

degrees

is the sea-state direction

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurfaceTransparency ( double  alpha )

virtual

Set the surface transparency of the water.

Parameters

[in]

alpha

is the transparency value (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityEnabled ( bool  enabled )

virtual

Set whether a different visibility is used when below sea level.

Parameters

[in]

enabled

(or not)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibility ( double  distance )

virtual

Set the underwater visibility distance.

Parameters

[in]

distance

is the visible distance underwater.

See Also

setUnderwaterVisibilityDecimals(int)

setUnderwaterVisibilityUnits(const DtUnicode&)

setUnderwaterVisibilityRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityDecimals ( int  decimals )

virtual

Set the underwater visible distance decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityUnits ( const DtUnicode &  units )

virtual

Set the underwater visible distance units.

Parameters

[in]

units

is the unit type to display.

See Also

setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setUnderwaterVisibilityRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for underwater visibility.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setUnderwaterVisibility(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWaterChoppiness ( double  chop )

virtual

Set the surface choppiness of the water.

Parameters

[in]

chop

is the intensity of choppiness (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetch ( double  distance )

virtual

Set the sea wave fetch.

Parameters

[in]

distance

is the distance of fetch.

See Also

setWindFetchDecimals(int)

setWindFetchUnits(const DtUnicode&)

setWindFetchRange(double, double, double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchDecimals ( int  decimals )

virtual

Set the sea wave fetch decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchUnits ( const DtUnicode &  units )

virtual

Set the sea wave fetch units.

Parameters

[in]

units

is the unit type to display.

See Also

setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setWindFetchRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for sea fetch.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setWindFetch(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setSurgeDepth ( double  depth )

virtual

Set the surge depth.

Parameters

[in]

depth

is the surge depth in meters (0.0 - 20.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setDepthOffset ( double  offset )

virtual

Set the depth offset.

Parameters

[in]

offset

is the distance for depth offset (0.0 - 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedDecimals ( int  decimals )

virtual

Set the tidal stream current speed decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedUnits ( const DtUnicode &  units )

virtual

Set the tidal stream current speed units.

Parameters

[in]

units

is the unit type to display.

See Also

setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeedRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for tidal stream current speed.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setTidalCurrentSpeed(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentSpeed ( double  speed )

virtual

Set the surface transparency of the water.

Parameters

[in]

alpha

is the transparency value (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionDecimals ( int  decimals )

virtual

Set the tidal stream current direction decimal places.

Parameters

[in]

decimals

is the number of decimals to display.

See Also

setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionUnits ( const DtUnicode &  units )

virtual

Set the tidal stream current direction units.

Parameters

[in]

units

is the unit type to display.

See Also

setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirectionRange ( double  step, double  max, double  min = 0.0  )

virtual

Set the maximum and minimum range for tidal stream current direction.

Parameters

[in]	step	is the default step through the range.
[in]	max	is the maximum range boundary.
[in]	min	is the minimum range boundary.

See Also

setTidalCurrentDirection(double)

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setTidalCurrentDirection ( double  direction )

virtual

Set the surface transparency of the water.

Parameters

[in]

alpha

is the transparency value (0.0 to 1.0).

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::setListenToRemoteWeather ( bool  enable )

virtual

Sets whether or not to list to simulated weather messages.

Parameters

[in]

enable

is the flag to enable/disable listening.

Implements makVrv::DtEnvironmentConditionsInterface.

virtual void makVrv::DtEnvironmentConditionsWidget::on_selectEnvironmentConditions ( const QString &  )

protectedvirtualslot

Reimplemented in makVrf::DtVrfEnvironmentConditionsWeatherWidget.

virtual void makVrv::DtEnvironmentConditionsWidget::on_environmentConditionClicked ( const QString &  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windSpeedValueChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windDirectionValueChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationTypeClicked ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_precipitationIntensityValueChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_visibilityValueChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_cloudCoverChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_addCloudLayerClicked ( )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_cloudLayerChanged ( QTreeWidgetItem *  , int    )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_editCloudLayerClicked ( )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_editCloudLayerDoubleClicked ( QTreeWidgetItem *  , int    )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_deleteCloudLayerClicked ( )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_cloudLayerSelectionChanged ( )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_fogHeightValueChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_fogColorValueChanged ( const QColor &  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_airTurbidityChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_swellStateChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_swellStateDirectionChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windDrivenSeaStateEnabledChanged ( const QString &  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaStateChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaStateDirectionChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaSurfaceTransparencyChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_underWaterVisibilityEnabledChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_underWaterVisibilityChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_seaChoppinessChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_windFetchChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_surgeDepthChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_depthOffsetChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_tidalCurrentSpeedChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_tidalCurrentDirectionChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_listenToVrfStateChanged ( int  )

protectedvirtualslot

virtual void makVrv::DtEnvironmentConditionsWidget::on_refreshVrfWeatherClicked ( )

protectedvirtualslot

void makVrv::DtEnvironmentConditionsWidget::setWidgetsEnabled ( WidgetList &  widgets, bool  enable  ) const

protected

Utility to enable/disable a set of widgets.

Parameters

[in]	widgets	is a list of widgets to enable or disable.
[in]	enable	is the new enabled state of the widgets.

void makVrv::DtEnvironmentConditionsWidget::setWidgetEnabled ( QWidget &  widget, bool  enable  ) const

protected

Utility to enable/disable a widget while blocking its signals.

Parameters

[in]	widget	is the widget to enable or disable.
[in]	enable	is the new enabled state of the widget.

void makVrv::DtEnvironmentConditionsWidget::setWidgetsVisible ( WidgetList &  widgets, bool  show  ) const

protected

Utility to show/hide a set of widgets.

Parameters

[in]	widgets	is a list of widgets to show or hide.
[in]	show	is the new visible state of the widgets.

void makVrv::DtEnvironmentConditionsWidget::setWidgetVisible ( QWidget &  widget, bool  show  ) const

protected

Utility to show/hide a widget while blocking its signals.

Parameters

[in]	widget	is the widget to show or hide.
[in]	show	is the new visible state of the widget.

void makVrv::DtEnvironmentConditionsWidget::setupGui ( )

private

Sets up the widget's fields.

Non-virtual (Called from CTOR).

void makVrv::DtEnvironmentConditionsWidget::connectToSignals ( )

private

Connects widget signals to slots.

Non-virtual (Called from CTOR).

void makVrv::DtEnvironmentConditionsWidget::setStringsToComboBox ( QComboBox &  cbox, const StringList &  lst, bool  srt = true  ) const

private

Utility to set a list of unicode strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of unicode strings;
[in]	srt	is a flag to sort the string in the combo-box.

StringList makVrv::DtEnvironmentConditionsWidget::getStringsFromComboBox ( const QComboBox &  cbox ) const

private

Utility to get a list of unicode strings from a combo-box.

Parameters

[in]

cbox

is the widget to read from;

Returns

the list of unicode strings;

void makVrv::DtEnvironmentConditionsWidget::setQStringsToComboBox ( QComboBox &  cbox, QStringList  lst, bool  srt = true  ) const

private

Utility to set a list of Qt strings into a combo-box.

Parameters

[in]	cbox	is the widget to populate;
[in]	lst	is a list of Qt strings;
[in]	srt	is a flag to sort the string in the combo-box.

QStringList makVrv::DtEnvironmentConditionsWidget::getQStringsFromComboBox ( const QComboBox &  cbox ) const

private

Utility to get a list of Qt strings from a combo-box.

Parameters

[in]

cbox

is the widget to read from;

Returns

the list of Qt strings;

Member Data Documentation

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myMainLayout

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myConditionsLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myWeatherLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myMarineLayout

protected

QVBoxLayout* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineLayout

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myRemoteListeningLayout

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::myConditionsSignalMapper

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myConditionsLabel

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::myConditionNames

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAddEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myRemoveEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::mySaveEnvironmentConditions

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::mySelectDefaultCondition

protected

QString makVrv::DtEnvironmentConditionsWidget::myLastSelectedCondition

protected

QString makVrv::DtEnvironmentConditionsWidget::myLastDefaultCondition

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myWeatherSectionTitle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myWindSpeedLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myWindSpeed

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::myWindDirection

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSignalMapper

protected

QButtonGroup* makVrv::DtEnvironmentConditionsWidget::myPrecipitationButtonGroup

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationNone

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationRain

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::myPrecipitationSnow

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensityLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myPrecipitationIntensity

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myVisibilityLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myVisibility

protected

QHBoxLayout* makVrv::DtEnvironmentConditionsWidget::myCloudLayersLayout

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myCloudLayerLabel

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::myCloudCoversComboBox

protected

QTreeWidget* makVrv::DtEnvironmentConditionsWidget::myCloudLayersTree

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAddCloudLayerButton

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myDeleteCloudLayerButton

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myEditCloudLayerButton

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherButton

protected

QWidget* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeather

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myAdvancedWeatherSectionTitle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFogHeightLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myFogHeight

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFogColorLabel

protected

DtColorPushButton* makVrv::DtEnvironmentConditionsWidget::myFogColor

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myAirTurbidityLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myAirTurbidity

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myMarineSectionTitle

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::mySwellState

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::mySwellStateDirection

protected

QSignalMapper* makVrv::DtEnvironmentConditionsWidget::mySeaStateSignalMapper

protected

QButtonGroup* makVrv::DtEnvironmentConditionsWidget::mySeaStateButtonGroup

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::mySeaStateWindDriven

protected

QRadioButton* makVrv::DtEnvironmentConditionsWidget::mySeaStateManual

protected

QComboBox* makVrv::DtEnvironmentConditionsWidget::mySeaStates

protected

DtWindDirectionWidget* makVrv::DtEnvironmentConditionsWidget::mySeaStateDirection

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineButton

protected

QWidget* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarine

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myAdvancedMarineSectionTitle

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySurfaceTransparencyLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySurfaceTransparency

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibilityEnabled

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibilityLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myUnderWaterVisibility

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myChoppinessLabel

protected

DtSliderSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myChoppiness

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myFetchLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myFetch

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::mySurgeDepthLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::mySurgeDepth

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myDepthOffsetLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myDepthOffset

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentSpeedLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentSpeed

protected

QLabel* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentDirectionLabel

protected

DtSliderDoubleSpinboxWidget* makVrv::DtEnvironmentConditionsWidget::myTidalCurrentDirection

protected

QCheckBox* makVrv::DtEnvironmentConditionsWidget::myListenToVrf

protected

QPushButton* makVrv::DtEnvironmentConditionsWidget::myRefreshVrfWeather

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnManualEnvironment

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnPrecipitation

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myEnabledOnManualStateSet

protected

WidgetList makVrv::DtEnvironmentConditionsWidget::myVisibleOnShowAdvanced

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-3-branch/include/vrvCoreQt/DtEnvironmentConditionsWidget.h
