makVrv::DtProctor Class Reference

Base class for Proctor classes. More...

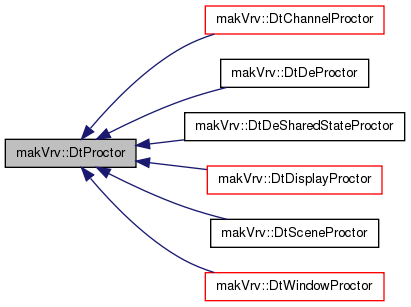

Inheritance diagram for makVrv::DtProctor:

Public Types
enum	ProctorId {   ProctorId_DtDeProctor = 32, ProctorId_DtSceneProctor = 33, ProctorId_DtWindowProctor = 34, ProctorID_DtChanneProctor = 35,   ProctorID_DtDisplayEngineProctor = 36, ProctorID_DtDeSharedStateProctor = 37, ProctorId_UserStart = 0x8000, end_ProctorId = 0x10000 }
	Ids used for proctors. Each proctor class must have a unique id. More...

Public Member Functions
	DtProctor (DtDe &, unsigned short classId)
	CTOR.
virtual	~DtProctor ()
	DTOR.
void	executeFunction (DtMessage &msg)
	Execute the proper message function for the message.
DtDe &	de ()
	Get the IG for the proctor.

Protected Types
typedef void(*	MessageFunction )(DtProctor *, DtMessage &)
typedef std::map< int, MessageFunction >	FunctionMap

Protected Member Functions
void	registerFunction (unsigned int functionId, MessageFunction func)
	Register a message function to handle a message.

Protected Attributes
FunctionMap	myFunctions
DtDe &	myDe
unsigned short	myClassId

Detailed Description

Base class for Proctor classes.

Member Typedef Documentation

typedef void(* makVrv::DtProctor::MessageFunction)(DtProctor *, DtMessage &)

protected

typedef std::map<int,MessageFunction> makVrv::DtProctor::FunctionMap

protected

Member Enumeration Documentation

enum makVrv::DtProctor::ProctorId

Ids used for proctors. Each proctor class must have a unique id.

Enumerator:

ProctorId_DtDeProctor	Internal Used Ids.
ProctorId_DtSceneProctor
ProctorId_DtWindowProctor
ProctorID_DtChanneProctor
ProctorID_DtDisplayEngineProctor
ProctorID_DtDeSharedStateProctor
ProctorId_UserStart	Start of User level ids.
end_ProctorId	past valid id which is 0xFFFF

Constructor & Destructor Documentation

makVrv::DtProctor::DtProctor	(	DtDe &	,
		unsigned short	classId
	)

CTOR.

virtual makVrv::DtProctor::~DtProctor ( )

virtual

DTOR.

Member Function Documentation

void makVrv::DtProctor::executeFunction

(

DtMessage &

msg

)

Execute the proper message function for the message.

DtDe& makVrv::DtProctor::de

(

)

Get the IG for the proctor.

void makVrv::DtProctor::registerFunction ( unsigned int  functionId, MessageFunction  func  )

protected

Register a message function to handle a message.

Member Data Documentation

FunctionMap makVrv::DtProctor::myFunctions

protected

DtDe& makVrv::DtProctor::myDe

protected

unsigned short makVrv::DtProctor::myClassId

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-3-branch/include/vrvCore/DtProctor.h
