DtObjectSensorDescriptor Class Reference

DtObjectSensorDescriptor; descriptor for the DtObjectSensor component. More...

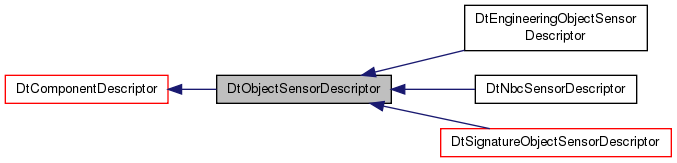

Inheritance diagram for DtObjectSensorDescriptor:

Public Member Functions
	DtObjectSensorDescriptor (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)
	constructor
	DtObjectSensorDescriptor (const DtObjectSensorDescriptor &orig, DtReaderWriterRegistry *parentRegistry=0)
	copy constructor
DtObjectSensorDescriptor &	operator= (const DtObjectSensorDescriptor &orig)
	assignment
virtual	~DtObjectSensorDescriptor ()
	destructor
virtual DtString	type () const
	Returns the type of component this descriptor describes.
virtual DtComponentDescriptor *	clone (DtReaderWriterRegistry *parentRegistry=0) const
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
virtual bool	detectOnlyHostileForces () const
	See myDetectOnlyHostileForces.
virtual void	setDetectOnlyHostileForces (bool value)
	See myDetectOnlyHostileForces.
virtual bool	detectOwnForce () const
virtual void	setDetectOwnForce (bool v)
virtual void	setDetectionTypes (const DtRwObjectTypeList &objectTypes)
	Accessor/mutator for myDetectionTypes.
virtual DtRwObjectTypeList &	detectionTypes ()
	Accessor/mutator for myDetectionTypes.
virtual const DtRwObjectTypeList &	detectionTypes () const
	Accessor/mutator for myDetectionTypes.
virtual void	setDetectDestroyedObjects (bool value)
	Accessor/mutator for myDetectDestroyedObjects.
virtual bool	detectDestroyedObjects () const
	Accessor/mutator for myDetectDestroyedObjects.
virtual void	setAddSensorRangeRing (bool value)
	Accessor/mutator for myAddSensorRangeRing.
virtual bool	addSensorRangeRing () const
	Accessor/mutator for myAddSensorRangeRing.
virtual void	setWindDegradesSensorPerformanceWhenAbove (double)
	Accessor/mutator for myWindDegradesSensorPerformanceWhenAbove.
virtual double	windDegradesSensorPerformanceWhenAbove () const
	Accessor/mutator for myWindDegradesSensorPerformanceWhenAbove.
virtual void	setWindDegradesSensorPerformanceUntil (double)
	Accessor/mutator for myWindDegradesSensorPerformanceUntil.
virtual double	windDegradesSensorPerformanceUntil () const
	Accessor/mutator for myWindDegradesSensorPerformanceUntil.
virtual void	setWindDegradesSensorPerformanceBy (double)
	Accessor/mutator for myWindDegradesSensorPerformanceBy.
virtual double	windDegradesSensorPerformanceBy () const
	Accessor/mutator for myWindDegradesSensorPerformanceBy.
virtual void	setPrecipitationDegradesSensorPerformanceBy (double)
	Accessor/mutator for #myPreciptitationDegradesSensorPerformanceBy.
virtual double	precipitationDegradesSensorPerformanceBy () const
	Accessor/mutator for #myPreciptitationDegradesSensorPerformanceBy.
virtual DtRwSpatialFilterContainer *	sensorGeometry ()
	Accessor for mySensorGeometry.
virtual const DtRwSpatialFilterContainer *	sensorGeometry () const
	Accessor for mySensorGeometry.
Public Member Functions inherited from DtComponentDescriptor
	DtComponentDescriptor (const DtComponentDescriptor &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
DtComponentDescriptor &	operator= (const DtComponentDescriptor &orig)
	assignment
virtual	~DtComponentDescriptor ()
virtual void	putData (FILE *fp, int indentLevel=0)
	Overrides base class putData to output our type.
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	getData is just used to get us past the type in the data stream, since it's not actually stored.
virtual bool	init ()
	Base class init does nothing, but will be called by createComponentDescriptor(), allowing derived classes to do memory allocation if necessary.
bool	operator== (const DtComponentDescriptor &) const
	DtComponentDescriptor (const DtString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
	DtComponentDescriptor (const DtSymbolString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
virtual void	setComponentType (const DtString &componentType)
	Type of DtSimComponent this descriptor is associated with.
virtual const DtString &	componentType () const
	Type of DtSimComponent this descriptor is associated with.
virtual void	setMinTickPeriod (DtReal minTickPeriod)
virtual DtReal	minTickPeriod () const
virtual void	setMinTickPeriodVariance (DtReal minTickPeriodVariance)
virtual DtReal	minTickPeriodVariance () const
virtual void	setTickPeriodUsesRealTime (bool value)
	Accessor/mutator for myTickPeriodUsesRealTime.
virtual bool	tickPeriodUsesRealTime () const
	Accessor/mutator for myTickPeriodUsesRealTime.
virtual const DtString &	processStateRepositoryName () const
	Name which this component will assign to its PSR.
virtual void	setProcessStateRepositoryName (const DtString &name)
	Name which this component will assign to its PSR.
virtual const DtString &	processStateRepositoryType () const
	Type of PSR this component will create.
virtual void	setProcessStateRepositoryType (const DtString &type)
	Type of PSR this component will create.
virtual void	setIsEnabled (bool yesNo)
	Is the component enabled or not.
virtual bool	isEnabled () const
	Is the component enabled or not.
virtual void	setDebugActive (bool active)
	Should detailed debug info be printed for this component.
virtual bool	debugActive () const
	Should detailed debug info be printed for this component.
virtual void	setCreateComponent (bool yesNo)
	Should the component be created or not.
virtual bool	createComponent () const
	Should the component be created or not.
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op.
virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op.
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op.
virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op.
virtual void	writeSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
virtual bool	isReadonly () const
virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to iriginal state Default is no-op.
virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment.
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.
virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated.
virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time.
virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	Deriving class overrides these to get/put class specific data.
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
	The specified flags are used for optional values.
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
	The variable name, if this object is a variable reference.
virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual DtReaderWriter *	defaultRWValue ()
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable.
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
	Collection of child DtReaderWriter nodes owned by this object.
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename.
virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid.
virtual bool	fromXmlFile (const DtFilename &)
	Restires object from given xml file.
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data.
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference.
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value.
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op.
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference.

Static Public Member Functions
static DtComponentDescriptor *	creator ()
Static Public Member Functions inherited from DtComponentDescriptor
static void	addComponentDescriptorCreatorFcn (const DtString &type, DtComponentDescriptorCreatorFcn fcn)
	Adds a given component descriptor creation function and corresponding type (defined in compDescTypes.h) to the DtComponentDescriptorFactory.
static DtComponentDescriptor *	createComponentDescriptor (DtlObjPtr mtlStream, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	Creates and initializes a component descriptor when reading in from an MTL (MAK Technologies Lisp) file (i.e.
static DtComponentDescriptor *	createComponentDescriptor (const char *pName)
	Creates and initializes a new instance of this class.
static DtComponentDescriptorFactory *	factory ()
	The factory for creating objects of type DtComponentDescriptor.
static void	setFactory (DtComponentDescriptorFactory *factory)
	The factory for creating objects of type DtComponentDescriptor.
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (FILE *fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static const char *	theXmlType ()
	The type that is used when archiving to an XML stream.
static const DtFilename &	appPath ()
	Gets the current working directory.
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
	Sets the function to create the DtReaderWriterFactory.
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &)
	Given a filename, returns a newly created reader/writer object from the object found within.
static DtReaderWriter *	createFromXml (const DtString &)
	Given a xml string, returns a newly created reader/writer object from the object found within.
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP)
	Given a xml environment, returns a newly created reader/writer object from the object found within.
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)
	Gets the named attribute from a DtEnvValueSP.
Static Public Member Functions inherited from DtObjectDebugger< DtReaderWriter >
static DtObjectCounter::CounterType	ObjectCount ()
static const DtObjectContainer *	ObjectContainer ()

Protected Attributes
parameters
These parameters are available for setting in the OPD files.
DtRwBoolean	myDetectOnlyHostileForces
	Parameter Name: detect-only-hostile-forces Parameter Description: If true, this sensor will detect only entities that are of a force type hostile to the entity this sensor is on.
DtRwBoolean	myDetectOwnForce
	Parameter Name: detect-own-force Parameter Description: This sensor will only detect objects of the same force as the host entity if this is set to true.
DtRwObjectTypeList	myDetectionTypes
	Parameter Name: detection-types Parameter Description: Types of objects to detect.
DtRwBoolean	myDetectDestroyedObjects
	Parameter Name: detect-destroyed-objects Parameter Description: Flag indicating whether or not to detected destroyed objects.
DtRwBoolean	myAddSensorRangeRing
	Parameter Name: add-sensor-range-ring Parameter Description: Flag indicating whether or not to add a published sensor range ring named after the sensor domain.
DtRwReal	myWindDegradesSensorPerformanceWhenAbove
	Parameter Name: wind-degrades-sensor-performance-when-above Parameter Description: Wind speed (in kilometers per hour) that, when reached, will start degrading sensor performance up to the maximum specified in the wind-degrades-by value.
DtRwReal	myWindDegradesSensorPerformanceUntil
	Parameter Name: wind-degrades-sensor-performance-until Parameter Description: Wind speed (in kilometers per hour) that is the upper bound of degredation.
DtRwReal	myWindDegradesSensorPerformanceBy
	Parameter Name: wind-degrades-sensor-performance-by Parameter Description: The maximum degredation factor Parameter Default Value: 0 .
DtRwReal	myPrecipitationDegradesSensorPerformanceBy
	Parameter Name: precipitatation-degrades-sensor-performance-by Parameter Description: The maximum degredation factor for precipitation (snow or rain) Parameter Default Value: 0 .
DtRwSpatialFilterContainer	mySensorGeometry
	Parameter Name: sensor-geometry Parameter Description: Geometry of the sensor coverage, such as range and/or a sensor frustum.
Protected Attributes inherited from DtComponentDescriptor
DtRwBoolean	myIsEnabled
DtRwBoolean	myDebug
	This parameter defaults to false.
DtRwBoolean	myCreateComponent
DtRwString	myComponentType
	Parameter Name: component-type Parameter Description: String identifying type of component.
DtRwReal	myMinTickPeriod
	Parameter Name: min-tick-period Parameter Description: Average tick period for this component.
DtRwReal	myMinTickPeriodVariance
	Parameter Name: min-tick-period-variance Parameter Description: A time range for the tick period.
DtRwBoolean	myTickPeriodUsesRealTime
	Parameter Name: tick-period-uses-real-time Parameter Description: Specified whether the component uses real-time (instead of simulation-time) to determine when it is time to tick.
DtRwString	myProcessStateRepositoryName
	Parameter Name: process-state-repository-name Parameter Description: Name of the process state repository associated with this component.
DtRwString	myProcessStateRepositoryType
	Parameter Name: process-state-repository-type Parameter Description: Type of the process state repository assoicated with this component.
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.

Private Member Functions
	DtObjectSensorDescriptor ()
	default constructor; not implemented

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()
Protected Member Functions inherited from DtComponentDescriptor
	DtComponentDescriptor ()
	default constructor; not implemented
Static Protected Attributes inherited from DtComponentDescriptor
static DtComponentDescriptorFactory *	myFactory

Detailed Description

DtObjectSensorDescriptor; descriptor for the DtObjectSensor component.

DtComponentDescriptor for the DtObjectSensor component. Includes types of objects to detect, geometry of covered area, force type of objects to detect, and whether to detect destroyed objects.

Constructor & Destructor Documentation

DtObjectSensorDescriptor::DtObjectSensorDescriptor ( )

private

default constructor; not implemented

DtObjectSensorDescriptor::DtObjectSensorDescriptor	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = 0
	)

constructor

DtObjectSensorDescriptor::DtObjectSensorDescriptor	(	const DtObjectSensorDescriptor &	orig,
		DtReaderWriterRegistry *	parentRegistry = 0
	)

copy constructor

virtual DtObjectSensorDescriptor::~DtObjectSensorDescriptor ( )

virtual

destructor

Member Function Documentation

DtObjectSensorDescriptor& DtObjectSensorDescriptor::operator=

(

const DtObjectSensorDescriptor &

orig

)

assignment

virtual DtString DtObjectSensorDescriptor::type ( ) const

virtual

Returns the type of component this descriptor describes.

Used to create the descriptor on read from an mtl file. Component descriptor type strings are defined in compDescTypes.h.

Returns

DtObjectSensorDescriptorType

Reimplemented from DtComponentDescriptor.

Reimplemented in DtSignatureObjectSensorDescriptor, DtRadarObjectSensorDescriptor, DtActiveSonarSensorDescriptor, DtEngineeringObjectSensorDescriptor, DtNbcSensorDescriptor, and DtPassiveSonarSensorDescriptor.

virtual bool DtObjectSensorDescriptor::detectOnlyHostileForces ( ) const

virtual

See myDetectOnlyHostileForces.

virtual void DtObjectSensorDescriptor::setDetectOnlyHostileForces ( bool  value )

virtual

See myDetectOnlyHostileForces.

virtual bool DtObjectSensorDescriptor::detectOwnForce ( ) const

virtual

See Also

#myDectedOwnForce

virtual void DtObjectSensorDescriptor::setDetectOwnForce ( bool  v )

virtual

See Also

#myDectedOwnForce

virtual void DtObjectSensorDescriptor::setDetectionTypes ( const DtRwObjectTypeList &  objectTypes )

virtual

Accessor/mutator for myDetectionTypes.

virtual DtRwObjectTypeList& DtObjectSensorDescriptor::detectionTypes ( )

virtual

Accessor/mutator for myDetectionTypes.

virtual const DtRwObjectTypeList& DtObjectSensorDescriptor::detectionTypes ( ) const

virtual

Accessor/mutator for myDetectionTypes.

virtual void DtObjectSensorDescriptor::setDetectDestroyedObjects ( bool  value )

virtual

Accessor/mutator for myDetectDestroyedObjects.

virtual bool DtObjectSensorDescriptor::detectDestroyedObjects ( ) const

virtual

Accessor/mutator for myDetectDestroyedObjects.

virtual void DtObjectSensorDescriptor::setAddSensorRangeRing ( bool  value )

virtual

Accessor/mutator for myAddSensorRangeRing.

virtual bool DtObjectSensorDescriptor::addSensorRangeRing ( ) const

virtual

Accessor/mutator for myAddSensorRangeRing.

virtual void DtObjectSensorDescriptor::setWindDegradesSensorPerformanceWhenAbove ( double  )

virtual

Accessor/mutator for myWindDegradesSensorPerformanceWhenAbove.

virtual double DtObjectSensorDescriptor::windDegradesSensorPerformanceWhenAbove ( ) const

virtual

Accessor/mutator for myWindDegradesSensorPerformanceWhenAbove.

virtual void DtObjectSensorDescriptor::setWindDegradesSensorPerformanceUntil ( double  )

virtual

Accessor/mutator for myWindDegradesSensorPerformanceUntil.

virtual double DtObjectSensorDescriptor::windDegradesSensorPerformanceUntil ( ) const

virtual

Accessor/mutator for myWindDegradesSensorPerformanceUntil.

virtual void DtObjectSensorDescriptor::setWindDegradesSensorPerformanceBy ( double  )

virtual

Accessor/mutator for myWindDegradesSensorPerformanceBy.

virtual double DtObjectSensorDescriptor::windDegradesSensorPerformanceBy ( ) const

virtual

Accessor/mutator for myWindDegradesSensorPerformanceBy.

virtual void DtObjectSensorDescriptor::setPrecipitationDegradesSensorPerformanceBy ( double  )

virtual

Accessor/mutator for #myPreciptitationDegradesSensorPerformanceBy.

virtual double DtObjectSensorDescriptor::precipitationDegradesSensorPerformanceBy ( ) const

virtual

Accessor/mutator for #myPreciptitationDegradesSensorPerformanceBy.

virtual DtRwSpatialFilterContainer* DtObjectSensorDescriptor::sensorGeometry ( )

virtual

Accessor for mySensorGeometry.

virtual const DtRwSpatialFilterContainer* DtObjectSensorDescriptor::sensorGeometry ( ) const

virtual

Accessor for mySensorGeometry.

virtual DtComponentDescriptor* DtObjectSensorDescriptor::clone ( DtReaderWriterRegistry *  parentRegistry = 0 ) const

virtual

Reimplemented from DtComponentDescriptor.

Reimplemented in DtSignatureObjectSensorDescriptor, DtRadarObjectSensorDescriptor, DtActiveSonarSensorDescriptor, DtEngineeringObjectSensorDescriptor, DtNbcSensorDescriptor, and DtPassiveSonarSensorDescriptor.

static DtComponentDescriptor* DtObjectSensorDescriptor::creator ( )

static

Returns

Newly created instance of this class, with an empty DtReaderWriter name. Creation methods are registered with a DtComponentDescriptorFactory, so they can be created on demand as they are read in from a parameter database file.

Reimplemented from DtComponentDescriptor.

Reimplemented in DtSignatureObjectSensorDescriptor, DtRadarObjectSensorDescriptor, DtActiveSonarSensorDescriptor, DtEngineeringObjectSensorDescriptor, DtNbcSensorDescriptor, and DtPassiveSonarSensorDescriptor.

virtual void DtObjectSensorDescriptor::getSelf ( DtlObjPtr  args, const DtReaderWriter::SearchPaths &  searchPaths, const DtVariableBindingsList &  variableBindings  )

virtual

Member Data Documentation

DtRwBoolean DtObjectSensorDescriptor::myDetectOnlyHostileForces

protected

Parameter Name: detect-only-hostile-forces
Parameter Description: If true, this sensor will detect only entities that are of a force type hostile to the entity this sensor is on.

This effects only the detection-types listed in this descriptor. If other force types are specified in the input port, those will be detected as well.
When false, all force types are detected. Parameter Default Value: true

DtRwBoolean DtObjectSensorDescriptor::myDetectOwnForce

protected

Parameter Name: detect-own-force
Parameter Description: This sensor will only detect objects of the same force as the host entity if this is set to true.

This takes precedence over myDectedOnlyHostileForces. If the own-force is specified on the input port, then entities of own-force will be detected, even if this is set to false.
Parameter Default Value: False

DtRwObjectTypeList DtObjectSensorDescriptor::myDetectionTypes

protected

Parameter Name: detection-types
Parameter Description: Types of objects to detect.

Parameter Default Value:

DtRwBoolean DtObjectSensorDescriptor::myDetectDestroyedObjects

protected

Parameter Name: detect-destroyed-objects
Parameter Description: Flag indicating whether or not to detected destroyed objects.

Parameter Default Value: false

DtRwBoolean DtObjectSensorDescriptor::myAddSensorRangeRing

protected

Parameter Name: add-sensor-range-ring
Parameter Description: Flag indicating whether or not to add a published sensor range ring named after the sensor domain.

Parameter Default Value: true

DtRwReal DtObjectSensorDescriptor::myWindDegradesSensorPerformanceWhenAbove

protected

Parameter Name: wind-degrades-sensor-performance-when-above
Parameter Description: Wind speed (in kilometers per hour) that, when reached, will start degrading sensor performance up to the maximum specified in the wind-degrades-by value.

Parameter Default Value: 0

DtRwReal DtObjectSensorDescriptor::myWindDegradesSensorPerformanceUntil

protected

Parameter Name: wind-degrades-sensor-performance-until
Parameter Description: Wind speed (in kilometers per hour) that is the upper bound of degredation.

Between the upper and lower bound a percentage of the degredation factor will be used. Above that the maximum value is always used.
wind-degrades-by value.
Parameter Default Value: 0

DtRwReal DtObjectSensorDescriptor::myWindDegradesSensorPerformanceBy

protected

Parameter Name: wind-degrades-sensor-performance-by
Parameter Description: The maximum degredation factor
Parameter Default Value: 0
.

DtRwReal DtObjectSensorDescriptor::myPrecipitationDegradesSensorPerformanceBy

protected

Parameter Name: precipitatation-degrades-sensor-performance-by
Parameter Description: The maximum degredation factor for precipitation (snow or rain)
Parameter Default Value: 0
.

DtRwSpatialFilterContainer DtObjectSensorDescriptor::mySensorGeometry

protected

Parameter Name: sensor-geometry
Parameter Description: Geometry of the sensor coverage, such as range and/or a sensor frustum.

Spatial filters can be combined with logical and/or/not operators as well.
Example 1: Every entity within 4000 meters of this sensor.
(in-range
(range 4000.000000)
)
Example 2: Every entity within 4000 meters of this sensor, and within the defined frustum of the look-direction of the sensor.
(and
(in-range
(range 4000.000000)
)
(in-frustum
(az-max 1.0472)
(az-min -1.0472)
(el-max 1.5708)
(el-min -1.5708)
)
)
Custom geometry filters can be created though the toolkit.
See documentation for DtRwSpatialFilter for more information.
Parameter Default Value:

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfobjparam/objectSensorDescriptor.h
