makVrf::DtVrfEntityAction Class Reference

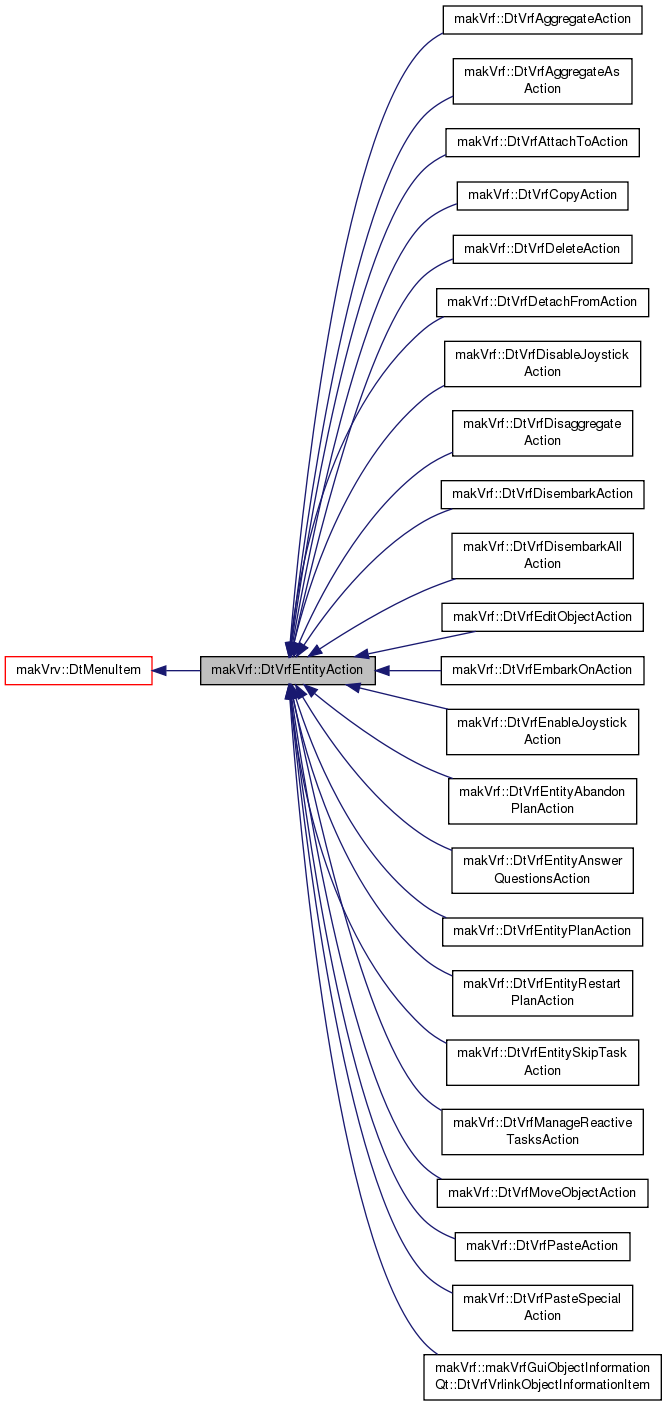

Inheritance diagram for makVrf::DtVrfEntityAction:

Public Types
enum	MatchFlags { NoOtherOptions = 0, AllObjectsAreVrfSimulated = 0x00000001, AllEditable = 0x00000002 }

Public Member Functions
	DtVrfEntityAction (const std::string &, makVrv::DtDe &)
virtual	~DtVrfEntityAction ()
virtual QAction *	registerEntityAction (QAction *)
virtual void	validate (QAction *)=0
virtual bool	selectionMatchesTypes (const makVrv::DtSelectionManager::IdSet &, const std::vector< makVrv::DtElementEntry::ObjectType > &, MatchFlags flags=AllObjectsAreVrfSimulated) const
	Returns true if the items are managed by VR-Forces and matches any of the supplied types.
virtual bool	needsToBeJoinedToSession () const
	Returns true if this action needs to be joined to a session to be validated. Default is true.
virtual bool	joinedToSession () const
Public Member Functions inherited from makVrv::DtMenuItem
	DtMenuItem (const std::string &menuItemIdName)
	CTOR.
virtual	~DtMenuItem ()
	DTOR.
virtual const std::string &	menuItemIdName () const
	Get the menu id name, the menu id name is not the same thing as the visible menu text.
virtual QAction *	createAction (DtDe &, QWidget *parent)=0
	Build a menu item (via an action).

Protected Slots
virtual void	onActionDestroyed ()
Protected Slots inherited from makVrv::DtMenuItem
virtual void	on_triggered ()
virtual void	on_checkStateChanged (bool)

Protected Member Functions
virtual void	executeEntityAction (const makVrv::DtSelectionManager::IdSet &, const boost::function< void(std::string, DtSimulationAddress addr)> &function, DtSimulationAddress addr=DtSimSendToAll)
virtual void	executeAggregateAction (const makVrv::DtSelectionManager::IdSet &, bool ignoreSubordinates, const boost::function< void(std::string, DtSimulationAddress addr)> &function, DtSimulationAddress addr=DtSimSendToAll)
virtual void	slot_onValidate (QAction *)
virtual void	slot_backendUpdated (const DtVrfBackendState &, int, QAction *)
virtual void	on_aboutToShow ()

Protected Attributes
boost::signal< void()>	signal_validateMenuItem
makVrv::DtDe &	myDe
bool	myValidateAlways
Protected Attributes inherited from makVrv::DtMenuItem
std::string	myMenuIdName

Member Enumeration Documentation

enum makVrf::DtVrfEntityAction::MatchFlags

Enumerator:

NoOtherOptions
AllObjectsAreVrfSimulated
AllEditable

Constructor & Destructor Documentation

makVrf::DtVrfEntityAction::DtVrfEntityAction	(	const std::string &	,
		makVrv::DtDe &
	)

virtual makVrf::DtVrfEntityAction::~DtVrfEntityAction ( )

virtual

Member Function Documentation

virtual QAction* makVrf::DtVrfEntityAction::registerEntityAction ( QAction *  )

virtual

virtual void makVrf::DtVrfEntityAction::validate ( QAction *  )

pure virtual

Implemented in makVrf::DtVrfManageReactiveTasksAction, makVrf::DtVrfDisableJoystickAction, makVrf::DtVrfEnableJoystickAction, makVrf::DtVrfPasteSpecialAction, makVrf::DtVrfPasteAction, makVrf::DtVrfCopyAction, makVrf::DtVrfDisaggregateAction, makVrf::DtVrfAggregateAsAction, makVrf::DtVrfAggregateAction, makVrf::DtVrfEditObjectAction, makVrf::DtVrfMoveObjectAction, makVrf::DtVrfDetachFromAction, makVrf::DtVrfAttachToAction, makVrf::DtVrfDisembarkAllAction, makVrf::DtVrfDisembarkAction, makVrf::DtVrfEmbarkOnAction, makVrf::DtVrfDeleteAction, makVrf::DtVrfEntityAnswerQuestionsAction, makVrf::DtVrfEntitySkipTaskAction, makVrf::DtVrfEntityRestartPlanAction, makVrf::DtVrfEntityAbandonPlanAction, makVrf::makVrfGuiObjectInformationQt::DtVrfVrlinkObjectInformationItem, and makVrf::DtVrfEntityPlanAction.

virtual bool makVrf::DtVrfEntityAction::selectionMatchesTypes ( const makVrv::DtSelectionManager::IdSet &  , const std::vector< makVrv::DtElementEntry::ObjectType > &  , MatchFlags  flags = AllObjectsAreVrfSimulated  ) const

virtual

Returns true if the items are managed by VR-Forces and matches any of the supplied types.

virtual bool makVrf::DtVrfEntityAction::needsToBeJoinedToSession ( ) const

virtual

Returns true if this action needs to be joined to a session to be validated. Default is true.

Reimplemented in makVrf::makVrfGuiObjectInformationQt::DtVrfVrlinkObjectInformationItem.

virtual bool makVrf::DtVrfEntityAction::joinedToSession ( ) const

virtual

virtual void makVrf::DtVrfEntityAction::executeEntityAction ( const makVrv::DtSelectionManager::IdSet &  , const boost::function< void(std::string, DtSimulationAddress addr)> &  function, DtSimulationAddress  addr = DtSimSendToAll  )

protectedvirtual

virtual void makVrf::DtVrfEntityAction::executeAggregateAction ( const makVrv::DtSelectionManager::IdSet &  , bool  ignoreSubordinates, const boost::function< void(std::string, DtSimulationAddress addr)> &  function, DtSimulationAddress  addr = DtSimSendToAll  )

protectedvirtual

virtual void makVrf::DtVrfEntityAction::slot_onValidate ( QAction *  )

protectedvirtual

Reimplemented in makVrf::DtVrfEditObjectAction, makVrf::DtVrfMoveObjectAction, makVrf::DtVrfDeleteAction, and makVrf::makVrfGuiObjectInformationQt::DtVrfVrlinkObjectInformationItem.

virtual void makVrf::DtVrfEntityAction::slot_backendUpdated ( const DtVrfBackendState &  , int  , QAction *    )

protectedvirtual

virtual void makVrf::DtVrfEntityAction::on_aboutToShow ( )

protectedvirtual

Reimplemented from makVrv::DtMenuItem.

virtual void makVrf::DtVrfEntityAction::onActionDestroyed ( )

protectedvirtualslot

Member Data Documentation

boost::signal<void ()> makVrf::DtVrfEntityAction::signal_validateMenuItem

protected

makVrv::DtDe& makVrf::DtVrfEntityAction::myDe

protected

bool makVrf::DtVrfEntityAction::myValidateAlways

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/vrfEntityMenu.h
