makVrv::DtBaseAccessory Class Reference

An accessory is like a plugin into a driver. More...

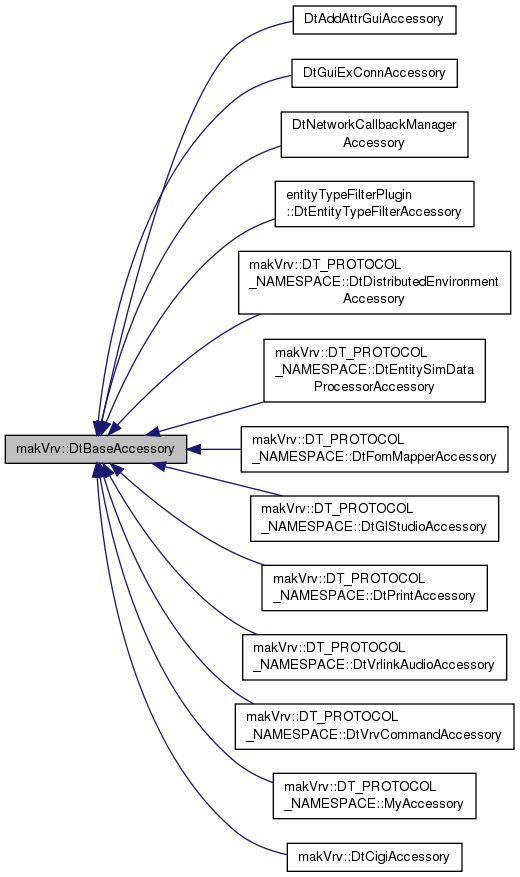

Inheritance diagram for makVrv::DtBaseAccessory:

Public Member Functions
	DtBaseAccessory (const std::string &name)
virtual	~DtBaseAccessory ()
virtual const std::string &	name ()
	Returns the name of this accessory.
virtual void	install (DtDriver *baseConn)=0
	Called when this accessory is installed into a driver (right before the driver is started).
virtual void	uninstall (DtDriver *baseConn)=0
	Called when this accessory is uninstalled from a driver (right after the driver is stopped).
virtual bool	isCompatible (DtDriver *simConn)=0
	Called to find out if this accessory is compatible with a particular driver.

Protected Member Functions
	DtBaseAccessory ()

Protected Attributes
std::string	myName

Detailed Description

An accessory is like a plugin into a driver.

The DtBaseAccessory is the base class for all accessories.

Examples

• exampleAccessory
• exampleSimData

Constructor & Destructor Documentation

makVrv::DtBaseAccessory::DtBaseAccessory

(

const std::string &

name

)

virtual makVrv::DtBaseAccessory::~DtBaseAccessory ( )

virtual

makVrv::DtBaseAccessory::DtBaseAccessory ( )

protected

Member Function Documentation

virtual const std::string& makVrv::DtBaseAccessory::name ( )

virtual

Returns the name of this accessory.

virtual void makVrv::DtBaseAccessory::install ( DtDriver *  baseConn )

pure virtual

Called when this accessory is installed into a driver (right before the driver is started).

Implemented in entityTypeFilterPlugin::DtEntityTypeFilterAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtEntitySimDataProcessorAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtGlStudioAccessory, DtAddAttrGuiAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtVrvCommandAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAudioAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtDistributedEnvironmentAccessory, DtGuiExConnAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtPrintAccessory, DtNetworkCallbackManagerAccessory, makVrv::DT_PROTOCOL_NAMESPACE::MyAccessory, makVrv::DtCigiAccessory, and makVrv::DT_PROTOCOL_NAMESPACE::DtFomMapperAccessory.

virtual void makVrv::DtBaseAccessory::uninstall ( DtDriver *  baseConn )

pure virtual

Called when this accessory is uninstalled from a driver (right after the driver is stopped).

Implemented in entityTypeFilterPlugin::DtEntityTypeFilterAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtEntitySimDataProcessorAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtGlStudioAccessory, DtAddAttrGuiAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtVrvCommandAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAudioAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtDistributedEnvironmentAccessory, DtGuiExConnAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtPrintAccessory, DtNetworkCallbackManagerAccessory, makVrv::DT_PROTOCOL_NAMESPACE::MyAccessory, makVrv::DtCigiAccessory, and makVrv::DT_PROTOCOL_NAMESPACE::DtFomMapperAccessory.

virtual bool makVrv::DtBaseAccessory::isCompatible ( DtDriver *  simConn )

pure virtual

Called to find out if this accessory is compatible with a particular driver.

Implemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAudioAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtEntitySimDataProcessorAccessory, DtAddAttrGuiAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtGlStudioAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtVrvCommandAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtDistributedEnvironmentAccessory, DtGuiExConnAccessory, DtNetworkCallbackManagerAccessory, entityTypeFilterPlugin::DtEntityTypeFilterAccessory, makVrv::DtCigiAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtFomMapperAccessory, makVrv::DT_PROTOCOL_NAMESPACE::DtPrintAccessory, and makVrv::DT_PROTOCOL_NAMESPACE::MyAccessory.

Member Data Documentation

std::string makVrv::DtBaseAccessory::myName

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtBaseAccessory.h
