makVrv::DtCigiSettingsLogic Class Reference

This class provides the logic to handle multiple named CIGI settings, including adding, removing, importing, exporting, renaming, etc. More...

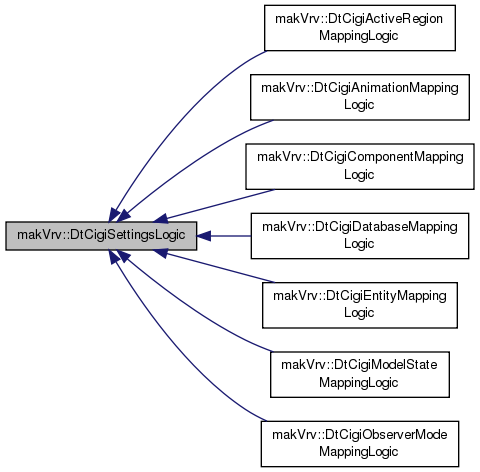

Inheritance diagram for makVrv::DtCigiSettingsLogic:

Public Member Functions
	DtCigiSettingsLogic (DtDe &de, DtCigiSettingsInterface *settingsIf, DtPersistenceControlsInterface *toolbarIf)
	Constructor.
virtual	~DtCigiSettingsLogic ()
	Destructor.

Protected Member Functions
virtual void	updateValues ()
	No-op. Should be overridden.
virtual void	on_newSettingsRequested ()
	Called when new settings are added.
virtual void	on_deleteSettingsRequested (const std::string &mapperName)
	Called when settings are deleted.
virtual void	on_renameSettingsRequested (const std::string &oldName, const std::string &newName)
	Called when settings are renamed.
virtual void	on_currentSettingsChanged (const std::string &name)
	Called when the current settings change.
virtual void	on_pageEnabled (bool trueFalse)
	Called when the page is enabled.
virtual std::string	generateName () const
	Generates a new name. Used when new settings are created.
virtual void	on_import ()
	Called when import is requested.
virtual void	on_importFilenameChosen (const std::string &name)
	Called when the user chooses a file to import.
virtual void	on_export ()
	Called when export is requested.
virtual void	on_exportFilenameChosen (const std::string &name)
	Called when the user chooses a file to import to.
virtual void	on_settingsToBeDeletedExternal (const std::string &name)
	Called when the settngs manager reports a settings object is to be deleted.
int	stringToInt (const std::string &str)
	Utility function translates str into an integer. Returns -1 if fails.

Protected Attributes
DtDe &	myDe
DtCigiSettingsInterface &	mySettingsInterface
DtPersistenceControlsInterface &	myToolbarInterface
DtSharedCigiSettingsManager &	mySettingsManager
DtSignalConnectionManager	myConnectionManager

Detailed Description

This class provides the logic to handle multiple named CIGI settings, including adding, removing, importing, exporting, renaming, etc.

them.

Constructor & Destructor Documentation

makVrv::DtCigiSettingsLogic::DtCigiSettingsLogic	(	DtDe &	de,
		DtCigiSettingsInterface *	settingsIf,
		DtPersistenceControlsInterface *	toolbarIf
	)

Constructor.

virtual makVrv::DtCigiSettingsLogic::~DtCigiSettingsLogic ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtCigiSettingsLogic::updateValues ( )

protectedvirtual

No-op. Should be overridden.

Reimplemented in makVrv::DtCigiComponentMappingLogic, makVrv::DtCigiEntityMappingLogic, makVrv::DtCigiAnimationMappingLogic, makVrv::DtCigiModelStateMappingLogic, makVrv::DtCigiDatabaseMappingLogic, makVrv::DtCigiActiveRegionMappingLogic, and makVrv::DtCigiObserverModeMappingLogic.

virtual void makVrv::DtCigiSettingsLogic::on_newSettingsRequested ( )

protectedvirtual

Called when new settings are added.

virtual void makVrv::DtCigiSettingsLogic::on_deleteSettingsRequested ( const std::string &  mapperName )

protectedvirtual

Called when settings are deleted.

virtual void makVrv::DtCigiSettingsLogic::on_renameSettingsRequested ( const std::string &  oldName, const std::string &  newName  )

protectedvirtual

Called when settings are renamed.

virtual void makVrv::DtCigiSettingsLogic::on_currentSettingsChanged ( const std::string &  name )

protectedvirtual

Called when the current settings change.

Reimplemented in makVrv::DtCigiEntityMappingLogic.

virtual void makVrv::DtCigiSettingsLogic::on_pageEnabled ( bool  trueFalse )

protectedvirtual

Called when the page is enabled.

virtual std::string makVrv::DtCigiSettingsLogic::generateName ( ) const

protectedvirtual

Generates a new name. Used when new settings are created.

virtual void makVrv::DtCigiSettingsLogic::on_import ( )

protectedvirtual

Called when import is requested.

virtual void makVrv::DtCigiSettingsLogic::on_importFilenameChosen ( const std::string &  name )

protectedvirtual

Called when the user chooses a file to import.

virtual void makVrv::DtCigiSettingsLogic::on_export ( )

protectedvirtual

Called when export is requested.

virtual void makVrv::DtCigiSettingsLogic::on_exportFilenameChosen ( const std::string &  name )

protectedvirtual

Called when the user chooses a file to import to.

virtual void makVrv::DtCigiSettingsLogic::on_settingsToBeDeletedExternal ( const std::string &  name )

protectedvirtual

Called when the settngs manager reports a settings object is to be deleted.

We need this so we can update the persitence toolbar widget's ptr to the settings backup

int makVrv::DtCigiSettingsLogic::stringToInt ( const std::string &  str )

protected

Utility function translates str into an integer. Returns -1 if fails.

Member Data Documentation

DtDe& makVrv::DtCigiSettingsLogic::myDe

protected

DtCigiSettingsInterface& makVrv::DtCigiSettingsLogic::mySettingsInterface

protected

DtPersistenceControlsInterface& makVrv::DtCigiSettingsLogic::myToolbarInterface

protected

DtSharedCigiSettingsManager& makVrv::DtCigiSettingsLogic::mySettingsManager

protected

DtSignalConnectionManager makVrv::DtCigiSettingsLogic::myConnectionManager

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCigiQt/DtCigiSettingsLogic.h
