makVrv::DtModelScaleWidget Class Reference

DtModelScaleWidget is a toolbar widget that combines a button to enable and disable model scaling, and a drop-down button to bring up a slider for the model scale factor. More...

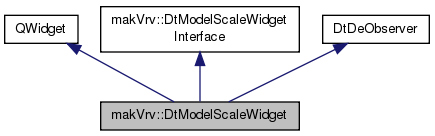

Inheritance diagram for makVrv::DtModelScaleWidget:

Public Member Functions
	DtModelScaleWidget (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtModelScaleWidget ()
	Destructor.
virtual void	setEnabled (bool b)
	Enable or disable the model scaling button.
virtual void	setValue (bool b)
	Set the value of the model caling button (on/off)
virtual void	setModelScaleFactor (int factor)
	Set the current model scale factor to be used by the scale factor slider.
virtual void	setMaxModelScaleFactor (int maxModelScaleFactor)
	Sets the model scale slider's maximum value.
Public Member Functions inherited from makVrv::DtModelScaleWidgetInterface
virtual	~DtModelScaleWidgetInterface ()
	Virtual DTOR.

Protected Slots
virtual void	on_modelScaleToggleClicked ()
	connected to the internal model scale slider toggle button
virtual void	on_modelScaleSliderChanged (int)

Protected Member Functions
void	setupGui ()
	Sets up the user interface. Called from constructor.
virtual void	slot_activate (DtDe *subject)
virtual void	slot_deactivate (DtDe *)

Protected Attributes
DtDe &	myDe
DtModelScaleWidgetLogic *	myLogic
QToolButton *	myModelScaleToolButton
DtPopupToolbarButton *	mySliderEnableButton
DtModelScaleSliderWidget *	mySliderWidget
DtPopupToolbar *	mySliderToolBar
bool	mySliderWidgetShown

Detailed Description

DtModelScaleWidget is a toolbar widget that combines a button to enable and disable model scaling, and a drop-down button to bring up a slider for the model scale factor.

Constructor & Destructor Documentation

makVrv::DtModelScaleWidget::DtModelScaleWidget	(	DtDe &	de,
		QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

virtual makVrv::DtModelScaleWidget::~DtModelScaleWidget ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtModelScaleWidget::setEnabled ( bool  b )

virtual

Enable or disable the model scaling button.

If the scale slider is up, this will also bring that down

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setValue ( bool  b )

virtual

Set the value of the model caling button (on/off)

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setModelScaleFactor ( int  factor )

virtual

Set the current model scale factor to be used by the scale factor slider.

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setMaxModelScaleFactor ( int  maxModelScaleFactor )

virtual

Sets the model scale slider's maximum value.

Implements makVrv::DtModelScaleWidgetInterface.

void makVrv::DtModelScaleWidget::setupGui ( )

protected

Sets up the user interface. Called from constructor.

virtual void makVrv::DtModelScaleWidget::slot_activate ( DtDe *  subject )

protectedvirtual

virtual void makVrv::DtModelScaleWidget::slot_deactivate ( DtDe *  )

inlineprotectedvirtual

virtual void makVrv::DtModelScaleWidget::on_modelScaleToggleClicked ( )

protectedvirtualslot

connected to the internal model scale slider toggle button

virtual void makVrv::DtModelScaleWidget::on_modelScaleSliderChanged ( int  )

protectedvirtualslot

Member Data Documentation

DtDe& makVrv::DtModelScaleWidget::myDe

protected

DtModelScaleWidgetLogic* makVrv::DtModelScaleWidget::myLogic

protected

QToolButton* makVrv::DtModelScaleWidget::myModelScaleToolButton

protected

DtPopupToolbarButton* makVrv::DtModelScaleWidget::mySliderEnableButton

protected

DtModelScaleSliderWidget* makVrv::DtModelScaleWidget::mySliderWidget

protected

DtPopupToolbar* makVrv::DtModelScaleWidget::mySliderToolBar

protected

bool makVrv::DtModelScaleWidget::mySliderWidgetShown

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCoreQt/DtModelScaleWidget.h
