makVrv::DtWidget Class Reference

The abstract base class for widgets. More...

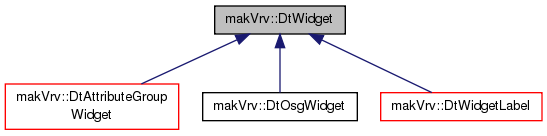

Inheritance diagram for makVrv::DtWidget:

Public Member Functions
	DtWidget (DtDe &de, DtUniqueID id)
virtual	~DtWidget ()
virtual void	setOverlay (unsigned int overlay)=0
	Sets the overlay of the widget.
virtual unsigned int	overlay () const =0
	Gets the overlay of the widget.
virtual void	setOrderGroup (unsigned int group)=0
	Sets the overlay of the widget.
virtual void	setRotation (float)=0
	Sets the rotation of the widget. Rotation is in radians. Default is no-op.
virtual unsigned int	orderGroup () const =0
	Gets the overlay of the widget.
virtual void	setParentId (DtUniqueID id)
	Set the parent id.
virtual void	setPosition (float x, float y, float z, float w=0)=0
	Set the position of the widget in screen space.
virtual void	setBackgroundImage (const std::string &filename)=0
	Set the background image.
virtual void	setColor (float r, float g, float b, float a)=0
	Set the color of the widget.
virtual void	setOrigin (float originX, float originY)=0
	Sets the origin location, by default it is 0,0.
virtual void	setSize (float w, float h)=0
	Sets the size of the widget in overlay coordinate space.
virtual void	setPadding (float paddingX, float paddingY)=0
	Sets the size of the widget in overlay coordinate space.
virtual void	setModelDefinition (const std::string &str)=0
	Sets the model definition of the widget (optional, since widgets are not models)
virtual void	setEventsEnabled (bool enabled)=0
	Enable or disable events for this widget.
virtual void	setVisible (bool visible)=0
	Set whether the widget is visible or not.

Protected Attributes
DtDe &	myDe
DtUniqueID	myId
DtUniqueID	myParentId

Detailed Description

The abstract base class for widgets.

Constructor & Destructor Documentation

makVrv::DtWidget::DtWidget	(	DtDe &	de,
		DtUniqueID	id
	)

virtual makVrv::DtWidget::~DtWidget ( )

virtual

Member Function Documentation

virtual void makVrv::DtWidget::setOverlay ( unsigned int  overlay )

pure virtual

Sets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual unsigned int makVrv::DtWidget::overlay ( ) const

pure virtual

Gets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setOrderGroup ( unsigned int  group )

pure virtual

Sets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setRotation ( float  )

pure virtual

Sets the rotation of the widget. Rotation is in radians. Default is no-op.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, makVrv::DtWidgetLabel, and makVrv::DtOsgWidget.

virtual unsigned int makVrv::DtWidget::orderGroup ( ) const

pure virtual

Gets the overlay of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setParentId ( DtUniqueID  id )

virtual

Set the parent id.

Reimplemented in makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setPosition ( float  x, float  y, float  z, float  w = 0  )

pure virtual

Set the position of the widget in screen space.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidget, and makVrv::DtOsgWidgetLabel.

virtual void makVrv::DtWidget::setBackgroundImage ( const std::string &  filename )

pure virtual

Set the background image.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setColor ( float  r, float  g, float  b, float  a  )

pure virtual

Set the color of the widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setOrigin ( float  originX, float  originY  )

pure virtual

Sets the origin location, by default it is 0,0.

The origin can be used to specify a offset from the position.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setSize ( float  w, float  h  )

pure virtual

Sets the size of the widget in overlay coordinate space.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtWidgetLabel, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setPadding ( float  paddingX, float  paddingY  )

pure virtual

Sets the size of the widget in overlay coordinate space.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setModelDefinition ( const std::string &  str )

pure virtual

Sets the model definition of the widget (optional, since widgets are not models)

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setEventsEnabled ( bool  enabled )

pure virtual

Enable or disable events for this widget.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

virtual void makVrv::DtWidget::setVisible ( bool  visible )

pure virtual

Set whether the widget is visible or not.

Implemented in makVrv::DtOsgAttributeGroupWidget, makVrv::DtOsgWidgetLabel, and makVrv::DtOsgWidget.

Member Data Documentation

DtDe& makVrv::DtWidget::myDe

protected

DtUniqueID makVrv::DtWidget::myId

protected

DtUniqueID makVrv::DtWidget::myParentId

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtWidget.h
