DtFireForEffectTask is an abstract base class which used to create fire for effect tasks that differ only by target type: entity, location, or target control point. More...

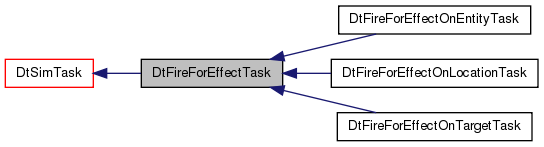

Inheritance diagram for DtFireForEffectTask:

[legend]

Public Member Functions
virtual	~DtFireForEffectTask ()
virtual void	addWeapon (const DtString &weap)
	Adds a weapon system to the list of weapons to be used for this task.
virtual const DtRwStringList &	weaponNames () const
virtual DtRwStringList &	weaponNames ()
virtual void	setWeaponNames (const DtRwStringList &weapons)
virtual bool	getWeaponOnList (const DtString &weaponName, DtString &weapon)
	Look up a weaponName (intended to be a display name from a list maintained by a weapon component interface) in the myWeaponNames, which is a list of weapons to fire in this task.
virtual void	setNumberOfRounds (int rounds)
	See if ammo type was specified for this task (if not, use default).
virtual int	numberOfRounds () const
virtual bool	numberOfRoundsSpecified () const
virtual void	setDispersionRadius (DtReal radius)
virtual DtReal	dispersionRadius () const
virtual bool	dispersionRadiusSpecified () const
virtual void	setHeightAboveTerrain (DtReal height)
virtual DtReal	heightAboveTerrain () const
virtual bool	heightAboveTerrainSpecified () const
virtual int	netRepSize () const
	Returns the size of the full network representation padded to an 8-byte boundary.
virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)
	Fills in the task from the network buffer.
virtual bool	setToNet ()
	Fills in the network buffer (created by base class simTask) with the task contents.
Public Member Functions inherited from DtSimTask
virtual	~DtSimTask ()
	destructor
virtual bool	init ()
	Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.
virtual const DtSimTaskMessageType &	type () const =0
	What kind of task am I? Returns a string indicating the kind of task (for example, �move-to�, �follow-entity�).
virtual bool	isTypeRegistered (const DtSimTaskMessageType &taskName)
virtual DtSimTask *	clone (const DtString &name, DtReaderWriterRegistry *parentRegistry=0) const =0
	Make a copy of this task.
virtual DtString	stringRep () const =0
	Returns a human-readable string representation of the task.
virtual void	setSubtask (bool flag)
	If true, this task is a subtask.
virtual bool	subtask () const
virtual void	putData (std::string &fp, int indentLevel=0)
	putData writes our type, which is provided by the virtual type accessor of the deriving class.
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	getData is just used to get us past the type in the data stream, since it's not actually stored.
virtual char *	netRep ()
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op.
virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op.
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op.
virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op.
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
bool	isReadonly () const
virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to iriginal state Default is no-op.
virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment.
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.
virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated.
virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time.
virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
	Deriving class overrides these to get/put class specific data.
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
	The specified flags are used for optional values.
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
	The variable name, if this object is a variable reference.
virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual DtReaderWriter *	defaultRWValue ()
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable.
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
	Collection of child DtReaderWriter nodes owned by this object.
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename.
virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid.
virtual bool	fromXmlFile (const DtFilename &)
	Restires object from given xml file.
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data.
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference.
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value.
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op.
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference.

Protected Member Functions
	DtFireForEffectTask ()
	default constructor
	DtFireForEffectTask (const DtString &writeName, DtReaderWriterRegistry *parentRegistry=0)
	constructor If you have a task 'put' itself, the writeName will preface the task.
	DtFireForEffectTask (const DtString &writeName, const DtFireForEffectTask &orig, DtReaderWriterRegistry *parentRegistry=0)
	copy constructor
const DtFireForEffectTask &	operator= (const DtFireForEffectTask &orig)
	assignment operator
virtual DtString	parameterStringRep () const
	Get a readable string representation of the parameters.
Protected Member Functions inherited from DtSimTask
	DtSimTask ()
	Constructors are protected because no one should instantiate the base class, just derived versions.
	DtSimTask (const DtString &writeName, DtReaderWriterRegistry *parentRegistry=0)
	constructor If you have a task 'put' itself, the write name will preface the task.
	DtSimTask (const DtString &writeName, const DtSimTask &orig, DtReaderWriterRegistry *parentRegistry=0)
	copy constructor
const DtSimTask &	operator= (const DtSimTask &orig)
	assignment operator; same as copy constructor
virtual char *	createNetworkBuffer ()
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
	Copies values from the specified DtReaderWriter.
Protected Member Functions inherited from DtObjectDebugger< DtReaderWriter >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()

Protected Attributes
DtRwStringList	myWeaponNames
DtRwInt	myNumberOfRounds
DtRwReal	myDispersionRadius
DtRwReal	myHeightAboveTerrain
Protected Attributes inherited from DtSimTask
DtRwBoolean	mySubtask
char *	myNetRep
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()
Static Public Member Functions inherited from DtSimTask
static DtSimTask *	createTask (DtlObjPtr mtlStream)
	Static functions.
static DtSimTask *	createTask (const DtSimTaskMessageType &taskType)
static void	addTaskCreatorFcn (const DtSimTaskMessageType &taskName, DtSimTaskCreatorFcn fcn)
	Adds a task creator member function to the task factory.
static void	setFactory (DtSimTaskFactory *factory)
static DtSimTaskFactory *	factory ()
Static Protected Attributes inherited from DtSimTask
static DtSimTaskFactory *	myFactory

Detailed Description

DtFireForEffectTask is an abstract base class which used to create fire for effect tasks that differ only by target type: entity, location, or target control point.

Constructor & Destructor Documentation

DtFireForEffectTask::DtFireForEffectTask ( )

protected

default constructor

DtFireForEffectTask::DtFireForEffectTask	(	const DtString &	writeName,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

protected

constructor If you have a task 'put' itself, the writeName will preface the task.

DtFireForEffectTask::DtFireForEffectTask	(	const DtString &	writeName,
		const DtFireForEffectTask &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

protected

copy constructor

virtual DtFireForEffectTask::~DtFireForEffectTask ( )

virtual

Member Function Documentation

const DtFireForEffectTask& DtFireForEffectTask::operator= ( const DtFireForEffectTask & orig )

protected

assignment operator

virtual void DtFireForEffectTask::addWeapon ( const DtString & weap )

virtual

Adds a weapon system to the list of weapons to be used for this task.

virtual const DtRwStringList& DtFireForEffectTask::weaponNames ( ) const

virtual

virtual DtRwStringList& DtFireForEffectTask::weaponNames ( )

virtual

virtual void DtFireForEffectTask::setWeaponNames ( const DtRwStringList & weapons )

virtual

virtual bool DtFireForEffectTask::getWeaponOnList	(	const DtString &	weaponName,
		DtString &	weapon
	)

virtual

Look up a weaponName (intended to be a display name from a list maintained by a weapon component interface) in the myWeaponNames, which is a list of weapons to fire in this task.

myWeaponNames entries also have an ammo appended and a ":" separator, but this is stripped off before the comparison with weaponName. Returns true if weaponName was found on the list, and false otherwise. If it returns true, then weapon will hold weaponname:ammo from myWeaponNames.

virtual void DtFireForEffectTask::setNumberOfRounds ( int rounds )

virtual

See if ammo type was specified for this task (if not, use default).

virtual int DtFireForEffectTask::numberOfRounds ( ) const

virtual

virtual bool DtFireForEffectTask::numberOfRoundsSpecified ( ) const

virtual

virtual void DtFireForEffectTask::setDispersionRadius ( DtReal radius )

virtual

virtual DtReal DtFireForEffectTask::dispersionRadius ( ) const

virtual

virtual bool DtFireForEffectTask::dispersionRadiusSpecified ( ) const

virtual

virtual void DtFireForEffectTask::setHeightAboveTerrain ( DtReal height )

virtual

virtual DtReal DtFireForEffectTask::heightAboveTerrain ( ) const

virtual

virtual bool DtFireForEffectTask::heightAboveTerrainSpecified ( ) const

virtual

virtual int DtFireForEffectTask::netRepSize ( ) const

virtual

Returns the size of the full network representation padded to an 8-byte boundary.

Reimplemented from DtSimTask.

Reimplemented in DtFireForEffectOnLocationTask, DtFireForEffectOnEntityTask, and DtFireForEffectOnTargetTask.

virtual bool DtFireForEffectTask::setFromNet	(	const char *	contentBuffer,
		unsigned	contentSize
	)

virtual

Fills in the task from the network buffer.

Reimplemented from DtSimTask.

Reimplemented in DtFireForEffectOnLocationTask, DtFireForEffectOnEntityTask, and DtFireForEffectOnTargetTask.

virtual bool DtFireForEffectTask::setToNet ( )

virtual

Fills in the network buffer (created by base class simTask) with the task contents.

Reimplemented from DtSimTask.

Reimplemented in DtFireForEffectOnLocationTask, DtFireForEffectOnEntityTask, and DtFireForEffectOnTargetTask.

virtual DtString DtFireForEffectTask::parameterStringRep ( ) const

protectedvirtual

Get a readable string representation of the parameters.

Historical note: in 4.2, ammoSpecified has been removed; ammo is now specified for each weapon as part of the name in myWeaponNames. The ammo name is appended with a ":" separator.

Member Data Documentation

DtRwStringList DtFireForEffectTask::myWeaponNames

protected

DtRwInt DtFireForEffectTask::myNumberOfRounds

protected

DtRwReal DtFireForEffectTask::myDispersionRadius

protected

DtRwReal DtFireForEffectTask::myHeightAboveTerrain

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrftasks/fireForEffectTask.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
