DtNetworkSegmentMetric Class Reference

DtNetworkSegmentMetric is a metric for network segments. More...

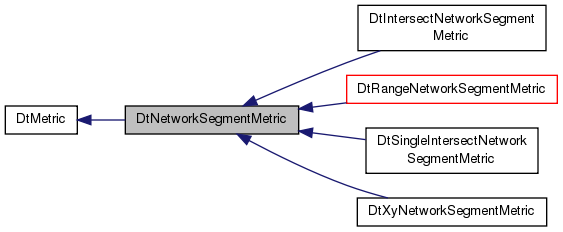

Inheritance diagram for DtNetworkSegmentMetric:

Public Member Functions
	DtNetworkSegmentMetric ()
	Default constructor.
virtual	~DtNetworkSegmentMetric ()
	Destructor.
	DtNetworkSegmentMetric (const DtNetworkSegmentMetric &orig)
	Copy constructor.
DtNetworkSegmentMetric &	operator= (const DtNetworkSegmentMetric &orig)
	Assignment operator.
virtual double	measure (const DtNetworkSegment &seg) const =0
	Measure the segment.
virtual bool	valid (const DtNetworkSegment &seg) const =0
	Validate the segment.
virtual bool	validSW (double xx, double yy) const =0
	Validate the southwest quadrant (closed on southwest side)
virtual bool	validSE (double xx, double yy) const =0
	Validate the southeast quadrant (closed on southwest side)
virtual bool	validNE (double xx, double yy) const =0
	Validate the northeast quadrant (closed on southwest side)
virtual bool	validNW (double xx, double yy) const =0
	Validate the northwest quadrant (closed on southwest side)
Public Member Functions inherited from DtMetric
	DtMetric ()
	Default constructor.
virtual	~DtMetric ()
	Destructor.
	DtMetric (const DtMetric &orig)
	Copy constructor.
DtMetric &	operator= (const DtMetric &orig)
	Assignment operator.
virtual bool	validSpecification (const DtSpecification &spec) const
	Validates the specification against the conditions set in the addEqualCondition, addDiferentCondition, addLessThanCondition and addGreaterThanCondition functions.
virtual void	addEqualCondition (const DtSpecificationAttribute &attrib)
	Adds an equality condition.
virtual void	addDifferentCondition (const DtSpecificationAttribute &attrib)
	Add a different condition.
virtual void	addLessThanCondition (const DtSpecificationAttribute &attrib)
	Add less-than condition.
virtual void	addGreaterThanCondition (const DtSpecificationAttribute &attrib)
	Add greater-than condition.
virtual void	setEqualList (DtSimpleList *list)
	Sets the list of conditions for equality.
virtual void	setDiffList (DtSimpleList *list)
	Sets the list of conditions for difference.
virtual void	setLessThanList (DtSimpleList *list)
	Sets the list of conditions for less-than.
virtual void	setGreaterThanList (DtSimpleList *list)
	Sets the list of conditions for greater-than.
virtual void	initialize (Coordinate_System *cs)
	Initialize the metric.

Additional Inherited Members
Protected Member Functions inherited from DtMetric
virtual void	emptyLists ()
	Empties the condition lists and frees memory.
virtual void	copyLists (const DtMetric &orig)
	Copy lists.
Protected Attributes inherited from DtMetric
bool	myOwnEqualList
bool	myOwnDiffList
bool	myOwnLessThanList
bool	myOwnGreaterThanList
DtSimpleList *	myEqualAttributes
DtSimpleList *	myDifferentAttributes
DtSimpleList *	myGreaterThanAttributes
DtSimpleList *	myLessThanAttributes
DtCoordTransform	myLocalToTopo
bool	myMetricInitialized

Detailed Description

DtNetworkSegmentMetric is a metric for network segments.

Constructor & Destructor Documentation

DtNetworkSegmentMetric::DtNetworkSegmentMetric

(

)

Default constructor.

virtual DtNetworkSegmentMetric::~DtNetworkSegmentMetric ( )

virtual

Destructor.

DtNetworkSegmentMetric::DtNetworkSegmentMetric

(

const DtNetworkSegmentMetric &

orig

)

Copy constructor.

Member Function Documentation

DtNetworkSegmentMetric& DtNetworkSegmentMetric::operator=

(

const DtNetworkSegmentMetric &

orig

)

Assignment operator.

virtual double DtNetworkSegmentMetric::measure ( const DtNetworkSegment &  seg ) const

pure virtual

Measure the segment.

Implemented in DtIntersectNetworkSegmentMetric, DtSingleIntersectNetworkSegmentMetric, DtXyNetworkSegmentMetric, and DtRangeNetworkSegmentMetric.

virtual bool DtNetworkSegmentMetric::valid ( const DtNetworkSegment &  seg ) const

pure virtual

Validate the segment.

Implemented in DtIntersectNetworkSegmentMetric, DtXyNetworkSegmentMetric, DtSingleIntersectNetworkSegmentMetric, DtRangeNetworkSegmentMetric, and DtRangeAndDirectionNetworkSegmentMetric.

virtual bool DtNetworkSegmentMetric::validSW ( double  xx, double  yy  ) const

pure virtual

Validate the southwest quadrant (closed on southwest side)

Implemented in DtIntersectNetworkSegmentMetric, DtXyNetworkSegmentMetric, DtSingleIntersectNetworkSegmentMetric, and DtRangeNetworkSegmentMetric.

virtual bool DtNetworkSegmentMetric::validSE ( double  xx, double  yy  ) const

pure virtual

Validate the southeast quadrant (closed on southwest side)

Implemented in DtIntersectNetworkSegmentMetric, DtXyNetworkSegmentMetric, DtSingleIntersectNetworkSegmentMetric, and DtRangeNetworkSegmentMetric.

virtual bool DtNetworkSegmentMetric::validNE ( double  xx, double  yy  ) const

pure virtual

Validate the northeast quadrant (closed on southwest side)

Implemented in DtIntersectNetworkSegmentMetric, DtXyNetworkSegmentMetric, DtSingleIntersectNetworkSegmentMetric, and DtRangeNetworkSegmentMetric.

virtual bool DtNetworkSegmentMetric::validNW ( double  xx, double  yy  ) const

pure virtual

Validate the northwest quadrant (closed on southwest side)

Implemented in DtIntersectNetworkSegmentMetric, DtXyNetworkSegmentMetric, DtSingleIntersectNetworkSegmentMetric, and DtRangeNetworkSegmentMetric.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/gdb/networkSegmentMetric.h
