DtVrfObjectNavInterface Class Reference

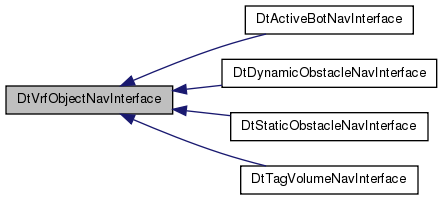

Inheritance diagram for DtVrfObjectNavInterface:

Public Member Functions
virtual void	tick ()
virtual void	firstTick ()
virtual	~DtVrfObjectNavInterface ()=0
virtual void	addNavAreaChangedCallback (DtNoArgumentCallbackList::DtCallbackFunctionType callback, void *usr)
virtual void	removeNavAreaChangedCallback (DtNoArgumentCallbackList::DtCallbackFunctionType callback, void *usr)
virtual void	invokeNavAreaChangedCallbacks ()
virtual void	changingNavArea (DtNavArea *newNavArea)
	Called when about to change to a new navArea.

Protected Member Functions
	DtVrfObjectNavInterface (DtVrfObject *vrfObject)
	Use the create() method instead of calling the constructor.
virtual bool	init ()
	Virtual init, called from the create() method.
virtual bool	isCollidableWhenDestroyed () const

Protected Attributes
DtVrfObject *	myVrfObject
bool	myFirstTick
DtNavArea *	myCurrentNavArea
DtNoArgumentCallbackList	myChangedNavAreaCallbackList

Private Member Functions
	DtVrfObjectNavInterface ()
	Not Implemented.
	DtVrfObjectNavInterface (const DtVrfObjectNavInterface &orig)
	Not Implemented.
DtVrfObjectNavInterface &	operator= (const DtVrfObjectNavInterface &orig)
	Not Implemented.

Constructor & Destructor Documentation

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( )

private

Not Implemented.

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( const DtVrfObjectNavInterface &  orig )

private

Not Implemented.

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( DtVrfObject *  vrfObject )

protected

Use the create() method instead of calling the constructor.

virtual DtVrfObjectNavInterface::~DtVrfObjectNavInterface ( )

pure virtual

Member Function Documentation

DtVrfObjectNavInterface& DtVrfObjectNavInterface::operator= ( const DtVrfObjectNavInterface &  orig )

private

Not Implemented.

virtual bool DtVrfObjectNavInterface::init ( )

protectedvirtual

Virtual init, called from the create() method.

Reimplemented in DtActiveBotNavInterface, DtTagVolumeNavInterface, DtDynamicObstacleNavInterface, and DtStaticObstacleNavInterface.

virtual void DtVrfObjectNavInterface::tick ( )

virtual

Reimplemented in DtDynamicObstacleNavInterface, DtActiveBotNavInterface, DtTagVolumeNavInterface, and DtStaticObstacleNavInterface.

virtual void DtVrfObjectNavInterface::firstTick ( )

virtual

Reimplemented in DtActiveBotNavInterface, and DtTagVolumeNavInterface.

virtual void DtVrfObjectNavInterface::addNavAreaChangedCallback ( DtNoArgumentCallbackList::DtCallbackFunctionType  callback, void *  usr  )

virtual

virtual void DtVrfObjectNavInterface::removeNavAreaChangedCallback ( DtNoArgumentCallbackList::DtCallbackFunctionType  callback, void *  usr  )

virtual

virtual void DtVrfObjectNavInterface::invokeNavAreaChangedCallbacks ( )

virtual

virtual void DtVrfObjectNavInterface::changingNavArea ( DtNavArea *  newNavArea )

virtual

Called when about to change to a new navArea.

Reimplemented in DtActiveBotNavInterface, DtTagVolumeNavInterface, and DtDynamicObstacleNavInterface.

virtual bool DtVrfObjectNavInterface::isCollidableWhenDestroyed ( ) const

protectedvirtual

Returns

The value of the "collidable-when-destroyed" property from the navigation parameters in the object's parameter entry. This value defaults to true if not specified.

Member Data Documentation

DtVrfObject* DtVrfObjectNavInterface::myVrfObject

protected

bool DtVrfObjectNavInterface::myFirstTick

protected

DtNavArea* DtVrfObjectNavInterface::myCurrentNavArea

protected

DtNoArgumentCallbackList DtVrfObjectNavInterface::myChangedNavAreaCallbackList

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrfobjcore/vrfObjectNavInterface.h
