makVrv::DtVrlinkDriver Class Reference

The base class for VR-Link based drivers. More...

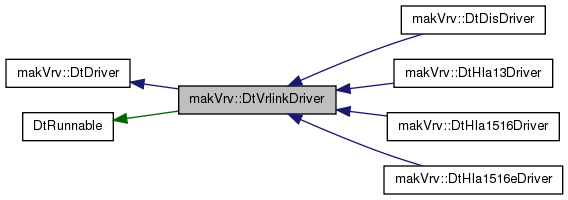

Inheritance diagram for makVrv::DtVrlinkDriver:

Public Member Functions
	DtVrlinkDriver (DtAgentManager &agentManager, const std::string &uniqueName, const std::string &className)
	CTOR.
virtual	~DtVrlinkDriver ()
	DTOR.
virtual const std::string &	className () const
	Get this instance's class name.
virtual bool	observersPublished () const
	Get observer publishing status for this driver.
virtual void	setObserversPublished (bool isPublished)
	Turn on or off observer publishing for this driver.
virtual bool	overrideGlobalViewControl () const
	Get whether this driver uses its own local view control enabled flag or the global value.
virtual void	setOverrideGlobalViewControl (bool enabled)
	SGet whether this driver uses its own local view control enabled flag or the global value.
virtual bool	viewControlEnabled () const
	Get view control status for this driver; returns either the local or the global setting, depending on the value of overrideGlobalViewControl.
virtual void	setLocalViewControlEnabled (bool enabled)
	Turn on or off acceptance of view controls for this driver; used if override global view control is true.
virtual bool	localViewControlEnabled () const
	Get acceptance of view controls for this driver; used if override global view control is true.
virtual void	setConnectionFrameTime (double frameTime)
	Set the connection frame time.
virtual double	connectionFrameTime () const
	Get the connection frame time.
void	setUseTopoForFlatEarthVectorConversion (bool flag)
	We used to use a topo system to convert flat earth vectors.
bool	useTopoForFlatEarthVectorConversion () const
virtual void	queueDriverFunction (const boost::function< void()> &function)
	Put a function in the sim function queue, for threadsafe calling.
virtual void	queueConnectionFunction (const boost::function< void()> &function)
	Put a function in the sim function queue, for threadsafe calling.
bool	useThreadFlag () const
	Returns value of thread flag.
DtConnection *	connection ()
Public Member Functions inherited from makVrv::DtDriver
	DtDriver (DtAgentManager &agentManager, const std::string &instanceName)
	CTOR.
virtual	~DtDriver ()
	DTOR.
virtual void	realizeConfiguration (const DtConfiguration &configuration)
	Realize the driver using the configuration.
virtual DtConfiguration	createConfiguration () const
	Create a configuration for the driver.
DtAgentManager &	agentManager ()
	Get the master scene for this host.
virtual DtAgentManagerInterface &	sceneInterface ()
	Get the scene manager interface for creating agents.
bool	started () const
	Get this driver's active state.
virtual const std::string &	instanceName () const
	Get this driver's instance name.
virtual bool	autoStart () const
	Get whether this driver is set to automatically start if it is persistent.
virtual void	setAutoStart (bool autoStart)
	Set whether this driver automatically starts if it is persistent.
virtual bool	isWindowDependent () const
	Get whether this driver is set to automatically start when the first window is created and stop when the last window is destroyed.
virtual void	setIsWindowDependent (bool dep)
	Set whether this driver is set to automatically start when the first window is created and stop when the last window is destroyed.
virtual void	setIsUserControllable (bool)
	Set whether this driver can be started and stopped by the user.
virtual bool	isUserControllable () const
	Get whether this driver can be started and stopped by the user.
virtual void	setIsPersistent (bool per)
	Set if the driver is persistent and should be saved between runs.
virtual bool	isPersistent () const
	Get if the driver is persistent and should be saved between runs.
virtual bool	isOnDriverSelectionList () const
	Returns whether or not this driver is to be automatically started/stopped from the driver selection list.
virtual void	setOnDriverSelectionList (bool)
	Sets whether or not this item is on the driver selection list.
bool	objectFromAgentManager (const DtUniqueID &id) const
	check to see if the object was created using this driver's agent manager.

Public Attributes
boost::signal< void(DtConnection *)>	signal_simulationCreated
	This signal is emitted when the simulation is created.
boost::signal< void(DtConnection *)>	signal_simulationAboutToBeDestroyed
	This signal is emitted when the simulation is about to be destroyed.

Protected Types
enum	FunctionType { Create, Update, Destroy }
typedef DtLockedBufferedQueue < boost::function< void()> >	FunctionCallQueue
typedef std::vector < boost::function< void()> >	FunctionCallList

Protected Member Functions
virtual DtConnection *	createConnection ()=0
	Abstract create simulation function called onStart.
virtual bool	onStart ()
	Start the host output.
virtual bool	onStop ()
	Stop the host output.
virtual void	run ()
	Function that will be called when the thread is started.
void	startPublishingObservers ()
	Start publishing observers.
void	stopPublishingObservers ()
	Stop publishing observers.
virtual bool	onTick ()
	Tick, this calls threadTick if the driver is not configured to use a separate thread.
void	startThread ()
	Attempt to start the thread.
void	stopThread ()
	Attempt to stop the thread, blocking until the thread stops.
void	setConnectionState (bool state)
	Set the connection state of the driver.
virtual void	slot_displayEngineAdded (const DtDeRecord &igRecord)
	Respond when a display engine is added.
virtual void	slot_globalViewControlEnabledSet (bool)
	Respond when the global view control setting changes.
virtual void	slot_onObserverDestroyed (DtObserver *observer)
virtual void	slot_onObserverCreated (DtObserver *observer)
virtual void	startPublishingObserver (DtObserver *observer)
	Start publishing an observer on the current connection.
virtual void	stopPublishingObserver (DtObserver *observer)
	Stop publishing an observer on the current connection.
virtual void	updateObservers ()
	Update the observer position/orientations on the simulation.
void	indicatorMouseDown (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
void	indicatorMouseUp (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
void	indicatorMouseDblClick (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual void	runFunctionQueue (FunctionCallQueue &queue)
	Execute a function queue.
virtual void	connectToDynamicSignals ()
	Connect to signals.
virtual void	disconnectFromDynamicSignals ()
	Disconnect to any signals connected to in connectToDynamicSignals()
virtual void	slot_onViewChanged (DtViewStateProcessor::ObserverAction &action)
	Connect to signals.
virtual void	slot_onCurrentSelectionChanged (const DtSelectionManager::IdSet &selected, const DtSelectionManager::IdSet &deselected)
	Connect to signals.
virtual void	slot_onVertexSelected (const DtUniqueID &selected, const DtUniqueID &parentOfSelected)
	Connect to signals.
virtual void	slot_onVertexDeselected (const DtUniqueID &deselected, const DtUniqueID &parentOfDeselected)
	Connect to signals.
virtual void	slot_onEntityInfoToggled (const DtSelectionManager::IdSet &entityIds)
	Connect to signals.
virtual void	slot_onEntityIndicatorMouseDown (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Slot for handling entity indicator clicks; passes them to the input driver.
virtual void	slot_onEntityIndicatorMouseUp (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Connect to signals.
virtual void	slot_onEntityIndicatorMouseDblClick (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Connect to signals.
virtual void	slot_onTacticalGraphicIndicatorMouseDown (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Slot for handling tacticalGraphic indicator clicks; passes them to the input driver.
virtual void	slot_onTacticalGraphicIndicatorMouseUp (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Connect to signals.
virtual void	slot_onTacticalGraphicIndicatorMouseDblClick (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Connect to signals.
virtual void	slot_onCoordinateSystemChanged (const std::string &coordinateSystem, const std::string &coordinateParameters)
	Slot for handling coordinate system changes.
virtual void	slot_onObserverObjectAttached (const std::string &observerName, DtUniqueID id)
	Slot called when an observer attaches to an object.
virtual void	slot_onObserverDetached (const std::string &observerName)
	Slot called when an observer detaches.
virtual void	attachObserverObject (const std::string &observerName, DtUniqueID id)
	Attach an object to an observer.
virtual void	toggleEntitySelected (const DtUniqueID &id)
	Toggle selection of an entity.
virtual void	performObserverAction (DtViewStateProcessor::ObserverAction &action)
	Connect to signals.
Protected Member Functions inherited from makVrv::DtDriver
void	applyChangesAndDelete (DtElementChanges *changes)
	Function for apply changes from a changes object and deleting it.
void	reportElementCreated (DtElementID id, DtElementID parentId, DtElementEntry::ElementType type)
	Report an element created.
void	reportElementAttribute (DtElementID id, DtElementAttribute *attribute)
	Report an element attribute changed.
void	reportElementDestroyed (DtElementID id)
	Report an element destroyed.
void	start ()
	Start the driver.
void	stop ()
	Stop the driver.
bool	tick ()
	Tick the host driver.
virtual void	setInstanceName (const std::string &name)
	set the Instance name.
virtual void	installAccessories ()
	Installs accessories on this driver.
virtual void	uninstallAccessories ()
	Removes accessories from this driver.

Protected Attributes
std::string	myClassName
DtConnection *	myConnection
DtAsynchronousEventQueue *	myAsynchronousEventQueue
bool	myConnectionState
DtSignalConnectionManager	myDynamicSignals
double	myObserverUpdateTimeInterval
double	myLastObserverUpdateTime
bool	myObserversPublished
bool	myLocalViewControlEnabled
bool	myGlobalViewControlEnabled
bool	myOverrideGlobalViewControlEnabled
bool	myUseTopoForFlatEarthVectorConversion
double	myConnectionFrameTime
DtSelectionManager &	mySelectionManager
bool	myUseThreadFlag
DtThreadStartSP	myStart
DtThread *	myThread
FunctionCallQueue	myConnectionThreadFunctions
FunctionCallQueue	myDriverThreadFunctions
DtAsynchronousAgentManager *	myAsynchronousInterface
Protected Attributes inherited from makVrv::DtDriver
DtAgentManager &	myAgentManager
bool	myStartedFlag
std::string	myName
DtConfiguration	myConfiguration
bool	myPersistentFlag
bool	myUserControllableFlag
bool	myRequestStateDiffPendingFlag
DtElementChanges	myChanges

Detailed Description

The base class for VR-Link based drivers.

Member Typedef Documentation

typedef DtLockedBufferedQueue<boost::function<void ()> > makVrv::DtVrlinkDriver::FunctionCallQueue

protected

typedef std::vector<boost::function<void ()> > makVrv::DtVrlinkDriver::FunctionCallList

protected

Member Enumeration Documentation

enum makVrv::DtVrlinkDriver::FunctionType

protected

Enumerator:

Create
Update
Destroy

Constructor & Destructor Documentation

makVrv::DtVrlinkDriver::DtVrlinkDriver	(	DtAgentManager &	agentManager,
		const std::string &	uniqueName,
		const std::string &	className
	)

CTOR.

virtual makVrv::DtVrlinkDriver::~DtVrlinkDriver ( )

virtual

DTOR.

Member Function Documentation

virtual const std::string& makVrv::DtVrlinkDriver::className ( ) const

virtual

Get this instance's class name.

Implements makVrv::DtDriver.

virtual bool makVrv::DtVrlinkDriver::observersPublished ( ) const

virtual

Get observer publishing status for this driver.

virtual void makVrv::DtVrlinkDriver::setObserversPublished ( bool  isPublished )

virtual

Turn on or off observer publishing for this driver.

virtual bool makVrv::DtVrlinkDriver::overrideGlobalViewControl ( ) const

virtual

Get whether this driver uses its own local view control enabled flag or the global value.

virtual void makVrv::DtVrlinkDriver::setOverrideGlobalViewControl ( bool  enabled )

virtual

SGet whether this driver uses its own local view control enabled flag or the global value.

virtual bool makVrv::DtVrlinkDriver::viewControlEnabled ( ) const

virtual

Get view control status for this driver; returns either the local or the global setting, depending on the value of overrideGlobalViewControl.

virtual void makVrv::DtVrlinkDriver::setLocalViewControlEnabled ( bool  enabled )

virtual

Turn on or off acceptance of view controls for this driver; used if override global view control is true.

virtual bool makVrv::DtVrlinkDriver::localViewControlEnabled ( ) const

virtual

Get acceptance of view controls for this driver; used if override global view control is true.

virtual void makVrv::DtVrlinkDriver::setConnectionFrameTime ( double  frameTime )

virtual

Set the connection frame time.

This is 1/frequency for the connection tick. Default is 1/60.

virtual double makVrv::DtVrlinkDriver::connectionFrameTime ( ) const

virtual

Get the connection frame time.

This is 1/frequency for the connection tick. Default is 1/60.

void makVrv::DtVrlinkDriver::setUseTopoForFlatEarthVectorConversion

(

bool

flag

)

We used to use a topo system to convert flat earth vectors.

Now we find the point at the end of the vector, convert start and end points, and subtract for a more accurate result. However, when receiving data from a sim using the old method (including older versions of VR-Forces and DI-Guy) user's may want to revert to the old scheme.

bool makVrv::DtVrlinkDriver::useTopoForFlatEarthVectorConversion

(

)

const

virtual void makVrv::DtVrlinkDriver::queueDriverFunction ( const boost::function< void()> &  function )

virtual

Put a function in the sim function queue, for threadsafe calling.

virtual void makVrv::DtVrlinkDriver::queueConnectionFunction ( const boost::function< void()> &  function )

virtual

Put a function in the sim function queue, for threadsafe calling.

Referenced by DtExConnInterface::sendCommentInteraction().

bool makVrv::DtVrlinkDriver::useThreadFlag ( ) const

inline

Returns value of thread flag.

DtConnection* makVrv::DtVrlinkDriver::connection ( )

inline

Referenced by DtExConnInterface::DtExConnInterface().

virtual DtConnection* makVrv::DtVrlinkDriver::createConnection ( )

protectedpure virtual

Abstract create simulation function called onStart.

Implemented in makVrv::DtDisDriver, makVrv::DtHla1516Driver, makVrv::DtHla13Driver, and makVrv::DtHla1516eDriver.

virtual bool makVrv::DtVrlinkDriver::onStart ( )

protectedvirtual

Start the host output.

Create all object for an existing host connection.

Implements makVrv::DtDriver.

virtual bool makVrv::DtVrlinkDriver::onStop ( )

protectedvirtual

Stop the host output.

All scene object created by the host should be destroyed.

Implements makVrv::DtDriver.

virtual void makVrv::DtVrlinkDriver::run ( )

protectedvirtual

Function that will be called when the thread is started.

void makVrv::DtVrlinkDriver::startPublishingObservers ( )

protected

Start publishing observers.

void makVrv::DtVrlinkDriver::stopPublishingObservers ( )

protected

Stop publishing observers.

virtual bool makVrv::DtVrlinkDriver::onTick ( )

protectedvirtual

Tick, this calls threadTick if the driver is not configured to use a separate thread.

Implements makVrv::DtDriver.

void makVrv::DtVrlinkDriver::startThread ( )

protected

Attempt to start the thread.

Exceptions

DtCorruptedState

if the thread does not start.

void makVrv::DtVrlinkDriver::stopThread ( )

protected

Attempt to stop the thread, blocking until the thread stops.

void makVrv::DtVrlinkDriver::setConnectionState ( bool  state )

protected

Set the connection state of the driver.

virtual void makVrv::DtVrlinkDriver::slot_displayEngineAdded ( const DtDeRecord &  igRecord )

protectedvirtual

Respond when a display engine is added.

Reimplemented from makVrv::DtDriver.

virtual void makVrv::DtVrlinkDriver::slot_globalViewControlEnabledSet ( bool  )

protectedvirtual

Respond when the global view control setting changes.

virtual void makVrv::DtVrlinkDriver::connectToDynamicSignals ( )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::disconnectFromDynamicSignals ( )

protectedvirtual

Disconnect to any signals connected to in connectToDynamicSignals()

virtual void makVrv::DtVrlinkDriver::slot_onViewChanged ( DtViewStateProcessor::ObserverAction &  action )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onCurrentSelectionChanged ( const DtSelectionManager::IdSet &  selected, const DtSelectionManager::IdSet &  deselected  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onVertexSelected ( const DtUniqueID &  selected, const DtUniqueID &  parentOfSelected  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onVertexDeselected ( const DtUniqueID &  deselected, const DtUniqueID &  parentOfDeselected  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onEntityInfoToggled ( const DtSelectionManager::IdSet &  entityIds )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onEntityIndicatorMouseDown ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Slot for handling entity indicator clicks; passes them to the input driver.

virtual void makVrv::DtVrlinkDriver::slot_onEntityIndicatorMouseUp ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onEntityIndicatorMouseDblClick ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onTacticalGraphicIndicatorMouseDown ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Slot for handling tacticalGraphic indicator clicks; passes them to the input driver.

virtual void makVrv::DtVrlinkDriver::slot_onTacticalGraphicIndicatorMouseUp ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onTacticalGraphicIndicatorMouseDblClick ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onCoordinateSystemChanged ( const std::string &  coordinateSystem, const std::string &  coordinateParameters  )

protectedvirtual

Slot for handling coordinate system changes.

virtual void makVrv::DtVrlinkDriver::slot_onObserverObjectAttached ( const std::string &  observerName, DtUniqueID  id  )

protectedvirtual

Slot called when an observer attaches to an object.

virtual void makVrv::DtVrlinkDriver::slot_onObserverDetached ( const std::string &  observerName )

protectedvirtual

Slot called when an observer detaches.

virtual void makVrv::DtVrlinkDriver::attachObserverObject ( const std::string &  observerName, DtUniqueID  id  )

protectedvirtual

Attach an object to an observer.

virtual void makVrv::DtVrlinkDriver::toggleEntitySelected ( const DtUniqueID &  id )

protectedvirtual

Toggle selection of an entity.

virtual void makVrv::DtVrlinkDriver::performObserverAction ( DtViewStateProcessor::ObserverAction &  action )

protectedvirtual

Connect to signals.

virtual void makVrv::DtVrlinkDriver::slot_onObserverDestroyed ( DtObserver *  observer )

protectedvirtual

Reimplemented in makVrv::DtHla13Driver, makVrv::DtHla1516Driver, and makVrv::DtHla1516eDriver.

virtual void makVrv::DtVrlinkDriver::slot_onObserverCreated ( DtObserver *  observer )

protectedvirtual

Reimplemented in makVrv::DtHla13Driver, makVrv::DtHla1516Driver, and makVrv::DtHla1516eDriver.

virtual void makVrv::DtVrlinkDriver::startPublishingObserver ( DtObserver *  observer )

protectedvirtual

Start publishing an observer on the current connection.

virtual void makVrv::DtVrlinkDriver::stopPublishingObserver ( DtObserver *  observer )

protectedvirtual

Stop publishing an observer on the current connection.

virtual void makVrv::DtVrlinkDriver::updateObservers ( )

protectedvirtual

Update the observer position/orientations on the simulation.

void makVrv::DtVrlinkDriver::indicatorMouseDown ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protected

void makVrv::DtVrlinkDriver::indicatorMouseUp ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protected

void makVrv::DtVrlinkDriver::indicatorMouseDblClick ( DtMouseState &  mouseState, const DtUniqueID &  id, const std::string &  displayEngineName, const std::string &  windowName, const std::string &  channelName  )

protected

virtual void makVrv::DtVrlinkDriver::runFunctionQueue ( FunctionCallQueue &  queue )

protectedvirtual

Execute a function queue.

Member Data Documentation

boost::signal<void (DtConnection*)> makVrv::DtVrlinkDriver::signal_simulationCreated

This signal is emitted when the simulation is created.

boost::signal<void (DtConnection*)> makVrv::DtVrlinkDriver::signal_simulationAboutToBeDestroyed

This signal is emitted when the simulation is about to be destroyed.

std::string makVrv::DtVrlinkDriver::myClassName

protected

bool makVrv::DtVrlinkDriver::myUseThreadFlag

protected

DtThreadStartSP makVrv::DtVrlinkDriver::myStart

protected

DtThread* makVrv::DtVrlinkDriver::myThread

protected

FunctionCallQueue makVrv::DtVrlinkDriver::myConnectionThreadFunctions

protected

FunctionCallQueue makVrv::DtVrlinkDriver::myDriverThreadFunctions

protected

DtAsynchronousAgentManager* makVrv::DtVrlinkDriver::myAsynchronousInterface

protected

DtConnection* makVrv::DtVrlinkDriver::myConnection

protected

DtAsynchronousEventQueue* makVrv::DtVrlinkDriver::myAsynchronousEventQueue

protected

bool makVrv::DtVrlinkDriver::myConnectionState

protected

DtSignalConnectionManager makVrv::DtVrlinkDriver::myDynamicSignals

protected

double makVrv::DtVrlinkDriver::myObserverUpdateTimeInterval

protected

double makVrv::DtVrlinkDriver::myLastObserverUpdateTime

protected

bool makVrv::DtVrlinkDriver::myObserversPublished

protected

bool makVrv::DtVrlinkDriver::myLocalViewControlEnabled

protected

bool makVrv::DtVrlinkDriver::myGlobalViewControlEnabled

protected

bool makVrv::DtVrlinkDriver::myOverrideGlobalViewControlEnabled

protected

bool makVrv::DtVrlinkDriver::myUseTopoForFlatEarthVectorConversion

protected

double makVrv::DtVrlinkDriver::myConnectionFrameTime

protected

DtSelectionManager& makVrv::DtVrlinkDriver::mySelectionManager

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-4-branch/include/vrvVrl/DtVrlinkDriver.h
