DtSimCommandExecutor Class Reference

Abstract base class for all simCommand executors. More...

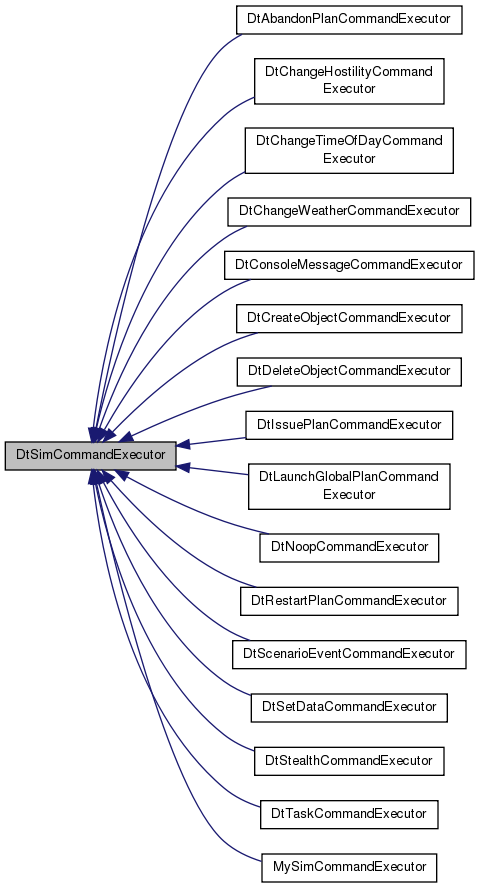

Inheritance diagram for DtSimCommandExecutor:

Public Member Functions
	DtSimCommandExecutor (DtSimManager *simManager)
virtual	~DtSimCommandExecutor ()
virtual bool	execute (const DtSimCommand *command)=0
	Perform the actual execution of the DtSimCommand.
virtual bool	execute (const DtSimCommand *command, const DtUUID &objectName)
	Performs the actual executor of the DtSimCommand in the context of a specific entity.

Static Public Member Functions
static void	setFactory (DtSimCommandExecutorFactory *factory)
	Sets the static factory member.
static DtSimCommandExecutor *	createSimCommandExecutor (const DtSimCommandMessageType &type, DtSimManager *simManager)
	Uses the static factory member to create a new executor of the specified type.

Protected Attributes
DtSimManager *	mySimManager

Static Protected Attributes
static DtSimCommandExecutorFactory *	myFactory

Private Member Functions
	DtSimCommandExecutor ()
	Not implemented.
	DtSimCommandExecutor (const DtSimCommandExecutor &orig)
	Not implemented.
DtSimCommandExecutor &	operator= (const DtSimCommandExecutor &orig)
	Not implemented.

Detailed Description

Abstract base class for all simCommand executors.

Every DtSimCommand should have a corresponding DtSimCommandExecutor subclass that implements the execution of that command.

Examples

• Add Simulation Command Example

Constructor & Destructor Documentation

DtSimCommandExecutor::DtSimCommandExecutor

(

DtSimManager *

simManager

)

virtual DtSimCommandExecutor::~DtSimCommandExecutor ( )

virtual

DtSimCommandExecutor::DtSimCommandExecutor ( )

private

Not implemented.

DtSimCommandExecutor::DtSimCommandExecutor ( const DtSimCommandExecutor &  orig )

private

Not implemented.

Member Function Documentation

virtual bool DtSimCommandExecutor::execute ( const DtSimCommand *  command )

pure virtual

Perform the actual execution of the DtSimCommand.

Pure virtual function; must be overloaded by derived classes. This method executes the command in the global context. If the command should be executed differently when in the context of a specific entity (i.e. in that entity's plan), see execute() which takes an object name.

Returns

True if command was successfully carried out, false otherwise.

Implemented in DtDeleteObjectCommandExecutor, DtConsoleMessageCommandExecutor, DtCreateObjectCommandExecutor, DtAbandonPlanCommandExecutor, DtLaunchGlobalPlanCommandExecutor, DtNoopCommandExecutor, DtRestartPlanCommandExecutor, DtChangeHostilityCommandExecutor, DtChangeTimeOfDayCommandExecutor, DtIssuePlanCommandExecutor, MySimCommandExecutor, DtScenarioEventCommandExecutor, DtChangeWeatherCommandExecutor, DtSetDataCommandExecutor, DtStealthCommandExecutor, and DtTaskCommandExecutor.

virtual bool DtSimCommandExecutor::execute ( const DtSimCommand *  command, const DtUUID &  objectName  )

virtual

Performs the actual executor of the DtSimCommand in the context of a specific entity.

The default implementation of this is to call execute(command), and simply throw out the objectName. This method should be reimplemented by deriving classes if the command is executed differently when in in the context of an object.

Reimplemented in DtConsoleMessageCommandExecutor, DtDeleteObjectCommandExecutor, DtSetDataCommandExecutor, DtTaskCommandExecutor, DtLaunchGlobalPlanCommandExecutor, and DtStealthCommandExecutor.

static void DtSimCommandExecutor::setFactory ( DtSimCommandExecutorFactory *  factory )

static

Sets the static factory member.

static DtSimCommandExecutor* DtSimCommandExecutor::createSimCommandExecutor ( const DtSimCommandMessageType &  type, DtSimManager *  simManager  )

static

Uses the static factory member to create a new executor of the specified type.

DtSimCommandExecutor& DtSimCommandExecutor::operator= ( const DtSimCommandExecutor &  orig )

private

Not implemented.

Member Data Documentation

DtSimManager* DtSimCommandExecutor::mySimManager

protected

DtSimCommandExecutorFactory* DtSimCommandExecutor::myFactory

staticprotected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfobjcore/simCommandExecutor.h
