A DtTaskVisualization describes a graphic to be displayed in the GUI to visualize the behavior of the current task. More...

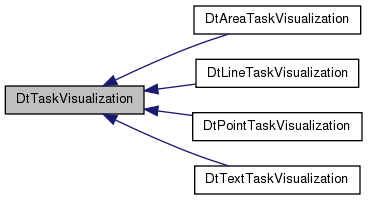

Inheritance diagram for DtTaskVisualization:

Public Member Functions
	DtTaskVisualization (const DtString &name, const DtString &taskComp, DtVrfObject *taskedObject)
	Constructor.
virtual	~DtTaskVisualization ()
	Destructor.
virtual const DtString &	name ()
	Returns the visualization name.
virtual const DtString &	taskComponent ()
	Returns the task component name.
virtual const DtUUID &	taskedObject ()
	Returns the UUID of the object being tasked.
virtual void	update (DtBulkEnvironmentProcessManager *bulkMgr)
	Updates the visualization object data.
virtual void	stopUpdates ()
	Stops updating the task visualization object data.

virtual unsigned	red () const
	Color of the visualization object.
virtual unsigned	green () const
	Color of the visualization object.
virtual unsigned	blue () const
	Color of the visualization object.
virtual unsigned	alpha () const
	Color of the visualization object.
virtual void	setColor (unsigned red, unsigned green, unsigned blue, unsigned alpha)
	Color of the visualization object.

virtual const DtVector64 &	locationOffset () const
	The location offset of the vertex in the visualization.
virtual void	setLocationOffset (const DtVector64 &offset)
	The location offset of the vertex in the visualization.

Protected Member Functions
virtual void	calculateOffsetLocation (const DtVector &location, DtVector &offsetLocation)
	Offsets the given geocentric location using the current location offset and converts it to a new geocentric location suitable for publishing to VR-Vantage.
virtual bool	isPublished () const =0
	Returns true if the visualization is already published.
virtual void	publishDrawControlObjects (DtBulkEnvironmentProcessManager *bulkMgr)
	Creates the visualization object for publication to the network.
virtual void	createDrawControlObjects (DtExerciseConn *exConn)=0
	Creates the draw control objects for this task visualization.
virtual void	unpublishDrawControlObjects ()=0
	Removes the visualization object from the network.
virtual void	updateDrawControlObjects ()=0
	Updates the visualization object data. Must call publish first.
virtual unsigned	nextId ()
	Returns an ID number to be used when creating remote draw objects.

Protected Attributes
DtString	myName
DtString	myTaskComponent
DtVrfObject *	myTaskedObject
unsigned	myRed
unsigned	myGreen
unsigned	myBlue
unsigned	myAlpha
DtVector64	myLocationOffset
	Location offset in forward, right, down entity coordinates.
DtTaskVisualizationPublisherCreator *	myEnvProcPublisherCreator

Detailed Description

A DtTaskVisualization describes a graphic to be displayed in the GUI to visualize the behavior of the current task.

For instance, it could be a point showing the location where the entity is moving or an arrow indicating the path the entity will take.

Constructor & Destructor Documentation

DtTaskVisualization::DtTaskVisualization	(	const DtString &	name,
		const DtString &	taskComp,
		DtVrfObject *	taskedObject
	)

Constructor.

virtual DtTaskVisualization::~DtTaskVisualization ( )

virtual

Destructor.

virtual const DtString& DtTaskVisualization::name ( void )

inlinevirtual

Returns the visualization name.

virtual const DtString& DtTaskVisualization::taskComponent ( )

inlinevirtual

Returns the task component name.

virtual const DtUUID& DtTaskVisualization::taskedObject ( )

inlinevirtual

Returns the UUID of the object being tasked.

virtual unsigned DtTaskVisualization::red ( ) const

virtual
