A widget class for encapsulating radio commands for tasks or sets. More...

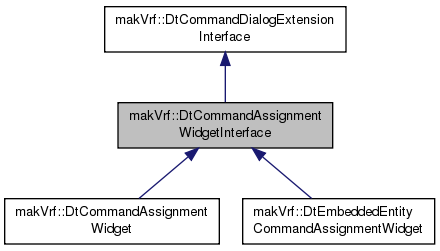

Inheritance diagram for makVrf::DtCommandAssignmentWidgetInterface:

Public Member Functions
	DtCommandAssignmentWidgetInterface ()
virtual	~DtCommandAssignmentWidgetInterface ()
	DTOR.
virtual void	connectSignals (const std::vector< makVrv::DtSimEntry * > &)=0
	Call to remove dialog if an entity is destroyed that is part of the supplied list.
virtual void	setupUi (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *stmt=NULL)=0
	Sets up the UI.
virtual void	setPartOfPlan (int)=0
virtual void	setAllowBroadcast (bool)=0
virtual void	enableEntitySelectionWidget (bool)=0
virtual bool	broadcasting () const =0
virtual void	setBroadcasting (bool)=0
virtual void	addFilter (const DtVrfSelectionFilter *filter)=0
virtual void	setSelectedName (const DtUUID &)=0
virtual DtUUID	selectedName () const =0
virtual void	selectFilter (int)=0
virtual void	selectFirstNonEmptyFilter ()=0
virtual void	initializeFromAction (DtVrfTaskSetAction *)=0
virtual void	setOKEnabled (bool)=0
	Sets whether or not the OK button is enabled.
virtual bool	extensionValid () const =0
virtual void	commandActivated (const DtSimTask &, const std::vector< DtUUID > &, bool immediate)=0
virtual void	commandActivated (const DtSimCommandObjectWrapper &, bool immediate)=0
virtual bool	editStatement (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *)=0
	Edits the current statement. Return true if the statement can be edited.
virtual std::vector < DtVrfObjectListViewItem::DtVrfObjectState >	selectedObjects () const =0
virtual DtCommandDialogExtensionInterface *	extension ()=0
virtual void	setAllowObjectSelection (bool)=0
virtual bool	canSelectObjects () const =0
void	setParentMenu (DtVrfTaskSetMenu *p)
void	setParentContainer (DtCommandAssignmentWidgetInterface *p)
DtCommandAssignmentWidgetInterface *	parentContainer ()
void	setAllowExtensionChange (bool b)
bool	allowExtensionChange () const
virtual void	setBroadcastTitle (const QString &)=0
virtual const std::vector < makVrv::DtSimEntry * > &	connectedTo () const =0
Public Member Functions inherited from makVrf::DtCommandDialogExtensionInterface
virtual	~DtCommandDialogExtensionInterface ()
virtual QWidget *	widget ()=0
	Returns the widget.
virtual void	run (const std::vector< makVrv::DtSimEntry * > &)=0
	Override to run the dialog.
virtual bool	valid () const =0
	Override to return whether or not extension is valid.
virtual bool	initiallyBroadcast () const
	Whether or not to initially set to broadcast. Default is false.
virtual bool	allowBroadcasting () const
	Whether or not to allow broadcasting. Default is true.
virtual bool	insertMapFocusHandler (DtMapFocusHandler *, int index=-1)=0
	If a dialog has manages map focus handlers, inserts this map focus handler into the chain.
virtual std::vector< std::string >	commandDialogFiltersFor (const std::vector< makVrv::DtSimEntry * > &data, const DtSimStatement *stmt, int &initialSelection) const =0
	If part of a command dialog the filters to use for the command dialog selection.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &)=0
	Sets up dialog by asking logic to do it.
virtual void	selectionChanged (const DtUUID &selection)=0
virtual bool	wantsSelectionOfObjectInCommandMode () const =0
	Override to return false if, when this task is used as part of a simulation command, it does not want to allow to choose an object to apply the command to.
virtual void	onCancel ()=0
virtual makVrv::DtUnicode	broadcastTitle () const

Public Attributes
boost::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching
Public Attributes inherited from makVrf::DtCommandDialogExtensionInterface
boost::signal< void()>	signal_cancelled
boost::signal< void(bool)>	signal_enableCommandModeSelection
	Signal sent when the task becomes valid (or invalid)
boost::signal< void(bool)>	signal_validStateChanged
boost::signal< void(std::vector < DtUUID > names, const DtSetDataRequest &)>	signal_sendSetRequest
boost::signal< void(std::vector < DtUUID > names, const DtSimTask &)>	signal_sendTaskRequest
boost::signal< void(const DtSimCommandObjectWrapper &)>	signal_sendCommandRequest
boost::signal< void(const std::vector< DtUUID > &, const DtSimTask &, DtVrfTaskSetMenu *)>	signal_commandActivated
boost::signal< void(const DtSimCommandObjectWrapper &)>	signal_simCommandActivated
boost::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching

Protected Attributes
DtVrfTaskSetMenu *	myTaskSetMenu
DtCommandAssignmentWidgetInterface *	myParentContainer
bool	myAllowExtensionChange

Detailed Description

A widget class for encapsulating radio commands for tasks or sets.

Constructor & Destructor Documentation

makVrf::DtCommandAssignmentWidgetInterface::DtCommandAssignmentWidgetInterface ( )

inline

virtual makVrf::DtCommandAssignmentWidgetInterface::~DtCommandAssignmentWidgetInterface ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrf::DtCommandAssignmentWidgetInterface::connectSignals ( const std::vector< makVrv::DtSimEntry * > & )

pure virtual

Call to remove dialog if an entity is destroyed that is part of the supplied list.

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setupUi	(	const std::vector< makVrv::DtSimEntry * > &	,
		const DtSimStatement *	stmt = `NULL`
	)

pure virtual

Sets up the UI.

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setPartOfPlan ( int )

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setAllowBroadcast ( bool )

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::enableEntitySelectionWidget ( bool )

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual bool makVrf::DtCommandAssignmentWidgetInterface::broadcasting ( ) const

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setBroadcasting ( bool )

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::addFilter ( const DtVrfSelectionFilter * filter )

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setSelectedName ( const DtUUID & )

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual DtUUID makVrf::DtCommandAssignmentWidgetInterface::selectedName ( ) const

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::selectFilter ( int )

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::selectFirstNonEmptyFilter ( )

pure virtual

Implemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget, and makVrf::DtCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::initializeFromAction ( DtVrfTaskSetAction * )

pure virtual

Implements makVrf::DtCommandDialogExtensionInterface.

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setOKEnabled ( bool )

pure virtual

Sets whether or not the OK button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual bool makVrf::DtCommandAssignmentWidgetInterface::extensionValid ( ) const

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::commandActivated	(	const DtSimTask &	,
		const std::vector< DtUUID > &	,
		bool	immediate
	)

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::commandActivated	(	const DtSimCommandObjectWrapper &	,
		bool	immediate
	)

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual bool makVrf::DtCommandAssignmentWidgetInterface::editStatement	(	const std::vector< makVrv::DtSimEntry * > &	,
		const DtSimStatement *
	)

pure virtual

Edits the current statement. Return true if the statement can be edited.

Implements makVrf::DtCommandDialogExtensionInterface.

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual std::vector<DtVrfObjectListViewItem::DtVrfObjectState> makVrf::DtCommandAssignmentWidgetInterface::selectedObjects ( ) const

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidgetInterface::extension ( )

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidgetInterface::setAllowObjectSelection ( bool )

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual bool makVrf::DtCommandAssignmentWidgetInterface::canSelectObjects ( ) const

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

void makVrf::DtCommandAssignmentWidgetInterface::setParentMenu ( DtVrfTaskSetMenu * p )

inline

void makVrf::DtCommandAssignmentWidgetInterface::setParentContainer ( DtCommandAssignmentWidgetInterface * p )

inline

DtCommandAssignmentWidgetInterface* makVrf::DtCommandAssignmentWidgetInterface::parentContainer ( )

inline

void makVrf::DtCommandAssignmentWidgetInterface::setAllowExtensionChange ( bool b )

inline

bool makVrf::DtCommandAssignmentWidgetInterface::allowExtensionChange ( ) const

inline

virtual void makVrf::DtCommandAssignmentWidgetInterface::setBroadcastTitle ( const QString & )

pure virtual

Implemented in makVrf::DtCommandAssignmentWidget, and makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual const std::vector<makVrv::DtSimEntry*>& makVrf::DtCommandAssignmentWidgetInterface::connectedTo ( ) const

pure virtual

Member Data Documentation

boost::signal<void (const std::vector<makVrv::DtSimEntry*>&)> makVrf::DtCommandAssignmentWidgetInterface::signal_stopWatching

DtVrfTaskSetMenu* makVrf::DtCommandAssignmentWidgetInterface::myTaskSetMenu

protected

DtCommandAssignmentWidgetInterface* makVrf::DtCommandAssignmentWidgetInterface::myParentContainer

protected

bool makVrf::DtCommandAssignmentWidgetInterface::myAllowExtensionChange

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/commandAssignmentWidgetInterface.h
