makVrf::DtWeaponSelectionWidget Class Reference

Widget that allows users to select weapons for the given entity. More...

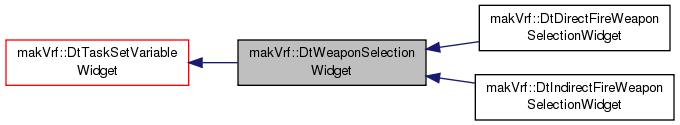

Inheritance diagram for makVrf::DtWeaponSelectionWidget:

Public Member Functions
	DtWeaponSelectionWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtWeaponSelectionWidget ()
virtual void	setLabel (const std::string &)
	Display label.
virtual void	setRange (double bottom, double top)
	Validation range. Not applicable.
virtual void	setDefaultValue (const std::string &)
	Default value to set in control. Will contain initial weapon to select.
virtual void	setVariableData (const std::string &)
	Variable data. Unused in this widget.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. Requests data.
virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)
	Creates the reader/writer variable that will be used as part of the task statement.
virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)
	Sets up the widget from the given reader/writer variables.
virtual void	requestWeaponsFor (const std::vector< makVrv::DtSimEntry * > &data)
	Add all the entities (vector of sim entries) to myAwaitingWeaponSystemResponse list, and then call the DtWeaponListRequestor instance's updateWeaponSystem() on the first entity in the list.
virtual void	slot_receivedWeaponList (const DtUUID &entity)
virtual void	setAllowMultipleSelection (bool)
	Call before setup – allows multiple selection of weapons.
virtual QStringList	selectedWeapons () const
	List of currently selected weapons.
virtual bool	includeResources () const
	Set/get whether resources are requested along with weapon names when making a weapon list request from the back end.
virtual void	setIncludeResources (const bool doInclude)
	Set/get whether resources are requested along with weapon names when making a weapon list request from the back end.
Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtTaskSetVariableWidget ()
virtual void	setToolTip (const QString &)
	Sets the tool tip.
virtual void	setTopLineVisible (bool)
	Hides top line.
virtual bool	topLineVisible () const
virtual void	createTopLine ()
	Creates top line.
virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line.
virtual bool	isValid () const
	Indicates the current selection is valid.
virtual void	setTopLabelChecked (bool)
	Sets the top label to be checked/unchecked and calls topLabelChecked if the check box is visible.
virtual bool	topLabelChecked () const
virtual void	setTopLabelIsCheckable (bool)
	Sets whether or not the top label is checkable.
virtual bool	topLabelIsCheckable () const
virtual void	getDefaultSpecificTitles (QString &defaultTitle, QString &specificTitle) const
virtual void	setDefaultSpecificTitles (const QString &defaultTitle, const QString &specificTitle)
virtual void	setupDefaultSpecificFromVariableData (const DtString &var)
	Format is allowdefault=[defaultTitle],[specificTitle].
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension.
virtual bool	guiElementOnly () const
	Returns true if this is a GUI element only. Default is false.

Static Public Member Functions
static makVrv::DtUnicode	codeVariableType ()

Public Attributes
QLabel *	myWeaponLabel
QComboBox *	myWeaponSystemsCombo
QListWidget *	myWeaponSystemsList
QBoxLayout *	myContentLayout
QString	myDefaultValue
Public Attributes inherited from makVrf::DtTaskSetVariableWidget
boost::signal< void(bool)>	signal_topLevelCheckStateChanged
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content.
QWidget *	myTopLine
QLabel *	myTopLabel
QWidget *	myChoiceCanvas
QRadioButton *	myUseDefault
QRadioButton *	myUseSpecific
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Member Functions
virtual void	addWeapon (const WeaponSystem &)
virtual void	weaponUpdated (const WeaponSystem &)
virtual void	weaponChanged ()
virtual void	weaponCheckingDisabled ()
virtual void	weaponCheckComplete ()
virtual void	updateWeapons ()

Protected Attributes
std::list< DtUUID >	myAwaitingWeaponSystemResponse
std::vector< DtUUID >	myCurrSelected
bool	myIncludeResources
	Indicates whether the back end will be asked to include resources with the weapon names it returns; also whether they will be included in the display list.
bool	myMultipleSelection
QString	myTitle
Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections
bool	myTopLabelIsCheckable

Additional Inherited Members
Signals inherited from makVrf::DtTaskSetVariableWidget
void	validityUpdated ()
	Signal which can be emitted to indicate the validity of the current widget selection has changed.
Protected Slots inherited from makVrf::DtTaskSetVariableWidget
virtual void	topLabelCheckStateChanged ()

Detailed Description

Widget that allows users to select weapons for the given entity.

Constructor & Destructor Documentation

makVrf::DtWeaponSelectionWidget::DtWeaponSelectionWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtWeaponSelectionWidget::~DtWeaponSelectionWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtWeaponSelectionWidget::setLabel ( const std::string &  )

virtual

Display label.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtWeaponSelectionWidget::setRange ( double  bottom, double  top  )

virtual

Validation range. Not applicable.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setDefaultValue ( const std::string &  )

virtual

Default value to set in control. Will contain initial weapon to select.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setVariableData ( const std::string &  )

virtual

Variable data. Unused in this widget.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  data )

virtual

Sets up widget with currently selected item. Requests data.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual DtReaderWriter* makVrf::DtWeaponSelectionWidget::createBoundVariable ( const std::string &  variableName )

virtual

Creates the reader/writer variable that will be used as part of the task statement.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::setupFromBoundVariable ( const DtReaderWriter *  variableName )

virtual

Sets up the widget from the given reader/writer variables.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtWeaponSelectionWidget::requestWeaponsFor ( const std::vector< makVrv::DtSimEntry * > &  data )

virtual

Add all the entities (vector of sim entries) to myAwaitingWeaponSystemResponse list, and then call the DtWeaponListRequestor instance's updateWeaponSystem() on the first entity in the list.

If the list is empty, call updateWeapons().

virtual void makVrf::DtWeaponSelectionWidget::slot_receivedWeaponList ( const DtUUID &  entity )

virtual

virtual bool makVrf::DtWeaponSelectionWidget::includeResources ( ) const

virtual

Set/get whether resources are requested along with weapon names when making a weapon list request from the back end.

Used in requestWeaponsFor().

virtual void makVrf::DtWeaponSelectionWidget::setIncludeResources ( const bool  doInclude )

virtual

Set/get whether resources are requested along with weapon names when making a weapon list request from the back end.

Used in requestWeaponsFor().

virtual void makVrf::DtWeaponSelectionWidget::setAllowMultipleSelection ( bool  )

virtual

Call before setup – allows multiple selection of weapons.

virtual QStringList makVrf::DtWeaponSelectionWidget::selectedWeapons ( ) const

virtual

List of currently selected weapons.

static makVrv::DtUnicode makVrf::DtWeaponSelectionWidget::codeVariableType ( )

inlinestatic

References makVrv::DtUnicode::tr().

virtual void makVrf::DtWeaponSelectionWidget::addWeapon ( const WeaponSystem &  )

protectedvirtual

Reimplemented in makVrf::DtIndirectFireWeaponSelectionWidget, and makVrf::DtDirectFireWeaponSelectionWidget.

virtual void makVrf::DtWeaponSelectionWidget::weaponUpdated ( const WeaponSystem &  )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponChanged ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponCheckingDisabled ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::weaponCheckComplete ( )

protectedvirtual

virtual void makVrf::DtWeaponSelectionWidget::updateWeapons ( )

protectedvirtual

Member Data Documentation

std::list<DtUUID> makVrf::DtWeaponSelectionWidget::myAwaitingWeaponSystemResponse

protected

std::vector<DtUUID> makVrf::DtWeaponSelectionWidget::myCurrSelected

protected

bool makVrf::DtWeaponSelectionWidget::myIncludeResources

protected

Indicates whether the back end will be asked to include resources with the weapon names it returns; also whether they will be included in the display list.

QLabel* makVrf::DtWeaponSelectionWidget::myWeaponLabel

QComboBox* makVrf::DtWeaponSelectionWidget::myWeaponSystemsCombo

QListWidget* makVrf::DtWeaponSelectionWidget::myWeaponSystemsList

QBoxLayout* makVrf::DtWeaponSelectionWidget::myContentLayout

QString makVrf::DtWeaponSelectionWidget::myDefaultValue

bool makVrf::DtWeaponSelectionWidget::myMultipleSelection

protected

QString makVrf::DtWeaponSelectionWidget::myTitle

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/weaponSelectionWidget.h
