makVrv::DtDistanceUnitConverter Class Reference

Base class for all distance unit converters. More...

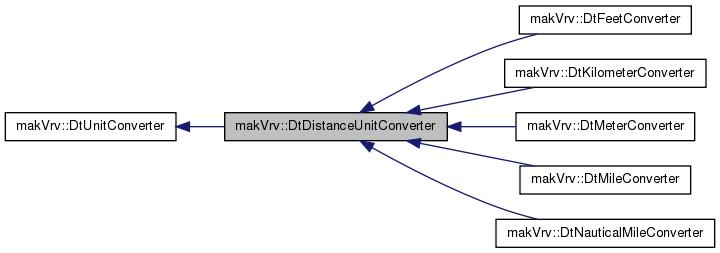

Inheritance diagram for makVrv::DtDistanceUnitConverter:

Public Member Functions
	DtDistanceUnitConverter (makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits unit)
	CTOR.
virtual	~DtDistanceUnitConverter ()
	Virtual DTOR.
virtual double	metersToLocal (double meters) const =0
	Convert from meters to local units.
virtual double	localToMeters (double local) const =0
	Convert from local units to meters.
Public Member Functions inherited from makVrv::DtUnitConverter
	DtUnitConverter ()
	CTOR.
virtual DtUnitConverter *	clone () const =0
	Clone interface.
virtual	~DtUnitConverter ()
	Virtual DTOR.

Protected Attributes
makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits	myUnits

Additional Inherited Members
Static Public Member Functions inherited from makVrv::DtUnitConverter
static void	unitsForVelocity (makArchives::DtDisplayUnitsSettingsRecord::VelocityUnits units, makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits &distUnit, makArchives::DtDisplayUnitsSettingsRecord::TimeUnits &timeUnit)
static void	unitsForAcceleration (makArchives::DtDisplayUnitsSettingsRecord::AccelerationUnits units, makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits &distUnit, makArchives::DtDisplayUnitsSettingsRecord::TimeUnits &timeUnits)
static void	unitsForRotationalVelocity (makArchives::DtDisplayUnitsSettingsRecord::RotVelocityUnits units, makArchives::DtDisplayUnitsSettingsRecord::OrientationUnits &oriUnit, makArchives::DtDisplayUnitsSettingsRecord::TimeUnits &timeUnit)

Detailed Description

Base class for all distance unit converters.

Constructor & Destructor Documentation

makVrv::DtDistanceUnitConverter::DtDistanceUnitConverter

(

makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits

unit

)

CTOR.

virtual makVrv::DtDistanceUnitConverter::~DtDistanceUnitConverter ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual double makVrv::DtDistanceUnitConverter::metersToLocal ( double  meters ) const

pure virtual

Convert from meters to local units.

Implemented in makVrv::DtNauticalMileConverter, makVrv::DtMileConverter, makVrv::DtFeetConverter, makVrv::DtKilometerConverter, and makVrv::DtMeterConverter.

virtual double makVrv::DtDistanceUnitConverter::localToMeters ( double  local ) const

pure virtual

Convert from local units to meters.

Implemented in makVrv::DtNauticalMileConverter, makVrv::DtMileConverter, makVrv::DtFeetConverter, makVrv::DtKilometerConverter, and makVrv::DtMeterConverter.

Member Data Documentation

makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits makVrv::DtDistanceUnitConverter::myUnits

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvUtil/DtUnitConverter.h
