A widget class for managing different camera views the currently selected observer can be placed in. More...

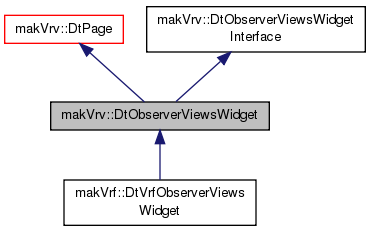

Inheritance diagram for makVrv::DtObserverViewsWidget:

Public Member Functions
virtual	~DtObserverViewsWidget ()
	DTOR.
virtual QIcon	icon ()
	Get the icon of the page.
virtual QString	title ()
	Get the title of the page.
virtual const std::string &	pageClassName () const
	Get the class name of the page.
virtual std::string	currentObserverView () const
	Returns the currently selected observer view.
Public Member Functions inherited from makVrv::DtPage
	DtPage (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
	CTOR for page.
virtual	~DtPage ()
	DTOR for page.
Public Member Functions inherited from makVrv::DtObserverViewsWidgetInterface
virtual	~DtObserverViewsWidgetInterface ()
	Virtual DTOR.

Public Attributes
QVBoxLayout *	myMainLayout
QHBoxLayout *	myButtonLayout
QTreeWidget *	myObserverViews
QPushButton *	myAddView
QPushButton *	myDeleteView
QPushButton *	mySaveViews
QPushButton *	mySaveSingle
QPushButton *	myLoadViews
QPushButton *	myLoadAndMakeViewsCurrent
QPushButton *	myClearViews
double	myLastSelectionChangedSimTime

Protected Slots
virtual void	onAddObserverView ()
	Calls down to logic to capture view and add it back here.
virtual void	onViewSelectionChanged ()
	Calls down to logic to set a new observer view.
virtual void	onItemPressed ()
	Calls down to logic to set a new observer view.
virtual void	onClearObserverViews ()
	Calls down to logic to clear out observer views.
virtual void	onSaveViews ()
	Puts up dialog to allow user to specify a file to save all current views in and calls down to logic to do the save.
virtual void	onSaveSelectedView ()
	Puts up dialog to allow user to specify a file to save the currently selected view in and calls down to logic to do the save.
virtual void	onDeleteSelectedView ()
	Calls down to logic to delete currently selected view.
virtual void	onLoadViews ()
	Calls down to logic to load file and place view records found in there into the interface.
virtual void	onLoadViewsAndMakeCurrent ()
	Calls down to logic to load file and place view records found in there into the interface.
virtual void	observerViewNameChanged ()
	Called when any aspect of the item data has changed.

Protected Member Functions
	DtObserverViewsWidget (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor of the page.
virtual void	activate ()
	Called when the page is displayed.
virtual void	deactivate ()
	Called when the page is hidden.
void	setupUi (QWidget *p)
	Sets up the contents of the widget onto the supplied parent.
virtual void	setViewStatesEnabled (bool)
	Tells the interface to enable/disable buttons that manipulate the observer view (add, load, observers view)
virtual void	addObserverView (const std::string &)
	Adds a new observer view to the list of current views.
virtual void	clearObserverViews ()
	Clears out observer views list.
virtual void	deleteView (const std::string &)
	Removes the specified view from the observers view list.
virtual void	renameObserverRecord (const std::string &newName, const std::string &oldName)
	Renames the observer record from old name to new name.

Protected Attributes
std::string	myClassName
DtObserverViewsWidgetLogic *	myLogic
Protected Attributes inherited from makVrv::DtPage
DtDe &	myDe

Friends
class	DtObserverViewsWidgetCreator
	Let the creator create the page.

Detailed Description

A widget class for managing different camera views the currently selected observer can be placed in.

Constructor & Destructor Documentation

virtual makVrv::DtObserverViewsWidget::~DtObserverViewsWidget ( )

virtual

DTOR.

makVrv::DtObserverViewsWidget::DtObserverViewsWidget	(	DtDe &	de,
		QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

protected

Constructor of the page.

Member Function Documentation

virtual QIcon makVrv::DtObserverViewsWidget::icon ( )

virtual

Get the icon of the page.

Implements makVrv::DtPage.

virtual QString makVrv::DtObserverViewsWidget::title ( )

virtual

Get the title of the page.

Implements makVrv::DtPage.

virtual const std::string& makVrv::DtObserverViewsWidget::pageClassName ( ) const

virtual

Get the class name of the page.

Implements makVrv::DtPage.

virtual std::string makVrv::DtObserverViewsWidget::currentObserverView ( ) const

virtual

Returns the currently selected observer view.

virtual void makVrv::DtObserverViewsWidget::activate ( )

protectedvirtual

Called when the page is displayed.

Implements makVrv::DtPage.

virtual void makVrv::DtObserverViewsWidget::deactivate ( )

protectedvirtual

Called when the page is hidden.

Implements makVrv::DtPage.

void makVrv::DtObserverViewsWidget::setupUi ( QWidget * p )

protected

Sets up the contents of the widget onto the supplied parent.

virtual void makVrv::DtObserverViewsWidget::setViewStatesEnabled ( bool )

protectedvirtual

Tells the interface to enable/disable buttons that manipulate the observer view (add, load, observers view)

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::addObserverView ( const std::string & )

protectedvirtual

Adds a new observer view to the list of current views.

Implements makVrv::DtObserverViewsWidgetInterface.

Reimplemented in makVrf::DtVrfObserverViewsWidget.

virtual void makVrv::DtObserverViewsWidget::clearObserverViews ( )

protectedvirtual

Clears out observer views list.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::deleteView ( const std::string & )

protectedvirtual

Removes the specified view from the observers view list.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::renameObserverRecord	(	const std::string &	newName,
		const std::string &	oldName
	)

protectedvirtual

Renames the observer record from old name to new name.

Implements makVrv::DtObserverViewsWidgetInterface.

Reimplemented in makVrf::DtVrfObserverViewsWidget.

virtual void makVrv::DtObserverViewsWidget::onAddObserverView ( )

protectedvirtualslot

Calls down to logic to capture view and add it back here.

virtual void makVrv::DtObserverViewsWidget::onViewSelectionChanged ( )

protectedvirtualslot

Calls down to logic to set a new observer view.

Also will enable/disable buttons on selection Won't do anything if CTRL is pressed.

Reimplemented in makVrf::DtVrfObserverViewsWidget.

virtual void makVrv::DtObserverViewsWidget::onItemPressed ( )

protectedvirtualslot

Calls down to logic to set a new observer view.

Also will enable/disable buttons on selection Animates the observer view change if CTRL is pressed.

Reimplemented in makVrf::DtVrfObserverViewsWidget.

virtual void makVrv::DtObserverViewsWidget::onClearObserverViews ( )

protectedvirtualslot

Calls down to logic to clear out observer views.

virtual void makVrv::DtObserverViewsWidget::onSaveViews ( )

protectedvirtualslot

Puts up dialog to allow user to specify a file to save all current views in and calls down to logic to do the save.

virtual void makVrv::DtObserverViewsWidget::onSaveSelectedView ( )

protectedvirtualslot

Puts up dialog to allow user to specify a file to save the currently selected view in and calls down to logic to do the save.

virtual void makVrv::DtObserverViewsWidget::onDeleteSelectedView ( )

protectedvirtualslot

Calls down to logic to delete currently selected view.

virtual void makVrv::DtObserverViewsWidget::onLoadViews ( )

protectedvirtualslot

Calls down to logic to load file and place view records found in there into the interface.

virtual void makVrv::DtObserverViewsWidget::onLoadViewsAndMakeCurrent ( )

protectedvirtualslot

Calls down to logic to load file and place view records found in there into the interface.

It will also set all observers to have their state be the records found in the file (in the order in which it is read)

virtual void makVrv::DtObserverViewsWidget::observerViewNameChanged ( )

protectedvirtualslot

Called when any aspect of the item data has changed.

Will check to see if the name needs to be updated. If the name is the same as another name, will warn the user

Reimplemented in makVrf::DtVrfObserverViewsWidget.

Friends And Related Function Documentation

friend class DtObserverViewsWidgetCreator

friend

Let the creator create the page.

Member Data Documentation

std::string makVrv::DtObserverViewsWidget::myClassName

protected

DtObserverViewsWidgetLogic* makVrv::DtObserverViewsWidget::myLogic

protected

QVBoxLayout* makVrv::DtObserverViewsWidget::myMainLayout

QHBoxLayout* makVrv::DtObserverViewsWidget::myButtonLayout

QTreeWidget* makVrv::DtObserverViewsWidget::myObserverViews

QPushButton* makVrv::DtObserverViewsWidget::myAddView

QPushButton* makVrv::DtObserverViewsWidget::myDeleteView

QPushButton* makVrv::DtObserverViewsWidget::mySaveViews

QPushButton* makVrv::DtObserverViewsWidget::mySaveSingle

QPushButton* makVrv::DtObserverViewsWidget::myLoadViews

QPushButton* makVrv::DtObserverViewsWidget::myLoadAndMakeViewsCurrent

QPushButton* makVrv::DtObserverViewsWidget::myClearViews

double makVrv::DtObserverViewsWidget::myLastSelectionChangedSimTime

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCoreQt/DtObserverViewsWidget.h
