DtJoystickControllerInterface Class Reference

Will manage basic functionality of a joystick controller. More...

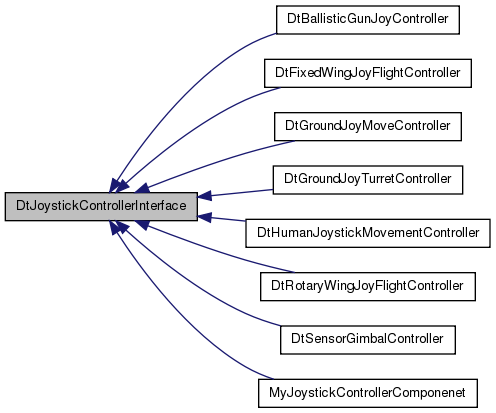

Inheritance diagram for DtJoystickControllerInterface:

Public Member Functions
	DtJoystickControllerInterface (DtVrfObject *owner, DtSimManager *simManager, DtComponentDescriptor *desc)
	CTOR.
virtual	~DtJoystickControllerInterface ()
	destructor
virtual bool	joystickEnabled () const

Protected Member Functions
virtual void	processJoyDeviceRequest (DtSimMessage *msg)
virtual void	processJoystickControlMessage (DtSimMessage *msg)
virtual void	calcAndSetPortValues (const DtString &functionGroup, const DtString &function, double value, bool repeat)=0
	Override to set.
virtual void	joystickConnected ()=0
	Called when joystick is connected for this controller.
virtual void	joystickDisconnected ()=0
	Called when joystick is disconnected for this controller.

Static Protected Member Functions
static void	joyDeviceRequestCallback (DtSimMessage *msg, void *usr)
static void	joystickControlMessageCallback (DtSimMessage *msg, void *usr)

Protected Attributes
const DtJoyDeviceControllerDescriptorInterface *	myJoyDeviceControllerDescriptor
bool	myJoystickEnabled
int	myRequestCount
DtSimManager *	myJoystickSimManager
DtVrfObject *	myJoystickOwner

Private Member Functions
	DtJoystickControllerInterface ()
	default constructor; not implemented.
	DtJoystickControllerInterface (const DtJoystickControllerInterface &orig)
	copy constructor; not implemented.
DtJoystickControllerInterface &	operator= (const DtJoystickControllerInterface &orig)
	assignment operator; not implemented.

Detailed Description

Will manage basic functionality of a joystick controller.

Implement pure virtual functions to responsd to joystick controls

Constructor & Destructor Documentation

DtJoystickControllerInterface::DtJoystickControllerInterface	(	DtVrfObject *	owner,
		DtSimManager *	simManager,
		DtComponentDescriptor *	desc
	)

CTOR.

virtual DtJoystickControllerInterface::~DtJoystickControllerInterface ( )

virtual

destructor

DtJoystickControllerInterface::DtJoystickControllerInterface ( )

private

default constructor; not implemented.

DtJoystickControllerInterface::DtJoystickControllerInterface ( const DtJoystickControllerInterface &  orig )

private

copy constructor; not implemented.

Member Function Documentation

virtual bool DtJoystickControllerInterface::joystickEnabled ( ) const

virtual

virtual void DtJoystickControllerInterface::processJoyDeviceRequest ( DtSimMessage *  msg )

protectedvirtual

static void DtJoystickControllerInterface::joyDeviceRequestCallback ( DtSimMessage *  msg, void *  usr  )

staticprotected

virtual void DtJoystickControllerInterface::processJoystickControlMessage ( DtSimMessage *  msg )

protectedvirtual

static void DtJoystickControllerInterface::joystickControlMessageCallback ( DtSimMessage *  msg, void *  usr  )

staticprotected

virtual void DtJoystickControllerInterface::calcAndSetPortValues ( const DtString &  functionGroup, const DtString &  function, double  value, bool  repeat  )

protectedpure virtual

Override to set.

Implemented in DtSensorGimbalController, DtHumanJoystickMovementController, DtGroundJoyMoveController, DtBallisticGunJoyController, DtFixedWingJoyFlightController, DtRotaryWingJoyFlightController, MyJoystickControllerComponenet, and DtGroundJoyTurretController.

virtual void DtJoystickControllerInterface::joystickConnected ( )

protectedpure virtual

Called when joystick is connected for this controller.

Implemented in DtSensorGimbalController, DtHumanJoystickMovementController, DtGroundJoyMoveController, DtBallisticGunJoyController, DtFixedWingJoyFlightController, DtRotaryWingJoyFlightController, DtGroundJoyTurretController, and MyJoystickControllerComponenet.

virtual void DtJoystickControllerInterface::joystickDisconnected ( )

protectedpure virtual

Called when joystick is disconnected for this controller.

Implemented in DtSensorGimbalController, DtHumanJoystickMovementController, DtGroundJoyMoveController, DtBallisticGunJoyController, DtFixedWingJoyFlightController, DtRotaryWingJoyFlightController, DtGroundJoyTurretController, and MyJoystickControllerComponenet.

DtJoystickControllerInterface& DtJoystickControllerInterface::operator= ( const DtJoystickControllerInterface &  orig )

private

assignment operator; not implemented.

Member Data Documentation

const DtJoyDeviceControllerDescriptorInterface* DtJoystickControllerInterface::myJoyDeviceControllerDescriptor

protected

bool DtJoystickControllerInterface::myJoystickEnabled

protected

int DtJoystickControllerInterface::myRequestCount

protected

DtSimManager* DtJoystickControllerInterface::myJoystickSimManager

protected

DtVrfObject* DtJoystickControllerInterface::myJoystickOwner

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfmodel/joystickControllerInterface.h
