makVrf::DtSetAttributesDialog Class Reference

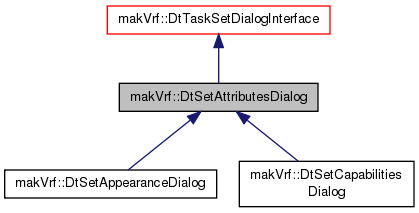

Inheritance diagram for makVrf::DtSetAttributesDialog:

Public Member Functions
	DtSetAttributesDialog (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtSetAttributesDialog ()
virtual void	run (const std::vector< makVrv::DtSimEntry * > &)
	Override to run the dialog.
virtual void	setInvalid ()
	Sets dialog to show invalid label and gray out ok and apply buttons.
bool	valid () const
	Override to return whether or not extension is valid.
virtual void	setValid ()
const QHash< int, QComboBox * > &	comboBoxes () const
virtual void	clear ()
	Clears out gui.
virtual void	setupGui (const DtEntityType &, int appearance)
	Sets up gui based on object type and appearance.
virtual int	attributeValueFromDialog () const
virtual void	setPartOfPlan (int)
	0 - Not part of plan dialog 1 - Part of plan dialog 2 - Part of command widget
virtual QHBoxLayout *	createAttributeCombo (const DtAttributeValueInfo &info)
virtual void	createAttributeCombo (const DtAttributeValueInfo &info, int iRow, int iCol)
virtual void	modifyComboBox (const DtAttributeValueInfo &info, QComboBox *box)
virtual void	setupInitialValues (const DtAttributesManager *, const std::vector< makVrv::DtSimEntry * > &)
virtual void	setupGui (const std::vector< makVrv::DtSimEntry * > &)
Public Member Functions inherited from makVrf::DtTaskSetDialogInterface
	DtTaskSetDialogInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtTaskSetDialogInterface ()
virtual void	connectSignals (const std::vector< makVrv::DtSimEntry * > &)
	Setup signals to cancel dialog if all objects deleted that this dialog is representing.
virtual void	setSendToRemoteController (bool b)
	Set to true to send the message immediately to the remote controller given the currently selected entities when the dialog was created.
virtual bool	sendToRemoteController () const
virtual bool	editStatement (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *)
	Edits the current statement. Return true if the statement can be edited.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &)
	Sets up dialog by asking logic to do it.
virtual void	selectionChanged (const DtUUID &selection)
	Notify dialog of selection changes from attached dialogs.
virtual void	sendSetRequest (std::vector< DtUUID > names, const DtSetDataRequest &)
	Sends signal to send out set.
virtual bool	insertMapFocusHandler (DtMapFocusHandler *, int index=-1)
	If a dialog has manages map focus handlers, inserts this map focus handler into the chain.
virtual void	initializeFromAction (DtVrfTaskSetAction *)
	Intializes contents from action as an action could have relevant properties assigned to it containing additional data.
DtVrfTaskSetAction *	initializedAction () const
	The action this dialog was initialized for.
virtual void	sendTaskRequest (std::vector< DtUUID > names, const DtSimTask &)
	Sends signal to send out task.
virtual void	sendCommandRequest (const DtSimCommandObjectWrapper &)
	Sends signal to send out command.
virtual std::vector< DtUUID >	names () const
int	partOfPlan () const
virtual void	cancel ()
	Sends out cancel signal.
virtual void	setOKEnabled (bool b)
	Sets whether or not the OK button is enabled.
virtual void	setCancelEnabled (bool)
	Sets whether or not the Cancel button is enabled.
virtual QWidget *	widget ()
	Returns the widget.
const std::vector < makVrv::DtSimEntry * > &	connectedTo () const
virtual void	noObjectsSelected ()
	No-op at this level.
Public Member Functions inherited from makVrf::DtCommandDialogExtensionInterface
virtual	~DtCommandDialogExtensionInterface ()
virtual bool	initiallyBroadcast () const
	Whether or not to initially set to broadcast. Default is false.
virtual bool	allowBroadcasting () const
	Whether or not to allow broadcasting. Default is true.
virtual bool	hasUserEntry () const
	Returns true if there is user entry. Default is to assume there is.
virtual QString	entitySelectionGroupBoxTitle () const
	If defined, title for the group box for entity selection on command widget.
virtual bool	wantsSelectionOfObjectInCommandMode () const =0
	Override to return false if, when this task is used as part of a simulation command, it does not want to allow to choose an object to apply the command to.
virtual void	onCancel ()=0
virtual void	onOK ()=0
virtual makVrv::DtUnicode	broadcastTitle () const

Public Attributes
QHBoxLayout *	myButtonLayout
QVBoxLayout *	myMasterLayout
QPushButton *	myApplyButton
QPushButton *	myOKButton
QPushButton *	myCancelButton
QGridLayout *	myGridLayout
QWidget *	myAttributeCanvas
QLabel *	myInvalidLabel

Protected Slots
virtual void	onCancel ()
virtual void	onApply ()
virtual void	onOk ()
Protected Slots inherited from makVrf::DtTaskSetDialogInterface
virtual void	actionDestroyed ()

Protected Member Functions
virtual void	setupGuiBasedOnAttributeInfo ()
	Sets up gui based on attribute info member variable.
virtual void	setupGui ()
	Sets up gui.
virtual void	slot_closeDialog ()
virtual void	slot_applyAttributes ()
virtual int	value (makVrv::DtSimEntry *) const =0
	Returns the value of the bit pattern flag to show in dialog.
virtual DtEntityMapperKey	entityType (makVrv::DtSimEntry *) const
virtual void	setAttributes (const std::vector< makVrv::DtSimEntry * > &data, int attributeValue)
virtual void	setAttributes (const DtEntityType &type, int attributeValue)
virtual void	sendRequest ()=0
Protected Member Functions inherited from makVrf::DtTaskSetDialogInterface
virtual void	slot_objectAboutToBeRemoved (makVrv::DtSimObjectEntry &)
virtual std::vector< std::string >	commandDialogFiltersFor (const std::vector< makVrv::DtSimEntry * > &data, const DtSimStatement *stmt, int &initialSelection) const
	If part of a command dialog the filters to use for the command dialog selection.
virtual void	hideButtons (bool)
	No buttons to hide.

Protected Attributes
int	myAttributesPerRow
DtAttributeInfo *	myAttributeInfo
const DtAttributesManager *	myAttributesManager
QHash< int, QComboBox * >	myComboBoxes
Protected Attributes inherited from makVrf::DtTaskSetDialogInterface
makVrv::DtDe &	myDe
int	myPartOfPlan
std::vector< makVrv::DtSimEntry * >	myConnectedTo
bool	mySendToRemoteController
DtVrfTaskSetAction *	myAction

Constructor & Destructor Documentation

makVrf::DtSetAttributesDialog::DtSetAttributesDialog	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtSetAttributesDialog::~DtSetAttributesDialog ( )

virtual

Member Function Documentation

virtual void makVrf::DtSetAttributesDialog::run ( const std::vector< makVrv::DtSimEntry * > &  )

virtual

Override to run the dialog.

Supplies data of entities that are selected for this dialog

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtSetCapabilitiesDialog, and makVrf::DtSetAppearanceDialog.

virtual void makVrf::DtSetAttributesDialog::setInvalid ( )

virtual

Sets dialog to show invalid label and gray out ok and apply buttons.

bool makVrf::DtSetAttributesDialog::valid ( ) const

inlinevirtual

Override to return whether or not extension is valid.

Reimplemented from makVrf::DtTaskSetDialogInterface.

virtual void makVrf::DtSetAttributesDialog::setValid ( )

virtual

const QHash<int, QComboBox*>& makVrf::DtSetAttributesDialog::comboBoxes ( ) const

inline

virtual void makVrf::DtSetAttributesDialog::clear ( )

virtual

Clears out gui.

virtual void makVrf::DtSetAttributesDialog::setupGui ( const DtEntityType &  , int  appearance  )

virtual

Sets up gui based on object type and appearance.

Reimplemented in makVrf::DtSetAppearanceDialog.

virtual int makVrf::DtSetAttributesDialog::attributeValueFromDialog ( ) const

virtual

virtual void makVrf::DtSetAttributesDialog::setPartOfPlan ( int  )

virtual

0 - Not part of plan dialog 1 - Part of plan dialog 2 - Part of command widget

Reimplemented from makVrf::DtTaskSetDialogInterface.

virtual void makVrf::DtSetAttributesDialog::setupGuiBasedOnAttributeInfo ( )

protectedvirtual

Sets up gui based on attribute info member variable.

virtual void makVrf::DtSetAttributesDialog::setupGui ( )

protectedvirtual

Sets up gui.

virtual void makVrf::DtSetAttributesDialog::onCancel ( )

protectedvirtualslot

virtual void makVrf::DtSetAttributesDialog::onApply ( )

protectedvirtualslot

virtual void makVrf::DtSetAttributesDialog::onOk ( )

protectedvirtualslot

virtual QHBoxLayout* makVrf::DtSetAttributesDialog::createAttributeCombo ( const DtAttributeValueInfo &  info )

virtual

virtual void makVrf::DtSetAttributesDialog::createAttributeCombo ( const DtAttributeValueInfo &  info, int  iRow, int  iCol  )

virtual

virtual void makVrf::DtSetAttributesDialog::modifyComboBox ( const DtAttributeValueInfo &  info, QComboBox *  box  )

virtual

Reimplemented in makVrf::DtSetAppearanceDialog.

virtual void makVrf::DtSetAttributesDialog::setupInitialValues ( const DtAttributesManager *  , const std::vector< makVrv::DtSimEntry * > &    )

virtual

virtual void makVrf::DtSetAttributesDialog::setupGui ( const std::vector< makVrv::DtSimEntry * > &  )

virtual

virtual void makVrf::DtSetAttributesDialog::slot_closeDialog ( )

protectedvirtual

virtual void makVrf::DtSetAttributesDialog::slot_applyAttributes ( )

protectedvirtual

virtual int makVrf::DtSetAttributesDialog::value ( makVrv::DtSimEntry *  ) const

protectedpure virtual

Returns the value of the bit pattern flag to show in dialog.

Implemented in makVrf::DtSetAppearanceDialog, and makVrf::DtSetCapabilitiesDialog.

virtual DtEntityMapperKey makVrf::DtSetAttributesDialog::entityType ( makVrv::DtSimEntry *  ) const

protectedvirtual

virtual void makVrf::DtSetAttributesDialog::setAttributes ( const std::vector< makVrv::DtSimEntry * > &  data, int  attributeValue  )

protectedvirtual

virtual void makVrf::DtSetAttributesDialog::setAttributes ( const DtEntityType &  type, int  attributeValue  )

protectedvirtual

virtual void makVrf::DtSetAttributesDialog::sendRequest ( )

protectedpure virtual

Implemented in makVrf::DtSetAppearanceDialog, and makVrf::DtSetCapabilitiesDialog.

Member Data Documentation

int makVrf::DtSetAttributesDialog::myAttributesPerRow

protected

DtAttributeInfo* makVrf::DtSetAttributesDialog::myAttributeInfo

protected

const DtAttributesManager* makVrf::DtSetAttributesDialog::myAttributesManager

protected

QHBoxLayout* makVrf::DtSetAttributesDialog::myButtonLayout

QVBoxLayout* makVrf::DtSetAttributesDialog::myMasterLayout

QPushButton* makVrf::DtSetAttributesDialog::myApplyButton

QPushButton* makVrf::DtSetAttributesDialog::myOKButton

QPushButton* makVrf::DtSetAttributesDialog::myCancelButton

QGridLayout* makVrf::DtSetAttributesDialog::myGridLayout

QWidget* makVrf::DtSetAttributesDialog::myAttributeCanvas

QLabel* makVrf::DtSetAttributesDialog::myInvalidLabel

QHash<int, QComboBox*> makVrf::DtSetAttributesDialog::myComboBoxes

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/setAttributesDialog.h
