makVrv::DtFeatureVisualizer Class Reference

Base visualizer class for visualizing features. More...

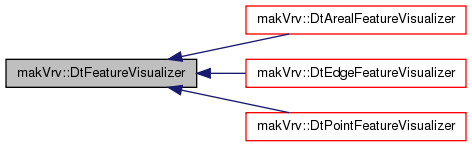

Inheritance diagram for makVrv::DtFeatureVisualizer:

Public Member Functions
	DtFeatureVisualizer ()
	CTOR.
virtual	~DtFeatureVisualizer ()
	DTOR.
virtual void	visualize (int modelSet)=0
	Visualize the point for a given model set.
virtual std::vector< DtUniqueID >	findSceneObjectIds () const =0
	Check to see if this point feature has a scene object id.
virtual void	setColor (const float rgba[4])=0
	Set the color of the feature.
virtual void	setOutlineColor (const float rgba[4])=0
	Set the outline color of the feature.
virtual void	setHighlighted (bool selected)=0
	Set to visualizer the feature selected.

Detailed Description

Base visualizer class for visualizing features.

Constructor & Destructor Documentation

makVrv::DtFeatureVisualizer::DtFeatureVisualizer

(

)

CTOR.

virtual makVrv::DtFeatureVisualizer::~DtFeatureVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtFeatureVisualizer::visualize ( int  modelSet )

pure virtual

Visualize the point for a given model set.

Implemented in makVrv::DtDefaultPointFeatureVisualizer, makVrv::DtDefaultArealFeatureVisualizer, and makVrv::DtDefaultEdgeFeatureVisualizer.

virtual std::vector<DtUniqueID> makVrv::DtFeatureVisualizer::findSceneObjectIds ( ) const

pure virtual

Check to see if this point feature has a scene object id.

Implemented in makVrv::DtDefaultPointFeatureVisualizer, makVrv::DtDefaultArealFeatureVisualizer, and makVrv::DtDefaultEdgeFeatureVisualizer.

virtual void makVrv::DtFeatureVisualizer::setColor ( const float  rgba[4] )

pure virtual

Set the color of the feature.

Implemented in makVrv::DtDefaultPointFeatureVisualizer, makVrv::DtDefaultArealFeatureVisualizer, and makVrv::DtDefaultEdgeFeatureVisualizer.

virtual void makVrv::DtFeatureVisualizer::setOutlineColor ( const float  rgba[4] )

pure virtual

Set the outline color of the feature.

Implemented in makVrv::DtDefaultPointFeatureVisualizer, makVrv::DtDefaultArealFeatureVisualizer, and makVrv::DtDefaultEdgeFeatureVisualizer.

virtual void makVrv::DtFeatureVisualizer::setHighlighted ( bool  selected )

pure virtual

Set to visualizer the feature selected.

Implemented in makVrv::DtDefaultPointFeatureVisualizer, makVrv::DtDefaultArealFeatureVisualizer, and makVrv::DtDefaultEdgeFeatureVisualizer.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtFeatureVisualizer.h
