makVrv::DtGlStudioObjectAttributeUpdater Class Reference

A HUD object side updater abstract base class. More...

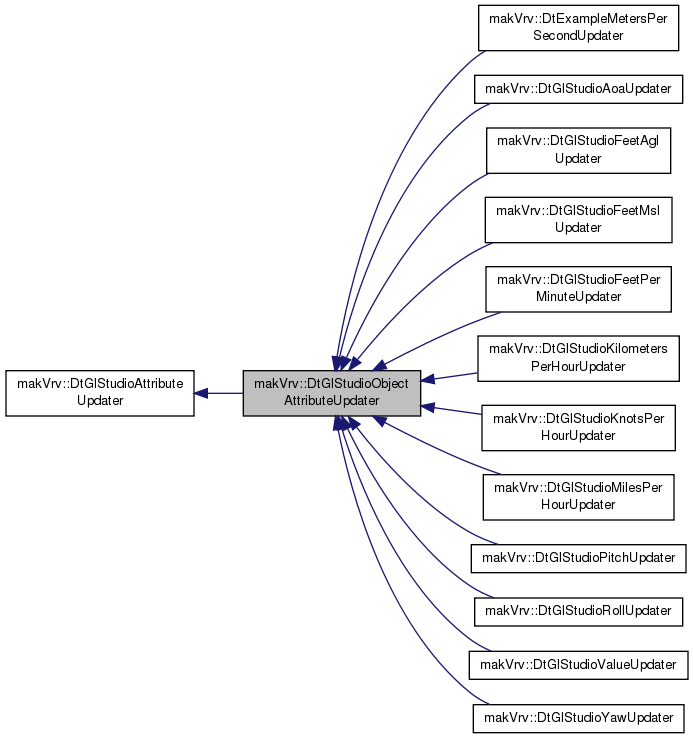

Inheritance diagram for makVrv::DtGlStudioObjectAttributeUpdater:

Public Member Functions
	DtGlStudioObjectAttributeUpdater ()
virtual	~DtGlStudioObjectAttributeUpdater ()
virtual void	init (DtSmoother *smoother, DtDe *de)
	initialize with a HUD object's smoother
virtual std::string	value (double time)=0
	returns the updater value as a string for sending to GL Studio
virtual std::string	value ()
	just to make the base class happy since this particular type of updater needs a time to function properly
Public Member Functions inherited from makVrv::DtGlStudioAttributeUpdater
	DtGlStudioAttributeUpdater ()
virtual	~DtGlStudioAttributeUpdater ()
virtual bool	isDirty ()

Protected Attributes
DtSmoother *	mySmoother
DtDe *	myDe
Protected Attributes inherited from makVrv::DtGlStudioAttributeUpdater
DtSignalConnectionManager	myEntityConnections
bool	myIsDirty

Detailed Description

A HUD object side updater abstract base class.

It has the HUD objects smoother available to compute values

Constructor & Destructor Documentation

makVrv::DtGlStudioObjectAttributeUpdater::DtGlStudioObjectAttributeUpdater

(

)

virtual makVrv::DtGlStudioObjectAttributeUpdater::~DtGlStudioObjectAttributeUpdater ( )

virtual

Member Function Documentation

virtual void makVrv::DtGlStudioObjectAttributeUpdater::init ( DtSmoother *  smoother, DtDe *  de  )

virtual

initialize with a HUD object's smoother

virtual std::string makVrv::DtGlStudioObjectAttributeUpdater::value ( double  time )

pure virtual

returns the updater value as a string for sending to GL Studio

Implemented in makVrv::DtGlStudioValueUpdater, makVrv::DtGlStudioAoaUpdater, makVrv::DtGlStudioFeetMslUpdater, makVrv::DtGlStudioPitchUpdater, makVrv::DtGlStudioFeetAglUpdater, makVrv::DtGlStudioKnotsPerHourUpdater, makVrv::DtGlStudioRollUpdater, makVrv::DtGlStudioYawUpdater, makVrv::DtExampleMetersPerSecondUpdater, makVrv::DtGlStudioFeetPerMinuteUpdater, makVrv::DtGlStudioKilometersPerHourUpdater, and makVrv::DtGlStudioMilesPerHourUpdater.

virtual std::string makVrv::DtGlStudioObjectAttributeUpdater::value ( )

inlinevirtual

just to make the base class happy since this particular type of updater needs a time to function properly

Implements makVrv::DtGlStudioAttributeUpdater.

Member Data Documentation

DtSmoother* makVrv::DtGlStudioObjectAttributeUpdater::mySmoother

protected

DtDe* makVrv::DtGlStudioObjectAttributeUpdater::myDe

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvGlStudioShared/DtGlStudioObjectAttributeUpdater.h
