makVrv::DtVrvApplicationConfiguration Class Reference

This owns a list of display engine configurations. More...

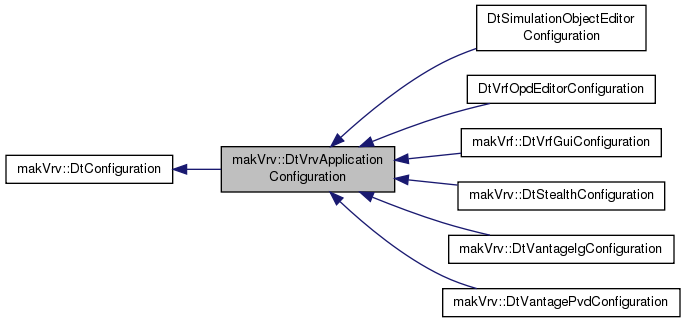

Inheritance diagram for makVrv::DtVrvApplicationConfiguration:

Classes
struct	UIConfiguration

Public Member Functions
	DtVrvApplicationConfiguration ()
	CTOR.
	DtVrvApplicationConfiguration (const DtVrvApplicationConfiguration &)
	Copy CTOR.
DtVrvApplicationConfiguration &	operator= (const DtVrvApplicationConfiguration &)
	Assignment Op.
virtual	~DtVrvApplicationConfiguration ()
	DTOR.
bool	loadPlugins ()
	Do we load plugins.
void	setLoadPlugins (bool enable)
	Set whether the IG loads plugins during initialization.
void	addPluginFile (const std::string &file)
	Add a plug-in file not located in the plugin directory.
const std::list< std::string > &	pluginFiles () const
	Get a list of additional plugin files.
void	excludePluginFile (const std::string &file)
	Exclude a plug-in file, typically localed in the plugin directory.
const std::list< std::string > &	excludedPluginFiles () const
	Get a list of plugins not to load.
const UIConfiguration &	masterModeUIConfiguration () const
UIConfiguration &	masterModeUIConfiguration ()
void	setMasterModeMenuConfiguration (const DtMenuConfiguration &menuConfig)
const DtMenuConfiguration &	masterModeMenuConfiguration () const
DtMenuConfiguration &	masterModeMenuConfiguration ()
void	setMasterModeToolbarConfiguration (const DtToolbarConfiguration &toolbarConfig)
const DtToolbarConfiguration &	masterModeToolbarConfiguration () const
DtToolbarConfiguration &	masterModeToolbarConfiguration ()
void	setMasterModePageConfiguration (const DtPageConfiguration &pageConfig)
const DtPageConfiguration &	masterModePageConfiguration () const
DtPageConfiguration &	masterModePageConfiguration ()
const UIConfiguration &	slaveModeUIConfiguration () const
UIConfiguration &	slaveModeUIConfiguration ()
void	setSlaveModeMenuConfiguration (const DtMenuConfiguration &menuConfig)
const DtMenuConfiguration &	slaveModeMenuConfiguration () const
DtMenuConfiguration &	slaveModeMenuConfiguration ()
void	setSlaveModeToolbarConfiguration (const DtToolbarConfiguration &toolbarConfig)
const DtToolbarConfiguration &	slaveModeToolbarConfiguration () const
DtToolbarConfiguration &	slaveModeToolbarConfiguration ()
void	setSlaveModePageConfiguration (const DtPageConfiguration &pageConfig)
const DtPageConfiguration &	slaveModePageConfiguration () const
DtPageConfiguration &	slaveModePageConfiguration ()
DtDeInitializer	buildInitializer ()
	Generate a DtDeInitializer from the app config state.
void	setDriverConfiguration (const DtDriverConfiguration &)
	Set the driver configuration.
void	setGuiConfiguration (const DtGuiConfiguration &)
	Set the driver configuration.
void	setInputDriverConfiguration (const DtInputDriverConfiguration &config)
	Set the input driver configuration.
const std::string &	displayName () const
	Returns the name of the active local display configuration.
void	setDisplayEngineName (const std::string &name)
	Set the active local display engine configuration.
DtDeInitializer::DeMode	deMode () const
	Return myDeMode;.
void	setDeMode (DtDeInitializer::DeMode mode)
	Set myDeMode.
void	setDeFeatures (DtDeInitializer::DeFeatures features)
	Set the de feature flags.
void	setDefaultDrivers (const DtDeInitializer::DriverInstanceList &drivers)
	Set the driver instance list.
const DtDeInitializer::DriverInstanceList &	defaultDrivers () const
	Get the default driver list.
void	setDeConfiguration (const DtDeConfiguration &config)
	Set the initial de configuration.
DtDeConfiguration &	deConfiguration ()
	Get the initial de configuration.
const DtDeConfiguration &	deConfiguration () const
	Get the initial de configuration.
void	setCoordinateSystem (const std::string &coordinateSystem, const std::string &parameters)
	Set the coordinate system and parameters.
const std::string &	coordinateSystem () const
	Get the name of the coordinate system.
const std::string &	coordinateSystemParameters () const
	Get the parameters of the coordinate system.
void	setNotifyLevel (DtDebugLog::PrintLevel level)
	Set the initial notify level of print output.
DtDebugLog::PrintLevel	notifyLevel () const
	Get the initial notify level of print output.
void	setLogFileName (const std::string &filename)
	Set the log file name.
const std::string &	logFileName () const
	Get the name of the output log.
void	setModelPreloadFilename (const std::string &filename)
	Set the preload file name.
const std::string &	modelPreloadFilename () const
	Get the name of the preload file.
void	setDiscoveredModelPreloadFilename (const std::string &filename)
	Set the missing model preload file name.
const std::string &	discoveredModelPreloadFilename () const
	Get the name of the missing model preload file.
void	setAutoLoadDrivers (bool autoLoad)
	Set whether saved drivers in the driver directory should be automatically loaded.
bool	autoLoadDrivers () const
	Get whether saved drivers in the driver directory should be automatically loaded.
void	setAutoStartDrivers (const std::vector< std::string > &names)
	Set the auto start drivers.
const std::vector< std::string > &	autoStartDrivers () const
	Get the auto start drivers.
void	setAuthorizationCodeMap (const DtDeInitializer::AuthorizationCodeMap &map)
	Assigns the authorization code mapping.
void	addAuthorizationCodeMapping (const std::string &key, const std::string &value)
	Adds an authorization code mapping.
void	removeAuthorizationCodeMapping (const std::string &key)
	Removes an authorization code mapping.
const std::string *	findAuthorizationCodeValue (const std::string &key) const
	Find an authorization code value from a key.
void	setObserverStateMap (const DtDeInitializer::ObserverStateMap &osm)
	Set the ObserverStateMap. Used by DtInputDriver when creating observers.
const DtDeInitializer::ObserverStateMap &	observerStateMap () const
	Get the ObserverStateMap. Used by DtInputDriver when creating observers.
const std::vector< std::string > &	mappingFilesToLoad () const
	Get the mapping files to load.
void	setMappingFilesToLoad (const std::vector< std::string > &)
	Set the mapping files to load.
const std::vector< std::string > &	modelDefinitionFilesOrDirsToMerge () const
	Get the model definition files or directories to merge.
void	setModelDefinitionFilesOrDirsToMerge (const std::vector< std::string > &)
	Set the model definition files or directory of files to merge at start up.
const std::vector< std::string > &	entityTypeMapFilesOrDirsToMerge () const
	Get the entity type files or directories to merge at startup.
void	setEntityTypeMapFilesOrDirsToMerge (const std::vector< std::string > &)
	Set the entity type map files or directory of files to merge at start up.
const std::vector< std::string > &	aggregateTypeMapFilesOrDirsToMerge () const
	Get the aggregate type files or directories to merge at startup.
void	setAggregateTypeMapFilesOrDirsToMerge (const std::vector< std::string > &)
	Set the aggregate type map files or directory of files to merge at start up.
const std::vector< std::string > &	tacticalGraphicsTypeMapFilesOrDirsToMerge () const
	Get the tactical graphics type files or directories to merge at startup.
void	setTacticalGraphicsTypeMapFilesOrDirsToMerge (const std::vector< std::string > &)
	Set the tactical graphics type map files or directory of files to merge at start up.
const DtDeInitializer::DisplayConnections &	displayConnections () const
	Get the list of connections to make.
DtDeInitializer::DisplayConnections &	displayConnections ()
void	setDisplayConnections (const DtDeInitializer::DisplayConnections &displayConnections)
void	setAutoLoadFile (const std::string &file)
	Set the file to automatically load.
const std::string &	autoLoadFile () const
	Get the file to automatically load.
void	setBatchedRendering (bool val)
	Set whether to use batched instance rendering.
bool	batchedRendering () const
	Get whether batched instance rendering is enabled.
void	setNoEntityDefinitionLoading (bool val)
	Set whether to use appData directory to load entity element definitions.
bool	noEntityDefinitionLoading () const
	Get whether to use appData directory to load entity element definitions.
void	setNoModelDefinitionLoading (bool val)
	Set whether to use appData directory to load entity element definitions.
bool	noModelDefinitionLoading () const
	Get whether to use appData directory to load entity element definitions.
void	setNoAggregateDefinitionLoading (bool val)
	Set whether to use appData directory to load aggregate (unit) element definitions.
bool	noAggregateDefinitionLoading () const
	Get whether to use appData directory to load aggregate (unit) element definitions.
void	setNoTacticalGraphicsDefinitionLoading (bool val)
	Set whether to use appData directory to load tactical graphics element definitions.
bool	noTacticalGraphicsDefinitionLoading () const
	Get whether to use appData directory to load tactical graphics element definitions.
void	setNoEntityTypeMapLoading (bool val)
	Set whether to use appData directory to load entity element definitions.
bool	noEntityTypeMapLoading () const
	Get whether to use appData directory to load entity element definitions.
void	setNoAggregateTypeMapLoading (bool val)
	Set whether to use appData directory to load aggregate (unit) element definitions.
bool	noAggregateTypeMapLoading () const
	Get whether to use appData directory to load aggregate (unit) element definitions.
void	setNoTacticalGraphicsTypeMapLoading (bool val)
	Set whether to use appData directory to load tactical graphics element definitions.
bool	noTacticalGraphicsTypeMapLoading () const
	Get whether to use appData directory to load tactical graphics element definitions.
const std::vector< std::string > &	entityElementDefinitionHierFilesOrDirs () const
	Returns the name of additional entity element definition hierarchy files (.hier) (or dirs with .hier files) to merge after the entity element definitions are loaded.
void	setEntityElementDefinitionHierFilesOrDirs (const std::vector< std::string > &filesOrDirs)
	Sets the name of additional entity elements definition hierarchy (.hier) files (or dirs with .hier files) to merge after the entity element definitions are loaded.
const std::vector< std::string > &	entityElementDefinitionLeafFilesOrDirs () const
	Returns the name of additional entity element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.
void	setEntityElementDefinitionLeafFilesOrDirs (const std::vector< std::string > &filesOrDirs)
	Sets the name of additional entity element definition hierarchy (.leaf) files (or dirs with .leaf files) to merge after the entity element definitions are loaded.
const std::vector< std::string > &	aggregateElementDefinitionHierFilesOrDirs () const
	Returns the name of additional aggregate (unit) element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.
void	setAggregateElementDefinitionHierFilesOrDirs (const std::vector< std::string > &filesOrDirs)
	Sets the name of additional aggregate (unit) elements definition hierarchy (.hier) files (or dirs with .hier files) to merge after the entity element definitions are loaded.
const std::vector< std::string > &	aggregateElementDefinitionLeafFilesOrDirs () const
	Returns the name of additional entity element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.
void	setAggregateElementDefinitionLeafFilesOrDirs (const std::vector< std::string > &filesOrDirs)
	Sets the name of additional entity element definition hierarchy (.leaf) files (or dirs with .leaf files) to merge after the entity element definitions are loaded.
const std::vector< std::string > &	tacticalGraphicsElementDefinitionHierFilesOrDirs () const
	Returns the name of additional tactical graphics element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.
void	setTacticalGraphicsElementDefinitionHierFilesOrDirs (const std::vector< std::string > &filesOrDirs)
	Sets the name of additional tactical graphics elements definition hierarchy (.hier) files (or dirs with .hier files) to merge after the entity element definitions are loaded.
const std::vector< std::string > &	tacticalGraphicsElementDefinitionLeafFilesOrDirs () const
	Returns the name of additional tactical graphics element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.
void	setTacticalGraphicsElementDefinitionLeafFilesOrDirs (const std::vector< std::string > &filesOrDirs)
	Sets the name of additional tactical graphics element definition hierarchy (.leaf) files (or dirs with .leaf files) to merge after the entity element definitions are loaded.
void	setIgnoreZoomForSpeedtreeLod (bool val)
	Set whether to consider view magnification when determining speedtree LODs.
bool	ignoreZoomForSpeedtreeLod () const
	Get whether to consider view magnification when determining speedtree LODs.
void	setSuppressHatIntersectOnAttach (bool val)
	Set whether to do a regular height above terrain intersection when attached.
bool	suppressHatIntersectOnAttach () const
	Get to do a regular height above terrain intersection when attached.
void	setSynchronizedNtpTime (bool val)
	Set whether to use system clock to synchronize rendering (ocean, trees, etc) with NTP synchronized clocks.
bool	synchronizedNtpTime () const
	Get whether to use system clock to synchronize rendering (ocean, trees, etc) with NTP synchronized clocks.
void	setStartFullScreen (bool)
	Set whether the application should start up in fullscreen mode.
bool	startFullScreen () const
	Get whether the application should start up in fullscreen mode.
void	setUsePseudoFullScreen (bool enable)
	Set whether to use a windowed mode instead of true fullscreen mode for fullscreen windows.
bool	usePseudoFullScreen () const
	Get whether to use a pseudo fullscreen.
void	setUseHighestPriority (bool enable)
	Set whether to use highest priority for the application and main thread.
bool	useHighestPriority () const
	Get whether to use highest priority for the application and main thread.
void	setTcpSendTimeout (double timeout)
	Set the timeout in seconds for a tcp send command to keep trying.
double	tcpSendTimeout () const
	Get the timeout in seconds for a tcp send command to keep trying.
void	setAutoReconnectPeriod (double period)
	Set the time, in seconds, used to attempt to reattach to a remote display that has been unexpectedly disconnected.
double	autoReconnectPeriod () const
	Get the time, in seconds, used to attempt to reattach to a remote display that has been unexpectedly disconnected.
void	addDefaultSettingsRecord (const std::string &recordName, const DtBaseRecordHolder &record)
	Add a new record holder.
void	removeDefaultSettingsRecord (const std::string &record)
	Remove a default record.
const DtBaseRecordHolder *	findDefaultSettingsRecord (const std::string &name) const
	Find a settings default records.
void	setConstrainToTerrain (bool constrain)
	Set the observers to initially constrain to terrain.
bool	constrainToTerrain () const
void	setSpeedScaling (bool scale)
	Set the observers to initially scale speed.
bool	speedScaling () const
void	setVertexSelectsParent (bool selectsParent)
	set whether vertex selection selects the vertex' parent
bool	vertexSelectsParent () const
void	setDoubleBuffering (bool buffer)
	Set whether to double buffer the windows.
bool	doubleBuffer () const
void	setEnableVSync (bool sync)
	Set whether to vsync the windows.
bool	enableVSync () const
void	setFrameRate (unsigned int framesPerSec)
	Set the fixed framerate of the windows.
unsigned int	frameRate () const
void	setNumDepthBits (unsigned short numBits)
	Set the number of depth bits for the window(24, 32)
unsigned short	numDepthBits () const
void	setNumStencilBits (unsigned short numBits)
	Set the number of stencil bits for the window(0, 8)
unsigned short	numStencilBits () const
void	setNumAlphaBits (unsigned short numBits)
	Set the number of alpha bits for the window(0, 8)
unsigned short	numAlphaBits () const
void	setAntiAliasingLevel (unsigned short level)
	Set the Anti-Aliasing level for the window(0x, 2x, 4x, 8x, 16x)
unsigned short	antiAliasingLevel () const
void	setPathConfiguration (const DtDePathConfiguration &pathConfig)
	Set the initial path configuration.
DtDePathConfiguration &	pathConfiguration ()
	Access the initial path configuration.
const DtDePathConfiguration &	pathConfiguration () const
	Access the initial path configuration.
virtual void	setSupportEmail (const std::string &supportEmail)
	About box configuration.
virtual const std::string &	supportEmail () const
virtual void	setSupportPhoneNumber (const std::string &phoneNumber)
virtual const std::string &	supportPhoneNumber () const
virtual void	setSalesEmail (const std::string &email)
virtual const std::string &	salesEmail () const
virtual void	setAddressFirstLine (const std::string &address1)
virtual const std::string &	addressFirstLine () const
virtual void	setAddressSecondLine (const std::string &address2)
virtual const std::string &	addressSecondLine () const
virtual void	setAddressThirdLine (const std::string &address3)
virtual const std::string &	addressThirdLine () const
virtual void	setSlogan (const std::string &)
virtual const std::string &	slogan () const
virtual void	setWeblink (const std::string &link)
virtual const std::string &	weblink () const
virtual void	setSvnRevision (const std::string &rev)
virtual const std::string &	svnRevision () const
virtual void	setBuildDate (const std::string &date)
virtual const std::string &	buildDate () const
virtual void	setAboutBoxImage (const std::string &fname)
virtual const std::string &	aboutBoxImage () const
virtual void	setAdditionalCopyright (const std::string &copyRightString)
virtual const std::string &	additionalCopyright () const
virtual void	setMainScreenNum (unsigned short mainScreenNum)
virtual unsigned short	mainScreenNum ()
void	setExtraArgs (const std::string &argString)
	Set extra arguments as a string to be available to custom code/plugins.
const std::string &	extraArgs () const
	Get extra arguments as a string to be available to custom code/plugins.
void	setUseReverseZBuffer (bool val)
	Set whether to use reverse Z buffering (default is not to)
bool	useReverseZBuffer () const
	Get whether to use reverse Z buffering (default is not to)
void	setDisableDynamicTerrain (bool val)
	set whether or not to disable dynamic terrains
bool	disableDynamicTerrain () const
	get whether or not dynamic terrains are disabled
void	setAssembleUserInterfaceComponents (bool flag)
	Set/Get whether the application creates all the registered user interface components for the IG instance's mode.
bool	assembleUserInterfaceComponents () const
void	setApplicationName (const std::string &appName)
	Set/Get the application name.
const std::string &	applicationName () const
void	setApplicationVersion (const std::string &v)
	Set/Get the application version (default 1.0).
const std::string &	applicationVersion () const
void	setShowQuitDialogOnClose (bool show)
	Set/Get whether or not to show quit dialog when main last window is closed.
bool	showQuitDialogOnClose () const
void	setApplicationIcon (const std::string &appIcon)
	Set/Get the application icon.
const std::string &	applicationIcon () const
const DtDriverConfiguration &	driverConfiguration () const
	Get the driver configuration.
DtDriverConfiguration &	driverConfiguration ()
const DtGuiConfiguration &	guiConfiguration () const
	Get the driver configuration.
DtGuiConfiguration &	guiConfiguration ()
const DtInputDriverConfiguration &	inputDriverConfiguration () const
	Get the input driver configuration.
DtInputDriverConfiguration &	inputDriverConfiguration ()
virtual void	setKdTreesDisabled (bool disabled)
	Set / get whether KD trees (for intersections are disabled)
virtual bool	kdTreesDisabled () const
virtual void	setForceTextShaping (bool force)
	Set / get whether Text Shaping is force enabled or not.
virtual bool	forceTextShaping () const
Public Member Functions inherited from makVrv::DtConfiguration
	DtConfiguration (const std::string &name="")
	CTOR.
	DtConfiguration (const DtConfiguration &)
	Copy CTOR.
DtConfiguration &	operator= (const DtConfiguration &)
	Assignment OP.
virtual	~DtConfiguration ()
	DTOR.
virtual const std::string &	name () const
	Get the configuration name.
virtual void	setName (const std::string &name)
	Set the configuration name.
virtual const std::string *	findOptionalParameter (const std::string &name) const
	Find an optional parameters.
virtual void	setOptionalParameter (const std::string &name, const std::string &value)
	Set an optional parameter.
virtual void	setOptionalParameters (const ParameterMap &)
	Set an optional parameters.
virtual void	removeOptionalParameter (const std::string &name)
	Remove an optional parameter.
const ParameterMap &	optionalParameters () const
	Get the optional parameters.

Protected Attributes
std::string	myBuildDate
std::string	myApplicationName
std::string	myApplicationIcon
bool	myLoadPluginsFlag
bool	myLoadingIgUserInterfaceFlag
std::list< std::string >	myPluginFiles
std::list< std::string >	myExcludedPluginFiles
bool	myShowQuitDialogOnClose
std::string	myApplicationVersion
DtDriverConfiguration	myDriverConfiguration
	To feed into a DtDeInitializer:
DtGuiConfiguration	myGuiConfiguration
DtInputDriverConfiguration	myInputDriverConfiguration
std::string	myDisplayEngineName
DtDePathConfiguration	myPathConfiguration
DtDeConfiguration	myDeConfiguration
DtDeInitializer::DeMode	myDeMode
DtDeInitializer::DriverInstanceList	myDriverInstances
std::string	myCoordinateSystem
std::string	myCoordinateSystemParameters
int	myNotifyLevel
std::string	myLogFileName
std::string	myModelPreloadFilename
std::string	myDiscoveredModelPreloadFilename
bool	myAutoLoadDriversFlag
DtDeInitializer::AuthorizationCodeMap	myAuthorizationCodeMap
std::vector< std::string >	myAutoStartDrivers
DtDeInitializer::ObserverStateMap	myObserverStateMap
std::vector< std::string >	myMappingFilesToLoad
std::vector< std::string >	myEntityElementDefinitionHiersToMerge
std::vector< std::string >	myEntityElementDefinitionLeafsToMerge
std::vector< std::string >	myAggregateDefinitionHiersToMerge
std::vector< std::string >	myAggregateDefinitionLeafsToMerge
std::vector< std::string >	myTacticalGraphicsDefinitionHiersToMerge
std::vector< std::string >	myTacticalGraphicsDefinitionLeafsToMerge
std::vector< std::string >	myModelDefinitionsToMerge
std::vector< std::string >	myEntityTypeMapsToMerge
std::vector< std::string >	myAggregateTypeMapsToMerge
std::vector< std::string >	myTacticalGraphicsTypeMapsToMerge
DtDeInitializer::DisplayConnections	myDisplayConnections
std::string	myAutoLoadFile
bool	myFullScreenFlag
bool	myUsePseudoFullScreenFlag
bool	myConstrainToTerrainFlag
bool	mySpeedScalingFlag
bool	myVertexSelectsParentFlag
bool	myDoubleBufferFlag
bool	myEnableVSyncFlag
bool	myBatchedRenderingFlag
bool	myNoEntityDefinitionLoadingFlag
bool	myNoAggregateDefinitionLoadingFlag
bool	myNoTacticalGraphicsDefinitionLoadingFlag
bool	myNoModelDefinitionLoadingFlag
bool	myNoEntityTypeMapLoadingFlag
bool	myNoAggregateTypeMapLoadingFlag
bool	myNoTacticalGraphicsTypeMapLoadingFlag
bool	myEnableOculusRiftFlag
bool	mySynchronizedNtpTimeFlag
bool	myIgnoreZoomForSpeedtreeLod
bool	mySuppressHatIntersectOnAttach
bool	myDisableKdTrees
bool	myForceTextShaping
bool	myUseHighestPriorityFlag
double	myTcpSendTimeout
double	myAutoReconnectPeriod
unsigned int	myFrameRate
unsigned short	myNumDepthBits
unsigned short	myNumStencilBits
unsigned short	myNumAlphaBits
unsigned short	myAntiAliasingLevel
short	myMainScreenNum
DtDeInitializer::DefaultRecordMap	myDefaultRecords
DtDeInitializer::DeFeatures	myFeatures
UIConfiguration	myMasterModeUIConfiguration
UIConfiguration	mySlaveModeUIConfiguration
std::string	mySupportEmail
	About box strings.
std::string	mySupportPhoneNumber
std::string	mySalesEmail
std::string	myAddressFirstLine
std::string	myAddressSecondLine
std::string	myAddressThirdLine
std::string	mySlogan
std::string	myWeblink
std::string	mySvnRevision
std::string	myAboutBoxImage
std::string	myAdditionalCopyright
bool	myUseReverseZBuffer
std::string	myExtraArgs
bool	myDisableDynamicTerrain
Protected Attributes inherited from makVrv::DtConfiguration
std::string	myName
ParameterMap	myOptionalParameters
DtProxyWP	myAttachedInterface

Additional Inherited Members
Public Types inherited from makVrv::DtConfiguration
typedef std::map< std::string, std::string >	ParameterMap
Protected Member Functions inherited from makVrv::DtConfiguration
template<class Archive >
void	_serialize (Archive &ar, const unsigned int version)
	Declare serialize functions Call via serialize(Archive ar, unsigned int version); Where Archive can be any of : xml_oarchive,xml_iarchive,binary_oarchive binary_iarchive,text_oarchive, or text_iarchive example: fstream fo("test.xml",std;:ios_base::out); xml_oarchive os(fo); DtConfiguration aConfig; aConfig.serialize(os,0);.

Detailed Description

This owns a list of display engine configurations.

Constructor & Destructor Documentation

makVrv::DtVrvApplicationConfiguration::DtVrvApplicationConfiguration

(

)

CTOR.

makVrv::DtVrvApplicationConfiguration::DtVrvApplicationConfiguration

(

const DtVrvApplicationConfiguration &

)

Copy CTOR.

virtual makVrv::DtVrvApplicationConfiguration::~DtVrvApplicationConfiguration ( )

virtual

DTOR.

Member Function Documentation

DtVrvApplicationConfiguration& makVrv::DtVrvApplicationConfiguration::operator=

(

const DtVrvApplicationConfiguration &

)

Assignment Op.

bool makVrv::DtVrvApplicationConfiguration::loadPlugins

(

)

Do we load plugins.

void makVrv::DtVrvApplicationConfiguration::setLoadPlugins

(

bool

enable

)

Set whether the IG loads plugins during initialization.

void makVrv::DtVrvApplicationConfiguration::addPluginFile

(

const std::string &

file

)

Add a plug-in file not located in the plugin directory.

const std::list<std::string>& makVrv::DtVrvApplicationConfiguration::pluginFiles

(

)

const

Get a list of additional plugin files.

void makVrv::DtVrvApplicationConfiguration::excludePluginFile

(

const std::string &

file

)

Exclude a plug-in file, typically localed in the plugin directory.

const std::list<std::string>& makVrv::DtVrvApplicationConfiguration::excludedPluginFiles

(

)

const

Get a list of plugins not to load.

void makVrv::DtVrvApplicationConfiguration::setAssembleUserInterfaceComponents

(

bool

flag

)

Set/Get whether the application creates all the registered user interface components for the IG instance's mode.

bool makVrv::DtVrvApplicationConfiguration::assembleUserInterfaceComponents

(

)

const

void makVrv::DtVrvApplicationConfiguration::setApplicationName

(

const std::string &

appName

)

Set/Get the application name.

const std::string& makVrv::DtVrvApplicationConfiguration::applicationName

(

)

const

void makVrv::DtVrvApplicationConfiguration::setApplicationVersion

(

const std::string &

v

)

Set/Get the application version (default 1.0).

const std::string& makVrv::DtVrvApplicationConfiguration::applicationVersion

(

)

const

void makVrv::DtVrvApplicationConfiguration::setShowQuitDialogOnClose

(

bool

show

)

Set/Get whether or not to show quit dialog when main last window is closed.

bool makVrv::DtVrvApplicationConfiguration::showQuitDialogOnClose

(

)

const

void makVrv::DtVrvApplicationConfiguration::setApplicationIcon

(

const std::string &

appIcon

)

Set/Get the application icon.

const std::string& makVrv::DtVrvApplicationConfiguration::applicationIcon

(

)

const

const UIConfiguration& makVrv::DtVrvApplicationConfiguration::masterModeUIConfiguration

(

)

const

UIConfiguration& makVrv::DtVrvApplicationConfiguration::masterModeUIConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setMasterModeMenuConfiguration

(

const DtMenuConfiguration &

menuConfig

)

const DtMenuConfiguration& makVrv::DtVrvApplicationConfiguration::masterModeMenuConfiguration

(

)

const

DtMenuConfiguration& makVrv::DtVrvApplicationConfiguration::masterModeMenuConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setMasterModeToolbarConfiguration

(

const DtToolbarConfiguration &

toolbarConfig

)

const DtToolbarConfiguration& makVrv::DtVrvApplicationConfiguration::masterModeToolbarConfiguration

(

)

const

DtToolbarConfiguration& makVrv::DtVrvApplicationConfiguration::masterModeToolbarConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setMasterModePageConfiguration

(

const DtPageConfiguration &

pageConfig

)

const DtPageConfiguration& makVrv::DtVrvApplicationConfiguration::masterModePageConfiguration

(

)

const

DtPageConfiguration& makVrv::DtVrvApplicationConfiguration::masterModePageConfiguration

(

)

const UIConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModeUIConfiguration

(

)

const

UIConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModeUIConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setSlaveModeMenuConfiguration

(

const DtMenuConfiguration &

menuConfig

)

const DtMenuConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModeMenuConfiguration

(

)

const

DtMenuConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModeMenuConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setSlaveModeToolbarConfiguration

(

const DtToolbarConfiguration &

toolbarConfig

)

const DtToolbarConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModeToolbarConfiguration

(

)

const

DtToolbarConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModeToolbarConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setSlaveModePageConfiguration

(

const DtPageConfiguration &

pageConfig

)

const DtPageConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModePageConfiguration

(

)

const

DtPageConfiguration& makVrv::DtVrvApplicationConfiguration::slaveModePageConfiguration

(

)

DtDeInitializer makVrv::DtVrvApplicationConfiguration::buildInitializer

(

)

Generate a DtDeInitializer from the app config state.

const DtDriverConfiguration& makVrv::DtVrvApplicationConfiguration::driverConfiguration

(

)

const

Get the driver configuration.

DtDriverConfiguration& makVrv::DtVrvApplicationConfiguration::driverConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setDriverConfiguration

(

const DtDriverConfiguration &

)

Set the driver configuration.

const DtGuiConfiguration& makVrv::DtVrvApplicationConfiguration::guiConfiguration

(

)

const

Get the driver configuration.

DtGuiConfiguration& makVrv::DtVrvApplicationConfiguration::guiConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setGuiConfiguration

(

const DtGuiConfiguration &

)

Set the driver configuration.

const DtInputDriverConfiguration& makVrv::DtVrvApplicationConfiguration::inputDriverConfiguration

(

)

const

Get the input driver configuration.

DtInputDriverConfiguration& makVrv::DtVrvApplicationConfiguration::inputDriverConfiguration

(

)

void makVrv::DtVrvApplicationConfiguration::setInputDriverConfiguration

(

const DtInputDriverConfiguration &

config

)

Set the input driver configuration.

const std::string& makVrv::DtVrvApplicationConfiguration::displayName

(

)

const

Returns the name of the active local display configuration.

void makVrv::DtVrvApplicationConfiguration::setDisplayEngineName

(

const std::string &

name

)

Set the active local display engine configuration.

DtDeInitializer::DeMode makVrv::DtVrvApplicationConfiguration::deMode

(

)

const

Return myDeMode;.

void makVrv::DtVrvApplicationConfiguration::setDeMode

(

DtDeInitializer::DeMode

mode

)

Set myDeMode.

void makVrv::DtVrvApplicationConfiguration::setDeFeatures

(

DtDeInitializer::DeFeatures

features

)

Set the de feature flags.

void makVrv::DtVrvApplicationConfiguration::setDefaultDrivers

(

const DtDeInitializer::DriverInstanceList &

drivers

)

Set the driver instance list.

const DtDeInitializer::DriverInstanceList& makVrv::DtVrvApplicationConfiguration::defaultDrivers

(

)

const

Get the default driver list.

void makVrv::DtVrvApplicationConfiguration::setDeConfiguration

(

const DtDeConfiguration &

config

)

Set the initial de configuration.

DtDeConfiguration& makVrv::DtVrvApplicationConfiguration::deConfiguration

(

)

Get the initial de configuration.

const DtDeConfiguration& makVrv::DtVrvApplicationConfiguration::deConfiguration

(

)

const

Get the initial de configuration.

void makVrv::DtVrvApplicationConfiguration::setCoordinateSystem	(	const std::string &	coordinateSystem,
		const std::string &	parameters
	)

Set the coordinate system and parameters.

const std::string& makVrv::DtVrvApplicationConfiguration::coordinateSystem

(

)

const

Get the name of the coordinate system.

const std::string& makVrv::DtVrvApplicationConfiguration::coordinateSystemParameters

(

)

const

Get the parameters of the coordinate system.

void makVrv::DtVrvApplicationConfiguration::setNotifyLevel

(

DtDebugLog::PrintLevel

level

)

Set the initial notify level of print output.

DtDebugLog::PrintLevel makVrv::DtVrvApplicationConfiguration::notifyLevel

(

)

const

Get the initial notify level of print output.

void makVrv::DtVrvApplicationConfiguration::setLogFileName

(

const std::string &

filename

)

Set the log file name.

const std::string& makVrv::DtVrvApplicationConfiguration::logFileName

(

)

const

Get the name of the output log.

void makVrv::DtVrvApplicationConfiguration::setModelPreloadFilename

(

const std::string &

filename

)

Set the preload file name.

const std::string& makVrv::DtVrvApplicationConfiguration::modelPreloadFilename

(

)

const

Get the name of the preload file.

void makVrv::DtVrvApplicationConfiguration::setDiscoveredModelPreloadFilename

(

const std::string &

filename

)

Set the missing model preload file name.

const std::string& makVrv::DtVrvApplicationConfiguration::discoveredModelPreloadFilename

(

)

const

Get the name of the missing model preload file.

void makVrv::DtVrvApplicationConfiguration::setAutoLoadDrivers

(

bool

autoLoad

)

Set whether saved drivers in the driver directory should be automatically loaded.

bool makVrv::DtVrvApplicationConfiguration::autoLoadDrivers

(

)

const

Get whether saved drivers in the driver directory should be automatically loaded.

void makVrv::DtVrvApplicationConfiguration::setAutoStartDrivers

(

const std::vector< std::string > &

names

)

Set the auto start drivers.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::autoStartDrivers

(

)

const

Get the auto start drivers.

void makVrv::DtVrvApplicationConfiguration::setAuthorizationCodeMap

(

const DtDeInitializer::AuthorizationCodeMap &

map

)

Assigns the authorization code mapping.

void makVrv::DtVrvApplicationConfiguration::addAuthorizationCodeMapping	(	const std::string &	key,
		const std::string &	value
	)

Adds an authorization code mapping.

void makVrv::DtVrvApplicationConfiguration::removeAuthorizationCodeMapping

(

const std::string &

key

)

Removes an authorization code mapping.

const std::string* makVrv::DtVrvApplicationConfiguration::findAuthorizationCodeValue

(

const std::string &

key

)

const

Find an authorization code value from a key.

Returns NULL if key isn't found.

void makVrv::DtVrvApplicationConfiguration::setObserverStateMap

(

const DtDeInitializer::ObserverStateMap &

osm

)

Set the ObserverStateMap. Used by DtInputDriver when creating observers.

const DtDeInitializer::ObserverStateMap& makVrv::DtVrvApplicationConfiguration::observerStateMap

(

)

const

Get the ObserverStateMap. Used by DtInputDriver when creating observers.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::mappingFilesToLoad

(

)

const

Get the mapping files to load.

void makVrv::DtVrvApplicationConfiguration::setMappingFilesToLoad

(

const std::vector< std::string > &

)

Set the mapping files to load.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::modelDefinitionFilesOrDirsToMerge

(

)

const

Get the model definition files or directories to merge.

void makVrv::DtVrvApplicationConfiguration::setModelDefinitionFilesOrDirsToMerge

(

const std::vector< std::string > &

)

Set the model definition files or directory of files to merge at start up.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::entityTypeMapFilesOrDirsToMerge

(

)

const

Get the entity type files or directories to merge at startup.

void makVrv::DtVrvApplicationConfiguration::setEntityTypeMapFilesOrDirsToMerge

(

const std::vector< std::string > &

)

Set the entity type map files or directory of files to merge at start up.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::aggregateTypeMapFilesOrDirsToMerge

(

)

const

Get the aggregate type files or directories to merge at startup.

void makVrv::DtVrvApplicationConfiguration::setAggregateTypeMapFilesOrDirsToMerge

(

const std::vector< std::string > &

)

Set the aggregate type map files or directory of files to merge at start up.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::tacticalGraphicsTypeMapFilesOrDirsToMerge

(

)

const

Get the tactical graphics type files or directories to merge at startup.

void makVrv::DtVrvApplicationConfiguration::setTacticalGraphicsTypeMapFilesOrDirsToMerge

(

const std::vector< std::string > &

)

Set the tactical graphics type map files or directory of files to merge at start up.

const DtDeInitializer::DisplayConnections& makVrv::DtVrvApplicationConfiguration::displayConnections

(

)

const

Get the list of connections to make.

DtDeInitializer::DisplayConnections& makVrv::DtVrvApplicationConfiguration::displayConnections

(

)

void makVrv::DtVrvApplicationConfiguration::setDisplayConnections

(

const DtDeInitializer::DisplayConnections &

displayConnections

)

void makVrv::DtVrvApplicationConfiguration::setAutoLoadFile

(

const std::string &

file

)

Set the file to automatically load.

const std::string& makVrv::DtVrvApplicationConfiguration::autoLoadFile

(

)

const

Get the file to automatically load.

void makVrv::DtVrvApplicationConfiguration::setBatchedRendering

(

bool

val

)

Set whether to use batched instance rendering.

bool makVrv::DtVrvApplicationConfiguration::batchedRendering

(

)

const

Get whether batched instance rendering is enabled.

void makVrv::DtVrvApplicationConfiguration::setNoEntityDefinitionLoading

(

bool

val

)

Set whether to use appData directory to load entity element definitions.

bool makVrv::DtVrvApplicationConfiguration::noEntityDefinitionLoading

(

)

const

Get whether to use appData directory to load entity element definitions.

void makVrv::DtVrvApplicationConfiguration::setNoModelDefinitionLoading

(

bool

val

)

Set whether to use appData directory to load entity element definitions.

bool makVrv::DtVrvApplicationConfiguration::noModelDefinitionLoading

(

)

const

Get whether to use appData directory to load entity element definitions.

void makVrv::DtVrvApplicationConfiguration::setNoAggregateDefinitionLoading

(

bool

val

)

Set whether to use appData directory to load aggregate (unit) element definitions.

bool makVrv::DtVrvApplicationConfiguration::noAggregateDefinitionLoading

(

)

const

Get whether to use appData directory to load aggregate (unit) element definitions.

void makVrv::DtVrvApplicationConfiguration::setNoTacticalGraphicsDefinitionLoading

(

bool

val

)

Set whether to use appData directory to load tactical graphics element definitions.

bool makVrv::DtVrvApplicationConfiguration::noTacticalGraphicsDefinitionLoading

(

)

const

Get whether to use appData directory to load tactical graphics element definitions.

void makVrv::DtVrvApplicationConfiguration::setNoEntityTypeMapLoading

(

bool

val

)

Set whether to use appData directory to load entity element definitions.

bool makVrv::DtVrvApplicationConfiguration::noEntityTypeMapLoading

(

)

const

Get whether to use appData directory to load entity element definitions.

void makVrv::DtVrvApplicationConfiguration::setNoAggregateTypeMapLoading

(

bool

val

)

Set whether to use appData directory to load aggregate (unit) element definitions.

bool makVrv::DtVrvApplicationConfiguration::noAggregateTypeMapLoading

(

)

const

Get whether to use appData directory to load aggregate (unit) element definitions.

void makVrv::DtVrvApplicationConfiguration::setNoTacticalGraphicsTypeMapLoading

(

bool

val

)

Set whether to use appData directory to load tactical graphics element definitions.

bool makVrv::DtVrvApplicationConfiguration::noTacticalGraphicsTypeMapLoading

(

)

const

Get whether to use appData directory to load tactical graphics element definitions.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::entityElementDefinitionHierFilesOrDirs

(

)

const

Returns the name of additional entity element definition hierarchy files (.hier) (or dirs with .hier files) to merge after the entity element definitions are loaded.

void makVrv::DtVrvApplicationConfiguration::setEntityElementDefinitionHierFilesOrDirs

(

const std::vector< std::string > &

filesOrDirs

)

Sets the name of additional entity elements definition hierarchy (.hier) files (or dirs with .hier files) to merge after the entity element definitions are loaded.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::entityElementDefinitionLeafFilesOrDirs

(

)

const

Returns the name of additional entity element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.

void makVrv::DtVrvApplicationConfiguration::setEntityElementDefinitionLeafFilesOrDirs

(

const std::vector< std::string > &

filesOrDirs

)

Sets the name of additional entity element definition hierarchy (.leaf) files (or dirs with .leaf files) to merge after the entity element definitions are loaded.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::aggregateElementDefinitionHierFilesOrDirs

(

)

const

Returns the name of additional aggregate (unit) element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.

void makVrv::DtVrvApplicationConfiguration::setAggregateElementDefinitionHierFilesOrDirs

(

const std::vector< std::string > &

filesOrDirs

)

Sets the name of additional aggregate (unit) elements definition hierarchy (.hier) files (or dirs with .hier files) to merge after the entity element definitions are loaded.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::aggregateElementDefinitionLeafFilesOrDirs

(

)

const

Returns the name of additional entity element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.

void makVrv::DtVrvApplicationConfiguration::setAggregateElementDefinitionLeafFilesOrDirs

(

const std::vector< std::string > &

filesOrDirs

)

Sets the name of additional entity element definition hierarchy (.leaf) files (or dirs with .leaf files) to merge after the entity element definitions are loaded.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::tacticalGraphicsElementDefinitionHierFilesOrDirs

(

)

const

Returns the name of additional tactical graphics element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.

void makVrv::DtVrvApplicationConfiguration::setTacticalGraphicsElementDefinitionHierFilesOrDirs

(

const std::vector< std::string > &

filesOrDirs

)

Sets the name of additional tactical graphics elements definition hierarchy (.hier) files (or dirs with .hier files) to merge after the entity element definitions are loaded.

const std::vector<std::string>& makVrv::DtVrvApplicationConfiguration::tacticalGraphicsElementDefinitionLeafFilesOrDirs

(

)

const

Returns the name of additional tactical graphics element definition leaf files (.leaf) and/or directories to merge after the entity element definitions are loaded .leaf files contain entities that have no child entities.

void makVrv::DtVrvApplicationConfiguration::setTacticalGraphicsElementDefinitionLeafFilesOrDirs

(

const std::vector< std::string > &

filesOrDirs

)

Sets the name of additional tactical graphics element definition hierarchy (.leaf) files (or dirs with .leaf files) to merge after the entity element definitions are loaded.

void makVrv::DtVrvApplicationConfiguration::setIgnoreZoomForSpeedtreeLod

(

bool

val

)

Set whether to consider view magnification when determining speedtree LODs.

bool makVrv::DtVrvApplicationConfiguration::ignoreZoomForSpeedtreeLod

(

)

const

Get whether to consider view magnification when determining speedtree LODs.

void makVrv::DtVrvApplicationConfiguration::setSuppressHatIntersectOnAttach

(

bool

val

)

Set whether to do a regular height above terrain intersection when attached.

Normally you want to to make dynamic near clipping planes when attached to work correctly. BUT if you are only going to attach to ground vehicles, you can skip the intersection which will result in smoother performance LODs

bool makVrv::DtVrvApplicationConfiguration::suppressHatIntersectOnAttach

(

)

const

Get to do a regular height above terrain intersection when attached.

void makVrv::DtVrvApplicationConfiguration::setSynchronizedNtpTime

(

bool

val

)

Set whether to use system clock to synchronize rendering (ocean, trees, etc) with NTP synchronized clocks.

bool makVrv::DtVrvApplicationConfiguration::synchronizedNtpTime

(

)

const

Get whether to use system clock to synchronize rendering (ocean, trees, etc) with NTP synchronized clocks.

virtual void makVrv::DtVrvApplicationConfiguration::setKdTreesDisabled ( bool  disabled )

virtual

Set / get whether KD trees (for intersections are disabled)

virtual bool makVrv::DtVrvApplicationConfiguration::kdTreesDisabled ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setForceTextShaping ( bool  force )

virtual

Set / get whether Text Shaping is force enabled or not.

virtual bool makVrv::DtVrvApplicationConfiguration::forceTextShaping ( ) const

virtual

void makVrv::DtVrvApplicationConfiguration::setStartFullScreen

(

bool

)

Set whether the application should start up in fullscreen mode.

bool makVrv::DtVrvApplicationConfiguration::startFullScreen

(

)

const

Get whether the application should start up in fullscreen mode.

void makVrv::DtVrvApplicationConfiguration::setUsePseudoFullScreen

(

bool

enable

)

Set whether to use a windowed mode instead of true fullscreen mode for fullscreen windows.

Note that Cuda (used by Triton) gets stalled by VSync when using true fullscreen; on the other hand, to avoid Windows thinking the windowed screen is really full screen a one pixel border is on the window that may be visible and need to be masked out when used with projected systems. By default the true fullscreen mode is used; use this flag to use the pseudo (windowed) fullscreen.

bool makVrv::DtVrvApplicationConfiguration::usePseudoFullScreen

(

)

const

Get whether to use a pseudo fullscreen.

void makVrv::DtVrvApplicationConfiguration::setUseHighestPriority

(

bool

enable

)

Set whether to use highest priority for the application and main thread.

bool makVrv::DtVrvApplicationConfiguration::useHighestPriority

(

)

const

Get whether to use highest priority for the application and main thread.

void makVrv::DtVrvApplicationConfiguration::setTcpSendTimeout

(

double

timeout

)

Set the timeout in seconds for a tcp send command to keep trying.

double makVrv::DtVrvApplicationConfiguration::tcpSendTimeout

(

)

const

Get the timeout in seconds for a tcp send command to keep trying.

void makVrv::DtVrvApplicationConfiguration::setAutoReconnectPeriod

(

double

period

)

Set the time, in seconds, used to attempt to reattach to a remote display that has been unexpectedly disconnected.

Period < 0. (the default) disables the capability

double makVrv::DtVrvApplicationConfiguration::autoReconnectPeriod

(

)

const

Get the time, in seconds, used to attempt to reattach to a remote display that has been unexpectedly disconnected.

Period < 0. (the default) disables the capability

void makVrv::DtVrvApplicationConfiguration::addDefaultSettingsRecord	(	const std::string &	recordName,
		const DtBaseRecordHolder &	record
	)

Add a new record holder.

void makVrv::DtVrvApplicationConfiguration::removeDefaultSettingsRecord

(

const std::string &

record

)

Remove a default record.

const DtBaseRecordHolder* makVrv::DtVrvApplicationConfiguration::findDefaultSettingsRecord

(

const std::string &

name

)

const

Find a settings default records.

void makVrv::DtVrvApplicationConfiguration::setConstrainToTerrain

(

bool

constrain

)

Set the observers to initially constrain to terrain.

bool makVrv::DtVrvApplicationConfiguration::constrainToTerrain

(

)

const

void makVrv::DtVrvApplicationConfiguration::setSpeedScaling

(

bool

scale

)

Set the observers to initially scale speed.

bool makVrv::DtVrvApplicationConfiguration::speedScaling

(

)

const

void makVrv::DtVrvApplicationConfiguration::setVertexSelectsParent

(

bool

selectsParent

)

set whether vertex selection selects the vertex' parent

bool makVrv::DtVrvApplicationConfiguration::vertexSelectsParent

(

)

const

void makVrv::DtVrvApplicationConfiguration::setDoubleBuffering

(

bool

buffer

)

Set whether to double buffer the windows.

bool makVrv::DtVrvApplicationConfiguration::doubleBuffer

(

)

const

void makVrv::DtVrvApplicationConfiguration::setEnableVSync

(

bool

sync

)

Set whether to vsync the windows.

bool makVrv::DtVrvApplicationConfiguration::enableVSync

(

)

const

void makVrv::DtVrvApplicationConfiguration::setFrameRate

(

unsigned int

framesPerSec

)

Set the fixed framerate of the windows.

unsigned int makVrv::DtVrvApplicationConfiguration::frameRate

(

)

const

void makVrv::DtVrvApplicationConfiguration::setNumDepthBits

(

unsigned short

numBits

)

Set the number of depth bits for the window(24, 32)

unsigned short makVrv::DtVrvApplicationConfiguration::numDepthBits

(

)

const

void makVrv::DtVrvApplicationConfiguration::setNumStencilBits

(

unsigned short

numBits

)

Set the number of stencil bits for the window(0, 8)

unsigned short makVrv::DtVrvApplicationConfiguration::numStencilBits

(

)

const

void makVrv::DtVrvApplicationConfiguration::setNumAlphaBits

(

unsigned short

numBits

)

Set the number of alpha bits for the window(0, 8)

unsigned short makVrv::DtVrvApplicationConfiguration::numAlphaBits

(

)

const

void makVrv::DtVrvApplicationConfiguration::setAntiAliasingLevel

(

unsigned short

level

)

Set the Anti-Aliasing level for the window(0x, 2x, 4x, 8x, 16x)

unsigned short makVrv::DtVrvApplicationConfiguration::antiAliasingLevel

(

)

const

void makVrv::DtVrvApplicationConfiguration::setPathConfiguration

(

const DtDePathConfiguration &

pathConfig

)

Set the initial path configuration.

DtDePathConfiguration& makVrv::DtVrvApplicationConfiguration::pathConfiguration

(

)

Access the initial path configuration.

const DtDePathConfiguration& makVrv::DtVrvApplicationConfiguration::pathConfiguration

(

)

const

Access the initial path configuration.

virtual void makVrv::DtVrvApplicationConfiguration::setSupportEmail ( const std::string &  supportEmail )

virtual

About box configuration.

virtual const std::string& makVrv::DtVrvApplicationConfiguration::supportEmail ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setSupportPhoneNumber ( const std::string &  phoneNumber )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::supportPhoneNumber ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setSalesEmail ( const std::string &  email )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::salesEmail ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setAddressFirstLine ( const std::string &  address1 )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::addressFirstLine ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setAddressSecondLine ( const std::string &  address2 )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::addressSecondLine ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setAddressThirdLine ( const std::string &  address3 )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::addressThirdLine ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setSlogan ( const std::string &  )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::slogan ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setWeblink ( const std::string &  link )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::weblink ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setSvnRevision ( const std::string &  rev )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::svnRevision ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setBuildDate ( const std::string &  date )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::buildDate ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setAboutBoxImage ( const std::string &  fname )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::aboutBoxImage ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setAdditionalCopyright ( const std::string &  copyRightString )

virtual

virtual const std::string& makVrv::DtVrvApplicationConfiguration::additionalCopyright ( ) const

virtual

virtual void makVrv::DtVrvApplicationConfiguration::setMainScreenNum ( unsigned short  mainScreenNum )

virtual

virtual unsigned short makVrv::DtVrvApplicationConfiguration::mainScreenNum ( )

virtual

void makVrv::DtVrvApplicationConfiguration::setExtraArgs

(

const std::string &

argString

)

Set extra arguments as a string to be available to custom code/plugins.

const std::string& makVrv::DtVrvApplicationConfiguration::extraArgs

(

)

const

Get extra arguments as a string to be available to custom code/plugins.

void makVrv::DtVrvApplicationConfiguration::setUseReverseZBuffer

(

bool

val

)

Set whether to use reverse Z buffering (default is not to)

bool makVrv::DtVrvApplicationConfiguration::useReverseZBuffer

(

)

const

Get whether to use reverse Z buffering (default is not to)

void makVrv::DtVrvApplicationConfiguration::setDisableDynamicTerrain

(

bool

val

)

set whether or not to disable dynamic terrains

bool makVrv::DtVrvApplicationConfiguration::disableDynamicTerrain

(

)

const

get whether or not dynamic terrains are disabled

Member Data Documentation

std::string makVrv::DtVrvApplicationConfiguration::myBuildDate

protected

std::string makVrv::DtVrvApplicationConfiguration::myApplicationName

protected

std::string makVrv::DtVrvApplicationConfiguration::myApplicationIcon

protected

bool makVrv::DtVrvApplicationConfiguration::myLoadPluginsFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myLoadingIgUserInterfaceFlag

protected

std::list<std::string> makVrv::DtVrvApplicationConfiguration::myPluginFiles

protected

std::list<std::string> makVrv::DtVrvApplicationConfiguration::myExcludedPluginFiles

protected

bool makVrv::DtVrvApplicationConfiguration::myShowQuitDialogOnClose

protected

std::string makVrv::DtVrvApplicationConfiguration::myApplicationVersion

protected

DtDriverConfiguration makVrv::DtVrvApplicationConfiguration::myDriverConfiguration

protected

To feed into a DtDeInitializer:

DtGuiConfiguration makVrv::DtVrvApplicationConfiguration::myGuiConfiguration

protected

DtInputDriverConfiguration makVrv::DtVrvApplicationConfiguration::myInputDriverConfiguration

protected

std::string makVrv::DtVrvApplicationConfiguration::myDisplayEngineName

protected

DtDePathConfiguration makVrv::DtVrvApplicationConfiguration::myPathConfiguration

protected

DtDeConfiguration makVrv::DtVrvApplicationConfiguration::myDeConfiguration

protected

DtDeInitializer::DeMode makVrv::DtVrvApplicationConfiguration::myDeMode

protected

DtDeInitializer::DriverInstanceList makVrv::DtVrvApplicationConfiguration::myDriverInstances

protected

std::string makVrv::DtVrvApplicationConfiguration::myCoordinateSystem

protected

std::string makVrv::DtVrvApplicationConfiguration::myCoordinateSystemParameters

protected

int makVrv::DtVrvApplicationConfiguration::myNotifyLevel

protected

std::string makVrv::DtVrvApplicationConfiguration::myLogFileName

protected

std::string makVrv::DtVrvApplicationConfiguration::myModelPreloadFilename

protected

std::string makVrv::DtVrvApplicationConfiguration::myDiscoveredModelPreloadFilename

protected

bool makVrv::DtVrvApplicationConfiguration::myAutoLoadDriversFlag

protected

DtDeInitializer::AuthorizationCodeMap makVrv::DtVrvApplicationConfiguration::myAuthorizationCodeMap

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myAutoStartDrivers

protected

DtDeInitializer::ObserverStateMap makVrv::DtVrvApplicationConfiguration::myObserverStateMap

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myMappingFilesToLoad

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myEntityElementDefinitionHiersToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myEntityElementDefinitionLeafsToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myAggregateDefinitionHiersToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myAggregateDefinitionLeafsToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myTacticalGraphicsDefinitionHiersToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myTacticalGraphicsDefinitionLeafsToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myModelDefinitionsToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myEntityTypeMapsToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myAggregateTypeMapsToMerge

protected

std::vector<std::string> makVrv::DtVrvApplicationConfiguration::myTacticalGraphicsTypeMapsToMerge

protected

DtDeInitializer::DisplayConnections makVrv::DtVrvApplicationConfiguration::myDisplayConnections

protected

std::string makVrv::DtVrvApplicationConfiguration::myAutoLoadFile

protected

bool makVrv::DtVrvApplicationConfiguration::myFullScreenFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myUsePseudoFullScreenFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myConstrainToTerrainFlag

protected

bool makVrv::DtVrvApplicationConfiguration::mySpeedScalingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myVertexSelectsParentFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myDoubleBufferFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myEnableVSyncFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myBatchedRenderingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoEntityDefinitionLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoAggregateDefinitionLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoTacticalGraphicsDefinitionLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoModelDefinitionLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoEntityTypeMapLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoAggregateTypeMapLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myNoTacticalGraphicsTypeMapLoadingFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myEnableOculusRiftFlag

protected

bool makVrv::DtVrvApplicationConfiguration::mySynchronizedNtpTimeFlag

protected

bool makVrv::DtVrvApplicationConfiguration::myIgnoreZoomForSpeedtreeLod

protected

bool makVrv::DtVrvApplicationConfiguration::mySuppressHatIntersectOnAttach

protected

bool makVrv::DtVrvApplicationConfiguration::myDisableKdTrees

protected

bool makVrv::DtVrvApplicationConfiguration::myForceTextShaping

protected

bool makVrv::DtVrvApplicationConfiguration::myUseHighestPriorityFlag

protected

double makVrv::DtVrvApplicationConfiguration::myTcpSendTimeout

protected

double makVrv::DtVrvApplicationConfiguration::myAutoReconnectPeriod

protected

unsigned int makVrv::DtVrvApplicationConfiguration::myFrameRate

protected

unsigned short makVrv::DtVrvApplicationConfiguration::myNumDepthBits

protected

unsigned short makVrv::DtVrvApplicationConfiguration::myNumStencilBits

protected

unsigned short makVrv::DtVrvApplicationConfiguration::myNumAlphaBits

protected

unsigned short makVrv::DtVrvApplicationConfiguration::myAntiAliasingLevel

protected

short makVrv::DtVrvApplicationConfiguration::myMainScreenNum

protected

DtDeInitializer::DefaultRecordMap makVrv::DtVrvApplicationConfiguration::myDefaultRecords

protected

DtDeInitializer::DeFeatures makVrv::DtVrvApplicationConfiguration::myFeatures

protected

UIConfiguration makVrv::DtVrvApplicationConfiguration::myMasterModeUIConfiguration

protected

UIConfiguration makVrv::DtVrvApplicationConfiguration::mySlaveModeUIConfiguration

protected

std::string makVrv::DtVrvApplicationConfiguration::mySupportEmail

protected

About box strings.

std::string makVrv::DtVrvApplicationConfiguration::mySupportPhoneNumber

protected

std::string makVrv::DtVrvApplicationConfiguration::mySalesEmail

protected

std::string makVrv::DtVrvApplicationConfiguration::myAddressFirstLine

protected

std::string makVrv::DtVrvApplicationConfiguration::myAddressSecondLine

protected

std::string makVrv::DtVrvApplicationConfiguration::myAddressThirdLine

protected

std::string makVrv::DtVrvApplicationConfiguration::mySlogan

protected

std::string makVrv::DtVrvApplicationConfiguration::myWeblink

protected

std::string makVrv::DtVrvApplicationConfiguration::mySvnRevision

protected

std::string makVrv::DtVrvApplicationConfiguration::myAboutBoxImage

protected

std::string makVrv::DtVrvApplicationConfiguration::myAdditionalCopyright

protected

bool makVrv::DtVrvApplicationConfiguration::myUseReverseZBuffer

protected

std::string makVrv::DtVrvApplicationConfiguration::myExtraArgs

protected

bool makVrv::DtVrvApplicationConfiguration::myDisableDynamicTerrain

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtVrvApplicationConfiguration.h
