DtBaseWeaponComponentInterface Class Reference

Abstract base class for all psrs that will serve as an interface between a controlling component on the entity and a group of weapon systems of the same type. More...

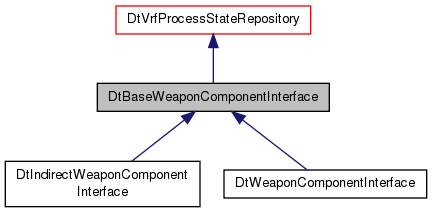

Inheritance diagram for DtBaseWeaponComponentInterface:

Public Types
enum	DtWeaponStatus {   DT_OK_TO_FIRE = 0, DT_WEAPON_DISABLED = 1, DT_NO_AMMUNITION_FOR_TARGET = 2, DT_CANNOT_ACQUIRE_TARGET = 4,   DT_SUPPRESSED = 8 }
	The status items below are used as bit fields. More...

Public Member Functions
	DtBaseWeaponComponentInterface (DtVrfObject *vrfObject, const DtString &rwName=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=0)
	DtBaseWeaponComponentInterface (const DtBaseWeaponComponentInterface &orig, const DtString &rwName=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=0)
const DtBaseWeaponComponentInterface &	operator= (const DtBaseWeaponComponentInterface &orig)
virtual	~DtBaseWeaponComponentInterface ()
virtual DtVrfProcessStateRepository *	clone (const DtString &rwName=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=0) const =0
virtual void	updateRegionEvaluator ()=0
	This must be called before calling locationWithinRegion() if the host entity has moved at all since this was last called.
virtual bool	locationWithinRegion (const DtVector &localLocation) const =0
virtual void	setRoundsFiredUponTarget (const int &roundsFired)
	Accessor/mutator for myRoundsFiredUponTarget.
virtual const int	roundsFiredUponTarget () const
virtual void	setTotalRoundsToFireUponTarget (const int &totalRoundsToFire)
	Accessor/mutator for myTotalRoundsToFireUponTarget.
virtual const int	totalRoundsToFireUponTarget () const
virtual void	setIsExplicitlyTasked (const bool &explicitlyTasked)
	Accessor/mutator for myIsExplicitlyTasked.
virtual const bool	isExplicitlyTasked () const
virtual void	setAllowExplicitTasking (const bool &includeInDialogs)
	Accessor/mutator for myAllowExplicitTasking.
virtual const bool	allowExplicitTasking () const
virtual void	setDisplayName (const DtString &displayName)
	Accessor/mutator for myDisplayName.
virtual const DtString	displayName () const
virtual void	setWeaponStatus (const int weaponStatus)
	Accessor/mutator for myWeaponStatus.
virtual const int	weaponStatus () const
virtual DtString	weaponStatusString () const
	Returns a string describing the weapon status.
virtual void	addWeaponStatus (const DtWeaponStatus weaponStatus)
	Performs a logical OR of the input status with the existing weapon status, to add the given condition to status.
virtual void	removeWeaponStatus (const DtWeaponStatus weaponStatus)
	Removes the given condition from the weapon status by performing a logical AND of the bitwise NOT of the input status with existing weapon status.
virtual void	setIsInFiringCycle (const bool)
	Accessor/mutator for myIsInFiringCycle.
virtual bool	isInFiringCycle () const
virtual void	setResourceList (const std::list< DtString > &list)
	Accessor/mutator for #myResourceList.
virtual const std::list < DtString > &	resourceList () const
virtual std::list< DtString > &	resourceList ()
virtual void	setPriority (const int priority)
	A priority value to determine which weapon on an entity should be used if both have targets.
virtual int	priority () const
virtual void	createMountPartList (const DtArtPartType partType)
	A list of articulated parts to which this weapon is attached.
virtual const std::list < DtArtPartType > &	mountPartList () const
	Retrieves the list.
virtual void	setSystemTurretNumber (const DtArtPartType num)
	Accessor/mutator for mySystemTurretNumber.
virtual DtArtPartType	systemTurretNumber () const
virtual std::set< DtString > &	requiredTokens ()
	Accessor/mutator for myRequiredTokens.
virtual void	setRequiredTokens (const std::set< DtString > &tokens)
virtual void	setTreatSelectedAsTasked (bool t)
	Accessor for myTreatSelectedAsTasked.
bool	treatSelectedAsTasked () const
virtual void	setControlExternalTurret (bool c)
	Accessor for myControlExternalTurret.
virtual bool	controlExternalTurret () const
Public Member Functions inherited from DtVrfProcessStateRepository
	DtVrfProcessStateRepository (DtVrfObject *vrfObject, const DtString &rwName=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=0)
	DtVrfProcessStateRepository (const DtVrfProcessStateRepository &orig, const DtString &rwName=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=0)
const DtVrfProcessStateRepository &	operator= (const DtVrfProcessStateRepository &orig)
virtual	~DtVrfProcessStateRepository ()
virtual bool	init ()
	Used for virtual construction. This base method simply returns true.
virtual DtString	type () const =0
	Returns the string type of the repository, as defined in procSRTypes.h.
virtual bool	loadedFromMTL () const
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op.
virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op.
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op.
virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op.
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
bool	isReadonly () const
virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to original state Default is no-op.
virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment.
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.
virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated.
virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time.
virtual bool	changedSinceLastChecked ()
	Returns true if this objects value has changed since the last time this function was called.
virtual bool	peekChangedSinceLastChecked () const
	Returns the value that changedSinceLastChecked would return but does not reset the internal flag.
virtual void	putData (std::string &fp, int indentLevel=0)
	Deriving class overrides these to get/put class specific data.
virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable.
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename.
virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid.
virtual bool	fromXmlFile (const DtFilename &)
	Restores object from given xml file.
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data.
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference.
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value.
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op.
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference.

Protected Attributes
DtRwInt	myRoundsFiredUponTarget
	Tracks rounds fired upon current target.
DtRwInt	myTotalRoundsToFireUponTarget
	Tracks total rounds to fire upon current target.
DtRwBoolean	myIsInFiringCycle
	Indicates that the weapon is in its firing cycle, which may mean is still firing a burst, or is in a mandatory cool down period after firing.
DtRwBoolean	myIsExplicitlyTasked
	Tracks whether the weapon system has been explicitly tasked as opposed to a target being automatically selected.
DtRwBoolean	myAllowExplicitTasking
DtRwString	myDisplayName
	Name to be used in the gui to represent this weapon.
DtVrfObject *	myHostObject
	DtVrfObject the weapon is attached to.
DtRwInt	myWeaponStatus
	Current status of the weapon, is it able to fire or not.
std::list< DtString >	myResources
	List of the available munition resources.
DtRwInt	myPriority
	A priority value to determine which weapon on an entity should be used if both have targets.
std::list< DtArtPartType >	myMountPartList
	A list of articulated parts to which this weapon is attached.
DtArtPartType	mySystemTurretNumber
	The articulated part corresponding to the turret in this gun system (as opposed to an ancestor part).
DtRwBoolean	myControlExternalTurret
	Indicates that this weapon is controlling parent parts outside of the system to turn the gun.
std::set< DtString >	myRequiredTokens
	List of resources required to operate the weapon; these are tokens that are reserved when the weapon operates, but are not consumed.
DtRwBoolean	myTreatSelectedAsTasked
	Indicates that when a target is auto-selected for this gun, vs.
Protected Attributes inherited from DtVrfProcessStateRepository
DtVrfObject *	myVrfObject
bool	myLoadedFromMTL
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.
bool	myChangedFlag
	Set to true when value changes Set to false when value checked with changedSinceLastChecked.

Private Member Functions
	DtBaseWeaponComponentInterface ()
	default constructor, not implemented

Additional Inherited Members
Static Public Member Functions inherited from DtVrfProcessStateRepository
static DtVrfProcessStateRepositoryFactory *	factory ()
	a DtVrfProcessStateRepositoryFactory is allocated by the DtSimCreator, and this pointer is set.
static void	setFactory (DtVrfProcessStateRepositoryFactory *factory)
static void	addVrfProcessStateRepositoryCreatorFcn (const DtString &type, DtVrfProcessStateRepositoryCreatorFcn fcn)
static DtVrfProcessStateRepository *	createRepository (const DtString &name, const DtString &type, DtVrfObject *vrfObject, DtReaderWriterRegistry *parentRegistry=0)
	Creates a new state repository object, using the factory.
Protected Member Functions inherited from DtVrfProcessStateRepository
	DtVrfProcessStateRepository ()
Static Protected Attributes inherited from DtVrfProcessStateRepository
static DtVrfProcessStateRepositoryFactory *	theFactory

Detailed Description

Abstract base class for all psrs that will serve as an interface between a controlling component on the entity and a group of weapon systems of the same type.

For example a derived child of this, weaponComponentInterface, is used as an interface between the entity's target selection controller and it's direct fire weapons, finding available targets for direct fire weapons that aren't currently engaged, and monitoring their progress.

Member Enumeration Documentation

enum DtBaseWeaponComponentInterface::DtWeaponStatus

The status items below are used as bit fields.

To set a state, OR the enumerated value into the weapon status, and to clear the state, AND the Negation of the enumerated value.

Enumerator:

DT_OK_TO_FIRE
DT_WEAPON_DISABLED
DT_NO_AMMUNITION_FOR_TARGET
DT_CANNOT_ACQUIRE_TARGET
DT_SUPPRESSED

Constructor & Destructor Documentation

DtBaseWeaponComponentInterface::DtBaseWeaponComponentInterface ( )

private

default constructor, not implemented

DtBaseWeaponComponentInterface::DtBaseWeaponComponentInterface	(	DtVrfObject *	vrfObject,
		const DtString &	rwName = DtString::nullString(),
		DtReaderWriterRegistry *	parentRegistry = 0
	)

DtBaseWeaponComponentInterface::DtBaseWeaponComponentInterface	(	const DtBaseWeaponComponentInterface &	orig,
		const DtString &	rwName = DtString::nullString(),
		DtReaderWriterRegistry *	parentRegistry = 0
	)

virtual DtBaseWeaponComponentInterface::~DtBaseWeaponComponentInterface ( )

virtual

Member Function Documentation

const DtBaseWeaponComponentInterface& DtBaseWeaponComponentInterface::operator=

(

const DtBaseWeaponComponentInterface &

orig

)

virtual DtVrfProcessStateRepository* DtBaseWeaponComponentInterface::clone ( const DtString &  rwName = DtString::nullString(), DtReaderWriterRegistry *  parentRegistry = 0  ) const

pure virtual

Implements DtVrfProcessStateRepository.

Implemented in DtIndirectWeaponComponentInterface, and DtWeaponComponentInterface.

virtual void DtBaseWeaponComponentInterface::updateRegionEvaluator ( )

pure virtual

This must be called before calling locationWithinRegion() if the host entity has moved at all since this was last called.

Implemented in DtWeaponComponentInterface, and DtIndirectWeaponComponentInterface.

virtual bool DtBaseWeaponComponentInterface::locationWithinRegion ( const DtVector &  localLocation ) const

pure virtual

Returns

True if localLocation falls within the valid target region.

Note

updateRegionEvaluator() must be called prior to this function if there is a chance that the host entity has moved or reoriented since the last time updateRegionEvaluator() was called.

Implemented in DtWeaponComponentInterface, and DtIndirectWeaponComponentInterface.

virtual void DtBaseWeaponComponentInterface::setRoundsFiredUponTarget ( const int &  roundsFired )

virtual

Accessor/mutator for myRoundsFiredUponTarget.

virtual const int DtBaseWeaponComponentInterface::roundsFiredUponTarget ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::setTotalRoundsToFireUponTarget ( const int &  totalRoundsToFire )

virtual

Accessor/mutator for myTotalRoundsToFireUponTarget.

virtual const int DtBaseWeaponComponentInterface::totalRoundsToFireUponTarget ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::setIsExplicitlyTasked ( const bool &  explicitlyTasked )

virtual

Accessor/mutator for myIsExplicitlyTasked.

virtual const bool DtBaseWeaponComponentInterface::isExplicitlyTasked ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::setAllowExplicitTasking ( const bool &  includeInDialogs )

virtual

Accessor/mutator for myAllowExplicitTasking.

virtual const bool DtBaseWeaponComponentInterface::allowExplicitTasking ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::setDisplayName ( const DtString &  displayName )

virtual

Accessor/mutator for myDisplayName.

virtual const DtString DtBaseWeaponComponentInterface::displayName ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::setWeaponStatus ( const int  weaponStatus )

virtual

Accessor/mutator for myWeaponStatus.

virtual const int DtBaseWeaponComponentInterface::weaponStatus ( ) const

virtual

virtual DtString DtBaseWeaponComponentInterface::weaponStatusString ( ) const

virtual

Returns a string describing the weapon status.

virtual void DtBaseWeaponComponentInterface::addWeaponStatus ( const DtWeaponStatus  weaponStatus )

virtual

Performs a logical OR of the input status with the existing weapon status, to add the given condition to status.

Updates the weapon status.

virtual void DtBaseWeaponComponentInterface::removeWeaponStatus ( const DtWeaponStatus  weaponStatus )

virtual

Removes the given condition from the weapon status by performing a logical AND of the bitwise NOT of the input status with existing weapon status.

Updates the weapon status.

virtual void DtBaseWeaponComponentInterface::setIsInFiringCycle ( const bool  )

virtual

Accessor/mutator for myIsInFiringCycle.

virtual bool DtBaseWeaponComponentInterface::isInFiringCycle ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::setResourceList ( const std::list< DtString > &  list )

virtual

Accessor/mutator for #myResourceList.

virtual const std::list<DtString>& DtBaseWeaponComponentInterface::resourceList ( ) const

virtual

virtual std::list<DtString>& DtBaseWeaponComponentInterface::resourceList ( )

virtual

virtual void DtBaseWeaponComponentInterface::setPriority ( const int  priority )

virtual

A priority value to determine which weapon on an entity should be used if both have targets.

A value of 1 is the highest priority, and higher numbers are lower priority.

virtual int DtBaseWeaponComponentInterface::priority ( ) const

virtual

virtual void DtBaseWeaponComponentInterface::createMountPartList ( const DtArtPartType  partType )

virtual

A list of articulated parts to which this weapon is attached.

That is, its parent part, that parent's part, etc. Used to determine when different weapons are dependent on the same part. The list contains articulated part type numbers.
The list includes this part (in case another weapon might be mounted on it), but not the base.

This function uses the entity's attachment manager to go through the articulated parts and find the parents and ancestors of this weapon.

virtual const std::list<DtArtPartType>& DtBaseWeaponComponentInterface::mountPartList ( ) const

virtual

Retrieves the list.

virtual void DtBaseWeaponComponentInterface::setSystemTurretNumber ( const DtArtPartType  num )

virtual

Accessor/mutator for mySystemTurretNumber.

virtual DtArtPartType DtBaseWeaponComponentInterface::systemTurretNumber ( ) const

virtual

virtual std::set<DtString>& DtBaseWeaponComponentInterface::requiredTokens ( )

virtual

Accessor/mutator for myRequiredTokens.

Not that for convenience, the mutator takes a list for its argument, while the accessor returns a set.

virtual void DtBaseWeaponComponentInterface::setRequiredTokens ( const std::set< DtString > &  tokens )

virtual

virtual void DtBaseWeaponComponentInterface::setTreatSelectedAsTasked ( bool  t )

virtual

Accessor for myTreatSelectedAsTasked.

bool DtBaseWeaponComponentInterface::treatSelectedAsTasked

(

)

const

virtual void DtBaseWeaponComponentInterface::setControlExternalTurret ( bool  c )

virtual

Accessor for myControlExternalTurret.

virtual bool DtBaseWeaponComponentInterface::controlExternalTurret ( ) const

virtual

Member Data Documentation

DtRwInt DtBaseWeaponComponentInterface::myRoundsFiredUponTarget

protected

Tracks rounds fired upon current target.

DtRwInt DtBaseWeaponComponentInterface::myTotalRoundsToFireUponTarget

protected

Tracks total rounds to fire upon current target.

DtRwBoolean DtBaseWeaponComponentInterface::myIsInFiringCycle

protected

Indicates that the weapon is in its firing cycle, which may mean is still firing a burst, or is in a mandatory cool down period after firing.

DtRwBoolean DtBaseWeaponComponentInterface::myIsExplicitlyTasked

protected

Tracks whether the weapon system has been explicitly tasked as opposed to a target being automatically selected.

DtRwBoolean DtBaseWeaponComponentInterface::myAllowExplicitTasking

protected

DtRwString DtBaseWeaponComponentInterface::myDisplayName

protected

Name to be used in the gui to represent this weapon.

DtVrfObject* DtBaseWeaponComponentInterface::myHostObject

protected

DtVrfObject the weapon is attached to.

DtRwInt DtBaseWeaponComponentInterface::myWeaponStatus

protected

Current status of the weapon, is it able to fire or not.

std::list<DtString> DtBaseWeaponComponentInterface::myResources

protected

List of the available munition resources.

This is not written out since it gets updated from the system. Only resources with non zero amounts are on this list. This list is used in the weapon response reply to the front end to provide the available munitions for the user to choose.

DtRwInt DtBaseWeaponComponentInterface::myPriority

protected

A priority value to determine which weapon on an entity should be used if both have targets.

A value of 1 is the highest priority, and higher numbers are lower priority.

std::list<DtArtPartType> DtBaseWeaponComponentInterface::myMountPartList

protected

A list of articulated parts to which this weapon is attached.

That is, its parent part, that parent's part, etc. Used to determine when different weapons are dependent on the same part. The list contains articulated part type numbers.
The list includes this part (in case another weapon might be mounted on it), but not the base.
This list is reconstructed when the ballistic gun controller gets its weapon interfaces, so it does not need to be saved with a scenario.

DtArtPartType DtBaseWeaponComponentInterface::mySystemTurretNumber

protected

The articulated part corresponding to the turret in this gun system (as opposed to an ancestor part).

DtRwBoolean DtBaseWeaponComponentInterface::myControlExternalTurret

protected

Indicates that this weapon is controlling parent parts outside of the system to turn the gun.

I.e., a tank MG is controlling the main turret in order to reach targets outside the normal slew range of the MG.

std::set<DtString> DtBaseWeaponComponentInterface::myRequiredTokens

protected

List of resources required to operate the weapon; these are tokens that are reserved when the weapon operates, but are not consumed.

There is no token reservation system; other components just check to see if their tokens against this set to see if there is a conflict. These resources may represent crew members, for example.

DtRwBoolean DtBaseWeaponComponentInterface::myTreatSelectedAsTasked

protected

Indicates that when a target is auto-selected for this gun, vs.

set in a fire-at-target task, the gun priority should be the same as when the target is set by task. This makes a high priority gun keep control of necessary turrets even if a lower priority gun on the same turret is tasked. Default is false.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-6-branch/include/vrfobjcore/baseWeaponComponentInterface.h
