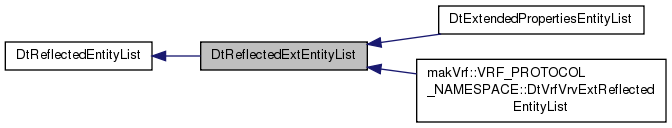

Inheritance diagram for DtReflectedExtEntityList:

Public Member Functions
	DtReflectedExtEntityList (DtExerciseConn *exConn)
	DtReflectedExtEntityList (DtExerciseConn exConn, const DtDDMRegionSet regionSetToUse)
	Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.
	DtReflectedExtEntityList (DtExerciseConn exConn, const DtList handleList, const DtDDMRegionSet *regionSetToUse=0)
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.
virtual	~DtReflectedExtEntityList ()
virtual void	setWaitForVrfExtendedData (bool)
	Sets whether or not to wait for VRF extended data in readyToAdd.
virtual bool	waitForVrfExtendedData () const
virtual DtReflectedExtEntity *	lookupEE (RTI::ObjectHandle id)
virtual DtReflectedExtEntity *	lookupEE (const DtGlobalObjectDesignator &objName)
virtual DtReflectedExtEntity *	firstEE () const
virtual DtReflectedExtEntity *	lastEE () const
virtual void	addEntityAdditionCallback (DtExtEntityCallbackFunction cb, void *userData)
virtual void	removeEntityAdditionCallback (DtExtEntityCallbackFunction cb, void *userData)
virtual void	addEntityRemovalCallback (DtExtEntityCallbackFunction cb, void *userData)
virtual void	removeEntityRemovalCallback (DtExtEntityCallbackFunction cb, void *userData)

Static Public Member Functions
static void	setTimeoutRequestTime (DtTime t)
	Sets the time to timeout on vrf object data request. Default is 2 seconds.
static DtTime	timeoutRequestTime ()

Protected Member Functions
void	processVrfObjectStateUpdateMessage (DtDataInteraction *interaction)
void	processVrfObjectDataMessage (DtDataInteraction *interaction)
virtual void	processDataInteraction (DtDataInteraction *i)
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
virtual void	addToObjectList (DtReflectedObject *refObj)
virtual void	cleanupObjectDataMessageHashList ()
virtual bool	setupVrfObjectData (DtReflectedObject *object)
virtual void	requestVrfObjectData (DtReflectedObject *object)
virtual bool	timeOutVrfObjectDataRequest (DtReflectedObject *obj)
	Returns true if the time has been too long in receiving a vrf object data request.
virtual void	diguyExtensionsSetup ()
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Override to remove items from internal lists that might not have been caught through other means.

Static Protected Member Functions
static void	dataInteractionCallback (DtDataInteraction i, void usr)

Protected Attributes
DtHashlist	myObjectDataMessageHashlist
DtHashList	myObjectDataMessageRequestList
DtHashList	myWaitingForVrfObjectData
bool	myWaitForVrfExtendedData

Static Protected Attributes
static DtTime	theTimeoutRequestTime

Private Member Functions
	DtReflectedExtEntityList (const DtReflectedExtEntityList &orig)
DtReflectedExtEntityList &	operator= (const DtReflectedExtEntityList &rhs)

Constructor & Destructor Documentation

DtReflectedExtEntityList::DtReflectedExtEntityList ( DtExerciseConn * exConn )

DtReflectedExtEntityList::DtReflectedExtEntityList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse
	)

Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.

DtReflectedExtEntityList::DtReflectedExtEntityList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedExtEntityList::~DtReflectedExtEntityList ( )

virtual

DtReflectedExtEntityList::DtReflectedExtEntityList ( const DtReflectedExtEntityList & orig )

private

Member Function Documentation

virtual void DtReflectedExtEntityList::setWaitForVrfExtendedData ( bool )

virtual

Sets whether or not to wait for VRF extended data in readyToAdd.

Default is true, althought there is a timeout period for this waiting set by theTimeoutRequestTime

virtual bool DtReflectedExtEntityList::waitForVrfExtendedData ( ) const

virtual

virtual DtReflectedExtEntity* DtReflectedExtEntityList::lookupEE ( RTI::ObjectHandle id )

virtual

virtual DtReflectedExtEntity* DtReflectedExtEntityList::lookupEE ( const DtGlobalObjectDesignator & objName )

virtual

virtual DtReflectedExtEntity* DtReflectedExtEntityList::firstEE ( ) const

virtual

virtual DtReflectedExtEntity* DtReflectedExtEntityList::lastEE ( ) const

virtual

virtual void DtReflectedExtEntityList::addEntityAdditionCallback	(	DtExtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedExtEntityList::removeEntityAdditionCallback	(	DtExtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedExtEntityList::addEntityRemovalCallback	(	DtExtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedExtEntityList::removeEntityRemovalCallback	(	DtExtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

static void DtReflectedExtEntityList::setTimeoutRequestTime ( DtTime t )

static

Sets the time to timeout on vrf object data request. Default is 2 seconds.

static DtTime DtReflectedExtEntityList::timeoutRequestTime ( )

static

void DtReflectedExtEntityList::processVrfObjectStateUpdateMessage ( DtDataInteraction * interaction )

protected

void DtReflectedExtEntityList::processVrfObjectDataMessage ( DtDataInteraction * interaction )

protected

static void DtReflectedExtEntityList::dataInteractionCallback	(	DtDataInteraction *	i,
		void *	usr
	)

staticprotected

virtual void DtReflectedExtEntityList::processDataInteraction ( DtDataInteraction * i )

protectedvirtual

virtual DtReflectedObject* DtReflectedExtEntityList::newReflectedObject ( DtHlaObject * obj ) const

protectedvirtual

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrvExtReflectedEntityList.

virtual void DtReflectedExtEntityList::addToObjectList ( DtReflectedObject * refObj )

protectedvirtual

virtual void DtReflectedExtEntityList::cleanupObjectDataMessageHashList ( )

protectedvirtual

virtual bool DtReflectedExtEntityList::setupVrfObjectData ( DtReflectedObject * object )

protectedvirtual

virtual void DtReflectedExtEntityList::requestVrfObjectData ( DtReflectedObject * object )

protectedvirtual

virtual bool DtReflectedExtEntityList::timeOutVrfObjectDataRequest ( DtReflectedObject * obj )

protectedvirtual

Returns true if the time has been too long in receiving a vrf object data request.

If this method returns true, will add the entity to the list regardless

virtual void DtReflectedExtEntityList::diguyExtensionsSetup ( )

protectedvirtual

virtual void DtReflectedExtEntityList::processObjectAdditionCallbacks ( DtReflectedObject * object )

protectedvirtual

Override to remove items from internal lists that might not have been caught through other means.

Process object addition/removal callbacks.

DtReflectedExtEntityList& DtReflectedExtEntityList::operator= ( const DtReflectedExtEntityList & rhs )

private

Member Data Documentation

DtHashlist DtReflectedExtEntityList::myObjectDataMessageHashlist

protected

DtHashList DtReflectedExtEntityList::myObjectDataMessageRequestList

protected

DtHashList DtReflectedExtEntityList::myWaitingForVrfObjectData

protected

DtTime DtReflectedExtEntityList::theTimeoutRequestTime

staticprotected

bool DtReflectedExtEntityList::myWaitForVrfExtendedData

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-6-branch/include/vrfExtObjects/reflectedExtEntityList.h
