DtScriptVrfObject Class Reference

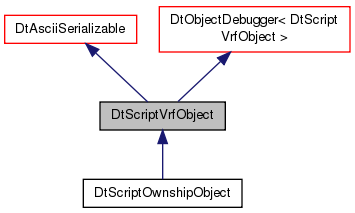

Inheritance diagram for DtScriptVrfObject:

Public Member Functions
	DtScriptVrfObject (const DtUUID &name, DtVrfObject *const vrfObject)
	DtScriptVrfObject (const DtUUID &name, DtSimManager *simManager, DtVrfObject *const vrfObject)
	DtScriptVrfObject (const DtScriptVrfObject &orig)
DtScriptVrfObject &	operator= (const DtScriptVrfObject &orig)
	~DtScriptVrfObject ()
bool	operator== (const DtScriptVrfObject &orig)
virtual double	getHeightAboveTerrain () const
	Gets the height above terrain, which is just ownship altitude - terrain altitude.
virtual bool	hasLosToObject (const DtScriptVrfObject &target, bool &dataAvailable) const
	Check LOS to a target entity through terrain and objects, except for ownship object and target object.
virtual void	changeAttachment (const std::string &parentUUID) const
	This allows the object to change its attachment without using the embarkation controller which is some circumstances is not desired.
virtual bool	isPointInside (const DtLocation3D &point) const
	Determine if the given point is inside the polygon described by the vertices (footprint) of this object.
virtual bool	independentlyTasked () const
	Returns true if item is independently tasked.
virtual bool	hasLosToLocation (DtLocation3D &targetLoc, bool &dataAvailable) const
	Check LOS to a location through terrain and objects, except for ownship object.
virtual std::string	getEntityType () const
	Return the entity type.
virtual bool	isAggregate () const
	Returns whether the object is an aggregate, using the object state repository definition of isAggregate().
virtual bool	isPseudoAggregate () const
	Returns whether the object is an aggregate, using the object state repository definition of isAggregate() and the object is in a DtDisaggregated state.
virtual std::string	getEchelonLevel () const
	Returns the echelon level as a string.
virtual std::string	getForceType () const
	Returns entity force.
virtual int	getForceEnumeration () const
	Returns entity force enumeration (integer)
virtual std::string	getDamageState () const
	Returns the current damage state as: none slight moderate destroyed.
virtual unsigned	getLifeformPosture () const
	Returns the DIS enumerated value for the current lifeform posture.
virtual unsigned	getAppearance () const
	Returns the current appearance bits of the entity.
virtual bool	isDestroyed () const
	Returns whether or not this entity is destroyed.
virtual bool	isInvisible () const
	Returns whether or not this entity is invisible.
virtual bool	isEmbarked () const
	Returns whether or not this item is embarked on any other item.
virtual void	attachToParent (DtScriptVrfObject &) const
	Given an object which is a parent, attach to it (immedate embark)
virtual bool	isOnTopOf (DtScriptVrfObject &) const
	Will return true if this entity is near the top of the specified entity given the specified distance (in meters).
virtual bool	isOnTopOfWithDistance (DtScriptVrfObject &, double) const
virtual DtScriptVrfObject	getEmbarkedOn () const
	Parent this object is embarked on.
virtual std::list < DtScriptVrfObject >	getEmbarkedObjects (void) const
virtual DtVectorOffset3D	getOffsetFromParent () const
virtual std::list < DtScriptVrfObject >	getSubordinates (void) const
	Returns a list of the immediate subordinates of this aggregate.
virtual std::list < DtScriptVrfObject >	getVrfSubordinates (bool isVrf) const
	Returns a list of the vrf simulated immediate subordinates of this aggregate.
virtual double	recalculatePhysicalFootprintFromSubordinates (const std::list< DtScriptVrfObject > &) const
	Given the list of subordinates, return a DtRwReal that will contain the physical footprint (radius) of aggregate.
virtual std::list < DtScriptVrfObject >	getAllSubordinates (void) const
	Returns a list of all leaf (lowest level) nodes (subordinates) of this aggregate.
virtual std::list < DtScriptVrfObject >	getAllVrfSubordinates (bool isVrf) const
virtual std::list < DtScriptVrfObject >	getCapableSubordinates (void) const
virtual std::list < DtScriptVrfObject >	getCapableVrfSubordinates (bool isVrf) const
virtual bool	isVrfSimulated () const
	Returns true if this object is simulated by VR-Forces.
virtual std::list< DtLocation3D >	getLocations3D (void) const
virtual std::string	getName () const
virtual std::string	getLabel () const
virtual void	setLabel (const std::string &)
virtual std::string	getExtendedLabel (int) const
virtual void	setExtendedLabel (int, const std::string &)
virtual std::string	getGlobalId () const
virtual std::string	getObjectId () const
virtual double	getHeading () const
virtual double	getPitch () const
virtual double	getRoll () const
virtual double	getDraft () const
void	terrainSurfaceDebug ()
	For debugging the terrain surface(s) at the entity's location.
void	deleteObject ()
	Deletes object from simulation.
bool	isDeleted () const
	Returns true if the object has been deleted from the simulation.
virtual bool	isValid () const
virtual bool	isLocal () const
	Returns true if the object is local to the back-end the script is running on.
virtual DtVectorOffset3D	getBoundingVolume (DtVectorOffset3D &offset) const
	Returns the bounding volume and the bounding volume offset.
virtual std::string	getNbcDamage (int &dmgPerSec, int &moppLvl) const
	Returns the damage type, damage per second, and the MOPP level required to protect against the NBC contaminated area.
virtual std::string	getNbcAgent () const
	Returns the agent type of the NBC area.
virtual bool	isBreached () const
	Returns true if this is an engineering object which has been breached.
virtual std::string	getExtendedData (const std::string &key) const
	Returns the extended data with the given key, or an empty string if not found.
virtual DtLocation3D	getClosestPointToLocation2D (const DtLocation3D &location, double &distance) const
	Finds the closest point on the object's geometry to the given location.
virtual DtLocation3D	getIntersectionPointWithLine2D (const DtLocation3D &point1, const DtLocation3D &point2, bool &hasIntersection) const
	Calculates the point where the line defined by the two points intersects with the object.
virtual bool	isActive () const
	Returns true if this is an environmental and it is active. All others will be considered active.
virtual std::string	getDiGuyHandItem () const
	If object is lifeform with Diguy representation will return handitem if has one.
virtual bool	isAnimationAvailable (const std::string &animationName) const
virtual void	setSimManager (DtSimManager *simManager)
	Script API functions above. ////////////////////////////////////!
virtual DtString	objectType () const
	Should return the string name of this object.
DtString	serialize ()
	Inherited from DtAsciiSerializable. Returns a string serialized version of this class.
bool	deserialize (const DtString &data)
	Inherited from DtAsciiSerializable.
DtVrfObject *	vrfObject () const
	For use by C++ side methods.
void	testValid () const
	Makes sure the object is valid. If not, throws exception.
virtual DtLocation3D	getLocation3D () const
	Script API functions.
virtual double	getSpeed () const
	Returns the objects current speed in meters/second.
virtual std::string	getUUID () const
	Returns the UUID of this object.
virtual DtVector3D	getDirection3D () const
	Vector info about entity.
virtual DtVector3D	getVelocity3D () const
	Velocity of entity, meters/sec.
virtual void	setNavigationEnabled (bool)
virtual bool	getNavigationEnabled () const
virtual DtVectorOffset3D	getPartParentPosition (int) const
virtual DtLocation3D	getPartWorldPosition (int) const
virtual double	getPartPitch (int) const
virtual double	getPartPitchIncludingParent (int, bool includeParent=false) const
virtual double	getPartHeading (int) const
virtual double	getPartHeadingIncludingParent (int, bool includeParent=false) const
bool	hasStateProperty (const std::string &propertyName)
	Checks to see if the property exists.
bool	hasParameterProperty (const std::string &propertyName)
Public Member Functions inherited from DtAsciiSerializable
	DtAsciiSerializable ()
	The implementer of this interface should be sure to create a creator function to create an empty object that returns a pointer to this interface.
	DtAsciiSerializable (const DtAsciiSerializable &orig)
virtual	~DtAsciiSerializable ()
virtual std::string	objectTypeC () const
	Returns a std::string version of the objectType.
virtual void	init (void *userData)
	This function is called right after the object is constructed during the deserialization process, but before deserialize() is called.

Static Public Member Functions
static DtAsciiSerializable *	creator ()
	Inherited from DtAsciiSerializable. Returns a new object of this type with default values.
static DtScriptVrfObject	nullObject ()
	Returns a null object.
Static Public Member Functions inherited from DtObjectDebugger< DtScriptVrfObject >
static DtObjectCounter::CounterType	ObjectCount ()
static const DtObjectContainer *	ObjectContainer ()

Protected Attributes
DtRwUUID	myUUID
DtSimManager *	mySimManager
DtVrfObjectDeletionHandle	myObjectDeletionHandle

Additional Inherited Members
Protected Member Functions inherited from DtObjectDebugger< DtAsciiSerializable >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()
Protected Member Functions inherited from DtObjectDebugger< DtScriptVrfObject >
	DtObjectDebugger ()
	DtObjectDebugger (const DtObjectDebugger &)
	~DtObjectDebugger ()

Constructor & Destructor Documentation

DtScriptVrfObject::DtScriptVrfObject	(	const DtUUID &	name,
		DtVrfObject *const	vrfObject
	)

DtScriptVrfObject::DtScriptVrfObject	(	const DtUUID &	name,
		DtSimManager *	simManager,
		DtVrfObject *const	vrfObject
	)

DtScriptVrfObject::DtScriptVrfObject

(

const DtScriptVrfObject &

orig

)

DtScriptVrfObject::~DtScriptVrfObject

(

)

Member Function Documentation

DtScriptVrfObject& DtScriptVrfObject::operator=

(

const DtScriptVrfObject &

orig

)

bool DtScriptVrfObject::operator==

(

const DtScriptVrfObject &

orig

)

virtual DtLocation3D DtScriptVrfObject::getLocation3D ( ) const

virtual

Script API functions.

////////////////////////////////////! Returns the location of the entity.

virtual double DtScriptVrfObject::getSpeed ( ) const

virtual

Returns the objects current speed in meters/second.

virtual std::string DtScriptVrfObject::getUUID ( ) const

virtual

Returns the UUID of this object.

virtual DtVector3D DtScriptVrfObject::getDirection3D ( ) const

virtual

Vector info about entity.

Note that these vectors can be converted to a "geocentric" DtVectorGeoc3D with DtVector3D::makeVectorGeoc3DAtLoc.

Returns a unit vector in the direction the entity is facing. In local, e.g. north-east-down, terms, not geocentric.

virtual DtVector3D DtScriptVrfObject::getVelocity3D ( ) const

virtual

Velocity of entity, meters/sec.

In local, e.g. north-east-down, terms, not geocentric.

virtual double DtScriptVrfObject::getHeightAboveTerrain ( ) const

virtual

Gets the height above terrain, which is just ownship altitude - terrain altitude.

virtual bool DtScriptVrfObject::hasLosToObject ( const DtScriptVrfObject &  target, bool &  dataAvailable  ) const

virtual

Check LOS to a target entity through terrain and objects, except for ownship object and target object.

LOS is taken from the center of the observer (not a specific sensor location).

virtual void DtScriptVrfObject::changeAttachment ( const std::string &  parentUUID ) const

virtual

This allows the object to change its attachment without using the embarkation controller which is some circumstances is not desired.

Simple change attachment will not make any assumptions about placement of the object unlike embarkation which calculates where it thinks this object should be. If the parentName is null then the object will be detached if it is currenly attached.

virtual bool DtScriptVrfObject::isPointInside ( const DtLocation3D &  point ) const

virtual

Determine if the given point is inside the polygon described by the vertices (footprint) of this object.

This is intended for area control objects, but can be called on any object. Not guaranteed to be correct if the polygon is not convex. The algorithm effectively projects the points into a plane determined by the first two edges of the polygon. If the points are not all coplanar, there is some chance of error.

virtual bool DtScriptVrfObject::independentlyTasked ( ) const

virtual

Returns true if item is independently tasked.

virtual bool DtScriptVrfObject::hasLosToLocation ( DtLocation3D &  targetLoc, bool &  dataAvailable  ) const

virtual

Check LOS to a location through terrain and objects, except for ownship object.

LOS is taken from the center of the observer (not a specific sensor location).

virtual std::string DtScriptVrfObject::getEntityType ( ) const

virtual

Return the entity type.

virtual bool DtScriptVrfObject::isAggregate ( ) const

virtual

Returns whether the object is an aggregate, using the object state repository definition of isAggregate().

virtual bool DtScriptVrfObject::isPseudoAggregate ( ) const

virtual

Returns whether the object is an aggregate, using the object state repository definition of isAggregate() and the object is in a DtDisaggregated state.

virtual std::string DtScriptVrfObject::getEchelonLevel ( ) const

virtual

Returns the echelon level as a string.

Uses the DIS aggregate categories, amended by MAK (see objTypeEnums.h)

virtual std::string DtScriptVrfObject::getForceType ( ) const

virtual

Returns entity force.

virtual int DtScriptVrfObject::getForceEnumeration ( ) const

virtual

Returns entity force enumeration (integer)

virtual void DtScriptVrfObject::setNavigationEnabled ( bool  )

virtual

Accessor for navigation by gameware enabled/disabled

virtual bool DtScriptVrfObject::getNavigationEnabled ( ) const

virtual

virtual std::string DtScriptVrfObject::getDamageState ( ) const

virtual

Returns the current damage state as: none slight moderate destroyed.

virtual unsigned DtScriptVrfObject::getLifeformPosture ( ) const

virtual

Returns the DIS enumerated value for the current lifeform posture.

virtual unsigned DtScriptVrfObject::getAppearance ( ) const

virtual

Returns the current appearance bits of the entity.

virtual bool DtScriptVrfObject::isDestroyed ( ) const

virtual

Returns whether or not this entity is destroyed.

virtual bool DtScriptVrfObject::isInvisible ( ) const

virtual

Returns whether or not this entity is invisible.

virtual bool DtScriptVrfObject::isEmbarked ( ) const

virtual

Returns whether or not this item is embarked on any other item.

virtual void DtScriptVrfObject::attachToParent ( DtScriptVrfObject &  ) const

virtual

Given an object which is a parent, attach to it (immedate embark)

virtual bool DtScriptVrfObject::isOnTopOf ( DtScriptVrfObject &  ) const

virtual

Will return true if this entity is near the top of the specified entity given the specified distance (in meters).

Default distance is the entities lattice offset in Z + .5 meters

virtual bool DtScriptVrfObject::isOnTopOfWithDistance ( DtScriptVrfObject &  , double    ) const

virtual

virtual DtScriptVrfObject DtScriptVrfObject::getEmbarkedOn ( ) const

virtual

Parent this object is embarked on.

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getEmbarkedObjects ( void  ) const

virtual

virtual DtVectorOffset3D DtScriptVrfObject::getOffsetFromParent ( ) const

virtual

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getSubordinates ( void  ) const

virtual

Returns a list of the immediate subordinates of this aggregate.

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getVrfSubordinates ( bool  isVrf ) const

virtual

Returns a list of the vrf simulated immediate subordinates of this aggregate.

virtual double DtScriptVrfObject::recalculatePhysicalFootprintFromSubordinates ( const std::list< DtScriptVrfObject > &  ) const

virtual

Given the list of subordinates, return a DtRwReal that will contain the physical footprint (radius) of aggregate.

virtual DtVectorOffset3D DtScriptVrfObject::getPartParentPosition ( int  ) const

virtual

These routines will return part information as applied to this entity. Flags will indicate if the parent information is to be used as well

virtual DtLocation3D DtScriptVrfObject::getPartWorldPosition ( int  ) const

virtual

virtual double DtScriptVrfObject::getPartPitch ( int  ) const

virtual

virtual double DtScriptVrfObject::getPartPitchIncludingParent ( int  , bool  includeParent = false  ) const

virtual

virtual double DtScriptVrfObject::getPartHeading ( int  ) const

virtual

virtual double DtScriptVrfObject::getPartHeadingIncludingParent ( int  , bool  includeParent = false  ) const

virtual

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getAllSubordinates ( void  ) const

virtual

Returns a list of all leaf (lowest level) nodes (subordinates) of this aggregate.

Will recurse over all subordinate aggregates getting their subordinates until only items that have no children are part of this list

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getAllVrfSubordinates ( bool  isVrf ) const

virtual

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getCapableSubordinates ( void  ) const

virtual

virtual std::list<DtScriptVrfObject> DtScriptVrfObject::getCapableVrfSubordinates ( bool  isVrf ) const

virtual

virtual bool DtScriptVrfObject::isVrfSimulated ( ) const

virtual

Returns true if this object is simulated by VR-Forces.

virtual std::list<DtLocation3D> DtScriptVrfObject::getLocations3D ( void  ) const

virtual

virtual std::string DtScriptVrfObject::getName ( ) const

virtual

virtual std::string DtScriptVrfObject::getLabel ( ) const

virtual

virtual void DtScriptVrfObject::setLabel ( const std::string &  )

virtual

virtual std::string DtScriptVrfObject::getExtendedLabel ( int  ) const

virtual

virtual void DtScriptVrfObject::setExtendedLabel ( int  , const std::string &    )

virtual

virtual std::string DtScriptVrfObject::getGlobalId ( ) const

virtual

virtual std::string DtScriptVrfObject::getObjectId ( ) const

virtual

virtual double DtScriptVrfObject::getHeading ( ) const

virtual

virtual double DtScriptVrfObject::getPitch ( ) const

virtual

virtual double DtScriptVrfObject::getRoll ( ) const

virtual

virtual double DtScriptVrfObject::getDraft ( ) const

virtual

void DtScriptVrfObject::terrainSurfaceDebug

(

)

For debugging the terrain surface(s) at the entity's location.

void DtScriptVrfObject::deleteObject

(

)

Deletes object from simulation.

bool DtScriptVrfObject::isDeleted

(

)

const

Returns true if the object has been deleted from the simulation.

virtual bool DtScriptVrfObject::isValid ( ) const

virtual

virtual bool DtScriptVrfObject::isLocal ( ) const

virtual

Returns true if the object is local to the back-end the script is running on.

virtual DtVectorOffset3D DtScriptVrfObject::getBoundingVolume ( DtVectorOffset3D &  offset ) const

virtual

Returns the bounding volume and the bounding volume offset.

virtual std::string DtScriptVrfObject::getNbcDamage ( int &  dmgPerSec, int &  moppLvl  ) const

virtual

Returns the damage type, damage per second, and the MOPP level required to protect against the NBC contaminated area.

virtual std::string DtScriptVrfObject::getNbcAgent ( ) const

virtual

Returns the agent type of the NBC area.

virtual bool DtScriptVrfObject::isBreached ( ) const

virtual

Returns true if this is an engineering object which has been breached.

virtual std::string DtScriptVrfObject::getExtendedData ( const std::string &  key ) const

virtual

Returns the extended data with the given key, or an empty string if not found.

virtual DtLocation3D DtScriptVrfObject::getClosestPointToLocation2D ( const DtLocation3D &  location, double &  distance  ) const

virtual

Finds the closest point on the object's geometry to the given location.

Also returns the distance to that point.

virtual DtLocation3D DtScriptVrfObject::getIntersectionPointWithLine2D ( const DtLocation3D &  point1, const DtLocation3D &  point2, bool &  hasIntersection  ) const

virtual

Calculates the point where the line defined by the two points intersects with the object.

Sets hasIntersection to false if there is no intersection point.

virtual bool DtScriptVrfObject::isActive ( ) const

virtual

Returns true if this is an environmental and it is active. All others will be considered active.

bool DtScriptVrfObject::hasStateProperty

(

const std::string &

propertyName

)

Checks to see if the property exists.

It is OK to call the get... Lua API functions when the property doesn't exist; a warning is printed and a nil object is returned. Using this test is appropriate though when it is known ahead of time that the property might not exist for some entity.

bool DtScriptVrfObject::hasParameterProperty

(

const std::string &

propertyName

)

virtual std::string DtScriptVrfObject::getDiGuyHandItem ( ) const

virtual

If object is lifeform with Diguy representation will return handitem if has one.

virtual bool DtScriptVrfObject::isAnimationAvailable ( const std::string &  animationName ) const

virtual

virtual void DtScriptVrfObject::setSimManager ( DtSimManager *  simManager )

virtual

Script API functions above. ////////////////////////////////////!

Used by the object serializer so that an instance of this object can call checkSelf()

virtual DtString DtScriptVrfObject::objectType ( ) const

virtual

Should return the string name of this object.

The object name should not be part of the serialization unless you want it to be, but you should take it into account when implementing both functions.

Implements DtAsciiSerializable.

DtString DtScriptVrfObject::serialize ( )

virtual

Inherited from DtAsciiSerializable. Returns a string serialized version of this class.

Implements DtAsciiSerializable.

bool DtScriptVrfObject::deserialize ( const DtString &  data )

virtual

Inherited from DtAsciiSerializable.

Returns true if it could fill its members with the data contained in the string. False otherwise.

Implements DtAsciiSerializable.

static DtAsciiSerializable* DtScriptVrfObject::creator ( )

static

Inherited from DtAsciiSerializable. Returns a new object of this type with default values.

DtVrfObject* DtScriptVrfObject::vrfObject ( ) const

inline

For use by C++ side methods.

Call testValid() to try and fill in object pointer (if does not exist) or throw an exception if it really doesn't

void DtScriptVrfObject::testValid

(

)

const

Makes sure the object is valid. If not, throws exception.

static DtScriptVrfObject DtScriptVrfObject::nullObject ( )

inlinestatic

Returns a null object.

References DtUUID::nullUUID().

Member Data Documentation

DtRwUUID DtScriptVrfObject::myUUID

protected

DtSimManager* DtScriptVrfObject::mySimManager

protected

DtVrfObjectDeletionHandle DtScriptVrfObject::myObjectDeletionHandle

mutableprotected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-6-branch/include/vrfobjcore/scriptVrfObject.h
