Visualizer for entity track histories; places a 3d ribbon behind the entity, which tracks the location history of the entity. More...

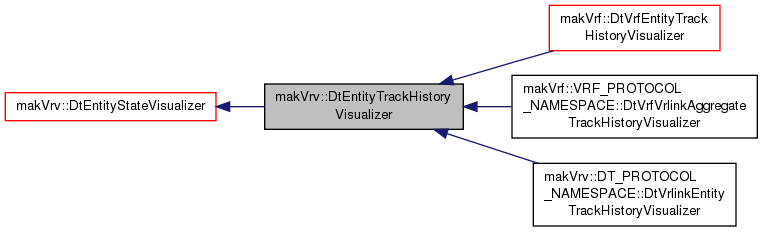

Inheritance diagram for makVrv::DtEntityTrackHistoryVisualizer:

[legend]

Public Member Functions
	DtEntityTrackHistoryVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
	CTOR.
virtual	~DtEntityTrackHistoryVisualizer ()
	DTOR.
virtual void	setTrackHistoryEnabled (bool)
	Sets whether the track history is enabled (visible).
bool	trackHistoryEnabled () const
	Gets whether the track history is currently enabled (visible).
virtual bool	active () const
	Returns true if model should be visible.
virtual void	setColor (float r, float g, float b, float alpha)
	override color in the model definition
virtual const DtStateVisualizer::TypeInfo &	typeInfo () const
	The instance's type info.
Public Member Functions inherited from makVrv::DtEntityStateVisualizer
	DtEntityStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
	CTOR.
virtual	~DtEntityStateVisualizer ()
	DTOR.
virtual void	setState (int stateNumber, int stateValue)
	Override to set the attribute state of agents.
DtEntityStateListener &	entityStateListener ()
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR.
virtual	~DtStateVisualizer ()
	DTOR.
virtual void	setParent (DtStateVisualizer *)
	Override to set the parent of this visualizer.
void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition.
const std::string &	modelDefinition () const
	Gets the current model definition.
virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item.
virtual void	initialize ()
	Initialize the visualizer.
virtual bool	isVisible () const
	Returns true if visible.
virtual void	setSelected (bool)
	Sets selected state.
virtual bool	selected () const
void	setName (const std::string &)
	Internal name of state visualizer.
const std::string &	name () const
virtual void	setPickable (bool)
	Sets pickable state.
virtual bool	pickable () const
virtual void	setUniqueID (DtUniqueID id)
DtUniqueID	uniqueID () const
int	visualizerType () const
void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item.
DtStateListener &	listener ()
DtBaseConnection &	simulation ()
	Get the connection for this visualizer.
void	setDistribute (bool b)
	Whether or not to distribute over the network.
bool	distribute () const

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()
	This class's type info.

Protected Member Functions
void	setEmbarked (bool b)
	Set whether the entity is embarked or not (update track history visibility).
virtual void	updateActivity ()
	Ensure model agents are created or destroyed as visibility changes.
virtual void	createModelAgents ()
	Creates model agents for visualizing the track history.
virtual void	destroyModelAgents ()
	Destroys the model agents used to visualize the track history.
virtual void	updateColor ()
	Applies the color (set by setColor(float,float,float,float) to the track history.
virtual void	setModelDefinitionForAgents ()
	Tells the track history model agents to use the current model definition.
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &visDef)
	Sets the visualizer definition to use for visualizing the track history.
Track History Setting Changed Slots
Updates the track history as the settings change.
virtual void	slot_trackHistoryRibbonSpacingChanged (float spacing)
virtual void	slot_trackHistoryRibbonLengthChanged (int maxSamples)
virtual void	slot_trackHistoryRibbonInfiniteChanged (bool isInfinite)
virtual void	slot_listenerHostGlobalIdSet (const std::string &hostId)

Protected Attributes
DtRibbonModelAgent *	myTrackHistory
DtTrackHistoryUpdaterAgent *	myTrackHistoryUpdater
bool	myInfiniteFlag
float	mySampleSpacing
int	myRibbonLength
bool	myTrackHistoryEnabled
bool	myEmbarked
bool	myOcclusionEnabled
bool	myColorSet
float	myColor [4]
Protected Attributes inherited from makVrv::DtEntityStateVisualizer
DtEntityStateListener *	myEntityListener
	Same as myListener, but casted for convenience.
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	myUniqueID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
int	myModelSet
int	myVisualizerType
std::vector< int >	myShowHideContexts
bool	mySelected
bool	myPickable
bool	myVisible
DtStateVisualizer *	myParent
DtSceneObjectAgent *	mySceneObjectAgent

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...
Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents.
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked.
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick

Detailed Description

Visualizer for entity track histories; places a 3d ribbon behind the entity, which tracks the location history of the entity.

Constructor & Destructor Documentation

makVrv::DtEntityTrackHistoryVisualizer::DtEntityTrackHistoryVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

virtual makVrv::DtEntityTrackHistoryVisualizer::~DtEntityTrackHistoryVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtEntityTrackHistoryVisualizer::setTrackHistoryEnabled ( bool )

virtual

Sets whether the track history is enabled (visible).

bool makVrv::DtEntityTrackHistoryVisualizer::trackHistoryEnabled ( ) const

Gets whether the track history is currently enabled (visible).

virtual bool makVrv::DtEntityTrackHistoryVisualizer::active ( ) const

virtual

Returns true if model should be visible.

Reimplemented in makVrf::DtVrfEntityTrackHistoryVisualizer.

virtual void makVrv::DtEntityTrackHistoryVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	alpha
	)

virtual

override color in the model definition

virtual const DtStateVisualizer::TypeInfo& makVrv::DtEntityTrackHistoryVisualizer::typeInfo ( ) const

virtual

The instance's type info.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtSpotReportTrackHistoryVisualizer, and makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateTrackHistoryVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::DtEntityTrackHistoryVisualizer::theTypeInfo ( )

static

This class's type info.

Reimplemented in makVrf::DtSpotReportTrackHistoryVisualizer, and makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateTrackHistoryVisualizer.

void makVrv::DtEntityTrackHistoryVisualizer::setEmbarked ( bool b )

protected

Set whether the entity is embarked or not (update track history visibility).

Non-virtual (Called from CTOR).

virtual void makVrv::DtEntityTrackHistoryVisualizer::updateActivity ( )

protectedvirtual

Ensure model agents are created or destroyed as visibility changes.

Called from setTrackHistoryEnabled(bool).

virtual void makVrv::DtEntityTrackHistoryVisualizer::createModelAgents ( )

protectedvirtual

Creates model agents for visualizing the track history.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtSpotReportTrackHistoryVisualizer.

virtual void makVrv::DtEntityTrackHistoryVisualizer::destroyModelAgents ( )

protectedvirtual

Destroys the model agents used to visualize the track history.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtSpotReportTrackHistoryVisualizer.

virtual void makVrv::DtEntityTrackHistoryVisualizer::updateColor ( )

protectedvirtual

Applies the color (set by setColor(float,float,float,float) to the track history.

virtual void makVrv::DtEntityTrackHistoryVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

Tells the track history model agents to use the current model definition.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtSpotReportTrackHistoryVisualizer.

virtual void makVrv::DtEntityTrackHistoryVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition & visDef )

protectedvirtual

Sets the visualizer definition to use for visualizing the track history.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtVrfEntityTrackHistoryVisualizer.

virtual void makVrv::DtEntityTrackHistoryVisualizer::slot_trackHistoryRibbonSpacingChanged ( float spacing )

protectedvirtual

virtual void makVrv::DtEntityTrackHistoryVisualizer::slot_trackHistoryRibbonLengthChanged ( int maxSamples )

protectedvirtual

virtual void makVrv::DtEntityTrackHistoryVisualizer::slot_trackHistoryRibbonInfiniteChanged ( bool isInfinite )

protectedvirtual

virtual void makVrv::DtEntityTrackHistoryVisualizer::slot_listenerHostGlobalIdSet ( const std::string & hostId )

protectedvirtual

Member Data Documentation

DtRibbonModelAgent* makVrv::DtEntityTrackHistoryVisualizer::myTrackHistory

protected

DtTrackHistoryUpdaterAgent* makVrv::DtEntityTrackHistoryVisualizer::myTrackHistoryUpdater

protected

bool makVrv::DtEntityTrackHistoryVisualizer::myInfiniteFlag

protected

float makVrv::DtEntityTrackHistoryVisualizer::mySampleSpacing

protected

int makVrv::DtEntityTrackHistoryVisualizer::myRibbonLength

protected

bool makVrv::DtEntityTrackHistoryVisualizer::myTrackHistoryEnabled

protected

bool makVrv::DtEntityTrackHistoryVisualizer::myEmbarked

protected

bool makVrv::DtEntityTrackHistoryVisualizer::myOcclusionEnabled

protected

bool makVrv::DtEntityTrackHistoryVisualizer::myColorSet

protected

float makVrv::DtEntityTrackHistoryVisualizer::myColor[4]

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.vrf4-6-branch/include/vrvCore/DtEntityTrackHistoryVisualizer.h
