DtEvalSimulationObject Class Reference

class DtEvalSimulationObject: More...

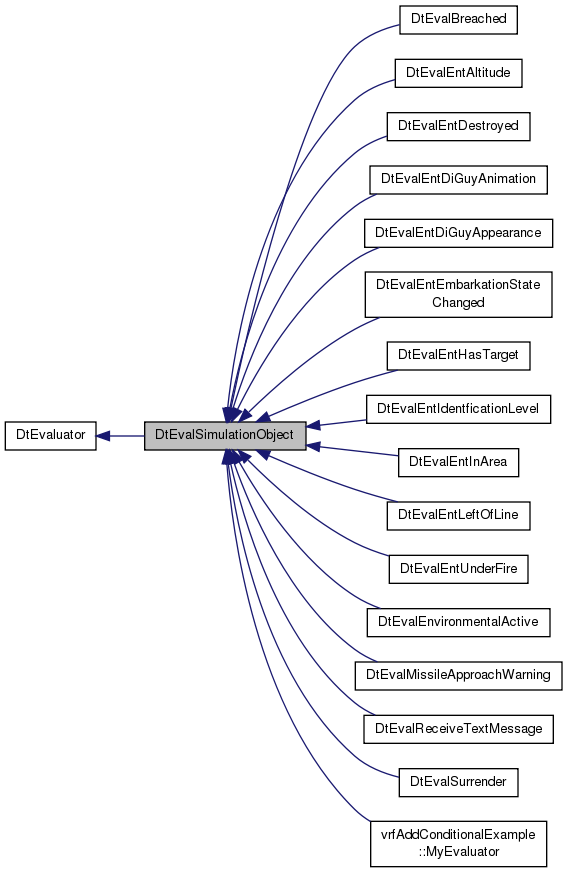

Inheritance diagram for DtEvalSimulationObject:

Public Member Functions
	DtEvalSimulationObject ()
	constructor
virtual	~DtEvalSimulationObject ()
	destructor
	DtEvalSimulationObject (const DtEvalSimulationObject &orig)
	copy constructor
DtEvalSimulationObject &	operator= (const DtEvalSimulationObject &orig)
	assignment operator
virtual const DtUUID &	simulationObject (const DtSimCondExpr *condExpr) const
	If there is a simulation object that satisfied the evaluation of this condition then it is returned here.
Public Member Functions inherited from DtEvaluator
	DtEvaluator ()
	constructor - condExpr is the conditional expression to be evaluated.
virtual	~DtEvaluator ()
	destructor
virtual bool	evaluate (DtSimCondExpr *condExpr, const DtUUID &entity, DtSimManager *simManager, const DtPlan *plan=0) const =0
	Evaluate the conditional expression for the entity in the context of the given simManager, and return the current result.
	DtEvaluator (const DtEvaluator &orig)
	copy constructor
DtEvaluator &	operator= (const DtEvaluator &orig)
	assignment operator
virtual DtEvaluator *	clone ()=0
	clone operator

Protected Member Functions
virtual const DtUUID &	initializeObjectToCheck (const DtSimCondExpr *condExpr, const DtUUID &baseUUID, const DtPlan *plan) const
	Given the UUID that is the object to check, replace with a plan variable if needed.

Protected Attributes
DtUUID	mySimulationObject
DtUUID	myObjectToCheck

Additional Inherited Members
Static Public Member Functions inherited from DtEvaluator
static void	setFactory (DtEvaluatorFactory *factory)
	Set/get the DtEvaluator class factory.
static DtEvaluatorFactory *	factory ()
static void	addEvaluatorCreatorFcn (const int intType, DtEvaluatorCreatorFcn fcn)
	Adds a evaluator creator member function to the evaluator factory.
Static Protected Attributes inherited from DtEvaluator
static DtEvaluatorFactory *	theFactory

Detailed Description

class DtEvalSimulationObject:

Base class that provides some variables and methods that an evaluator that checks and returns a simulation object result can use. Will provide routines to do variable substitution, if needed

Constructor & Destructor Documentation

DtEvalSimulationObject::DtEvalSimulationObject

(

)

constructor

virtual DtEvalSimulationObject::~DtEvalSimulationObject ( )

virtual

destructor

DtEvalSimulationObject::DtEvalSimulationObject

(

const DtEvalSimulationObject &

orig

)

copy constructor

Member Function Documentation

DtEvalSimulationObject& DtEvalSimulationObject::operator=

(

const DtEvalSimulationObject &

orig

)

assignment operator

virtual const DtUUID& DtEvalSimulationObject::simulationObject ( const DtSimCondExpr *  condExpr ) const

virtual

If there is a simulation object that satisfied the evaluation of this condition then it is returned here.

Default returns DtUUID::nullUUID()

Reimplemented from DtEvaluator.

virtual const DtUUID& DtEvalSimulationObject::initializeObjectToCheck ( const DtSimCondExpr *  condExpr, const DtUUID &  baseUUID, const DtPlan *  plan  ) const

protectedvirtual

Given the UUID that is the object to check, replace with a plan variable if needed.

Result is that myObjectToCheck will be filled in with the supplied UUID or the replaced. This is used for performance purposes to set this variable up once. Returns myObjectToCheck

Member Data Documentation

DtUUID DtEvalSimulationObject::mySimulationObject

mutableprotected

DtUUID DtEvalSimulationObject::myObjectToCheck

mutableprotected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfplanmgr/evalSimulationObject.h
