DtIteratorBase< T > Class Template Reference

Description: DtIteratorBase is the base class for iterators. More...

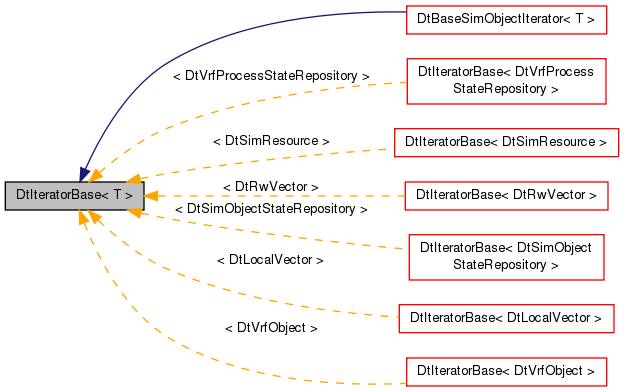

Inheritance diagram for DtIteratorBase< T >:

Public Member Functions
	DtIteratorBase (const DtList &list)
	Constructor. Supply the DtList to be iterated over.
	DtIteratorBase (const DtIteratorBase &orig)
	Copy constructor.
virtual	~DtIteratorBase ()
virtual unsigned int	size () const
virtual bool	empty () const
virtual const DtList &	list ()
virtual bool	reset (bool reverse=false)
	Sets the cursor and the direction of this iterator over the list.
virtual bool	reset (DtIteratorLocation location, DtIteratorDirection direction=DtIteratorForward)
	Sets the cursor and the direction of this iterator over the list.
virtual void	reverse ()
	Reverses the direction if this iterator. The cursor is not moved.
virtual void	setDirection (DtIteratorDirection direction)
	Sets the direction of this iterator. The cursor is not moved.
virtual DtIteratorDirection	direction ()
	Returns the current direction of the iterator.
virtual int	cursorIndex () const
	Returns current cursor index in list.
virtual void	setCursorIndex (int i)
virtual T *	internalFirst (bool move=true)
	Returns the first vertex in the list if going DtIteratorForward, and the last vertex if going DtIteratorReverse.
T *	operator-> ()
T *	operator* ()
virtual T *	internalCurrent () const
	Returns the current vertex. The cursor is not moved.
virtual DtListItem *	cursor () const
	Returns the current cursor. Use with caution.
virtual T *	itemToObject (DtListItem *item, bool move)
virtual T *	internalNext (bool move=true)
virtual T *	internalLast (bool move=true)
	Returns the last vertex in the list if going DtIteratorForward, and the first vertex if going DtIteratorReverse.
virtual T *	internalWrapNext (bool move=true)
	If the cursor is 0, returns 0 (move is ignored in this case).
virtual T *	internalPrev (bool move=true)
	If the cursor is 0, returns 0 (move is ignored in this case).
virtual T *	internalWrapPrev (bool move=true)
virtual T *	current ()
virtual T *	first (bool move=true)
virtual T *	next (bool move=true)
virtual T *	prev (bool move=true)
virtual T *	last (bool move=true)
virtual T *	wrapNext (bool move=true)
virtual T *	wrapPrev (bool move=true)
T *	operator++ ()
T *	operator-- ()

Protected Attributes
const DtList &	myList
DtListItem *	myCursor
DtIteratorDirection	myDirection

Private Member Functions
	DtIteratorBase ()
const DtIteratorBase &	operator= (const DtIteratorBase &orig)
	Assignment Operator.

Detailed Description

template<class T>
class DtIteratorBase< T >

Description: DtIteratorBase is the base class for iterators.

Constructor & Destructor Documentation

template<class T>

DtIteratorBase< T >::DtIteratorBase ( )

private

template<class T>

DtIteratorBase< T >::DtIteratorBase ( const DtList &  list )

inline

Constructor. Supply the DtList to be iterated over.

template<class T>

DtIteratorBase< T >::DtIteratorBase ( const DtIteratorBase< T > &  orig )

inline

Copy constructor.

template<class T>

virtual DtIteratorBase< T >::~DtIteratorBase ( )

inlinevirtual

Member Function Documentation

template<class T>

const DtIteratorBase& DtIteratorBase< T >::operator= ( const DtIteratorBase< T > &  orig )

private

Assignment Operator.

template<class T>

virtual unsigned int DtIteratorBase< T >::size ( ) const

inlinevirtual

Returns

The size of the container being iterated over.

template<class T>

virtual bool DtIteratorBase< T >::empty ( ) const

inlinevirtual

Returns

A boolean specifying whether or not the container being iterated over is empty or not.

template<class T>

virtual const DtList& DtIteratorBase< T >::list ( )

inlinevirtual

template<class T>

virtual bool DtIteratorBase< T >::reset ( bool  reverse = false )

inlinevirtual

Sets the cursor and the direction of this iterator over the list.

If reverse is false, DtIteratorBeginning and DtIteratorForward are used, otherwise, DtIteratorEnd and DtIteratorReverse are used. Returns true unless the list is empty.

Referenced by DtIteratorBase< DtVrfObject >::internalFirst(), DtIteratorBase< DtVrfObject >::internalLast(), and DtIteratorBase< DtVrfObject >::reset().

template<class T>

virtual bool DtIteratorBase< T >::reset ( DtIteratorLocation  location, DtIteratorDirection  direction = DtIteratorForward  )

inlinevirtual

Sets the cursor and the direction of this iterator over the list.

template<class T>

virtual void DtIteratorBase< T >::reverse ( )

inlinevirtual

Reverses the direction if this iterator. The cursor is not moved.

Referenced by DtIteratorBase< DtVrfObject >::reset().

template<class T>

virtual void DtIteratorBase< T >::setDirection ( DtIteratorDirection  direction )

inlinevirtual

Sets the direction of this iterator. The cursor is not moved.

template<class T>

virtual DtIteratorDirection DtIteratorBase< T >::direction ( )

inlinevirtual

Returns the current direction of the iterator.

Referenced by DtIteratorBase< DtVrfObject >::reset(), and DtIteratorBase< DtVrfObject >::setDirection().

template<class T>

virtual int DtIteratorBase< T >::cursorIndex ( ) const

inlinevirtual

Returns current cursor index in list.

template<class T>

virtual void DtIteratorBase< T >::setCursorIndex ( int  i )

inlinevirtual

template<class T>

virtual T* DtIteratorBase< T >::internalFirst ( bool  move = true )

inlinevirtual

Returns the first vertex in the list if going DtIteratorForward, and the last vertex if going DtIteratorReverse.

If move is true, first() resets this iterator to DtIteratorBeginning and DtIteratorForward if going DtIteratorForward DtIteratorEnd and DtIteratorReverse if going DtIteratorReverse

Referenced by DtBaseSimObjectIterator< DtVrfObject >::first(), and DtIteratorBase< DtVrfObject >::first().

template<class T>

T* DtIteratorBase< T >::operator-> ( )

inline

template<class T>

T* DtIteratorBase< T >::operator* ( )

inline

template<class T>

virtual T* DtIteratorBase< T >::internalCurrent ( ) const

inlinevirtual

Returns the current vertex. The cursor is not moved.

Referenced by DtIteratorBase< DtVrfObject >::current().

template<class T>

virtual DtListItem* DtIteratorBase< T >::cursor ( ) const

inlinevirtual

Returns the current cursor. Use with caution.

template<class T>

virtual T* DtIteratorBase< T >::itemToObject ( DtListItem *  item, bool  move  )

inlinevirtual

Referenced by DtIteratorBase< DtVrfObject >::internalNext(), DtIteratorBase< DtVrfObject >::internalPrev(), DtIteratorBase< DtVrfObject >::internalWrapNext(), and DtIteratorBase< DtVrfObject >::internalWrapPrev().

template<class T>

virtual T* DtIteratorBase< T >::internalNext ( bool  move = true )

inlinevirtual

Referenced by DtBaseSimObjectIterator< DtVrfObject >::next(), and DtIteratorBase< DtVrfObject >::next().

template<class T>

virtual T* DtIteratorBase< T >::internalLast ( bool  move = true )

inlinevirtual

Returns the last vertex in the list if going DtIteratorForward, and the first vertex if going DtIteratorReverse.

If move is true, last() resets this iterator to DtIteratorEnd and DtIteratorReverse if going DtIteratorForward DtIteratorBeginning and DtIteratorForward if going DtIteratorReverse

Referenced by DtBaseSimObjectIterator< DtVrfObject >::last(), and DtIteratorBase< DtVrfObject >::last().

template<class T>

virtual T* DtIteratorBase< T >::internalWrapNext ( bool  move = true )

inlinevirtual

If the cursor is 0, returns 0 (move is ignored in this case).

Otherwise, returns the vertex at the next position in the list in the current direction and if move is true, moves the cursor there.

Referenced by DtBaseSimObjectIterator< DtVrfObject >::wrapNext(), and DtIteratorBase< DtVrfObject >::wrapNext().

template<class T>

virtual T* DtIteratorBase< T >::internalPrev ( bool  move = true )

inlinevirtual

If the cursor is 0, returns 0 (move is ignored in this case).

Otherwise, returns the vertex at the previous position in the list in the current direction and if move is true, moves the cursor there.

Referenced by DtBaseSimObjectIterator< DtVrfObject >::prev(), and DtIteratorBase< DtVrfObject >::prev().

template<class T>

virtual T* DtIteratorBase< T >::internalWrapPrev ( bool  move = true )

inlinevirtual

Referenced by DtBaseSimObjectIterator< DtVrfObject >::wrapPrev(), and DtIteratorBase< DtVrfObject >::wrapPrev().

template<class T>

virtual T* DtIteratorBase< T >::current ( )

inlinevirtual

Referenced by DtRwIntelCollectionArea::modifierForForce(), DtRecursiveResourceIterator::next(), DtRecursiveStateRepositoryIterator::next(), DtIteratorBase< DtVrfObject >::operator*(), DtIteratorBase< DtVrfObject >::operator->(), and DtRwTranslatableStringObject::translate().

template<class T>

virtual T* DtIteratorBase< T >::first ( bool  move = true )

inlinevirtual

Reimplemented in DtVrfObjectFilterIterator, DtRecursiveStateRepositoryIterator, DtSimObjectStateRepositoryIterator, DtRecursiveResourceIterator, DtVrfProcessStateRepositoryIterator, DtBaseSimObjectIterator< T >, and DtBaseSimObjectIterator< DtVrfObject >.

Referenced by DtTerrainInterfaceConfig::ListT< DtTerrainInterfaceConfig >::configure(), and DtIteratorBase< DtVrfObject >::DtIteratorBase().

template<class T>

virtual T* DtIteratorBase< T >::next ( bool  move = true )

inlinevirtual

Reimplemented in DtVrfObjectFilterIterator, DtBaseSimObjectIterator< T >, and DtBaseSimObjectIterator< DtVrfObject >.

Referenced by DtTerrainInterfaceConfig::ListT< DtTerrainInterfaceConfig >::configure(), and DtIteratorBase< DtVrfObject >::operator++().

template<class T>

virtual T* DtIteratorBase< T >::prev ( bool  move = true )

inlinevirtual

Reimplemented in DtVrfObjectFilterIterator, DtBaseSimObjectIterator< T >, and DtBaseSimObjectIterator< DtVrfObject >.

Referenced by DtIteratorBase< DtVrfObject >::operator--().

template<class T>

virtual T* DtIteratorBase< T >::last ( bool  move = true )

inlinevirtual

Reimplemented in DtVrfObjectFilterIterator, DtSimObjectStateRepositoryIterator, DtVrfProcessStateRepositoryIterator, DtBaseSimObjectIterator< T >, and DtBaseSimObjectIterator< DtVrfObject >.

template<class T>

virtual T* DtIteratorBase< T >::wrapNext ( bool  move = true )

inlinevirtual

Reimplemented in DtVrfObjectFilterIterator, DtBaseSimObjectIterator< T >, and DtBaseSimObjectIterator< DtVrfObject >.

template<class T>

virtual T* DtIteratorBase< T >::wrapPrev ( bool  move = true )

inlinevirtual

Reimplemented in DtVrfObjectFilterIterator, DtBaseSimObjectIterator< T >, and DtBaseSimObjectIterator< DtVrfObject >.

template<class T>

T* DtIteratorBase< T >::operator++ ( )

inline

template<class T>

T* DtIteratorBase< T >::operator-- ( )

inline

Member Data Documentation

template<class T>

const DtList& DtIteratorBase< T >::myList

protected

Referenced by DtIteratorBase< DtVrfObject >::cursorIndex(), DtIteratorBase< DtVrfObject >::empty(), DtIteratorBase< DtVrfObject >::internalFirst(), DtIteratorBase< DtVrfObject >::internalLast(), DtIteratorBase< DtVrfObject >::internalWrapNext(), DtIteratorBase< DtVrfObject >::internalWrapPrev(), DtIteratorBase< DtVrfObject >::list(), DtIteratorBase< DtVrfObject >::reset(), DtIteratorBase< DtVrfObject >::setCursorIndex(), and DtIteratorBase< DtVrfObject >::size().

template<class T>

DtListItem* DtIteratorBase< T >::myCursor

protected

Referenced by DtIteratorBase< DtVrfObject >::cursor(), DtIteratorBase< DtVrfObject >::cursorIndex(), DtIteratorBase< DtVrfObject >::internalCurrent(), DtIteratorBase< DtVrfObject >::internalNext(), DtIteratorBase< DtVrfObject >::internalPrev(), DtIteratorBase< DtVrfObject >::internalWrapNext(), DtIteratorBase< DtVrfObject >::internalWrapPrev(), DtIteratorBase< DtVrfObject >::itemToObject(), DtIteratorBase< DtVrfObject >::reset(), and DtIteratorBase< DtVrfObject >::setCursorIndex().

template<class T>

DtIteratorDirection DtIteratorBase< T >::myDirection

protected

Referenced by DtIteratorBase< DtVrfObject >::direction(), DtIteratorBase< DtVrfObject >::internalFirst(), DtIteratorBase< DtVrfObject >::internalLast(), DtIteratorBase< DtVrfObject >::internalNext(), DtIteratorBase< DtVrfObject >::internalPrev(), DtIteratorBase< DtVrfObject >::internalWrapNext(), DtIteratorBase< DtVrfObject >::internalWrapPrev(), DtIteratorBase< DtVrfObject >::reset(), DtIteratorBase< DtVrfObject >::reverse(), and DtIteratorBase< DtVrfObject >::setDirection().

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfutil/iteratorBase.h
