DtTerrainInterfaceConfig Class Reference

Class DtTerrainInterfaceConfig is a readable-writable class holding terrain interface configuration options. More...

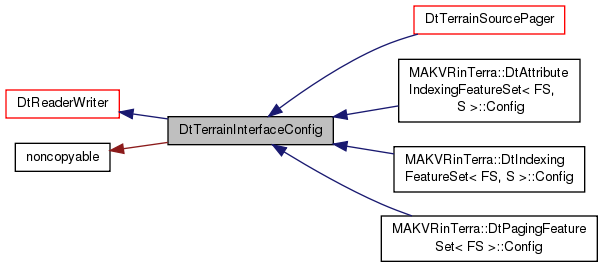

Inheritance diagram for DtTerrainInterfaceConfig:

Classes
class	Configator
class	ListT
class	TerrainParam

Public Member Functions
	DtTerrainInterfaceConfig (const std::string &matchPattern="")
	Regexp pattern to match which the label string of whatever is being configured must match.
DtTerrainInterfaceConfig &	operator= (const DtTerrainInterfaceConfig &)
virtual bool	loadFromFile (const std::string &file, std::ostream &log)
	Load the values from the given file.
virtual bool	loadFromFile (const std::string &file)
virtual bool	loadFromSourceSpecificFile (const std::string &file, const std::string &ext="mtl")
	Load the values from the given file with the new extension if it exists.
virtual void	configure (DtTerrainInterfaceConfig &config, const std::string &matchText, bool ignoreUnspecified=true) const
	Configure config using option matchText to match subconfigurations.
virtual void	configure (DtTerrainInterfaceConfig &config, bool ignoreUnspecified=true) const
virtual void	configurePaths (std::string &path) const
	Replace thee , , string in the supplied parameter path.
virtual void	print (std::ostream &, bool printUnspecified=true) const
	Print object to stream.
DtString	prettyPrint () const
void	setName (const DtString &)
std::string	modelDefinitionPath () const
std::string	simCachePath () const
std::string	featureConfigFile () const
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	pseudo-copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
bool	operator== (const DtReaderWriter &) const
	Equivalence operator.
bool	operator!= (const DtReaderWriter &rhs)
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	postPutSelf ()
	Called after either version of put self (file or environment). Default is no-op.
virtual void	prePutSelf ()
	Called before either version of put self (file or environment). Default is no-op.
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	postGetSelf ()
	Called after either version of getSelf (mtl or environment). Default is no-op.
virtual void	preGetSelf ()
	Called before either version of get self (file or environment). Default is no-op.
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
bool	isReadonly () const
virtual void	reset ()
	For those reader/writer items that support it, resets the reader/writer value to original state Default is no-op.
virtual int	alignment () const
	For those items that are sent over the network via HLA, this will give the network alignment.
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual bool	hasVariableReference () const
	Returns true if this item or any item in the registry (recursive) is a variable reference.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.
virtual void	recordUpdateTime () const
	Can be implemented in subclasses to stamp the time when updated.
virtual bool	wasUpdatedSince (DtTime t) const
	Can be implemented in subclasses to return true if an update occurred after the specified time.
virtual bool	changedSinceLastChecked ()
	Returns true if this objects value has changed since the last time this function was called.
virtual bool	peekChangedSinceLastChecked () const
	Returns the value that changedSinceLastChecked would return but does not reset the internal flag.
virtual void	putData (std::string &fp, int indentLevel=0)
	Deriving class overrides these to get/put class specific data.
virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
	Clears out all variable reference flags from all readerwriter items in registry recursively.
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
	The default value to use if the reader/writer object is a variable and that variable is not specified.
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
	Previous default value, if exists, will be removed and replaced with a clone of the supplied variable.
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Give the stream, if the stream contains a default value then set it here.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual bool	toXml (const DtFilename &) const
	Writes contents of xml result to the given filename.
virtual bool	fromXml (const DtString &)
	Restores object from given xml string. Returns true if valid.
virtual bool	fromXmlFile (const DtFilename &)
	Restores object from given xml file.
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
	Override to add attributes of actual data.
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
	Called when the item is a variable reference.
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
	Gets data from the environment value.
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
	Called when the xml reader tries to parse an unknown reader/writer item. Default is a no-op.
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)
	Called when the item is a variable reference.

Static Public Member Functions
static void	setModelDefinitionDefault (const std::string &)
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static void	setPutIndent (bool)
static bool	putIndent ()
static const char *	theXmlType ()
	The type that is used when archiving to an XML stream.
static const DtFilename &	appPath ()
	Gets the current working directory.
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
	Sets the function to create the DtReaderWriterFactory.
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static DtReaderWriterFactory *	factory ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
	Given a filename, returns a newly created reader/writer object from the object found within.
static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
	Given a xml string, returns a newly created reader/writer object from the object found within.
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
	Given a xml environment, returns a newly created reader/writer object from the object found within.
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)
	Gets the named attribute from a DtEnvValueSP.
Static Public Member Functions inherited from DtObjectDebugger< DtReaderWriter >
static DtObjectCounter::CounterType	ObjectCount ()
static const DtObjectContainer *	ObjectContainer ()

Public Attributes
TInt	maxNetworkThreads
	Parameter Name: max-feature-network-threads Parameter Description: The max number of background threads that will be used to read streaming feature data.
TInt	maxUnusedFeatures
	Parameter Name: max-unused-features Parameter Description: Max number of unused features to store in memory.
TInt	areaPageTableLoadingThreads
	Parameter Name: area-page-table-threads Parameter Description: Max number of simultaneous threads that will be used for executing feature loading tasks for area features.
TInt	featuresHighestLoadLOD
	Parameter Name: features-highest-load-LOD Parameter Description: The smallest tile (highest LOD) for loading features.
TInt	featuresLowestLoadLOD
	Parameter Name: features-lowest-load-LOD Parameter Description: The largest tile (smallest LOD) for loading features.
TInt	featuresPerTileTarget
	Parameter Name: features-per-tile-target Parameter Description: Target number of features per tile.
TInt	featuresMaxIndexLOD
	Parameter Name: features-max-index-LOD Parameter Description: Smallest tile LOD level to index features.
TInt	minFeaturesToIndexTile
	Parameter Name: min-features-to-index-tile Parameter Description: Minumum number of features in a tile for the tile to be considered for subindexing.
TReal	featuresIndexRatio
	Parameter Name: features-index-ratio Parameter Description: If the ratio of the number of features in a parent tile to the number in a subtile is greater than this value then the tile will be subindexed.
TBool	deduplicateFeatures
	Parameter Name: deduplicate-features Parameter Description: Remove duplicate features.
TBool	cacheLastFeatureTile
	Parameter Name: cache-last-feature-tile Parameter Description: Cache last used feature tile Parameter Default: True.
TBool	loadTerraPageImagery
	Parameter Name: load-terra-page-imagery Parameter Description: Whether or not to have the back-end load imagery when loading terra page databases This will use less memory but will disable soil types Parameter Default: True.
TBool	loadTerraPageLocalMaterials
	Parameter Name: load-terra-page-local-materials Parameter Description: Whether or not to have the back-end load local materials when loading terra page databases This will use less memory and may disable some soil types, but not all Parameter Default: False.
TInt	pathFinderMaxSize
	Parameter Name: pathfinder-max-features Parameter Description: The max size of a DtAStarGraph.
TInt	pathFinderPageTableDepth
	Parameter Name: pathfinder-page-table-depth Parameter Description: The depth of the Quad-Tree used for tracking loaded features for each pathfinder road graph.
TReal	pathFinderLoadTimeout
	Parameter Name: pathfinder-load-timeout Parameter Description: The amount of time (in seconds) that the path finder will wait on loading a tile of features before giving up on that tile.
TReal	pathFinderVertexTolerance
	Parameter Name: pathfinder-vertex-tolerance Parameter Description: The distance tolerance (in meters) within which feature vertices are considered to be the same vertex.
TInt	pathFinderMinVertexSearch
	Parameter Name: pathfinder-min-vertex-search Parameter Description: The minimum number of vertices the graph search will use to before giving up.
TReal	pathFinderDotProductDistanceThreshold
	Parameter Name: pathfinder-dot-product-distance-threshold Parameter Description: Heuristic which measures progress towards the destination.
TReal	pathFinderMinSearchRadius
	Parameter Name: pathfinder-min-search-radius Parameter Description: Minumum distance path finder will search away from straight line path from source to destination before giving up.
TInt	triangleThreshold
	Parameter Name: num-triangles-threshold Parameter Description: Maximum number of triangles.
TInt	cacheOnlyMaxLod
	Parameter Name: cache-only-max-lod Parameter Description: Max level of detail to use when in cache-only mode.
TBool	loadImagery
	Parameter Name: load-imagery Parameter Description: Whether the terrain system will load imagery it doesn't need.
TInt	blockingIntersectPageInPriority
	Parameter Name: blocking-intersect-page-in-priority Parameter Description: Priority for paging in data for blocking intersect requests.
TInt	intersectPageInPriority
	Parameter Name: intersect-page-in-priority Parameter Description: Priority for paging in data for non-blocking intersect requests.
TInt	pageOutPriority
	Parameter Name: page-out-priority Parameter Description: Priority for paging out data.
TInt	defaultPreloadPriority
	Parameter Name: default-preload-priority Parameter Description: Default priority for preload geometry.
TVector	spatialSubdivisionDimensions
	Parameter Name: spatial-subdivision-dimensions Parameter Description: Parameters for Spatial Subdivision used by DtBoundingVolumeTerrainSourceTracker to determine which paged-out nodes should be paged in.
TBool	useS57ForTerrainGeneration
	Parameter Name: use-S57-for-terrain-generation Parameter Description: Flag for S57 to terrain and soil types.
TBool	oceanLayerPresent
	Parameter Name: ocean-layer-present Enable/disable ocean layer-present Default: True.
TReal	seaLevel
	Parameter Name: sea-level Sea level in meters Default:
TReal	seaFloor
	Parameter Name: sea-floor Sea floor in meters.
TBool	useSoundingPoints
	Parameter Name: use-sounding-points Default: True.
TBool	pageFeatures
	Parameter Name: page-features Default: True.
TString	LOSFeaturesQueryName
	Parameter Name: los-features-query Default: MAK_LOS_OBSTACLE.
TReal	featuresMinUnloadTime
	Parameter Name: features-min-unload-time Default: 15.
TInt	terrainMinUnloadIntersectDiff
	Parameter Name: terrain-min-unload-intersect-diff Default: 50.
TString	pluginsDirectory
	Parameter Name: plugins-directory Default: ../(plugins|plugins64)/(release|debug)

Protected Attributes
TString	myModelDefinitionPath
	Parameter Name: model-definition-path.
TString	mySimCachePath
	Parameter Name: sim-cache-path Default: /cache/vrfsim.
TString	myFeatureConfigFile
	Parameter Name: features-config-file Default: /settings/featureconfig.txt.
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.
bool	myChangedFlag
	Set to true when value changes Set to false when value checked with changedSinceLastChecked.

Private Types
typedef TerrainParam< DtRwBoolean >	TBool
typedef TerrainParam< DtRwInt >	TInt
typedef TerrainParam< DtRwReal >	TReal
typedef TerrainParam< DtRwString >	TString
typedef TerrainParam< DtRwVector >	TVector
typedef ListT < DtTerrainInterfaceConfig >	TList

Private Attributes
TList	subconfigurations
	Parameter Name: subconfigurations Parameter Description: A list of DtTerrainInterfaceConfig objects which can be used to make more specific configurations.

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
	Copies values from the specified DtReaderWriter.
Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue
static DtGetSelfCallbackInfo	thePostGetSelfCallback
static DtPutSelfCallbackInfo	thePrePutSelfCallback
static const DtVariableBindingsList	theEmptyVariableBindingsList
static bool	theCreatorFcnSet
static DtReaderWriterFactory *	theFactory
static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn
static bool	thePutIndent

Detailed Description

Class DtTerrainInterfaceConfig is a readable-writable class holding terrain interface configuration options.

This class lives in vrfutil so that it is not necessary to depend on terrain interface to use this config object.

Member Typedef Documentation

typedef TerrainParam<DtRwBoolean> DtTerrainInterfaceConfig::TBool

private

typedef TerrainParam<DtRwInt> DtTerrainInterfaceConfig::TInt

private

typedef TerrainParam<DtRwReal> DtTerrainInterfaceConfig::TReal

private

typedef TerrainParam<DtRwString> DtTerrainInterfaceConfig::TString

private

typedef TerrainParam<DtRwVector> DtTerrainInterfaceConfig::TVector

private

typedef ListT<DtTerrainInterfaceConfig> DtTerrainInterfaceConfig::TList

private

Constructor & Destructor Documentation

DtTerrainInterfaceConfig::DtTerrainInterfaceConfig ( const std::string &  matchPattern = "" )

explicit

Regexp pattern to match which the label string of whatever is being configured must match.

Exactly what the string is (data source name, query type, etc.) is up to the user of this class and may be different in different situations. Values which are not present will be set to defaults and set as unspecified.

Member Function Documentation

DtTerrainInterfaceConfig& DtTerrainInterfaceConfig::operator=

(

const DtTerrainInterfaceConfig &

)

virtual bool DtTerrainInterfaceConfig::loadFromFile ( const std::string &  file, std::ostream &  log  )

virtual

Load the values from the given file.

virtual bool DtTerrainInterfaceConfig::loadFromFile ( const std::string &  file )

virtual

virtual bool DtTerrainInterfaceConfig::loadFromSourceSpecificFile ( const std::string &  file, const std::string &  ext = "mtl"  )

virtual

Load the values from the given file with the new extension if it exists.

The file given with have its extension replaced by ext and this is The file that will be parsed.

Returns

True if source specific file loaded successfully.

virtual void DtTerrainInterfaceConfig::configure ( DtTerrainInterfaceConfig &  config, const std::string &  matchText, bool  ignoreUnspecified = true  ) const

virtual

Configure config using option matchText to match subconfigurations.

If matchText is supplied and this object has a matchPattern value then the function will only proceed if the matchText matches the pattern, otherwise nothing is done as this configuration doesn't apply. The specified values in this object will then be assigned to the values in config, and then the subconfigurations of this object will be iterated over Exactly what you are matching against is up to the user. The purpose of matchPattern is just so that you can use this class in whatever context it is needed and be able to use whatever string is appropriate in that context to discriminate configurations. It is a string which describes whatever thing you are configuring and want to make a named subconfiguration for. All matching configurations are applied, it is probably not a good idea to make many subconfigurations which match the same string but that is up to the user. and the same process applied to each.

Parameters

config	Object to be configured.
matchText	Text to match against matchPattern.

virtual void DtTerrainInterfaceConfig::configure ( DtTerrainInterfaceConfig &  config, bool  ignoreUnspecified = true  ) const

virtual

virtual void DtTerrainInterfaceConfig::configurePaths ( std::string &  path ) const

virtual

Replace thee , , string in the supplied parameter path.

virtual void DtTerrainInterfaceConfig::print ( std::ostream &  , bool  printUnspecified = true  ) const

virtual

Print object to stream.

DtString DtTerrainInterfaceConfig::prettyPrint

(

)

const

void DtTerrainInterfaceConfig::setName

(

const DtString &

)

static void DtTerrainInterfaceConfig::setModelDefinitionDefault ( const std::string &  )

static

std::string DtTerrainInterfaceConfig::modelDefinitionPath

(

)

const

std::string DtTerrainInterfaceConfig::simCachePath

(

)

const

std::string DtTerrainInterfaceConfig::featureConfigFile

(

)

const

Member Data Documentation

TList DtTerrainInterfaceConfig::subconfigurations

private

Parameter Name: subconfigurations Parameter Description: A list of DtTerrainInterfaceConfig objects which can be used to make more specific configurations.

See configure() Default: <empty>

TInt DtTerrainInterfaceConfig::maxNetworkThreads

Parameter Name: max-feature-network-threads
Parameter Description: The max number of background threads that will be used
to read streaming feature data.

Parameter Default Value: 4

TInt DtTerrainInterfaceConfig::maxUnusedFeatures

Parameter Name: max-unused-features
Parameter Description: Max number of unused features to store in memory.

Once this threshold has been reached, unused features will be paged out
until the number is below this threshold. Parameter Default Value: 500000

TInt DtTerrainInterfaceConfig::areaPageTableLoadingThreads

Parameter Name: area-page-table-threads Parameter Description: Max number of simultaneous threads that will be
used for executing feature loading tasks for area features.

Parameter Default Value: 4

TInt DtTerrainInterfaceConfig::featuresHighestLoadLOD

Parameter Name: features-highest-load-LOD Parameter Description: The smallest tile (highest LOD) for loading features.

Higher values will create smaller tiles. Parameter Default Value: 15

TInt DtTerrainInterfaceConfig::featuresLowestLoadLOD

Parameter Name: features-lowest-load-LOD Parameter Description: The largest tile (smallest LOD) for loading features.

Higher values will create smaller tiles. Parameter Default Value: 9

TInt DtTerrainInterfaceConfig::featuresPerTileTarget

Parameter Name: features-per-tile-target Parameter Description: Target number of features per tile.

Parameter Default Value: 100

TInt DtTerrainInterfaceConfig::featuresMaxIndexLOD

Parameter Name: features-max-index-LOD Parameter Description: Smallest tile LOD level to index features.

Parameter Default: 20

TInt DtTerrainInterfaceConfig::minFeaturesToIndexTile

Parameter Name: min-features-to-index-tile Parameter Description: Minumum number of features in a tile for
the tile to be considered for subindexing.

Parameter Default: 5

TReal DtTerrainInterfaceConfig::featuresIndexRatio

Parameter Name: features-index-ratio Parameter Description: If the ratio of the number of features in a parent
tile to the number in a subtile is greater than this value then the tile
will be subindexed.

Parameter Default: 2.0

TBool DtTerrainInterfaceConfig::deduplicateFeatures

Parameter Name: deduplicate-features Parameter Description: Remove duplicate features.

Parameter Default: True

TBool DtTerrainInterfaceConfig::cacheLastFeatureTile

Parameter Name: cache-last-feature-tile Parameter Description: Cache last used feature tile Parameter Default: True.

TBool DtTerrainInterfaceConfig::loadTerraPageImagery

Parameter Name: load-terra-page-imagery Parameter Description: Whether or not to have the back-end load imagery when loading terra page databases This will use less memory but will disable soil types Parameter Default: True.

TBool DtTerrainInterfaceConfig::loadTerraPageLocalMaterials

Parameter Name: load-terra-page-local-materials Parameter Description: Whether or not to have the back-end load local materials when loading terra page databases This will use less memory and may disable some soil types, but not all Parameter Default: False.

TInt DtTerrainInterfaceConfig::pathFinderMaxSize

Parameter Name: pathfinder-max-features Parameter Description: The max size of a DtAStarGraph.

Once a path
finder has exceeded this number of loaded features, it will be deleted,
to be recreated the next time a path plan is requested. Parameter Default Value: 50000

TInt DtTerrainInterfaceConfig::pathFinderPageTableDepth

Parameter Name: pathfinder-page-table-depth Parameter Description: The depth of the Quad-Tree used for tracking
loaded features for each pathfinder road graph.

Parameter Default Value: 14

TReal DtTerrainInterfaceConfig::pathFinderLoadTimeout

Parameter Name: pathfinder-load-timeout Parameter Description: The amount of time (in seconds) that the path finder
will wait on loading a tile of features before giving up on that tile.

Parameter Default Value: 20 Parameter Units: seconds

TReal DtTerrainInterfaceConfig::pathFinderVertexTolerance

Parameter Name: pathfinder-vertex-tolerance Parameter Description: The distance tolerance (in meters) within which
feature vertices are considered to be the same vertex.

Used when features
are added to the DtAStarGraph's graph. Parameter Default Value: 1.0 Parameter Units: meters

TInt DtTerrainInterfaceConfig::pathFinderMinVertexSearch

Parameter Name: pathfinder-min-vertex-search Parameter Description: The minimum number of vertices the graph search will
use to before giving up.

Parameter Default Value: 20

TReal DtTerrainInterfaceConfig::pathFinderDotProductDistanceThreshold

Parameter Name: pathfinder-dot-product-distance-threshold Parameter Description: Heuristic which measures progress towards the destination.

Making this larger will cause the path planner to search out farther into the graph to try and find a better path. Parameter Default Value: 1000

TReal DtTerrainInterfaceConfig::pathFinderMinSearchRadius

Parameter Name: pathfinder-min-search-radius Parameter Description: Minumum distance path finder will search away from straight line path from source to destination before giving up.

Parameter Default Value:

TInt DtTerrainInterfaceConfig::triangleThreshold

Parameter Name: num-triangles-threshold
Parameter Description: Maximum number of triangles.

Once the number of
triangles exceeds this number, data will be paged out until we are
below this threshold.
Parameter Default Value: 10000000

TInt DtTerrainInterfaceConfig::cacheOnlyMaxLod

Parameter Name: cache-only-max-lod
Parameter Description: Max level of detail to use when in cache-only mode.

Parameter Default Value: 13

TBool DtTerrainInterfaceConfig::loadImagery

Parameter Name: load-imagery
Parameter Description: Whether the terrain system will load imagery it doesn't need.

This is generally a debugging feature, sometimes drivers will get confused if imagery
isn't present, even if it's not being used for anything.
Parameter Default Value: False

TInt DtTerrainInterfaceConfig::blockingIntersectPageInPriority

Parameter Name: blocking-intersect-page-in-priority Parameter Description: Priority for paging in data for blocking
intersect requests.

Parameter Default Value: 10

TInt DtTerrainInterfaceConfig::intersectPageInPriority

Parameter Name: intersect-page-in-priority Parameter Description: Priority for paging in data for non-blocking
intersect requests.

Parameter Default Value: 20

TInt DtTerrainInterfaceConfig::pageOutPriority

Parameter Name: page-out-priority
Parameter Description: Priority for paging out data.

Parameter Default Value: 30

TInt DtTerrainInterfaceConfig::defaultPreloadPriority

Parameter Name: default-preload-priority
Parameter Description: Default priority for preload geometry.

This
priority will be used if one is not provided by the preload controller.
Parameter Default Value: 40

TVector DtTerrainInterfaceConfig::spatialSubdivisionDimensions

Parameter Name: spatial-subdivision-dimensions
Parameter Description: Parameters for Spatial Subdivision used by
DtBoundingVolumeTerrainSourceTracker to determine which paged-out
nodes should be paged in.

Parameter Default Value: 10 10 10

TBool DtTerrainInterfaceConfig::useS57ForTerrainGeneration

Parameter Name: use-S57-for-terrain-generation
Parameter Description: Flag for S57 to terrain and soil types.

Parameter Default Value: True

TBool DtTerrainInterfaceConfig::oceanLayerPresent

Parameter Name: ocean-layer-present
Enable/disable ocean layer-present
Default: True.

TReal DtTerrainInterfaceConfig::seaLevel

Parameter Name: sea-level
Sea level in meters
Default:

TReal DtTerrainInterfaceConfig::seaFloor

Parameter Name: sea-floor
Sea floor in meters.

Default:

TBool DtTerrainInterfaceConfig::useSoundingPoints

Parameter Name: use-sounding-points
Default: True.

TBool DtTerrainInterfaceConfig::pageFeatures

Parameter Name: page-features
Default: True.

TString DtTerrainInterfaceConfig::LOSFeaturesQueryName

Parameter Name: los-features-query
Default: MAK_LOS_OBSTACLE.

TReal DtTerrainInterfaceConfig::featuresMinUnloadTime

Parameter Name: features-min-unload-time
Default: 15.

TInt DtTerrainInterfaceConfig::terrainMinUnloadIntersectDiff

Parameter Name: terrain-min-unload-intersect-diff Default: 50.

TString DtTerrainInterfaceConfig::pluginsDirectory

Parameter Name: plugins-directory
Default: ../(plugins|plugins64)/(release|debug)

TString DtTerrainInterfaceConfig::myModelDefinitionPath

protected

Parameter Name: model-definition-path.

Will append /ModelDefinitions so keep this at the root
Default: "$(APP_DIR)/definitions"

TString DtTerrainInterfaceConfig::mySimCachePath

protected

Parameter Name: sim-cache-path
Default: /cache/vrfsim.

TString DtTerrainInterfaceConfig::myFeatureConfigFile

protected

Parameter Name: features-config-file
Default: /settings/featureconfig.txt.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfutil/terrainInterfaceConfig.h
