DtUiAggregateElement Class Reference

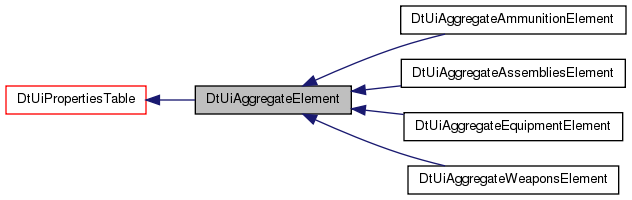

Inheritance diagram for DtUiAggregateElement:

Public Member Functions
	DtUiAggregateElement (makVrv::DtDe &)
	Constructor.
virtual	~DtUiAggregateElement ()
	Destructor.
Public Member Functions inherited from DtUiPropertiesTable
	DtUiPropertiesTable (makVrv::DtDe &)
	Constructor.
virtual	~DtUiPropertiesTable ()
	Destructor.
virtual void	setEnabled (bool)
	If this item is not enabled it cannot be modified.
Public Member Functions inherited from DtUiElement
	DtUiElement (makVrv::DtDe &)
	Constructor.
virtual	~DtUiElement ()
	Destructor.
virtual bool	blockSignals (bool)
virtual void	init (QWidget *widget, QWidget *label, DtReaderWriter *originalData, DtReaderWriter *backupData, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))
virtual void	init (QWidget *widget, QWidget *label, const std::vector< DtReaderWriter * > &originalData, const std::vector< DtReaderWriter * > &backupData, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))
virtual void	init (QWidget *widget, QWidget *label, const DtObjectType &, const DtString &platformType, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))
virtual DtString	displayUnits () const
virtual void	setDisplayUnits (const DtString &units)
virtual void	setLabelText (const QString &)
virtual DtString	sourceUnits () const
virtual void	setSourceUnits (const DtString &units)
virtual void	setFromSystemParameterData (const DtSystemParameterData *data, const DtComponentSystemDefinition *)
	Sets data of this UiElement from the specified system parameter data.
virtual void	objectParametersModified ()
	This method is called any time that any of the parameters for the object are modified.
virtual void	connectedTo (QObject *)
	Called when this item is connected to any signal emitted by the given item.
virtual void	setModelModified (DtModelSetEntry *)
	Called when the model is modified. Default is no-op.
virtual DtString	uniqueName () const
	Returns a unique name for this element.
virtual bool	supportsSystems () const
	Returns true if this element supports systes.
virtual const DtString &	platformType () const
	Returns the type of platform this entity represents.
virtual void	setPlatformType (const DtString &)
	Sets the type of platform for this entity.
virtual void	setObjectTypes (const std::vector< DtObjectType > &)
	Sets the object type this element represents.
virtual void	aboutToShow ()
	Called when about to show as part of a properties dialog. Default is no-op.
const std::vector < DtReaderWriter * > &	values () const
const std::vector < DtReaderWriter * > &	backupValues () const
virtual bool	isModified () const
virtual void	decorateElement ()
	Sets element decoration depending on the isModified state of the element.
virtual void	setFromParameters (DtReaderWriter *parentRw)
	Calls setFromParameters with std::vector of parameter.
virtual bool	restoreFromBackup ()
	Restores this element from a backup created with the specified name.
const std::vector< DtObjectType > &	objectTypes () const
virtual void	sendEvent (const DtUiElementEvent &)
virtual bool	allValuesTheSame () const
virtual bool	isMixedValue () const
	If widget is line edit and the value is mixedText returns true, else the subclass will need to return this value.
virtual bool	enabled () const

Protected Slots
virtual void	comboChanged ()
Protected Slots inherited from DtUiPropertiesTable
virtual void	itemChanged (QTableWidgetItem *)
virtual void	addRow ()
virtual void	removeRow ()
virtual void	itemSelectionChanged ()
virtual void	valueComboChanged ()
Protected Slots inherited from DtUiElement
virtual void	elementChanged ()
virtual void	enableIfChecked ()
	Connected to if the enable_if_checked property is set, and there is a matching check box for the enable_if_checked property.
virtual void	disableIfChecked ()
	Connected to if the disable_if_checked property is set, and there is a matching check box for the disable_if_checked property.

Protected Member Functions
virtual void	tableItemCreated (DtUiTableWidgetItem *, int row, int col)
virtual void	addItemsToCombo (DtUiTableWidgetComboBox *)
virtual void	initializeCombo (DtUiTableWidgetComboBox *)=0
virtual DtAssembliesReaderWriter::RwRootNode *	rootNodeFor (const std::string &keyword) const =0
virtual std::string	type () const =0
virtual void	comboChanged (DtUiTableWidgetComboBox *combo)
virtual void	itemRemoved (DtUiTableWidgetItem *)
Protected Member Functions inherited from DtUiPropertiesTable
virtual void	setFromParameters (const std::vector< DtReaderWriter * > &parentRw)
virtual void	createControls (QWidget *widget)
	If any additional controls or initialization needs to be done, it is done here.
virtual void	processUiEvent (const DtUiElementEvent &e)
	Process ui event. Default does nothing.
virtual void	columnHeadersFrom (const DtPropertyInterface *prototype, QStringList &columns) const
virtual QString	columnTitleFor (const QString &) const
virtual void	fillInAndMapRwItemToTableItems (int row, int &colStart, DtReaderWriter *)
virtual const DtReaderWriter *	readerWriterFromPrototype (const DtReaderWriter *prototype, int col) const
virtual void	flatten (const DtReaderWriter *prototype, std::vector< const DtReaderWriter * > &list) const
virtual void	updateEnableStatus ()
virtual QStringList	convertToTitles (const QStringList &cols) const
Protected Member Functions inherited from DtUiElement
virtual double	sourceToDisplayUnits (double) const
virtual double	displayToSourceUnits (double) const
virtual QString	units () const
virtual void	updateLabelTitle ()
	Updates label title based on valid units.
virtual QString	labelTitle () const
	Returns the unmodified label title.

Protected Attributes
std::map< int, DtUiTableWidgetComboBox * >	myKeyCombo
std::map< std::string, std::string >	myAvailableItems
Protected Attributes inherited from DtUiPropertiesTable
TableWidgetItemMap	myTableWidgetItemMap
DtRwPropertiesList *	myPropertyTable
bool	myRowsAsColumns
Protected Attributes inherited from DtUiElement
DtString	myDisplayUnits
DtString	mySourceUnits
std::vector< DtReaderWriter * >	myValues
	Assumes 1 - 1 order that original and backup are same index in lists.
std::vector< DtReaderWriter * >	myBackupValues
bool	myIsNew
DtElementChangedCallbackFcn	myElementChangedCallbackFunction
DtUnit	mySource
DtUnit	myDestination
makVrv::DtDe &	myDe
DtString	myPlatformType
std::vector< DtObjectType >	myObjectTypes
const DtComponentSystemDefinition *	mySystemDefinition
bool	myEnabled
std::vector< QObject * >	myConnectedTo
int	myUniqueId

Additional Inherited Members
Public Types inherited from DtUiElement
typedef boost::function < DtUiElement *(makVrv::DtDe &)>	CreatorFunction
typedef std::map< std::string, CreatorFunction >	UiElementFactoryMap
Public Slots inherited from DtUiElement
virtual void	toggleDisplayed (bool display)
Signals inherited from DtUiElement
void	uiEvent (const DtUiElementEvent &)
Static Public Member Functions inherited from DtUiPropertiesTable
static DtUiElement *	CreatorFunction (makVrv::DtDe &)
Public Attributes inherited from DtUiPropertiesTable
DtUiPropertiesTableWidget *	myTableWidget
QPushButton *	myAdd
QPushButton *	myRemove
QVBoxLayout *	myLayout
QHBoxLayout *	myButtonLayout
Protected Types inherited from DtUiPropertiesTable
typedef std::map < DtUiTableWidgetItem *, DtReaderWriter * >	TableWidgetItemMap
Static Protected Attributes inherited from DtUiElement
static UiElementFactoryMap	theFactory

Constructor & Destructor Documentation

DtUiAggregateElement::DtUiAggregateElement

(

makVrv::DtDe &

)

Constructor.

virtual DtUiAggregateElement::~DtUiAggregateElement ( )

virtual

Destructor.

Member Function Documentation

virtual void DtUiAggregateElement::tableItemCreated ( DtUiTableWidgetItem *  , int  row, int  col  )

protectedvirtual

Reimplemented from DtUiPropertiesTable.

virtual void DtUiAggregateElement::addItemsToCombo ( DtUiTableWidgetComboBox *  )

protectedvirtual

virtual void DtUiAggregateElement::initializeCombo ( DtUiTableWidgetComboBox *  )

protectedpure virtual

Implemented in DtUiAggregateWeaponsElement, DtUiAggregateEquipmentElement, DtUiAggregateAssembliesElement, and DtUiAggregateAmmunitionElement.

virtual DtAssembliesReaderWriter::RwRootNode* DtUiAggregateElement::rootNodeFor ( const std::string &  keyword ) const

protectedpure virtual

Implemented in DtUiAggregateWeaponsElement, DtUiAggregateEquipmentElement, DtUiAggregateAssembliesElement, and DtUiAggregateAmmunitionElement.

virtual std::string DtUiAggregateElement::type ( ) const

protectedpure virtual

Implemented in DtUiAggregateWeaponsElement, DtUiAggregateEquipmentElement, DtUiAggregateAssembliesElement, and DtUiAggregateAmmunitionElement.

virtual void DtUiAggregateElement::comboChanged ( DtUiTableWidgetComboBox *  combo )

protectedvirtual

virtual void DtUiAggregateElement::itemRemoved ( DtUiTableWidgetItem *  )

protectedvirtual

Reimplemented from DtUiPropertiesTable.

virtual void DtUiAggregateElement::comboChanged ( )

protectedvirtualslot

Member Data Documentation

std::map<int, DtUiTableWidgetComboBox*> DtUiAggregateElement::myKeyCombo

protected

std::map<std::string, std::string> DtUiAggregateElement::myAvailableItems

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/simulationObjectEditorImpl/uiAggregateElements.h
