makVrf::DtEntityCreatePalette Class Reference

A widget class for showing different items of supplied types to the logic tthat can be created. More...

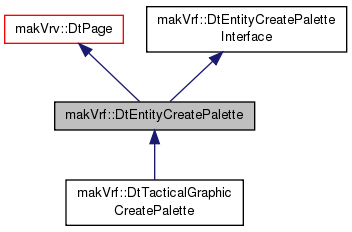

Inheritance diagram for makVrf::DtEntityCreatePalette:

Public Member Functions
	DtEntityCreatePalette (makVrv::DtDe &de, QWidget *parent=0, Qt::WindowFlags flags=0, bool hasDeployedCountries=true)
	CTOR.
	DtEntityCreatePalette (makVrv::DtDe &de, bool favoritesSupported=true, QWidget *parent=0, Qt::WindowFlags flags=0, bool hasDeployedCountries=true, bool allowCombineMode=false)
virtual	~DtEntityCreatePalette ()
	DTOR.
virtual QIcon	icon ()
	Icon to be used in small display.
virtual QString	title ()
	Name to put next to the icon.
virtual const std::string &	pageClassName () const
	Get the class name of the page.
virtual void	activate ()
	Called when the page is displayed.
virtual void	deactivate ()
	Called when the page is hidden.
virtual void	setSignalSelectionOnly (bool)
	Only signals that an item has been selected. Will not start the creation process.
virtual void	setFavoritesSupported (bool)
virtual bool	favoritesSupported () const
virtual void	setCombinePalettes (bool combine)
	Allows combining modelSetEntries from different palettes onto on.
virtual bool	combinePalettes () const
virtual DtEntityMapperKey	selectedObjectType () const
	If there is a current selection return the mapper key of that selection.
virtual std::vector < DtEntityMapperKey >	selectedObjects () const
	If there is more than one, all selected objects (or just the one)
virtual void	selectObject (const DtEntityMapperKey &)
	Selects the "All" filter and then selects the force from the force filter for the given key.
virtual void	setDragCreateModeEnabled (bool)
	Turns on mode where entities can be dragged from the palette to start the create, rather than a click.
virtual bool	showNonCreatableUnits () const
	Whether or not non creatable units should be shown in this palette, if they are set to be displayable on this palette type.
virtual void	setShowNonCreatableUnits (bool)
virtual void	addIgnore (const DtEntityType &)
	Adds a key to ignore (into the logic) when filtering items. Will cause a re-filter.
virtual void	clearIgnore ()
	Clears all the keys to ignore (in logic). Will cause a re-filter.
virtual void	setIgnore (const std::vector< DtEntityType > &)
	Sets entity types to ignore (in logic)
virtual const std::vector < DtEntityType > &	ignoring () const
	What is being ignored.
virtual void	setShowFavoritesIcon (bool)
virtual bool	showFavoritesIcon () const
virtual void	layoutForces ()
	Force a layout of the forces button bar.
virtual void	clear ()
	Clears contents of widget.
virtual void	update ()
	Tells widget to update (redraw)
virtual QString	currentForce () const
	Returns currently selected force.
virtual int	currentForceType () const
	Returns the current force type selected.
virtual int	currentForceIndex () const
	Returns the index of the currently selected force in the combo box.
virtual int	currentDeployedCountryIndex () const
	Returns the index of the currently selected deployed country in the combo box.
virtual int	forceTypeAtIndex (int) const
	Force type at index.
virtual std::vector< std::string >	currentCategories () const
	Returns currently selected category.
virtual void	setAccessibleCategories (const std::set< std::string > &)
	All categories available for this palette.
virtual QString	currentDeployedCountry () const
	Returns currently selected deployed country.
virtual bool	hasDeployedCountry (const QString &) const
	Returns true if the specified deployed country exists.
virtual void	insertDeployedCountry (const QString &, int)
	Adds new deployed country at the specified index.
virtual bool	initiallyVisible () const
virtual void	insertDeployedCountryBefore (const QString &, const QString &)
	Adds new deployed country before the specified item.
virtual void	insertDeployedCountryAfter (const QString &, const QString &)
	Adds new deployed country after the specified item.
virtual void	addDeployedCountry (const QString &)
	Adds new deployed country.
virtual void	selectDeployedCountry (const QString &)
	Selects deployed country by name.
virtual void	selectDeployedCountry (int)
	Selects deployed country by index.
virtual int	numForces () const
	Returns number of forces.
virtual int	numCategories () const
	Returns number of categories.
virtual int	numDeployedCountries () const
	Returns number of deployed countries.
virtual void	addForce (const QString &, int, const QColor &, bool forceLayout=false)
	Adds new force and force type.
virtual QString	force (int) const
	Returns the force string at the specified index.
virtual bool	hasForce (int) const
	Returns true if the specified force exists.
virtual void	setCategories (const DtTagSelectorWidget::Categories &)
	Sets the new categories.
virtual bool	hasCategory (const QString &) const
	Returns true if the specified category exists.
virtual void	selectForce (const QString &)
	Selects force by name.
virtual void	showForce (bool)
	Show/hide force.
virtual void	enableForce (bool)
	Enabled/disable force.
virtual void	selectForce (int)
	Selects force by index.
virtual bool	isStickyCategory (const std::string &) const
	Returns true if this is a sticky category.
virtual void	setStickyCategories (const std::vector< std::string > &)
	Sets the sticky categories. Will rework categories if there are selected ones and then reselect categories.
virtual void	selectTopLevelCategory (const std::string &s)
	Selects a top level category.
virtual const std::vector < std::string > &	stickyCategories () const
	Sticky categories.
virtual const std::vector < std::string > &	nonStickyCategories () const
	Non-sticky selected categories.
virtual void	selectCategories (const std::vector< std::string > &)
	Selects categories.
virtual void	clearCreateList ()
	Clears the create list.
virtual void	setSortingEnabled (bool)
	Sets whether or not to allow list soring.
virtual void	sizeColumns ()
	Sizes the columns to contents.
virtual void	addItem (const DtEntityPaletteItem &, int force)
	If the entity model key type and force is not already in the list, add it Set newItem to true if this is an item that is a part of the model set.
virtual void	addPaletteItem (const DtEntityPaletteItem &)
	Adds the new item into the logic.
virtual void	removePaletteItem (const DtEntityMapperKey &key, bool matchPattern=false)
	Removes an item from the internal list for any key that matches (or matches pattern of) the supplied key.
virtual void	setEnabled (bool)
	Enables/Disables Gui.
void	createFavoriteIcon ()
	Creates the favorites icon (on and off)
virtual void	clearForces ()
	Clear forces combo.
virtual void	clearDeployedCountries ()
	Clear deployed countries combo.
virtual void	clearCategories ()
	Clear categories combo.
virtual void	initialize ()
	Called when first item is added.
virtual void	addLocalPaletteFilter (const DtPaletteFilter &)
	This will only apply to this instance of the palette when filtering.
virtual void	removeLocalPaletteFilter (const DtPaletteFilter &)
virtual QMenu *	createRightClickMenu (DtEntityCreatePaletteItem *)
virtual void	slot_onTagsChanged (const std::vector< std::string > &)
virtual void	setCategoriesFromCounts (const std::map< std::string, int > &, const std::set< std::string > &, int totalItems)
	Given a map of the counts of categories and how many there are for those counts, select them based on rank.
Public Member Functions inherited from makVrv::DtPage
	DtPage (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
	CTOR for page.
virtual	~DtPage ()
	DTOR for page.
virtual PageAction	pageAction ()
	return the current action on the page
virtual void	setPageAction (PageAction action)
	set the curret action on the page
virtual void	setActionFlag (int flag)
	set the action flag of the page
virtual int	actionFlag ()
	return the action flag of the page
virtual void	setParentDialog (QWidget *paraentDialog)
	set the parent dialog that owns this page
virtual QWidget *	parentDialog ()
	return the parent dialog that own this page
virtual bool	shouldAskBeforeAction (PageAction action)
	test the action flag with the action, return true if we should ask before executing the action /param action the current page action
virtual void	askBeforeAction ()
	Called when the action flag is set and before the action is beind executed, default do nothing.
virtual void	executeAfterAsk (bool revert)
	Called after askBeforeAction(), whether user wants to revert the action or resume the action /param revert if true, the user wants to revert the action, otherwise resume it.
virtual void	resumeLastAction ()
	resume the last action of the page
virtual void	onCloseEvent ()
	will be called when user hit the close button of this page, default do nothing.
virtual void	onSwitchEvent ()
	will be called when user try switch to another page, default do nothing.
Public Member Functions inherited from makVrf::DtEntityCreatePaletteInterface
virtual	~DtEntityCreatePaletteInterface ()
	Virtual DTOR.
virtual void	filterItems ()=0
	Filters items.

Static Public Member Functions
static const std::string &	thePageClassName ()
	Static accessor for the class name.

Public Attributes
QVBoxLayout *	myMainLayout
QGridLayout *	myGridLayout
QLabel *	myForceLabel
QLabel *	myDeployedCountriesLabel
QComboBox *	myDeployedCountries
DtTagSelectorWidget *	myTags
QComboBox *	myForces
DtEntityPaletteTreeWidget *	myEntities
QImage	myFavoriteOn
QImage	myFavoriteOff
QLabel *	mySearchLabel
QLineEdit *	mySearch
QPushButton *	myResetButton
QAbstractButton *	myCurrentForceButtonSelected
QAbstractButton *	myCurrentTopLevelButtonSelected
DtToolButtonWrapperWidget *	myForceContainer
bool	myAllowCombineMode
Public Attributes inherited from makVrf::DtEntityCreatePaletteInterface
boost::signal< void()>	signal_closeEvent
boost::signal< void()>	signal_paletteCleared
boost::signal< void()>	signal_forceChanged
boost::signal< void(std::vector < std::string >)>	signal_categoriesChanged
boost::signal< void(std::string)>	signal_deployedCountryChanged
boost::signal< void(const DtEntityMapperKey &)>	signal_createObject
boost::signal< void(const DtEntityMapperKey &)>	signal_executedFilter
boost::signal< void()>	signal_itemsAdded
boost::signal< void(std::string, const DtEntityMapperKey &)>	signal_itemSelected
boost::signal< void(DtEntityCreatePaletteInterface *)>	signal_updated
boost::signal< void()>	signal_modelSetChanged

Protected Slots
virtual void	onItemSelectionChanged ()
virtual void	slot_onForceChanged ()
virtual void	slot_onForceChangedByButton ()
virtual void	slot_onDeployedCountryChanged ()
virtual void	slot_onItemPressed (QTreeWidgetItem *, QMouseEvent *, int)
virtual void	slot_onItemRightClickedOn (QTreeWidgetItem *, QMouseEvent *, int)
virtual void	filterItems ()
virtual void	resetFilter ()
virtual void	addToFavoritesRightClick ()
virtual void	removeFromFavoritesRightClick ()

Protected Member Functions
void	setupUi (QWidget *p, bool favoritesSupported)
	Sets up the contents of the widget onto the supplied parent.
virtual bool	hasDeployedCountries () const
	Returns true if supports deployed countries.
virtual void	closeEvent (QCloseEvent *)
virtual void	showEvent (QShowEvent *)
virtual bool	eventFilter (QObject *o, QEvent *e)

Protected Attributes
bool	myInitialized
DtEntityCreatePaletteLogic *	myLogic
std::map< std::string, QTreeWidgetItem * >	myItems
bool	myFavoritesSupported
bool	myHasDeployedCountries
bool	myCloseEventSent
bool	myInCreationProcess
bool	myShowFavoritesIcon
QMenu *	myRightClickMenu
std::set< std::string >	myAccessibleCategories
Protected Attributes inherited from makVrv::DtPage
DtDe &	myDe
QWidget *	myParentDialog
PageAction	myCurrentPageAction
int	myActionFlag

Additional Inherited Members
Public Types inherited from makVrv::DtPage
enum	PageAction { None = 0x0000, Switching = 0x0001, Closing = 0x0010 }

Detailed Description

A widget class for showing different items of supplied types to the logic tthat can be created.

Constructor & Destructor Documentation

makVrf::DtEntityCreatePalette::DtEntityCreatePalette	(	makVrv::DtDe &	de,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0,
		bool	hasDeployedCountries = true
	)

CTOR.

makVrf::DtEntityCreatePalette::DtEntityCreatePalette	(	makVrv::DtDe &	de,
		bool	favoritesSupported = true,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0,
		bool	hasDeployedCountries = true,
		bool	allowCombineMode = false
	)

virtual makVrf::DtEntityCreatePalette::~DtEntityCreatePalette ( )

virtual

DTOR.

Member Function Documentation

virtual QIcon makVrf::DtEntityCreatePalette::icon ( )

virtual

Icon to be used in small display.

Implements makVrv::DtPage.

Reimplemented in makVrf::DtTacticalGraphicCreatePalette.

virtual QString makVrf::DtEntityCreatePalette::title ( )

virtual

Name to put next to the icon.

Implements makVrv::DtPage.

Reimplemented in makVrf::DtTacticalGraphicCreatePalette.

virtual const std::string& makVrf::DtEntityCreatePalette::pageClassName ( ) const

virtual

Get the class name of the page.

Implements makVrf::DtEntityCreatePaletteInterface.

Reimplemented in makVrf::DtTacticalGraphicCreatePalette.

static const std::string& makVrf::DtEntityCreatePalette::thePageClassName ( )

static

Static accessor for the class name.

Reimplemented in makVrf::DtTacticalGraphicCreatePalette.

virtual void makVrf::DtEntityCreatePalette::activate ( )

inlinevirtual

Called when the page is displayed.

Implements makVrv::DtPage.

virtual void makVrf::DtEntityCreatePalette::deactivate ( )

inlinevirtual

Called when the page is hidden.

Implements makVrv::DtPage.

virtual void makVrf::DtEntityCreatePalette::setSignalSelectionOnly ( bool  )

virtual

Only signals that an item has been selected. Will not start the creation process.

virtual void makVrf::DtEntityCreatePalette::setFavoritesSupported ( bool  )

virtual

virtual bool makVrf::DtEntityCreatePalette::favoritesSupported ( ) const

virtual

virtual void makVrf::DtEntityCreatePalette::setCombinePalettes ( bool  combine )

virtual

Allows combining modelSetEntries from different palettes onto on.

Default is false i.e. if you have EntityCreatePalette, only model set entries with EntityCreatePalette will show up, but you set this to true, I can have an entry show up from the TacticalGraphicPalette as well normal usuage is a standalone dialog that will add some additional filters

virtual bool makVrf::DtEntityCreatePalette::combinePalettes ( ) const

virtual

Implements makVrf::DtEntityCreatePaletteInterface.

virtual DtEntityMapperKey makVrf::DtEntityCreatePalette::selectedObjectType ( ) const

virtual

If there is a current selection return the mapper key of that selection.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual std::vector<DtEntityMapperKey> makVrf::DtEntityCreatePalette::selectedObjects ( ) const

virtual

If there is more than one, all selected objects (or just the one)

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::selectObject ( const DtEntityMapperKey &  )

virtual

Selects the "All" filter and then selects the force from the force filter for the given key.

Then checks to see if the entity type exists for that key, and, if it does, selects that object

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::setDragCreateModeEnabled ( bool  )

virtual

Turns on mode where entities can be dragged from the palette to start the create, rather than a click.

The create signal will not be emitted when the drag is enabled. It will be up to the developer to trap dragEnter events to parse out the entity being created from the DtDragObject can decode from DtCreateObjectFromPaletteType. This will contain a DtEntityMapperKey of the item being dragged

virtual bool makVrf::DtEntityCreatePalette::showNonCreatableUnits ( ) const

virtual

Whether or not non creatable units should be shown in this palette, if they are set to be displayable on this palette type.

virtual void makVrf::DtEntityCreatePalette::setShowNonCreatableUnits ( bool  )

virtual

virtual void makVrf::DtEntityCreatePalette::addIgnore ( const DtEntityType &  )

virtual

Adds a key to ignore (into the logic) when filtering items. Will cause a re-filter.

virtual void makVrf::DtEntityCreatePalette::clearIgnore ( )

virtual

Clears all the keys to ignore (in logic). Will cause a re-filter.

virtual void makVrf::DtEntityCreatePalette::setIgnore ( const std::vector< DtEntityType > &  )

virtual

Sets entity types to ignore (in logic)

virtual const std::vector<DtEntityType>& makVrf::DtEntityCreatePalette::ignoring ( ) const

virtual

What is being ignored.

virtual void makVrf::DtEntityCreatePalette::setShowFavoritesIcon ( bool  )

virtual

virtual bool makVrf::DtEntityCreatePalette::showFavoritesIcon ( ) const

virtual

virtual void makVrf::DtEntityCreatePalette::layoutForces ( )

virtual

Force a layout of the forces button bar.

Implements makVrf::DtEntityCreatePaletteInterface.

void makVrf::DtEntityCreatePalette::setupUi ( QWidget *  p, bool  favoritesSupported  )

protected

Sets up the contents of the widget onto the supplied parent.

virtual bool makVrf::DtEntityCreatePalette::hasDeployedCountries ( ) const

inlineprotectedvirtual

Returns true if supports deployed countries.

Implements makVrf::DtEntityCreatePaletteInterface.

Reimplemented in makVrf::DtTacticalGraphicCreatePalette.

virtual void makVrf::DtEntityCreatePalette::closeEvent ( QCloseEvent *  )

protectedvirtual

virtual void makVrf::DtEntityCreatePalette::showEvent ( QShowEvent *  )

protectedvirtual

virtual bool makVrf::DtEntityCreatePalette::eventFilter ( QObject *  o, QEvent *  e  )

protectedvirtual

virtual void makVrf::DtEntityCreatePalette::clear ( )

virtual

Clears contents of widget.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::update ( )

virtual

Tells widget to update (redraw)

Implements makVrf::DtEntityCreatePaletteInterface.

virtual QString makVrf::DtEntityCreatePalette::currentForce ( ) const

virtual

Returns currently selected force.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::currentForceType ( ) const

virtual

Returns the current force type selected.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::currentForceIndex ( ) const

virtual

Returns the index of the currently selected force in the combo box.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::currentDeployedCountryIndex ( ) const

virtual

Returns the index of the currently selected deployed country in the combo box.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::forceTypeAtIndex ( int  ) const

virtual

Force type at index.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual std::vector<std::string> makVrf::DtEntityCreatePalette::currentCategories ( ) const

virtual

Returns currently selected category.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::setAccessibleCategories ( const std::set< std::string > &  )

virtual

All categories available for this palette.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual QString makVrf::DtEntityCreatePalette::currentDeployedCountry ( ) const

virtual

Returns currently selected deployed country.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual bool makVrf::DtEntityCreatePalette::hasDeployedCountry ( const QString &  ) const

virtual

Returns true if the specified deployed country exists.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::insertDeployedCountry ( const QString &  , int    )

virtual

Adds new deployed country at the specified index.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual bool makVrf::DtEntityCreatePalette::initiallyVisible ( ) const

inlinevirtual

virtual void makVrf::DtEntityCreatePalette::insertDeployedCountryBefore ( const QString &  , const QString &    )

virtual

Adds new deployed country before the specified item.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::insertDeployedCountryAfter ( const QString &  , const QString &    )

virtual

Adds new deployed country after the specified item.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::addDeployedCountry ( const QString &  )

virtual

Adds new deployed country.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::selectDeployedCountry ( const QString &  )

virtual

Selects deployed country by name.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::selectDeployedCountry ( int  )

virtual

Selects deployed country by index.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::numForces ( ) const

virtual

Returns number of forces.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::numCategories ( ) const

virtual

Returns number of categories.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual int makVrf::DtEntityCreatePalette::numDeployedCountries ( ) const

virtual

Returns number of deployed countries.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::addForce ( const QString &  , int  , const QColor &  , bool  forceLayout = false  )

virtual

Adds new force and force type.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual QString makVrf::DtEntityCreatePalette::force ( int  ) const

virtual

Returns the force string at the specified index.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual bool makVrf::DtEntityCreatePalette::hasForce ( int  ) const

virtual

Returns true if the specified force exists.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::setCategories ( const DtTagSelectorWidget::Categories &  )

virtual

Sets the new categories.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual bool makVrf::DtEntityCreatePalette::hasCategory ( const QString &  ) const

virtual

Returns true if the specified category exists.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::selectForce ( const QString &  )

virtual

Selects force by name.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::showForce ( bool  )

virtual

Show/hide force.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::enableForce ( bool  )

virtual

Enabled/disable force.

virtual void makVrf::DtEntityCreatePalette::selectForce ( int  )

virtual

Selects force by index.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual bool makVrf::DtEntityCreatePalette::isStickyCategory ( const std::string &  ) const

virtual

Returns true if this is a sticky category.

virtual void makVrf::DtEntityCreatePalette::setStickyCategories ( const std::vector< std::string > &  )

virtual

Sets the sticky categories. Will rework categories if there are selected ones and then reselect categories.

virtual void makVrf::DtEntityCreatePalette::selectTopLevelCategory ( const std::string &  s )

virtual

Selects a top level category.

virtual const std::vector<std::string>& makVrf::DtEntityCreatePalette::stickyCategories ( ) const

virtual

Sticky categories.

virtual const std::vector<std::string>& makVrf::DtEntityCreatePalette::nonStickyCategories ( ) const

virtual

Non-sticky selected categories.

virtual void makVrf::DtEntityCreatePalette::selectCategories ( const std::vector< std::string > &  )

virtual

Selects categories.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::clearCreateList ( )

virtual

Clears the create list.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::setSortingEnabled ( bool  )

virtual

Sets whether or not to allow list soring.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::sizeColumns ( )

virtual

Sizes the columns to contents.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::addItem ( const DtEntityPaletteItem &  , int  force  )

virtual

If the entity model key type and force is not already in the list, add it Set newItem to true if this is an item that is a part of the model set.

Used for dynamically adding objects to the palette during runtime.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::addPaletteItem ( const DtEntityPaletteItem &  )

virtual

Adds the new item into the logic.

Be sure to re-execute filter if need be to get these items to show up in the dialog

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::removePaletteItem ( const DtEntityMapperKey &  key, bool  matchPattern = false  )

virtual

Removes an item from the internal list for any key that matches (or matches pattern of) the supplied key.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::setEnabled ( bool  )

virtual

Enables/Disables Gui.

Implements makVrf::DtEntityCreatePaletteInterface.

void makVrf::DtEntityCreatePalette::createFavoriteIcon

(

)

Creates the favorites icon (on and off)

virtual void makVrf::DtEntityCreatePalette::clearForces ( )

virtual

Clear forces combo.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::clearDeployedCountries ( )

virtual

Clear deployed countries combo.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::clearCategories ( )

virtual

Clear categories combo.

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::initialize ( )

virtual

Called when first item is added.

virtual void makVrf::DtEntityCreatePalette::addLocalPaletteFilter ( const DtPaletteFilter &  )

virtual

This will only apply to this instance of the palette when filtering.

This class will clone the filter and take ownership of that memory, so, make sure your filter has a clone method

virtual void makVrf::DtEntityCreatePalette::removeLocalPaletteFilter ( const DtPaletteFilter &  )

virtual

virtual QMenu* makVrf::DtEntityCreatePalette::createRightClickMenu ( DtEntityCreatePaletteItem *  )

virtual

virtual void makVrf::DtEntityCreatePalette::slot_onTagsChanged ( const std::vector< std::string > &  )

virtual

virtual void makVrf::DtEntityCreatePalette::setCategoriesFromCounts ( const std::map< std::string, int > &  counts, const std::set< std::string > &  categoriesReferenced, int  totalItems  )

virtual

Given a map of the counts of categories and how many there are for those counts, select them based on rank.

The categoriesReferenced is the full set of categories

Implements makVrf::DtEntityCreatePaletteInterface.

virtual void makVrf::DtEntityCreatePalette::onItemSelectionChanged ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::slot_onForceChanged ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::slot_onForceChangedByButton ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::slot_onDeployedCountryChanged ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::slot_onItemPressed ( QTreeWidgetItem *  , QMouseEvent *  , int    )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::slot_onItemRightClickedOn ( QTreeWidgetItem *  , QMouseEvent *  , int    )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::filterItems ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::resetFilter ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::addToFavoritesRightClick ( )

protectedvirtualslot

virtual void makVrf::DtEntityCreatePalette::removeFromFavoritesRightClick ( )

protectedvirtualslot

Member Data Documentation

bool makVrf::DtEntityCreatePalette::myInitialized

protected

DtEntityCreatePaletteLogic* makVrf::DtEntityCreatePalette::myLogic

protected

std::map<std::string, QTreeWidgetItem*> makVrf::DtEntityCreatePalette::myItems

protected

bool makVrf::DtEntityCreatePalette::myFavoritesSupported

protected

bool makVrf::DtEntityCreatePalette::myHasDeployedCountries

protected

bool makVrf::DtEntityCreatePalette::myCloseEventSent

protected

bool makVrf::DtEntityCreatePalette::myInCreationProcess

protected

bool makVrf::DtEntityCreatePalette::myShowFavoritesIcon

protected

QMenu* makVrf::DtEntityCreatePalette::myRightClickMenu

protected

std::set<std::string> makVrf::DtEntityCreatePalette::myAccessibleCategories

protected

QVBoxLayout* makVrf::DtEntityCreatePalette::myMainLayout

QGridLayout* makVrf::DtEntityCreatePalette::myGridLayout

QLabel* makVrf::DtEntityCreatePalette::myForceLabel

QLabel* makVrf::DtEntityCreatePalette::myDeployedCountriesLabel

QComboBox* makVrf::DtEntityCreatePalette::myDeployedCountries

DtTagSelectorWidget* makVrf::DtEntityCreatePalette::myTags

QComboBox* makVrf::DtEntityCreatePalette::myForces

DtEntityPaletteTreeWidget* makVrf::DtEntityCreatePalette::myEntities

QImage makVrf::DtEntityCreatePalette::myFavoriteOn

QImage makVrf::DtEntityCreatePalette::myFavoriteOff

QLabel* makVrf::DtEntityCreatePalette::mySearchLabel

QLineEdit* makVrf::DtEntityCreatePalette::mySearch

QPushButton* makVrf::DtEntityCreatePalette::myResetButton

QAbstractButton* makVrf::DtEntityCreatePalette::myCurrentForceButtonSelected

QAbstractButton* makVrf::DtEntityCreatePalette::myCurrentTopLevelButtonSelected

DtToolButtonWrapperWidget* makVrf::DtEntityCreatePalette::myForceContainer

bool makVrf::DtEntityCreatePalette::myAllowCombineMode

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrfGuiCoreQt/entityCreatePalette.h
