makVrv::DtDriver Class Reference

The DtDriver is an abstract class. More...

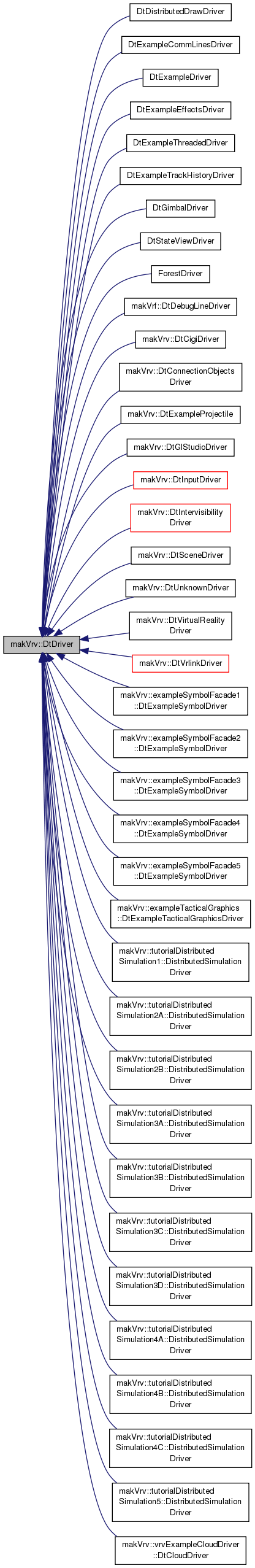

Inheritance diagram for makVrv::DtDriver:

Public Member Functions
	DtDriver (DtAgentManager &agentManager, const std::string &instanceName)
	CTOR.
virtual	~DtDriver ()
	DTOR.
virtual void	realizeConfiguration (const DtConfiguration &configuration)
	Realize the driver using the configuration.
virtual DtConfiguration	createConfiguration () const
	Create a configuration for the driver.
DtAgentManager &	agentManager ()
	Get the master scene for this host.
virtual DtAgentManagerInterface &	sceneInterface ()
	Get the scene manager interface for creating agents.
bool	started () const
	Get this driver's active state.
virtual const std::string &	className () const =0
	Get this driver's class name.
virtual const std::string &	instanceName () const
	Get this driver's instance name.
virtual bool	autoStart () const
	Get whether this driver is set to automatically start if it is persistent.
virtual void	setAutoStart (bool autoStart)
	Set whether this driver automatically starts if it is persistent.
virtual bool	isWindowDependent () const
	Get whether this driver is set to automatically start when the first window is created and stop when the last window is destroyed.
virtual void	setIsWindowDependent (bool dep)
	Set whether this driver is set to automatically start when the first window is created and stop when the last window is destroyed.
virtual void	setIsUserControllable (bool)
	Set whether this driver can be started and stopped by the user.
virtual bool	isUserControllable () const
	Get whether this driver can be started and stopped by the user.
virtual void	setIsPersistent (bool per)
	Set if the driver is persistent and should be saved between runs.
virtual bool	isPersistent () const
	Get if the driver is persistent and should be saved between runs.
virtual bool	isOnDriverSelectionList () const
	Returns whether or not this driver is to be automatically started/stopped from the driver selection list.
virtual void	setOnDriverSelectionList (bool)
	Sets whether or not this item is on the driver selection list.
bool	objectFromAgentManager (const DtUniqueID &id) const
	check to see if the object was created using this driver's agent manager.

Protected Member Functions
void	applyChangesAndDelete (DtElementChanges *changes)
	Function for apply changes from a changes object and deleting it.
void	reportElementCreated (DtElementID id, DtElementID parentId, DtElementEntry::ElementType type)
	Report an element created.
void	reportElementAttribute (DtElementID id, DtElementAttribute *attribute)
	Report an element attribute changed.
void	reportElementDestroyed (DtElementID id)
	Report an element destroyed.
void	start ()
	Start the driver.
void	stop ()
	Stop the driver.
bool	tick ()
	Tick the host driver.
virtual bool	onStart ()=0
	Start the host output.
virtual bool	onStop ()=0
	Stop the host output.
virtual bool	onTick ()=0
	Tick.
virtual void	slot_displayEngineAdded (const DtDeRecord &igRecord)
	Called when a display engine is added.
virtual void	setInstanceName (const std::string &name)
	set the Instance name.
virtual void	installAccessories ()
	Installs accessories on this driver.
virtual void	uninstallAccessories ()
	Removes accessories from this driver.

Protected Attributes
DtAgentManager &	myAgentManager
bool	myStartedFlag
std::string	myName
DtConfiguration	myConfiguration
bool	myPersistentFlag
bool	myUserControllableFlag
bool	myRequestStateDiffPendingFlag
DtElementChanges	myChanges

Friends
class	DtDriverManager

Detailed Description

The DtDriver is an abstract class.

Developers derive from this to create logic that "directs" things in the VRV framework.

Examples

• exampleDistributedDraw
• exampleDistributedObject
• exampleDriver
• exampleSimData
• exampleDistributedModelArticulation

Constructor & Destructor Documentation

makVrv::DtDriver::DtDriver	(	DtAgentManager &	agentManager,
		const std::string &	instanceName
	)

CTOR.

virtual makVrv::DtDriver::~DtDriver ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtDriver::realizeConfiguration ( const DtConfiguration &  configuration )

virtual

Realize the driver using the configuration.

Reimplemented in makVrv::DtInputDriver, makVrv::DtCigiDriver, makVrv::DtDisDriver, makVrv::DtHla1516Driver, makVrv::DtHla1516eDriver, and makVrv::DtHla13Driver.

virtual DtConfiguration makVrv::DtDriver::createConfiguration ( ) const

virtual

Create a configuration for the driver.

Reimplemented in makVrv::DtDisDriver, makVrv::DtCigiDriver, makVrv::DtHla1516Driver, makVrv::DtHla1516eDriver, and makVrv::DtHla13Driver.

DtAgentManager& makVrv::DtDriver::agentManager

(

)

Get the master scene for this host.

Do not create drivers using this agentManager, use the sceneInterface as it may replaced the implementation of the sceneInterface.

virtual DtAgentManagerInterface& makVrv::DtDriver::sceneInterface ( )

virtual

Get the scene manager interface for creating agents.

Reimplemented in makVrv::DtCigiDriver.

bool makVrv::DtDriver::started ( ) const

inline

Get this driver's active state.

virtual const std::string& makVrv::DtDriver::className ( ) const

pure virtual

Get this driver's class name.

Implemented in makVrv::DtIntervisibilityDriver, makVrv::DtInputDriver, makVrv::DtVirtualRealityDriver, makVrv::DtSceneDriver, makVrv::exampleSymbolFacade3::DtExampleSymbolDriver, ForestDriver, makVrv::exampleSymbolFacade5::DtExampleSymbolDriver, makVrv::exampleSymbolFacade4::DtExampleSymbolDriver, makVrv::DtCigiDriver, makVrv::exampleSymbolFacade2::DtExampleSymbolDriver, makVrv::DtVrlinkDriver, DtGimbalDriver, makVrv::exampleSymbolFacade1::DtExampleSymbolDriver, DtExampleThreadedDriver, DtExampleEffectsDriver, makVrv::exampleTacticalGraphics::DtExampleTacticalGraphicsDriver, makVrf::DtDebugLineDriver, DtExampleTrackHistoryDriver, makVrv::tutorialDistributedSimulation5::DistributedSimulationDriver, DtExampleCommLinesDriver, makVrv::DtExampleProjectile, DtStateViewDriver, makVrv::vrvExampleCloudDriver::DtCloudDriver, makVrv::DtGlStudioDriver, makVrv::tutorialDistributedSimulation3B::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3D::DistributedSimulationDriver, makVrv::DtUnknownDriver, makVrv::DtConnectionObjectsDriver, makVrv::tutorialDistributedSimulation2B::DistributedSimulationDriver, DtExampleDriver, makVrv::tutorialDistributedSimulation4B::DistributedSimulationDriver, DtDistributedDrawDriver, makVrv::tutorialDistributedSimulation3A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation1::DistributedSimulationDriver, and makVrv::tutorialDistributedSimulation2A::DistributedSimulationDriver.

virtual const std::string& makVrv::DtDriver::instanceName ( ) const

virtual

Get this driver's instance name.

virtual bool makVrv::DtDriver::autoStart ( ) const

virtual

Get whether this driver is set to automatically start if it is persistent.

Reimplemented in makVrv::DtIntervisibilityDriver.

virtual void makVrv::DtDriver::setAutoStart ( bool  autoStart )

virtual

Set whether this driver automatically starts if it is persistent.

virtual bool makVrv::DtDriver::isWindowDependent ( ) const

virtual

Get whether this driver is set to automatically start when the first window is created and stop when the last window is destroyed.

virtual void makVrv::DtDriver::setIsWindowDependent ( bool  dep )

virtual

Set whether this driver is set to automatically start when the first window is created and stop when the last window is destroyed.

virtual void makVrv::DtDriver::setIsUserControllable ( bool  )

virtual

Set whether this driver can be started and stopped by the user.

virtual bool makVrv::DtDriver::isUserControllable ( ) const

virtual

Get whether this driver can be started and stopped by the user.

Reimplemented in makVrv::DtUnknownDriver.

virtual void makVrv::DtDriver::setIsPersistent ( bool  per )

virtual

Set if the driver is persistent and should be saved between runs.

virtual bool makVrv::DtDriver::isPersistent ( ) const

virtual

Get if the driver is persistent and should be saved between runs.

virtual bool makVrv::DtDriver::isOnDriverSelectionList ( ) const

virtual

Returns whether or not this driver is to be automatically started/stopped from the driver selection list.

virtual void makVrv::DtDriver::setOnDriverSelectionList ( bool  )

virtual

Sets whether or not this item is on the driver selection list.

Will be saved to record if state is different

bool makVrv::DtDriver::objectFromAgentManager

(

const DtUniqueID &

id

)

const

check to see if the object was created using this driver's agent manager.

void makVrv::DtDriver::applyChangesAndDelete ( DtElementChanges *  changes )

protected

Function for apply changes from a changes object and deleting it.

This function is useful for queuing from an external thread as a means of passing changes from a secondary thread back to the main thread.

void makVrv::DtDriver::reportElementCreated ( DtElementID  id, DtElementID  parentId, DtElementEntry::ElementType  type  )

protected

Report an element created.

void makVrv::DtDriver::reportElementAttribute ( DtElementID  id, DtElementAttribute *  attribute  )

protected

Report an element attribute changed.

Note

The attribute passed in should not be used again.

void makVrv::DtDriver::reportElementDestroyed ( DtElementID  id )

protected

Report an element destroyed.

void makVrv::DtDriver::start ( )

protected

Start the driver.

Called by the Master Scene. Calls installAccessories().

void makVrv::DtDriver::stop ( )

protected

Stop the driver.

Called by the Master Scene. Calls uninstallAccessories().

bool makVrv::DtDriver::tick ( )

protected

Tick the host driver.

Called by the Master Scene.

Return values

true	if tick succeeded.
false	if the host must be stopped.

virtual bool makVrv::DtDriver::onStart ( )

protectedpure virtual

Start the host output.

Create all objects for an existing host connection.

Return values

true	if start succeeded
false	otherwise.

Implemented in makVrv::DtIntervisibilityDriver, makVrv::DtVrlinkDriver, makVrv::DtCigiDriver, makVrv::DtVirtualRealityDriver, DtExampleThreadedDriver, makVrv::DtInputDriver, makVrv::exampleSymbolFacade3::DtExampleSymbolDriver, makVrv::exampleSymbolFacade5::DtExampleSymbolDriver, makVrf::DtDebugLineDriver, makVrv::exampleSymbolFacade4::DtExampleSymbolDriver, makVrv::DtGlStudioDriver, DtGimbalDriver, makVrv::exampleSymbolFacade2::DtExampleSymbolDriver, makVrv::DtSceneDriver, makVrv::exampleSymbolFacade1::DtExampleSymbolDriver, DtStateViewDriver, DtExampleEffectsDriver, makVrv::exampleTacticalGraphics::DtExampleTacticalGraphicsDriver, DtDistributedDrawDriver, ForestDriver, DtExampleTrackHistoryDriver, makVrv::tutorialDistributedSimulation5::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation2B::DistributedSimulationDriver, makVrv::DtExampleProjectile, DtExampleCommLinesDriver, makVrv::DtUnknownDriver, makVrv::vrvExampleCloudDriver::DtCloudDriver, makVrv::tutorialDistributedSimulation3B::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3D::DistributedSimulationDriver, makVrv::DtConnectionObjectsDriver, makVrv::tutorialDistributedSimulation4B::DistributedSimulationDriver, DtExampleDriver, makVrv::tutorialDistributedSimulation3A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation1::DistributedSimulationDriver, and makVrv::tutorialDistributedSimulation2A::DistributedSimulationDriver.

virtual bool makVrv::DtDriver::onStop ( )

protectedpure virtual

Stop the host output.

All scene object created by the host should be destroyed.

Return values

true	if stop succeeded.
false	otherwise.

Implemented in makVrv::DtIntervisibilityDriver, makVrv::DtVrlinkDriver, makVrv::DtCigiDriver, makVrv::DtVirtualRealityDriver, DtExampleThreadedDriver, makVrf::DtDebugLineDriver, makVrv::exampleSymbolFacade3::DtExampleSymbolDriver, makVrv::DtInputDriver, makVrv::exampleSymbolFacade5::DtExampleSymbolDriver, makVrv::exampleSymbolFacade4::DtExampleSymbolDriver, DtGimbalDriver, makVrv::DtGlStudioDriver, makVrv::exampleSymbolFacade2::DtExampleSymbolDriver, makVrv::DtSceneDriver, makVrv::exampleSymbolFacade1::DtExampleSymbolDriver, DtExampleEffectsDriver, DtStateViewDriver, makVrv::exampleTacticalGraphics::DtExampleTacticalGraphicsDriver, ForestDriver, DtDistributedDrawDriver, DtExampleTrackHistoryDriver, makVrv::tutorialDistributedSimulation5::DistributedSimulationDriver, makVrv::DtExampleProjectile, makVrv::tutorialDistributedSimulation2B::DistributedSimulationDriver, DtExampleCommLinesDriver, makVrv::DtUnknownDriver, makVrv::vrvExampleCloudDriver::DtCloudDriver, makVrv::tutorialDistributedSimulation3B::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3D::DistributedSimulationDriver, makVrv::DtConnectionObjectsDriver, DtExampleDriver, makVrv::tutorialDistributedSimulation4B::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation1::DistributedSimulationDriver, and makVrv::tutorialDistributedSimulation2A::DistributedSimulationDriver.

virtual bool makVrv::DtDriver::onTick ( )

protectedpure virtual

Tick.

Return values

true	if tick succeeded.
false	otherwise.

Implemented in makVrv::DtIntervisibilityDriver, makVrv::DtVrlinkDriver, makVrv::DtCigiDriver, makVrv::DtVirtualRealityDriver, DtExampleThreadedDriver, DtGimbalDriver, makVrv::exampleSymbolFacade3::DtExampleSymbolDriver, makVrv::exampleSymbolFacade5::DtExampleSymbolDriver, makVrv::DtInputDriver, makVrv::exampleSymbolFacade4::DtExampleSymbolDriver, makVrv::DtGlStudioDriver, makVrf::DtDebugLineDriver, makVrv::exampleSymbolFacade2::DtExampleSymbolDriver, makVrv::exampleSymbolFacade1::DtExampleSymbolDriver, makVrv::DtSceneDriver, DtStateViewDriver, DtDistributedDrawDriver, DtExampleEffectsDriver, makVrv::exampleTacticalGraphics::DtExampleTacticalGraphicsDriver, DtExampleTrackHistoryDriver, ForestDriver, makVrv::DtExampleProjectile, makVrv::tutorialDistributedSimulation5::DistributedSimulationDriver, DtExampleCommLinesDriver, makVrv::tutorialDistributedSimulation2B::DistributedSimulationDriver, makVrv::DtUnknownDriver, makVrv::vrvExampleCloudDriver::DtCloudDriver, makVrv::tutorialDistributedSimulation3B::DistributedSimulationDriver, makVrv::DtConnectionObjectsDriver, makVrv::tutorialDistributedSimulation3D::DistributedSimulationDriver, DtExampleDriver, makVrv::tutorialDistributedSimulation4B::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation3C::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation4A::DistributedSimulationDriver, makVrv::tutorialDistributedSimulation1::DistributedSimulationDriver, and makVrv::tutorialDistributedSimulation2A::DistributedSimulationDriver.

virtual void makVrv::DtDriver::slot_displayEngineAdded ( const DtDeRecord &  igRecord )

protectedvirtual

Called when a display engine is added.

Override if you want the driver to do something when a display engine is added.

Reimplemented in makVrv::DtInputDriver, makVrv::DtCigiDriver, makVrv::DtVrlinkDriver, makVrv::exampleTacticalGraphics::DtExampleTacticalGraphicsDriver, makVrv::DtSceneDriver, makVrv::exampleSymbolFacade5::DtExampleSymbolDriver, makVrv::exampleSymbolFacade3::DtExampleSymbolDriver, makVrv::exampleSymbolFacade4::DtExampleSymbolDriver, makVrv::exampleSymbolFacade2::DtExampleSymbolDriver, makVrv::exampleSymbolFacade1::DtExampleSymbolDriver, DtExampleThreadedDriver, DtGimbalDriver, DtExampleEffectsDriver, DtExampleTrackHistoryDriver, makVrv::DtExampleProjectile, DtExampleDriver, DtExampleCommLinesDriver, DtStateViewDriver, and DtDistributedDrawDriver.

virtual void makVrv::DtDriver::setInstanceName ( const std::string &  name )

protectedvirtual

set the Instance name.

Note

Only called by the sim driver manager. Renaming is treated as destroying and adding the same driver with a different name.

virtual void makVrv::DtDriver::installAccessories ( )

protectedvirtual

Installs accessories on this driver.

The compatible and enabled accessories in the DtDriverManager's accessory map are installed on this driver.

virtual void makVrv::DtDriver::uninstallAccessories ( )

protectedvirtual

Removes accessories from this driver.

The compatible and enabled accessories in the DtDriverManager's accessory map are removed from this driver.

Friends And Related Function Documentation

friend class DtDriverManager

friend

Member Data Documentation

DtAgentManager& makVrv::DtDriver::myAgentManager

protected

bool makVrv::DtDriver::myStartedFlag

protected

std::string makVrv::DtDriver::myName

protected

DtConfiguration makVrv::DtDriver::myConfiguration

protected

bool makVrv::DtDriver::myPersistentFlag

protected

bool makVrv::DtDriver::myUserControllableFlag

protected

bool makVrv::DtDriver::myRequestStateDiffPendingFlag

protected

DtElementChanges makVrv::DtDriver::myChanges

protected

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtDriver.h
