makVrv::DtEntityStateVisualizer Class Reference

Base class for entity state visualizers (using the DtModelVisualizer schema) More...

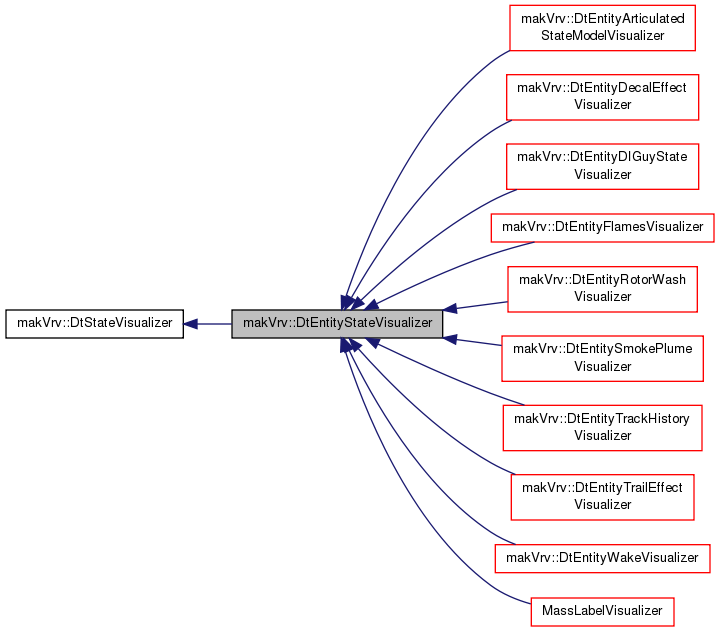

Inheritance diagram for makVrv::DtEntityStateVisualizer:

Public Member Functions
	DtEntityStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
	CTOR.
virtual	~DtEntityStateVisualizer ()
	DTOR.
virtual void	setState (int stateNumber, int stateValue)
	Override to set the attribute state of agents.
DtEntityStateListener &	entityStateListener ()
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR.
virtual	~DtStateVisualizer ()
	DTOR.
virtual void	createModelAgents ()=0
	Override to create model agents that will be used to display data from the listener.
virtual void	destroyModelAgents ()=0
	Destroys all currently created definitions.
virtual const TypeInfo &	typeInfo () const =0
	Get the type info.
virtual void	setParent (DtStateVisualizer *)
	Override to set the parent of this visualizer.
void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition.
const std::string &	modelDefinition () const
	Gets the current model definition.
virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item.
virtual void	initialize ()
	Initialize the visualizer.
virtual bool	isVisible () const
	Returns true if visible.
virtual void	setSelected (bool)
	Sets selected state.
virtual bool	selected () const
void	setName (const std::string &)
	Internal name of state visualizer.
const std::string &	name () const
virtual void	setPickable (bool)
	Sets pickable state.
virtual bool	pickable () const
virtual void	setUniqueID (DtUniqueID id)
DtUniqueID	uniqueID () const
int	visualizerType () const
void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item.
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
	Set any other additional visualizer information from the visual record.
DtStateListener &	listener ()
DtBaseConnection &	simulation ()
	Get the connection for this visualizer.
void	setDistribute (bool b)
	Whether or not to distribute over the network.
bool	distribute () const

Protected Attributes
DtEntityStateListener *	myEntityListener
	Same as myListener, but casted for convenience.
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	myUniqueID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
int	myModelSet
int	myVisualizerType
std::vector< int >	myShowHideContexts
bool	mySelected
bool	myPickable
bool	myVisible
DtStateVisualizer *	myParent
DtSceneObjectAgent *	mySceneObjectAgent

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...
Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer *, DtStateVisualizer *, DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents.
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked.
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp
boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick
Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Called when the mouse is clicked in this visualizer.
virtual void	slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual void	slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual bool	hide (int context)
	Will call destroyModelAgents(), if, when the context is added, it is the first context in the list.
virtual bool	show (int context)
	Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero.
virtual bool	supportsShowHideContext (int) const
	Default returns true.
virtual void	setModelDefinitionForAgents ()=0
	Sets model definition for all the agents that this visualizer might be using.
template<typename T , typename C >
void	connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Connect a signal and update the entity.

Detailed Description

Base class for entity state visualizers (using the DtModelVisualizer schema)

Constructor & Destructor Documentation

makVrv::DtEntityStateVisualizer::DtEntityStateVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

virtual makVrv::DtEntityStateVisualizer::~DtEntityStateVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtEntityStateVisualizer::setState ( int  stateNumber, int  stateValue  )

virtual

Override to set the attribute state of agents.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityDIGuyStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityArticulatedStateModelVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityFlamesVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityTrailEffectVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityDecalEffectVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntitySmokePlumeVisualizer.

DtEntityStateListener& makVrv::DtEntityStateVisualizer::entityStateListener ( )

inline

Member Data Documentation

DtEntityStateListener* makVrv::DtEntityStateVisualizer::myEntityListener

protected

Same as myListener, but casted for convenience.

---

The documentation for this class was generated from the following file:

• /exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCore/DtEntityStateVisualizer.h
