A widget class for managing different camera views the currently selected observer can be placed in. More...

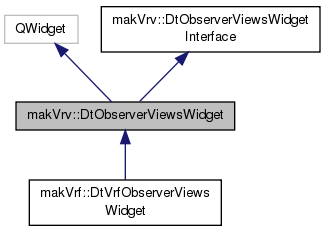

Inheritance diagram for makVrv::DtObserverViewsWidget:

Public Member Functions
	DtObserverViewsWidget (DtDe &de, QWidget *parent=0)
	Constructor of the page.
virtual	~DtObserverViewsWidget ()
	DTOR.
virtual QIcon	icon ()
	Get the icon of the page.
virtual QString	title ()
	Get the title of the page.
bool	getClickedObserverViewInfo (DtUnicode &viewName, DtObserverViewsManager::ViewProjection &projection) const
	Gets the name and projection mode of the clicked observer view.
virtual void	showSaveChangesMessage ()
	pops up an action confirmation message when the user is modifying the observers in the list
virtual void	showClearWarningMessage ()
	Raises a confirmation message box to clear the contents of the observer views list.
virtual void	showAssociateWarningMessage ()
	Raises a confirmation message box to associate the current contents of the observer views list with the currently loaded terrain.
virtual void	showDissociateWarningMessage ()
	Raises a confirmation message box to dissociate any observer views that are currently associated with the currently loaded terrain.
virtual void	requestSaveFilename ()
	Raises a message box offering options to 'Save As' or 'Don't Save'.
virtual void	contextItemRequestSaveFilename ()
	Saves a single observer view.
virtual void	resizeColumns ()
	Set the column size of the Observer view Table Widget.
Public Member Functions inherited from makVrv::DtObserverViewsWidgetInterface
virtual	~DtObserverViewsWidgetInterface ()
	Virtual DTOR.
virtual void	enableObserverViewsList (bool enabled)=0
	enables the observer views list
virtual void	enableAddViewButton (bool enabled)=0
	enables the "add view" button
virtual void	enableAssociateViewsToTerrainButton (bool enabled)=0
	enables the "associate views to terrain" button
virtual void	enableSaveToFileButton (bool enabled)=0
	enables the "save views to file" button
virtual void	enableDissociateViewsButton (bool enabled)=0
	enables the "dissociate views" button
virtual void	enableLoadAndMergeViewsButton (bool enabled)=0
	enables the "load views" button
virtual void	enableClearViewsButton (bool enabled)=0
virtual void	enableSaveButton (bool enabled)=0
	If this is true, the dialog that is used when the export icon is pressed will contain a Save button (in addition to the Save As...) button.
virtual void	setAssociateViewsToTerrainButtonOnExitMessageVisible (bool visible)=0
virtual void	setSavedChangesButtonOnExitMessageVisible (bool visible)=0
virtual int	viewListSize ()=0
virtual void	dissociateViewFromTerrain (const std::string &viewName)=0

Protected Slots
virtual void	onAddObserverView ()
	Calls down to logic to capture view and add it back here.
virtual void	onViewSelectionChanged ()
	Calls down to logic to set a new observer view.
virtual void	onItemPressed ()
	Calls down to logic to set a new observer view.
virtual void	onClearObserverViews ()
	Calls down to logic to clear out observer views.
virtual void	onAssociateViewsToTerrain ()
	Puts up dialog to allow user to specify a file to save all current views in and calls down to logic to do the save.
virtual void	onSaveViewsToFile ()
	Puts up dialog to allow user to specify a file to save the currently selected view in and calls down to logic to do the save.
virtual void	onLoadAndMergeViews ()
	Calls down to logic to load file and place view records found in there into the interface.
virtual void	observerViewNameChanged ()
	Called when any aspect of the item data has changed.
void	onRightClicked (QTreeWidgetItem , QMouseEvent , int col, int row)
	Determines the item that was clicked on and displays a context menu.
virtual void	onDissociateViewsToTerrain ()
	dissociate the views from the current terrain loaded in scene
virtual void	enableObserverViewsList (bool enabled)
	enables the observer views list
virtual void	enableAddViewButton (bool enabled)
	enables the "add view" button
virtual void	enableAssociateViewsToTerrainButton (bool enabled)
	enables the "associate views to terrain" button
virtual void	enableSaveToFileButton (bool enabled)
	enables the "save views to file" button
virtual void	enableSaveButton (bool enabled)
	If this is true, the dialog that is used when the "Save To File" icon is pressed will contain a Save button (in addition to the Save As...) button.
virtual void	enableDissociateViewsButton (bool enabled)
	enables the "dissociate views" button
virtual void	enableLoadAndMergeViewsButton (bool enabled)
	enables the "load views" button
virtual void	enableClearViewsButton (bool enabled)
	enables the "clear views" button
virtual void	setAssociateViewsToTerrainButtonOnExitMessageVisible (bool visible)
virtual void	setSavedChangesButtonOnExitMessageVisible (bool visible)
virtual int	viewListSize ()
virtual void	dissociateViewFromTerrain (const std::string &viewName)

Protected Member Functions
virtual void	activate ()
	Called when the page is displayed.
virtual void	deactivate ()
	Called when the page is hidden.
void	setupUi (QWidget *p)
	Sets up the contents of the widget onto the supplied parent.
virtual void	insertObserverView (int index, const DtObserverViewInfoViewerData &observerData)
	Adds a new observer view mode, name and is default attributes to the list.
virtual void	clearObserverViews ()
	Clears out observer views list.
virtual void	deleteView (const std::string &, DtObserverViewsManager::ViewProjection projection)
	Removes the specified view from the observers view list.
virtual void	renameObserverRecord (const std::string &newName, const std::string &oldName)
	Renames the observer record from old name to new name.
virtual void	setDefaultView (const std::string &viewName, DtObserverViewsManager::ViewProjection projection)
	Set a view as default.
virtual void	unSetDefaultView (const std::string &viewName, DtObserverViewsManager::ViewProjection projection)
	unset a default view
virtual bool	eventFilter (QObject obj, QEvent event)
virtual void	createQtTreeItem (QTreeWidgetItem &item, const DtObserverViewInfoViewerData &observerViewData)

Additional Inherited Members
Public Attributes inherited from makVrv::DtObserverViewsWidgetInterface
boost::signal< void()>	signal_captureAndObserverView
	Signals.
boost::signal< void(const DtUnicode &, DtObserverViewsManager::ViewProjection, bool) >	signal_setObserverViewbyNameAndMode
	Called when the user click on a view and the system load it.
boost::signal< void()>	signal_clearObserverViews
	Called when the user cleans observer view's list form the widget.
boost::signal< void()>	signal_associateObserverViewsToCurrentTerrain
	Called when the user confirms to associate views with the current terrain from observer view's list form the widget.
boost::signal< void()>	signal_dissociateObserverViewsToCurrentTerrain
	Called when the user confirms to dissociate views with the current terrain from observer view's list form the widget.
boost::signal< void(const DtUnicode &)>	signal_saveObserverViewsFileAs
	Called when the user presses the saveObserverViews button.
boost::signal< void()>	signal_saveObserverViewsFile
boost::signal< void(const DtUnicode &)>	signal_saveSingleObserverViewsFile
	Called when the user saves a single observer view into a file.
boost::signal< void(const DtUnicode &)>	signal_loadObserverViewsFile
	Called when the user loads observer views from a file.
boost::signal< bool(const DtUnicode &, const DtUnicode &, DtObserverViewsManager::ViewProjection)>	signal_renameObserverRecord
	Called when the user rename a observer view.
boost::signal< void(const std::string &, DtObserverViewsManager::ViewProjection)>	signal_rightClickedOnObserverView
	Called when to save the data of a right clicked observer view.
boost::signal< void()>	signal_saveLoadedFile
	Called when the user rename a observer view.

Detailed Description

A widget class for managing different camera views the currently selected observer can be placed in.

Constructor & Destructor Documentation

makVrv::DtObserverViewsWidget::DtObserverViewsWidget	(	DtDe &	de,
		QWidget *	parent = `0`
	)

Constructor of the page.

virtual makVrv::DtObserverViewsWidget::~DtObserverViewsWidget ( )

virtual

DTOR.

Member Function Documentation

virtual QIcon makVrv::DtObserverViewsWidget::icon ( )

virtual

Get the icon of the page.

virtual QString makVrv::DtObserverViewsWidget::title ( )

virtual

Get the title of the page.

bool makVrv::DtObserverViewsWidget::getClickedObserverViewInfo	(	DtUnicode &	viewName,
		DtObserverViewsManager::ViewProjection &	projection
	)		const

Gets the name and projection mode of the clicked observer view.

Returns false if there is no currently click object

virtual void makVrv::DtObserverViewsWidget::showSaveChangesMessage ( )

virtual

pops up an action confirmation message when the user is modifying the observers in the list

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::showClearWarningMessage ( )

virtual

Raises a confirmation message box to clear the contents of the observer views list.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::showAssociateWarningMessage ( )

virtual

Raises a confirmation message box to associate the current contents of the observer views list with the currently loaded terrain.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::showDissociateWarningMessage ( )

virtual

Raises a confirmation message box to dissociate any observer views that are currently associated with the currently loaded terrain.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::requestSaveFilename ( )

virtual

Raises a message box offering options to 'Save As' or 'Don't Save'.

If the mySaveEnabled flag is true, the box will also contain the 'Save' option. If 'Save As' is chosen, it will call DtStaticFileDialog::getSaveFileNameWithExtension to request a file name, followed by a signal_saveObserverViewsFileAs if a filename has been selected; 'Save' generates a signal_saveObserverViewsFile.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::contextItemRequestSaveFilename ( )

virtual

Saves a single observer view.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::resizeColumns ( )

virtual

Set the column size of the Observer view Table Widget.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::activate ( )

protectedvirtual

Called when the page is displayed.

virtual void makVrv::DtObserverViewsWidget::deactivate ( )

protectedvirtual

Called when the page is hidden.

void makVrv::DtObserverViewsWidget::setupUi ( QWidget * p )

protected

Sets up the contents of the widget onto the supplied parent.

virtual void makVrv::DtObserverViewsWidget::insertObserverView	(	int	index,
		const DtObserverViewInfoViewerData &	observerData
	)

protectedvirtual

Adds a new observer view mode, name and is default attributes to the list.

Implements makVrv::DtObserverViewsWidgetInterface.

Reimplemented in makVrf::DtVrfObserverViewsWidget.

virtual void makVrv::DtObserverViewsWidget::clearObserverViews ( )

protectedvirtual

Clears out observer views list.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::deleteView	(	const std::string &	,
		DtObserverViewsManager::ViewProjection	projection
	)

protectedvirtual

Removes the specified view from the observers view list.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::renameObserverRecord	(	const std::string &	newName,
		const std::string &	oldName
	)

protectedvirtual

Renames the observer record from old name to new name.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::setDefaultView	(	const std::string &	viewName,
		DtObserverViewsManager::ViewProjection	projection
	)

protectedvirtual

Set a view as default.

Implements makVrv::DtObserverViewsWidgetInterface.

virtual void makVrv::DtObserverViewsWidget::unSetDefaultView	(	const std::string &	viewName,
		DtObserverViewsManager::ViewProjection	projection
	)

protectedvirtual

unset a default view

Implements makVrv::DtObserverViewsWidgetInterface.

virtual bool makVrv::DtObserverViewsWidget::eventFilter	(	QObject *	obj,
		QEvent *	event
	)

protectedvirtual

virtual void makVrv::DtObserverViewsWidget::onAddObserverView ( )

protectedvirtualslot

Calls down to logic to capture view and add it back here.

virtual void makVrv::DtObserverViewsWidget::onViewSelectionChanged ( )

protectedvirtualslot

Calls down to logic to set a new observer view.

Also will enable/disable buttons on selection Won't do anything if CTRL is pressed.

virtual void makVrv::DtObserverViewsWidget::onItemPressed ( )

protectedvirtualslot

Calls down to logic to set a new observer view.

Also will enable/disable buttons on selection Animates the observer view change if CTRL is pressed.

virtual void makVrv::DtObserverViewsWidget::onClearObserverViews ( )

protectedvirtualslot

Calls down to logic to clear out observer views.

virtual void makVrv::DtObserverViewsWidget::onAssociateViewsToTerrain ( )

protectedvirtualslot

Puts up dialog to allow user to specify a file to save all current views in and calls down to logic to do the save.

virtual void makVrv::DtObserverViewsWidget::onSaveViewsToFile ( )

protectedvirtualslot

Puts up dialog to allow user to specify a file to save the currently selected view in and calls down to logic to do the save.

virtual void makVrv::DtObserverViewsWidget::onLoadAndMergeViews ( )

protectedvirtualslot

Calls down to logic to load file and place view records found in there into the interface.

virtual void makVrv::DtObserverViewsWidget::observerViewNameChanged ( )

protectedvirtualslot

Called when any aspect of the item data has changed.

Will check to see if the name needs to be updated. If the name is the same as another name, will warn the user

void makVrv::DtObserverViewsWidget::onRightClicked	(	QTreeWidgetItem *	,
		QMouseEvent *	,
		int	col,
		int	row
	)

protectedslot

Determines the item that was clicked on and displays a context menu.

virtual void makVrv::DtObserverViewsWidget::onDissociateViewsToTerrain ( )

protectedvirtualslot

dissociate the views from the current terrain loaded in scene

virtual void makVrv::DtObserverViewsWidget::enableObserverViewsList ( bool enabled )

protectedvirtualslot

enables the observer views list

virtual void makVrv::DtObserverViewsWidget::enableAddViewButton ( bool enabled )

protectedvirtualslot

enables the "add view" button

virtual void makVrv::DtObserverViewsWidget::enableAssociateViewsToTerrainButton ( bool enabled )

protectedvirtualslot

enables the "associate views to terrain" button

virtual void makVrv::DtObserverViewsWidget::enableSaveToFileButton ( bool enabled )

protectedvirtualslot

enables the "save views to file" button

virtual void makVrv::DtObserverViewsWidget::enableSaveButton ( bool enabled )

protectedvirtualslot

If this is true, the dialog that is used when the "Save To File" icon is pressed will contain a Save button (in addition to the Save As...) button.

virtual void makVrv::DtObserverViewsWidget::enableDissociateViewsButton ( bool enabled )

protectedvirtualslot

enables the "dissociate views" button

virtual void makVrv::DtObserverViewsWidget::enableLoadAndMergeViewsButton ( bool enabled )

protectedvirtualslot

enables the "load views" button

virtual void makVrv::DtObserverViewsWidget::enableClearViewsButton ( bool enabled )

protectedvirtualslot

enables the "clear views" button

virtual void makVrv::DtObserverViewsWidget::setAssociateViewsToTerrainButtonOnExitMessageVisible ( bool visible )

protectedvirtualslot

virtual void makVrv::DtObserverViewsWidget::setSavedChangesButtonOnExitMessageVisible ( bool visible )

protectedvirtualslot

virtual int makVrv::DtObserverViewsWidget::viewListSize ( )

protectedvirtualslot

virtual void makVrv::DtObserverViewsWidget::dissociateViewFromTerrain ( const std::string & viewName )

protectedvirtualslot

virtual void makVrv::DtObserverViewsWidget::createQtTreeItem	(	QTreeWidgetItem &	item,
		const DtObserverViewInfoViewerData &	observerViewData
	)

protectedvirtual

Member Data Documentation

QVBoxLayout* makVrv::DtObserverViewsWidget::myMainLayout

protected

QHBoxLayout* makVrv::DtObserverViewsWidget::myButtonLayout

protected

QTreeWidget* makVrv::DtObserverViewsWidget::myObserverViewsList

protected

QPushButton* makVrv::DtObserverViewsWidget::myAddView

protected

QPushButton* makVrv::DtObserverViewsWidget::myDissociateViews

protected

QPushButton* makVrv::DtObserverViewsWidget::myAssociateViewsToTerrain

protected

QPushButton* makVrv::DtObserverViewsWidget::mySaveToFile

protected

QPushButton* makVrv::DtObserverViewsWidget::myLoadViews

protected

QPushButton* makVrv::DtObserverViewsWidget::myClearViews

protected

DtItemIconsDelegate* makVrv::DtObserverViewsWidget::myItemIconsDelegate

protected

double makVrv::DtObserverViewsWidget::myLastSelectionChangedSimTime

protected

int makVrv::DtObserverViewsWidget::myItemLeftClickedIndex

protected

DtDe& makVrv::DtObserverViewsWidget::myDe

protected

QMessageBox* makVrv::DtObserverViewsWidget::myMessageBox

protected

QPushButton* makVrv::DtObserverViewsWidget::mySavedChangesExitMessageButton

protected

QPushButton* makVrv::DtObserverViewsWidget::mySavedAsChangesExitMessageButton

protected

QPushButton* makVrv::DtObserverViewsWidget::myDontSaveChangesExitMessageButton

protected

QPushButton* makVrv::DtObserverViewsWidget::myAssociateViewsToTerrainExitMessageButton

protected

bool makVrv::DtObserverViewsWidget::mySaveEnabled

protected

int makVrv::DtObserverViewsWidget::myIconColumnSize

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCoreQt/DtObserverViewsWidget.h

Protected Attributes
QVBoxLayout *	myMainLayout
QHBoxLayout *	myButtonLayout
QTreeWidget *	myObserverViewsList
QPushButton *	myAddView
QPushButton *	myDissociateViews
QPushButton *	myAssociateViewsToTerrain
QPushButton *	mySaveToFile
QPushButton *	myLoadViews
QPushButton *	myClearViews
DtItemIconsDelegate *	myItemIconsDelegate
double	myLastSelectionChangedSimTime
int	myItemLeftClickedIndex
DtDe &	myDe
QMessageBox *	myMessageBox
QPushButton *	mySavedChangesExitMessageButton
QPushButton *	mySavedAsChangesExitMessageButton
QPushButton *	myDontSaveChangesExitMessageButton
QPushButton *	myAssociateViewsToTerrainExitMessageButton
bool	mySaveEnabled
int	myIconColumnSize

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
