A widget that displays a persistence GUI in some way Operations presented are import, export, save, and restore. More...

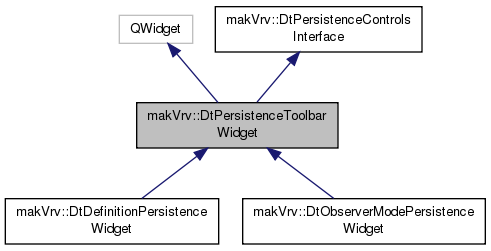

Inheritance diagram for makVrv::DtPersistenceToolbarWidget:

[legend]

Public Member Functions
	DtPersistenceToolbarWidget (DtDe &de, QWidget *p=0, Qt::WindowFlags f=0)
	CTOR.
virtual	~DtPersistenceToolbarWidget ()
	DTOR.
virtual void	setPersistentStateName (const QString &name)
	Set the name of thing being saved.
virtual void	queryImportFilePath (DtDe &de, const std::string &importType, const std::string &path, const std::string &fileFilter)
	Ask for a filename to import from fileFilter is the desired extension with no dot.
virtual void	queryMergeFilePath (DtDe &de, const std::string &importType, const std::string &path, const std::string &fileFilter)
	Ask for a filename to merge from fileFilter is the desired extension with no dot.
virtual void	queryExportFilePath (DtDe &de, const std::string &importType, const std::string &path, const std::string &fileFilter)
	Ask for a filename to export to fileFilter is the desired extension with no dot.
virtual void	queryExportHierFilePath (DtDe &de, const std::string &importType, const std::string &path, const std::string &fileFilter)
	Ask for a filename to export the element definition hierarchy fileFilter is the desired extension with no dot.
virtual void	queryExportLeafFilePath (DtDe &de, const std::string &importType, const std::string &path, const std::string &fileFilter)
	Ask for a filename to export the element definition leaves fileFilter is the desired extension with no dot.
virtual void	setSaveButtonShown (bool shown)
	Shows/hides save button. Default is hidden.
virtual void	setSeparatorShown (bool shown)
	Shows/hides horizontal separator. Default is shown.
virtual void	setMergeShown (bool shown)
	If true, shows merge button to allow merging of settings.
virtual void	setExportShown (bool)
	If true will export selected item(s) to a file.
virtual void	setImportShown (bool)
	If true will import settings.
virtual void	setExportEnabled (bool)
	Sets whether or not export button is enabled.
virtual void	setMergeEnabled (bool)
	Sets whether or not merge button is enabled.
virtual void	setImportEnabled (bool)
	Sets whether or not import button is enabled.
virtual void	setExportSelectedEnabled (bool)
	Sets whether or not export selected button is enabled.
virtual void	setBackupRestoreEnabled (bool shown)
	Sets whether or not the restore from backup button is enabled.
virtual void	setFactoryRestoreEnabled (bool shown)
	Sets whether or not the restore from factory button is enabled.
virtual void	setSaveDefaultsEnabled (bool b)
	Sets whether or not the save defaults button is enabled.
virtual void	setBackup (DtBackupInterface *)
	Sets the backup object that will be used to restore from.
virtual void	disableAllButtons (bool)
	Quick way to disable/enable all buttons.
virtual void	activateSaveDefaults ()
	Prompt to save (usually on exit from a page)
virtual int	activateRememberToExport (bool &dontShowAagin)
	Remind user to export (usually prompting on page exit) with a checkbox allow user to not show it again the user check the "dont show again".
Public Member Functions inherited from makVrv::DtPersistenceControlsInterface
virtual	~DtPersistenceControlsInterface ()
	DTOR.
virtual bool	showImportLeavesFirstBox ()
	show the messabge box to remind the user to import leave before import hireachy(for entity,unit,tactical graphics)

Protected Slots
virtual void	on_myImportButton_clicked ()
virtual void	on_myExportButton_clicked ()
virtual void	on_myMergeButton_clicked ()
virtual void	on_myExportSelectedButton_clicked ()
virtual void	on_mySaveButton_clicked ()
virtual void	on_myRestoreButton_clicked ()
virtual void	on_myRestoreFactoryButton_clicked ()

Protected Member Functions
virtual void	backupFileChanged (const DtBackupInterface *)
	Called from the backup manager when the status of restoring from backup or factory changes.
virtual void	rememberToExportDialog ()
	For the VRF style definitions, entity type mappings reminder user to export to keep their changes.
std::string	labelNameToExportDialogDisplayName (const std::string &name)
	map label name to the name displayed in the rememberToExport dialog name
void	setupGui ()
virtual QString	willAlsoRestore (int) const
	If other items will be restored by either restoring local or factory, return text string which describes what will be restored.

Protected Attributes
DtDe &	myDe
DtBackupInterface *	myBackup
QLabel *	myLabel
QPushButton *	myImportButton
QPushButton *	myExportButton
QPushButton *	myMergeButton
QPushButton *	myExportSelectedButton
QPushButton *	mySaveButton
QPushButton *	myRestoreButton
QPushButton *	myRestoreFactoryButton
QFrame *	mySeparator
QHBoxLayout *	myButtonLayout

Additional Inherited Members
Public Attributes inherited from makVrv::DtPersistenceControlsInterface
boost::signal< void()>	signal_saveDefaults
	Signal emitted when the user wants to save to a default file.
boost::signal< void()>	signal_restoreDefaults
	Signal emitted when the user wants to load the default file.
boost::signal< void()>	signal_restoreFactoryDefaults
	Signal emitted when the user wants to load the factory settings file.
boost::signal< void()>	signal_defaultsAboutToBeRestored
	Signal emitted right before the defaults are about to be restored to the settings backup object.
boost::signal< void()>	signal_defaultsRestored
	Signal emitted when the defaults have been restored via the settings backup object.
boost::signal< void()>	signal_factoryDefaultsAboutToBeRestored
	Signal emitted when factory is about to be restored via the settings backup object.
boost::signal< void()>	signal_factoryDefaultsRestored
	Signal emitted when factory has been restored via the settings backup object.
boost::signal< void()>	signal_export
	Signal emitted when the user wants to export to a file.
boost::signal< void()>	signal_import
	Signal emitted when the user wants to import.
boost::signal< void()>	signal_exportSelected
	Signal emitted when the user wants to export selected item(s) to a file.
boost::signal< void()>	signal_exportHier
	Signal emitted when the user wants to export an element definition hierarchy to a file.
boost::signal< void()>	signal_exportLeaves
	Signal emitted when the user wants to export element definition leaves to a file.
boost::signal< void()>	signal_exportSelectedLeaves
	Signal emitted when the user wants to export selected element definition leaves to a file.
boost::signal< void()>	signal_merge
	Signal emitted when the user wants to merge.
boost::signal< void(const std::string &)>	signal_importFilenameChosen
	Signal emitted when the user has chosen a filename to import from.
boost::signal< void(const std::string &)>	signal_mergeFilenameChosen
	Signal emitted when the user has chosen a filename to merge from.
boost::signal< void(const std::string &)>	signal_exportFilenameChosen
	Signal emitted when the user has chosen a filename to export to.
boost::signal< void(const std::string &)>	signal_exportHierFilenameChosen
	Signal emitted when the user has chosen a filename to export the hierarchy element definitions to.
boost::signal< void(const std::string &)>	signal_exportLeafFilenameChosen
	Signal emitted when the user has chosen a filename to export the leaf element definitions to.

Detailed Description

A widget that displays a persistence GUI in some way Operations presented are import, export, save, and restore.

Constructor & Destructor Documentation

makVrv::DtPersistenceToolbarWidget::DtPersistenceToolbarWidget	(	DtDe &	de,
		QWidget *	p = `0`,
		Qt::WindowFlags	f = `0`
	)

CTOR.

virtual makVrv::DtPersistenceToolbarWidget::~DtPersistenceToolbarWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtPersistenceToolbarWidget::setPersistentStateName ( const QString & name )

virtual

Set the name of thing being saved.

virtual void makVrv::DtPersistenceToolbarWidget::queryImportFilePath	(	DtDe &	de,
		const std::string &	importType,
		const std::string &	path,
		const std::string &	fileFilter
	)

virtual

Ask for a filename to import from fileFilter is the desired extension with no dot.

Implements makVrv::DtPersistenceControlsInterface.

Reimplemented in makVrv::DtDefinitionPersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::queryMergeFilePath	(	DtDe &	de,
		const std::string &	importType,
		const std::string &	path,
		const std::string &	fileFilter
	)

virtual

Ask for a filename to merge from fileFilter is the desired extension with no dot.

Implements makVrv::DtPersistenceControlsInterface.

Reimplemented in makVrv::DtDefinitionPersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::queryExportFilePath	(	DtDe &	de,
		const std::string &	importType,
		const std::string &	path,
		const std::string &	fileFilter
	)

virtual

Ask for a filename to export to fileFilter is the desired extension with no dot.

Implements makVrv::DtPersistenceControlsInterface.

Reimplemented in makVrv::DtDefinitionPersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::queryExportHierFilePath	(	DtDe &	de,
		const std::string &	importType,
		const std::string &	path,
		const std::string &	fileFilter
	)

virtual

Ask for a filename to export the element definition hierarchy fileFilter is the desired extension with no dot.

Implements makVrv::DtPersistenceControlsInterface.

Reimplemented in makVrv::DtDefinitionPersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::queryExportLeafFilePath	(	DtDe &	de,
		const std::string &	importType,
		const std::string &	path,
		const std::string &	fileFilter
	)

virtual

Ask for a filename to export the element definition leaves fileFilter is the desired extension with no dot.

Implements makVrv::DtPersistenceControlsInterface.

Reimplemented in makVrv::DtDefinitionPersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::setSaveButtonShown ( bool shown )

virtual

Shows/hides save button. Default is hidden.

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setSeparatorShown ( bool shown )

virtual

Shows/hides horizontal separator. Default is shown.

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setMergeShown ( bool shown )

virtual

If true, shows merge button to allow merging of settings.

Merge will add or replace, not remove items. is hidden

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setExportShown ( bool )

virtual

If true will export selected item(s) to a file.

Default is hidden

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setImportShown ( bool )

virtual

If true will import settings.

Default is shown

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setExportEnabled ( bool )

virtual

Sets whether or not export button is enabled.

Initially enabled.

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setMergeEnabled ( bool )

virtual

Sets whether or not merge button is enabled.

Merge will add or replace, not remove items. Initially disabled.

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setImportEnabled ( bool )

virtual

Sets whether or not import button is enabled.

Initially enabled

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setExportSelectedEnabled ( bool )

virtual

Sets whether or not export selected button is enabled.

Initially disabled

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setBackupRestoreEnabled ( bool shown )

virtual

Sets whether or not the restore from backup button is enabled.

Initially disabled

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setFactoryRestoreEnabled ( bool shown )

virtual

Sets whether or not the restore from factory button is enabled.

Initially disabled

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setSaveDefaultsEnabled ( bool b )

virtual

Sets whether or not the save defaults button is enabled.

Initially enabled

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::setBackup ( DtBackupInterface * )

virtual

Sets the backup object that will be used to restore from.

If the object is NULL, and the restore buttons are pressed, the signal to restore factory and defaults will be sent. If the object is not NULL, the object will be restored by the toolbar and the defaultsRestored and factoryDefaultsRestored signals will be sent

Implements makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::disableAllButtons ( bool )

virtual

Quick way to disable/enable all buttons.

Implements makVrv::DtPersistenceControlsInterface.

Reimplemented in makVrv::DtDefinitionPersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::activateSaveDefaults ( )

virtual

Prompt to save (usually on exit from a page)

Implements makVrv::DtPersistenceControlsInterface.

virtual int makVrv::DtPersistenceToolbarWidget::activateRememberToExport ( bool & dontShowAagin )

virtual

Remind user to export (usually prompting on page exit) with a checkbox allow user to not show it again the user check the "dont show again".

Returns: int QMessageBox::StandardButton

Reimplemented from makVrv::DtPersistenceControlsInterface.

virtual void makVrv::DtPersistenceToolbarWidget::on_myImportButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtPersistenceToolbarWidget::on_myExportButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtPersistenceToolbarWidget::on_myMergeButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtPersistenceToolbarWidget::on_myExportSelectedButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtPersistenceToolbarWidget::on_mySaveButton_clicked ( )

protectedvirtualslot

virtual void makVrv::DtPersistenceToolbarWidget::on_myRestoreButton_clicked ( )

protectedvirtualslot

Reimplemented in makVrv::DtObserverModePersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::on_myRestoreFactoryButton_clicked ( )

protectedvirtualslot

Reimplemented in makVrv::DtObserverModePersistenceWidget.

virtual void makVrv::DtPersistenceToolbarWidget::backupFileChanged ( const DtBackupInterface * )

protectedvirtual

Called from the backup manager when the status of restoring from backup or factory changes.

Will enable/disable appropriate button

virtual void makVrv::DtPersistenceToolbarWidget::rememberToExportDialog ( )

protectedvirtual

For the VRF style definitions, entity type mappings reminder user to export to keep their changes.

std::string makVrv::DtPersistenceToolbarWidget::labelNameToExportDialogDisplayName ( const std::string & name )

protected

map label name to the name displayed in the rememberToExport dialog name

void makVrv::DtPersistenceToolbarWidget::setupGui ( )

protected

virtual QString makVrv::DtPersistenceToolbarWidget::willAlsoRestore ( int ) const

protectedvirtual

If other items will be restored by either restoring local or factory, return text string which describes what will be restored.

Member Data Documentation

DtDe& makVrv::DtPersistenceToolbarWidget::myDe

protected

DtBackupInterface* makVrv::DtPersistenceToolbarWidget::myBackup

protected

QLabel* makVrv::DtPersistenceToolbarWidget::myLabel

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::myImportButton

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::myExportButton

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::myMergeButton

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::myExportSelectedButton

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::mySaveButton

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::myRestoreButton

protected

QPushButton* makVrv::DtPersistenceToolbarWidget::myRestoreFactoryButton

protected

QFrame* makVrv::DtPersistenceToolbarWidget::mySeparator

protected

QHBoxLayout* makVrv::DtPersistenceToolbarWidget::myButtonLayout

protected

The documentation for this class was generated from the following file:

/exports/nfedora7-1/nightly/docs/vrforcesDevelopment.tot/include/vrvCoreQt/DtPersistenceToolbarWidget.h

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
