The abstract base class for the various primitive styles. More...

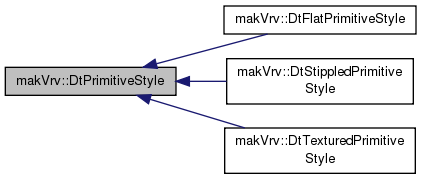

Inheritance diagram for makVrv::DtPrimitiveStyle:

Public Member Functions
	DtPrimitiveStyle (unsigned int vertexCountPerPrimitive)
	CTOR.
virtual	~DtPrimitiveStyle ()
	DTOR.
virtual void	releaseResources ()
	Release all of the rendering resources.
int	numberOfPrimitives () const
	Get the number of primitives.
virtual void	add (unsigned int *indexToUpdate)
	Add an index pointer to keep up to date.
virtual void	remove (unsigned int index)
	Remove an index.
virtual void	render (int mode, unsigned int groupCount, bool geocentric, float geocentricAlpha, const double cameraLocation[3], const double positionMatrix[16], const double projectionMatrix[16], int offset)=0
	Render the primitives.
virtual void	update (int renderMode)
	Update the style resources.
virtual float *	vertexData () const =0
	Get the vertex data.
virtual unsigned int	vertexDataSize () const =0
	Get total size of the vertex data in bytes.
unsigned int	vertexCount () const
	Get the number of vertices per primitive.
Vertex Attribute Setters and Getters
virtual void	set3DVertexPosition (unsigned int index, unsigned int vertIndex, float x, float y, float z, float w)=0
	Sets the 3D position of the vertex.
virtual void	get3DVertexPosition (unsigned int index, unsigned int vertex, float &x, float &y, float &z, float &w) const =0
	Gets the 3D position of the vertex.
virtual void	set2DVertexPosition (unsigned int index, unsigned int vertIndex, float x, float y)=0
	Sets the 2D position (offset) of the vertex.
virtual void	get2DVertexPosition (unsigned int index, unsigned int vertIndex, float &x, float &y) const =0
	Gets the 2D position (offset) of the vertex.
virtual void	set2DOffsetRotation (unsigned int index, unsigned int vertIndex, float angle)=0
	Sets the rotation of the vertex's 2D offset.
virtual void	get2DOffsetRotation (unsigned int index, unsigned int vertIndex, float &angle) const =0
	Gets the rotation of the vertex's 2D offset.
virtual void	setColor (unsigned int index, unsigned int vertIndex, float r, float g, float b, float a)=0
	Sets the color of the vertex.
virtual void	getColor (unsigned int index, unsigned int vertIndex, float &r, float &g, float &b, float &a) const =0
	Gets the color of the vertex.
virtual void	setUVCoordinates (unsigned int index, unsigned int vertIndex, float u, float v)=0
	Sets the UV coordinate.
virtual void	getUVCoordinates (unsigned int index, unsigned int vertIndex, float &u, float &v) const =0
	Gets the UV coordinate.
Primitive Attribute Setters and Getters
virtual void	setFillParameters (unsigned int index, void *fill, unsigned int fullStipplePattern[32]=0)=0
	Sets the fill parameters for the primitive.
virtual void	getFillParameters (unsigned int index, void *&fill, unsigned int fullStipplePattern[32]=0) const =0
	Gets the fill parameters for the primitive.
virtual void	setGroup (unsigned int index, float zFactor)=0
	Sets the group for the primitive.
virtual float	group (unsigned int index) const =0
	Gets the group for the primitive.

Protected Types
typedef std::vector< unsigned int * >	IndexList

Protected Attributes
DtBufferObject *	myBufferObject
unsigned int	myVertexCount
IndexList	myProxyIndices

Detailed Description

The abstract base class for the various primitive styles.

Member Typedef Documentation

typedef std::vector<unsigned int*> makVrv::DtPrimitiveStyle::IndexList

protected

Constructor & Destructor Documentation

makVrv::DtPrimitiveStyle::DtPrimitiveStyle ( unsigned int vertexCountPerPrimitive )

CTOR.

virtual makVrv::DtPrimitiveStyle::~DtPrimitiveStyle ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtPrimitiveStyle::releaseResources ( )

virtual

Release all of the rendering resources.

int makVrv::DtPrimitiveStyle::numberOfPrimitives ( ) const

Get the number of primitives.

virtual void makVrv::DtPrimitiveStyle::add ( unsigned int * indexToUpdate )

virtual

Add an index pointer to keep up to date.

Reimplemented in makVrv::DtStippledPrimitiveStyle, makVrv::DtTexturedPrimitiveStyle, and makVrv::DtFlatPrimitiveStyle.

virtual void makVrv::DtPrimitiveStyle::remove ( unsigned int index )

virtual

Remove an index.

Reimplemented in makVrv::DtStippledPrimitiveStyle, makVrv::DtTexturedPrimitiveStyle, and makVrv::DtFlatPrimitiveStyle.

virtual void makVrv::DtPrimitiveStyle::render	(	int	mode,
		unsigned int	groupCount,
		bool	geocentric,
		float	geocentricAlpha,
		const double	cameraLocation[3],
		const double	positionMatrix[16],
		const double	projectionMatrix[16],
		int	offset
	)
